EN(H4SO)(diag)-183

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

ENGINE (DIAGNOSTICS)

Step

Check

Yes

No

1

CHECK HARNESS BETWEEN ECM AND
KNOCK SENSOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connectors from ECM.
3) Measure the resistance between ECM con-
nectors.

Connector & terminal

(B134) No. 15 — (B134) No. 29:

Is the resistance less than
500 k

:?

Go to step 2.

Go to step 3.

2

CHECK KNOCK SENSOR.
1) Disconnect the connector from knock sen-
sor.
2) Measure the resistance between knock
sensor terminals.

Terminals

No. 1 — No. 2:

Is the resistance less than
500 k

:?

Replace the knock
sensor. <Ref. to
FU(H4SO)-25,
Knock Sensor.>

Repair the short
circuit to ground in
harness between
ECM and knock
sensor connector.

NOTE:
The harness be-
tween both con-
nectors are
shielded. Remove
the shield and re-
pair the short cir-
cuit of harness.

3

CHECK INPUT SIGNAL OF ECM.
1) Connect the connector to ECM.
2) Turn the ignition switch to ON.
3) Measure the voltage between ECM and
chassis ground.

Connector & terminal

(B134) No. 15 (+) — Chassis ground (–):

Is the voltage 2 V or more?

Even if DTC is
detected, the cir-
cuit has returned to
a normal condition
at this time. Repro-
duce the failure,
and then perform
the diagnosis
again.

NOTE:
In this case, tem-
porary poor con-
tact of connector
may be the cause.

Repair the poor
contact of ECM
connector.

EN(H4SO)(diag)-184

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

ENGINE (DIAGNOSTICS)

AZ:DTC P0335 CRANKSHAFT POSITION SENSOR “A” CIRCUIT

DTC DETECTING CONDITION:
• Immediately at fault recognition
• GENERAL DESCRIPTION <Ref. to GD(H4SO)-88, DTC P0335 CRANKSHAFT POSITION SENSOR “A”
CIRCUIT, Diagnostic Trouble Code (DTC) Detecting Criteria.>
TROUBLE SYMPTOM:
• Engine stalls.
• Failure of engine to start

CAUTION:
After repair or replacement of faulty parts, perform Clear Memory Mode <Ref. to EN(H4SO)(diag)-50,
OPERATION, Clear Memory Mode.>, and Inspection Mode <Ref. to EN(H4SO)(diag)-41, PROCEDURE,
Inspection Mode.>.

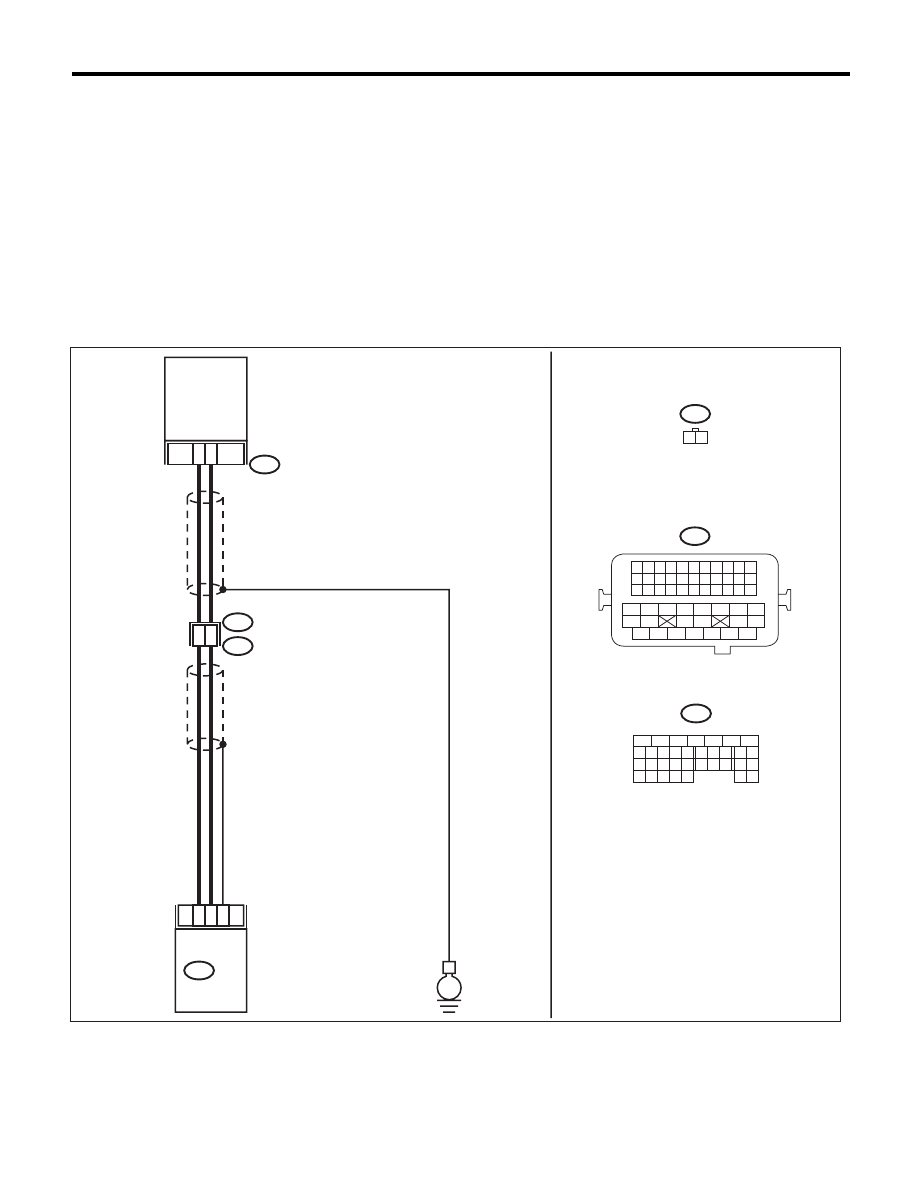

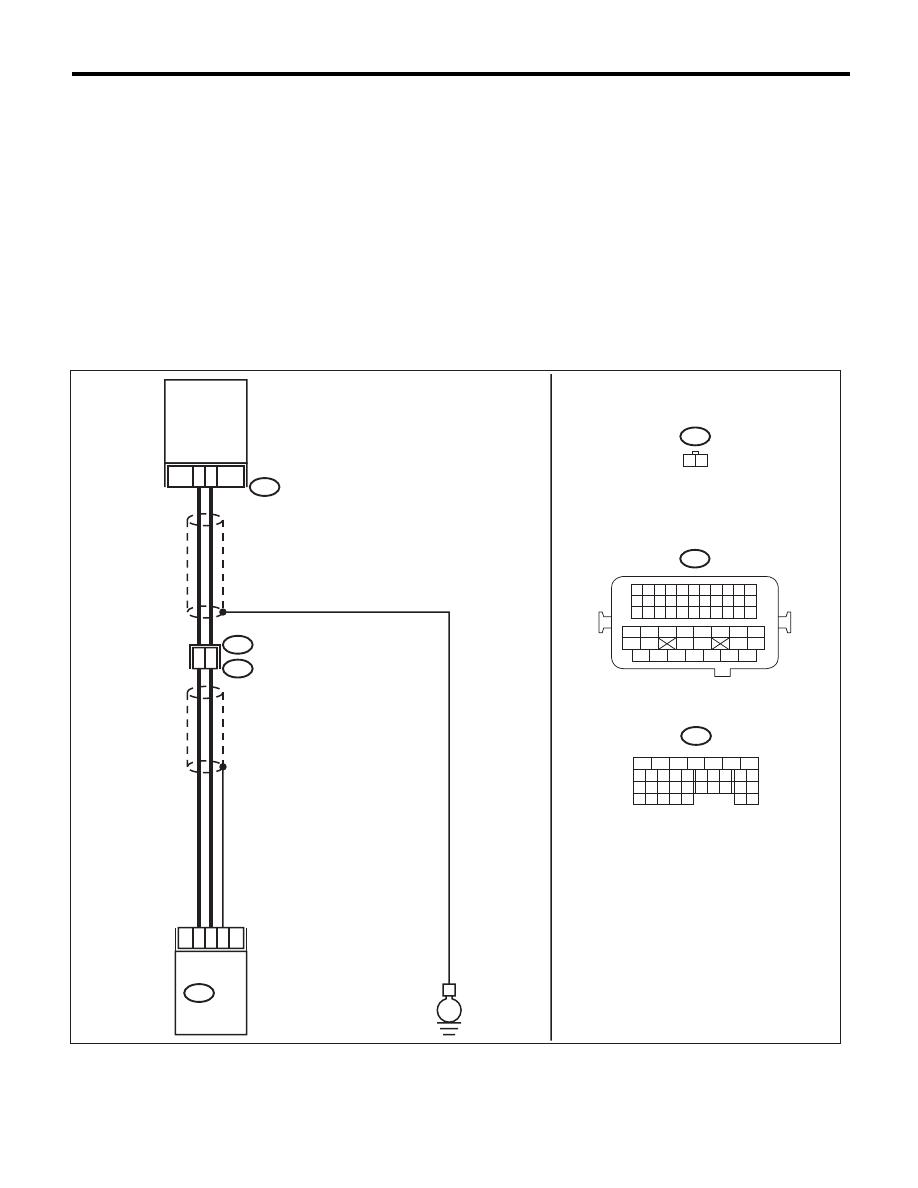

WIRING DIAGRAM:

EN-04039

B134

5

6

7

8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26 27

28

16 17

18 19 20 21

33 34

29

32

30 31

1

2

15

14

14

24

B21

E2

E10

E10

1 2

B134 ECM

13

E

CRANKSHAFT

POSITION

SENSOR

B21

1 2 3 4

12 13 14 15

5 6 7 8

16 17 18 19

9 10 11

20 21 22

23 24 25 26 27 28 29 30 31 32 33

35

34

37

36

39

38

41

40

43

42

44

45

47

46

49

48

51

50

53

52

54

EN(H4SO)(diag)-185

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

ENGINE (DIAGNOSTICS)

Step

Check

Yes

No

1

CHECK INSTALLATION CONDITION OF
CRANKSHAFT POSITION SENSOR.

Is the crankshaft position sen-
sor installation bolt tightened
securely?

Go to step 2.

Tighten the crank-
shaft position sen-
sor installation bolt
securely.

2

CHECK CRANKSHAFT POSITION SENSOR.
1) Turn the ignition switch to OFF.
2) Remove the crankshaft position sensor.
3) Measure the resistance between connector
terminals of crankshaft position sensor.

Terminals

No. 1 — No. 2:

Is the resistance between 1 and
4 k

:?

Go to step 3.

Replace the crank-
shaft position sen-
sor. <Ref. to
FU(H4SO)-23,
Crankshaft Posi-
tion Sensor.>

3

CHECK HARNESS BETWEEN ECM AND
CRANK SHAFT POSITION SENSOR.
1) Disconnect the connectors from ECM.
2) Measure the resistance of harness between
ECM and crankshaft position sensor connector.

Connector & terminal

(B134) No. 13 — (E10) No. 1:
(B134) No. 14 — (E10) No. 2:

Is the resistance less than 1

:? Repair the poor

contact of ECM
and crankshaft
position sensor
connector.

Repair the harness
and connector.

NOTE:
In this case, repair
the following item:
• Open circuit in
harness between
ECM and crank-
shaft position sen-
sor connector
• Poor contact of
coupling connector

EN(H4SO)(diag)-186

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

ENGINE (DIAGNOSTICS)

BA:DTC P0336 CRANKSHAFT POSITION SENSOR “A” CIRCUIT RANGE/

PERFORMANCE

DTC DETECTING CONDITION:
• Two consecutive driving cycles with fault
• GENERAL DESCRIPTION <Ref. to GD(H4SO)-90, DTC P0336 CRANKSHAFT POSITION SENSOR “A”
CIRCUIT RANGE/PERFORMANCE, Diagnostic Trouble Code (DTC) Detecting Criteria.>
TROUBLE SYMPTOM:
• Engine stalls.
• Failure of engine to start

CAUTION:
After repair or replacement of faulty parts, perform Clear Memory Mode <Ref. to EN(H4SO)(diag)-50,
OPERATION, Clear Memory Mode.>, and Inspection Mode <Ref. to EN(H4SO)(diag)-41, PROCEDURE,
Inspection Mode.>.
WIRING DIAGRAM:

EN-04039

B134

5

6

7

8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26 27

28

16 17

18 19 20 21

33 34

29

32

30 31

1

2

15

14

14

24

B21

E2

E10

E10

1 2

B134 ECM

13

E

CRANKSHAFT

POSITION

SENSOR

B21

1 2 3 4

12 13 14 15

5 6 7 8

16 17 18 19

9 10 11

20 21 22

23 24 25 26 27 28 29 30 31 32 33

35

34

37

36

39

38

41

40

43

42

44

45

47

46

49

48

51

50

53

52

54
