WI-224

Rear Wiring Harness

WIRING SYSTEM

2. WAGON MODEL

Connector

Connecting to

No.

Pole

Color

Area

No.

Description

R1

20

C-3

B97

Bulkhead wiring harness

R2

16

B-1

B98

R8

4

C-3



Front seat belt switch LH

R9

3

C-4



Front door switch LH

R10

8

B-2

D22

Rear door cord RH

R12

3

B-2



Front door switch RH

R13

8

C-4

D28

Rear door cord LH

R15

8

B-4

R213

Fuel cord

R16

3

A-3



Rear door switch RH

R41

4

C-3



Seat heater unit LH

R43

22

C-3



Adapter cord (console)

R44

4

B-3



Seat heater unit RH

R46

6

B-5

R67

Fuel cord

R50

16

B-1

B90

Bulkhead wiring harness

R51

2

Black

A-2



Vanity mirror light RH

R52

3

A-3

 Room

light

R54

2

Black

B-3



Vanity mirror light LH (Without home link)

3

B-3



Vanity mirror light LH (With home link)

R55

2

B-3

R74

Sunroof cord

R56

2

B-3



Spot map light

R57

3

B-3

 Shade

mirror

R72

2

Gray

B-4



Rear ABS wheel speed sensor RH

R73

2

Gray

B-4



Rear ABS wheel speed sensor LH

R74

2

A-3

R55

Roof cord

R75

6

A-4



Sunroof motor assembly

R98

18

B-1

i53

Instrument panel wiring harness

R99

12

C-3

i54

R100

14

B-1

i134

R109

4

Black

C-4

 Power

seat

LH

R128

5

A-3

 Sunroof

switch

R150

8

Gray

B-3



Seat belt & airbag warning light & spot map light

R167

16

C-3

i102

Instrument panel wiring harness

R168

20

C-3



Fuse & relay box (F/B)

R169

8

B-2

 Impact

sensor

R188

2

Black

B-4

 Power

seat

RH

R211

12

C-4



TPM control module

R226

10

C-3

 Navigation

control

module

R315

12

C-2



Audio amplifier (premium audio model)

R316

24

C-2



R317

10

Blue

C-2



R318

4

C-2

 Joint

connector

: White or natural color

WI-225

Rear Wiring Harness

WIRING SYSTEM

Connector

Connecting to

No.

Pole

Color

Area

No.

Description

AB17

24

Yellow

C-2



Airbag control module LH

AB18

24

Yellow

C-2



Airbag control module RH

AB19

2

Yellow

C-3



Side airbag module LH

AB21

2

Black

C-4

 Pretensioner

LH

AB23

4

Yellow

C-4



Side airbag sensor LH

AB24

2

Yellow

B-3

AB25

Side airbag module RH

AB26

2

Black

B-2

 Pretensioner

RH

AB28

4

Yellow

B-3



Side airbag sensor RH

AB34

4

Yellow

B-3



Curtain airbag sensor RH

AB35

2

Black

C-3



Fuse & relay box (F/B)

AB41

2

Yellow

B-5

 Satellite

safing

sensor

AB53

6

Gray

B-3



Occupant detection control module

AB56

3

Brown

B-3



Belt tensioner sensor

WI-226

Rear Wiring Harness

WIRING SYSTEM

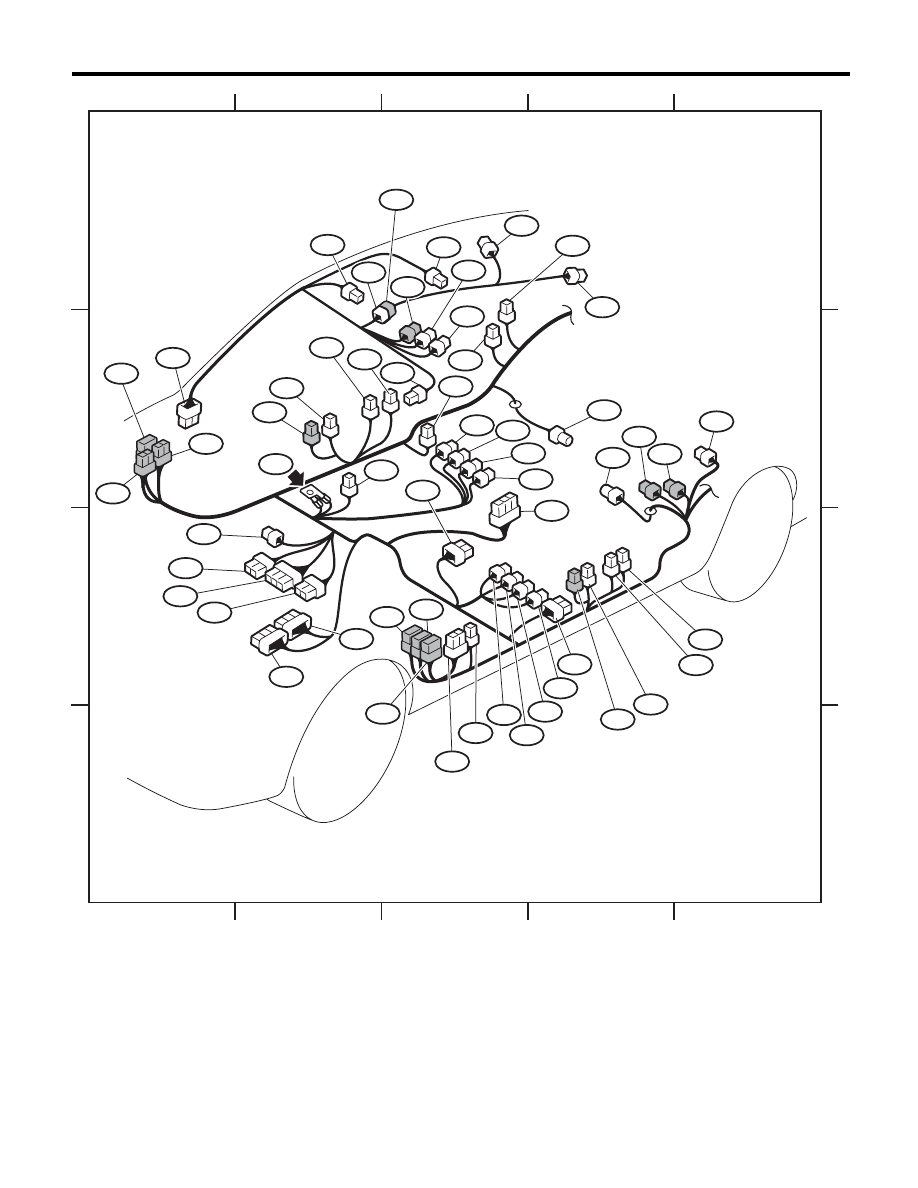

WI-21025

1

2

3

4

5

1

2

3

4

5

A

B

C

D

A

B

C

D

R1

R50

R98

R100

R55

R52

R128

R150

AB56

R10

R12

AB24

R72

R73

AB41

R15

R46

GB-8

AB17

R51

AB28

R54

AB26

R169

R9

R211

R13

AB23

AB21

R44

AB53

AB18

R317

R316

R315

R318

R188

R99

R168

AB35

R41

R109

AB19

R8

R2

R167

R43

R226

R74

R75

R57

AB34

R16

R56

WI-227

Door Cord

WIRING SYSTEM

60.Door Cord

A: LOCATION

Connector

Connecting to

No.

Pole

Color

Area

No.

Description

D2

2

C-4



Front door speaker LH

D3

2

Gray

C-4



Front power window motor LH

D5

6

C-4



Outer mirror assembly LH (Without turn signal light)

8

C-4



Outer mirror assembly LH (With turn signal light)

D7

14

C-4



Power window main switch

D10

2

C-4



Door step light LH

D12

2

C-2



Front door speaker RH

D13

2

Gray

B-2



Front power window motor RH

D15

6

B-2



Outer mirror assembly RH (Without turn signal light)

8

B-2



Outer mirror assembly RH (With turn signal light)

D17

5

B-2



Front power window sub switch

D18

2

Gray

B-3



Front door lock actuator RH

D20

2

B-3



Door step light RH

D22

8

B-3

R10

Rear wiring harness RH

D23

2

Black

C-4



Rear door speaker LH (normal audio model)

2

C-4



Rear door speaker LH (premium audio model)

D24

2

Green

B-4



Rear power window motor LH

D25

5

B-4



Rear power window sub switch LH

D26

2

Gray

B-5



Rear door lock actuator LH

D28

8

C-4

R13

Rear wiring harness LH

D29

2

Black

B-3



Rear door speaker RH (normal audio model)

2

B-3



Rear door speaker RH (premium audio model)

D30

2

Green

B-3



Rear power window motor RH

D31

5

B-3



Rear power window sub switch RH

D32

2

Gray

B-3



Rear door lock actuator RH

D72

2

Gray

C-4



Front door lock actuator LH

D82

3

Brown

C-4



Door key switch

D83

25

C-3

i76

Instrument panel wiring harness

D84

25

B-1

i101

D93

2

C-3



Front door tweeter (inner) LH (normal audio model)

2

C-3



Front door tweeter (inner) LH (premium audio model)

D97

2

B-2



Front door tweeter (inner) RH (normal audio model)

2

B-2



Front door tweeter (inner) RH (premium audio model)

D125

5

Black

B-2



Passenger’s seat door lock switch

: White or natural color
