Subaru Legacy IV (2008 year). Manual - part 1241

WI-216

Engine Wiring Harness and Transmission Cord

WIRING SYSTEM

WI-21038

1

2

3

4

5

1

2

3

4

5

A

B

C

D

A

B

C

D

< AT >

< MT >

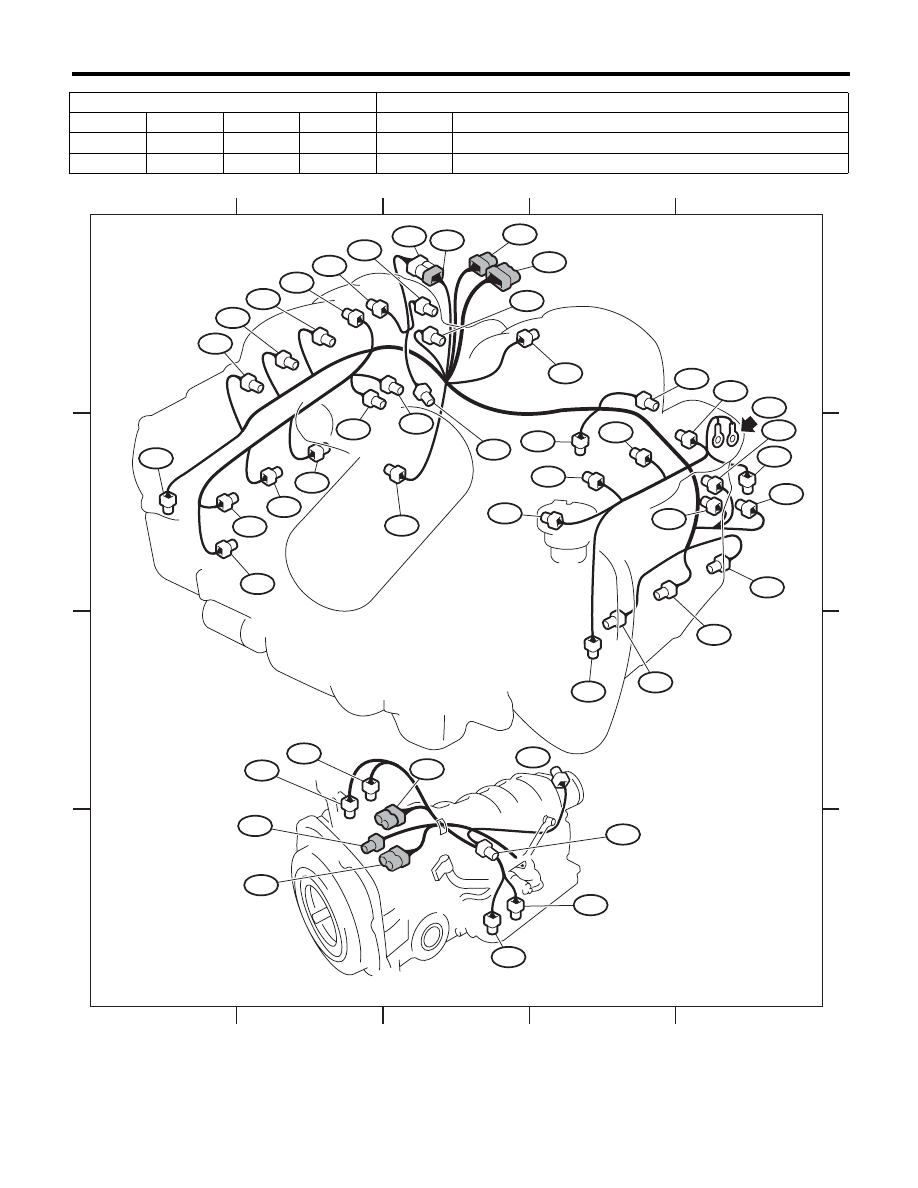

GE-1

E2

E57

E52

E21

E14

E64

E16

E40

E51

E32

E37

E34

E31

E79

E33

E5

E38

E19

E4

E8

E11

E41

E80

E10

E35

E55

E36

E17

E6

T5

T9

T6

T13

T3

T4

T6

T5

T12

T2

T1

AT4

AT1

WI-217

Engine Wiring Harness and Transmission Cord

WIRING SYSTEM

3. 3.0 L MODEL

Connector

Connecting to

No.

Pole

Color

Area

No.

Description

E1

16

Brown

A-3

B20

Bulkhead wiring harness

E2

54

Black

A-3

B21

E3

16

Brown

D-3

B22

E4

2

Blue

A-2



Purge control solenoid valve

E5

2

Dark gray

A-2



Fuel injector No. 1

E6

2

Dark gray

A-2



Fuel injector No. 3

E8

2

Black

B-4



Engine coolant temperature sensor

E10

2

Dark gray

B-4



Crankshaft position sensor

E11

1

B-1

 Oil

pressure

switch

E14

2

Blue

A-3



Knock sensor 1

E16

2

Dark gray

B-4



Fuel injector No. 2

E17

2

Dark gray

B-4



Fuel injector No. 4

E18

6

Dark gray

A-3



EGR valve

E19

1

B-3



Power steering oil pressure switch

E21

3

Black

A-3



Manifold absolute pressure sensor

E24

4

Light gray

D-3



Front oxygen (A/F) sensor LH

E25

4

Dark gray

D-3



Rear oxygen sensor LH

E31

3

Black

B-1



Ignition coil No. 1

E32

3

Black

C-4



Ignition coil No. 2

E33

3

B-2



Ignition coil No. 3

E34

3

B-4



Ignition coil No. 4

E43

2

Dark gray

A-2



Fuel injector No. 5

E44

2

Dark gray

B-5



Fuel injector No. 6

E45

3

Black

B-2



Ignition coil No. 5

E46

3

Black

B-5



Ignition coil No. 6

E47

4

Light gray

D-2



Front oxygen (A/F) sensor RH

E48

2

Blue

A-4



Knock sensor 2

E57

6

Black

A-4



Electronic throttle control

E61

4

Dark gray

C-2



Rear oxygen sensor RH

E67

2

Black

B-1



Oil flow control solenoid valve RH

E68

2

Black

C-4



Oil flow control solenoid valve LH

E69

2

Blue

A-2



Oil switching solenoid valve RH

E70

2

Blue

B-5



Oil switching solenoid valve LH

E71

1

A-3



Variable valve lift diagnosis oil pressure switch RH

E72

1

B-5



Variable valve lift diagnosis oil pressure switch LH

E73

3

Gray

A-2



Camshaft position sensor RH

E74

3

Gray

B-5



Camshaft position sensor LH

E75

2

Black

B-5

 Oil

temperature

sensor

E76

10

Dark gray

A-3

E77

Engine wiring harness

E77

10

Dark gray

A-3

E76

: White or natural color

Connector

Connecting to

No.

Pole

Color

Area

No.

Description

T3

8

Gray

D-2

B12

Bulkhead wiring harness

T4

20

Gray

D-3

B11

WI-218

Engine Wiring Harness and Transmission Cord

WIRING SYSTEM

Connector

Connecting to

No.

Pole

Color

Area

No.

Description

AT1

3

Black

D-3



Turbine speed sensor 1

AT4

3

Black

C-4



Rear vehicle speed sensor

WI-21039

1

2

3

4

5

1

2

3

4

5

A

B

C

D

A

B

C

D

< AT >

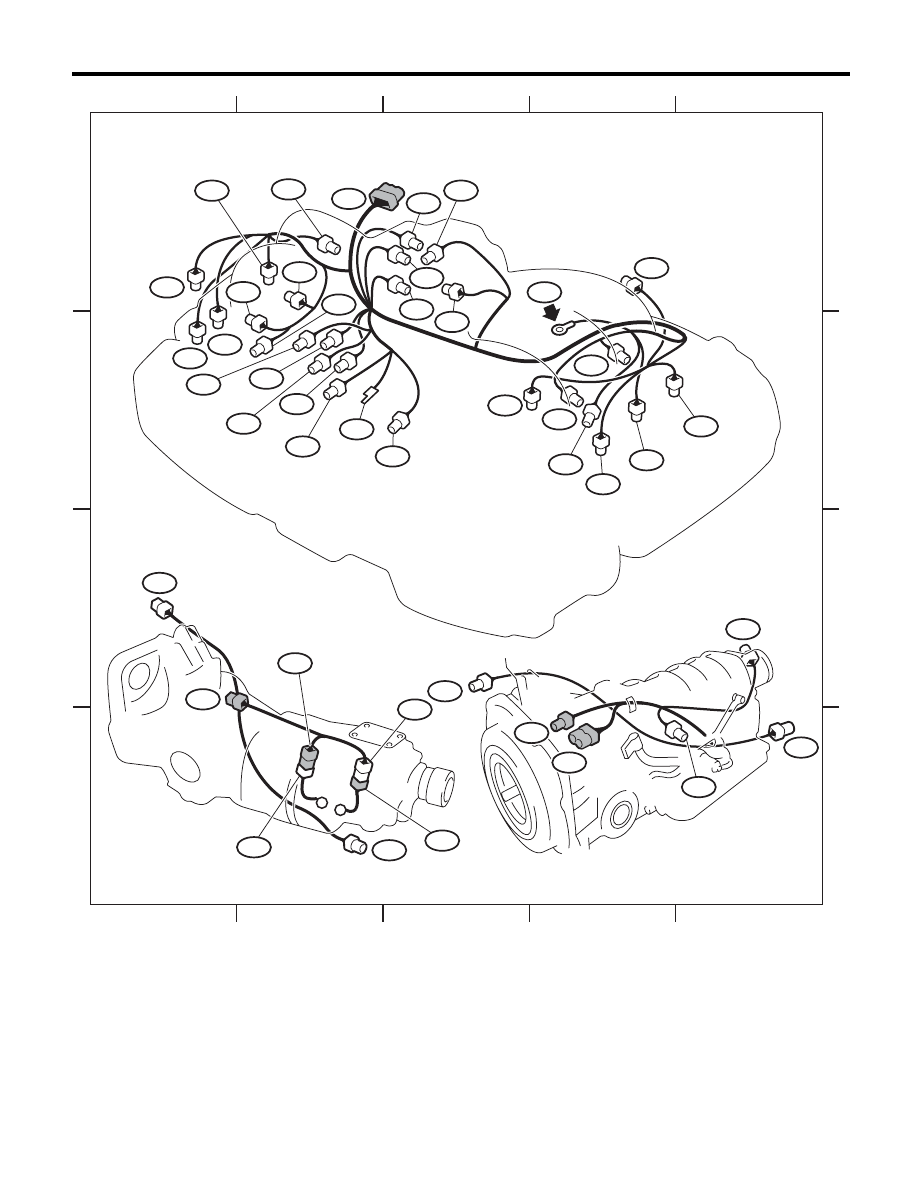

AT4

E67

E5

E6

E43

E73

E4

E18

E77

E76

E1

E2

E48

E44

E72

E74

E70

E75

E31

E11

E33

E45

E19

E46

E34

E32

E68

E69

E71

E21

E10

E16

E8

E17

GE

E57

E14

E61

E47

T3

T4

E25

E24

E3

AT1

WI-219

Instrument Panel Wiring Harness

WIRING SYSTEM

58.Instrument Panel Wiring Harness

A: LOCATION

Connector

Connecting to

No.

Pole

Color

Area

No.

Description

i1

28

B-1

B36

Bulkhead wiring harness

i2

8

B-4

B37

i3

20

B-5

B38

i5

20

C-2



Fuse & relay box (F/B)

i6

16

C-2



Remote control mirror switch

i10

22

Green

B-2



Combination meter

i11

14

Green

B-2



i15

6

C-4



Blower switch (Manual A/C)

i17

16

Black

C-4



A/C control panel (Manual A/C)

i22

4

B-3

 Hazard

switch

i23

2

B-4

 Glove

box

light

i24

2

C-4



Front accessory power supply socket

i26

14

C-4

 Audio

i29

1

Black

C-4

 Audio

bracket

ground

i42

8

C-1

B178

Bulkhead wiring harness

i51

2

B-5

 Sunload

sensor

i53

18

C-5

R98

Rear wiring harness

i54

12

C-1

R99

i55

2

C-3

 In-vehicle

sensor

i59

10

B-3

 Clock

i76

25

C-1

D83

Front door cord LH

i78

15

Blue

C-2

 Push

switch

i79

6

C-2

 Illumination

control

i84

35

Gray

C-2



Body integrated unit

i85

8

Black

C-4

 Audio

i88

8

Black

C-4



A/C control panel (Auto A/C)

i96

8

B-5



Keyless entry control module

i101

25

C-5

D84

Front door cord RH

i102

16

C-1

R167

Rear wiring harness

i106

4

B-2



CAN joint connector

i107

4

B-2



i119

16

Black

B-4



TV monitor

i120

20

Black

B-4



i134

14

C-5

R100

Rear wiring harness

: White or natural color
