LAN(diag)-74

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

LAN SYSTEM (DIAGNOSTICS)

Step

Check

Yes

No

1

CHECK DTC.
Connect the Subaru Select Monitor and read
the DTC of the body integrated unit.

Are there any other DTC
besides U1302?

Perform diagnosis
according to other
DTC.

Go to step 2.

2

CHECK DTC.
Check the DTC displayed in the body integrated
unit.

Is the DTC displayed a current
malfunction?

Check the connec-
tion of harness
connectors. Go to
step 3.

Go to step 3.

3

CHECK DTC.
Turn the ignition switch to OFF and read DTCs
again.

Is U1302 a current malfunc-
tion?

Go to step 4.

Temporary poor
contact occurs.

4

CHECK CURRENT DATA.
Check the current data (auto A/C failure) of the
body integrated unit using the Subaru Select
Monitor.

Is OK displayed?

Go to step 5.

Perform the auto A/
C self-diagnosis.
<Ref. to AC(diag)-
9, OPERATION,
Diagnostic Chart
for Self-Diagno-
sis.>

5

CHECK AUTO A/C ECM.
1) Turn the ignition switch to OFF.
2) Disconnect the auto A/C ECM connector
(B282).
3) Connect the Subaru Select Monitor and
then turn the ignition switch to ON.
4) Perform the clear memory operation for the
body integrated unit.
5) Read the DTC of the body integrated unit.

Is DTC U1302 detected?

Go to step 7.

Go to step 6.

6

CHECK HARNESS.
1) Disconnect the body integrated unit connec-
tor (B280) and auto A/C control module connec-
tor (B282).
2) Check open or short conditions between
body integrated unit connector and auto A/C
control module connector.

Connector & terminal

(B282) No. 10 — (B280) No. 26:
(B282) No. 9 — (B280) No. 25:

Is harness normal?

Replace auto A/C
ECM. <Ref. to AC-
35, REMOVAL,
Control Unit (Auto
A/C Model).>

Repair or replace
the open or short
circuit of harness.

7

CHECK CURRENT DATA.
Check current data (center display failure) of the
body integrated unit.

Is OK displayed?

Go to step 8.

Repair or replace
the center display.
<Ref. to ET-19,
REMOVAL, Navi-
gation Display.>

8

CHECK CENTER DISPLAY.
1) Turn the ignition switch to OFF.
2) Disconnect the center display connector
(i119).
3) Connect the Subaru Select Monitor and
then turn the ignition switch to ON.
4) Perform the clear memory operation for the
body integrated unit.
5) Read the DTC of the body integrated unit.

Is DTC U1302 detected?

Go to step 10.

Go to step 9.

9

CHECK HARNESS.
1) Disconnect the body integrated unit connec-
tor (B280) and center display connector (i119).
2) Check open or short conditions between
body integrated unit connector and center dis-
play connector.

Connector & terminal

(i119) No. 14 — (i84) No. 26:
(i119) No. 6 — (i84) No. 27:

Is harness normal?

Replace the center
display. <Ref. to
AC-35, REMOVAL,
Control Unit (Auto
A/C Model).>

Repair or replace
the open or short
circuit of harness.

LAN(diag)-75

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

LAN SYSTEM (DIAGNOSTICS)

10

CHECK CURRENT DATA.
Check current data (meter failure) of the body
integrated unit.

Is OK displayed?

Go to step 11.

Replace the com-
bination meter.
<Ref. to IDI-22,
REMOVAL, Com-
bination Meter.>

11

CHECK COMBINATION METER.
1) Turn the ignition switch to OFF.
2) Disconnect the combination meter connec-
tor (i10).
3) Connect the Subaru Select Monitor and
then turn the ignition switch to ON.
4) Perform the clear memory operation for the
body integrated unit.
5) Read the DTC of the body integrated unit.

Is DTC U1302 detected?

Go to step 13.

Go to step 12.

12

CHECK HARNESS.
1) Disconnect the combination meter connec-
tor (i10).
2) Check open or short conditions between
body integrated unit connector and combination
meter connector.

Connector & terminal

(i10) No. 21 — (i84) No. 27:
(i10) No. 22 — (i84) No. 26:

Is harness normal?

Replace the com-
bination meter.
<Ref. to IDI-22,
REMOVAL, Com-
bination Meter.>

Repair or replace
the open or short
circuit of harness.

13

CHECK HARNESS.
1) Disconnect connectors of A/C ECM (B282),
center monitor (i119), combination meter (i10)
and body integrated unit connector (i84).
2) Measure the resistance between connector
terminals.

Connector & terminal

(i84) No. 27 — (i84) No. 26:

Is the resistance 1 M

: or

more?

Go to step 14.

Repair the short
circuit of harness
or replace har-
ness.

14

CHECK HARNESS.
1) Connect the disconnected connectors.
2) Measure the resistance between body inte-
grated unit connector and chassis ground.

Connector & terminal

(B280) No. 25 — Chassis ground:
(B280) No. 26 — Chassis ground:
(i84) No. 26 — Chassis ground:
(i84) No. 27 — Chassis ground:

Is the resistance less than 10

:? Repair the short

circuit of harness
or replace har-
ness.

Go to step 15.

15

CHECK HARNESS.
1) Turn the ignition switch to ON.
2) Measure the voltage between body inte-
grated unit connector and chassis ground.

Connector & terminal

(B280) No. 25 (+) — Chassis ground (–):
(B280) No. 26 (+) — Chassis ground (–):
(i84) No. 26 (+) — Chassis ground (–):
(i84) No. 27 (+) — Chassis ground (–):

Is the voltage 6 V or more?

Repair the short
circuit of harness
or replace har-
ness.

Replace the body
integrated unit.
<Ref. to SL-56,
REMOVAL, Body
Integrated Unit.>

Step

Check

Yes

No

LAN(diag)-76

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

LAN SYSTEM (DIAGNOSTICS)

S: DTC U1311 CAN-LS METER UNIT DATA ABNORMAL

DTC DETECTING CONDITION:
Combination meter has error, the harness between main harness splice and combination meter is open or
shorted, the connector is not connected properly, or the terminal has poor crimping.
TROUBLE SYMPTOM:
“Er Lc” is displayed in odo/trip meter. (Except for meter with MID)

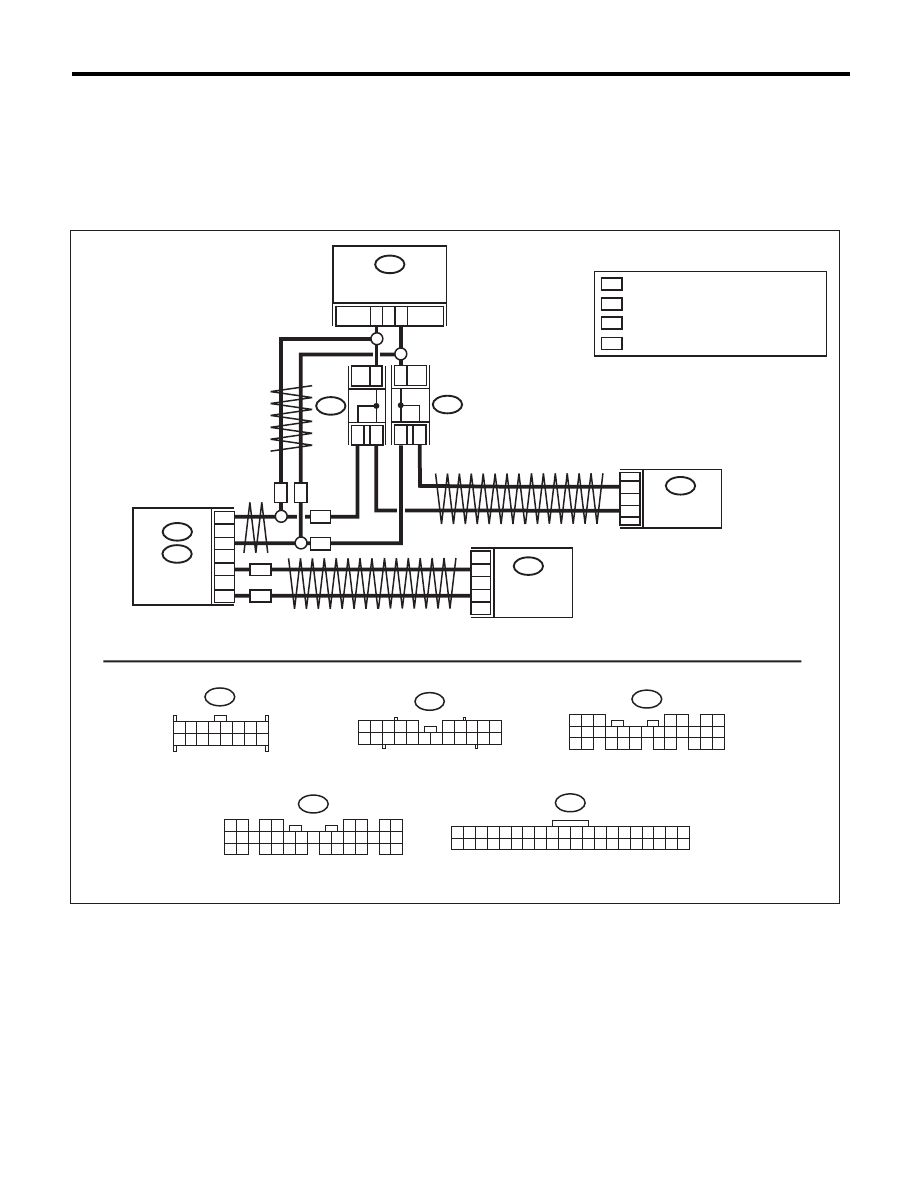

WIRING DIAGRAM:

i106

i10

B282

21

22

14

6

i119

A27

A26

B26

B25

i84

B280

10

9

B:

A:

B:

i107

*

1

*

1

*

1

*

1

*

1

*

1

i10

LAN00383

CAN
JOINT
CONNECTOR

ON

WN

WN

ON

TWISTED PAIR LINE

TWISTED PAIR LINE

COMBINATION METER

BODY

INTEGRATED

UNIT

i119

1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16

1 2 3 4 5

6 7 8 9 10

11 12

19 20 21

13 14 15 16 17 18

22

5

4

6 7

8

2

1

9

3

10

22

23

11 12 13 14 15

24 25

26 27

16 17 18

28 29

19 20

21

30

B280

A:

i84

1 2

3 4

5 6

7 8

9 10 11 12

14 15 16 17 18 19 20 21 22 23

24 25

26 27 28 29

30 31 32 33

34 35

13

B282

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

*

1

ON

WN

WA

WA

WA

AUTO A/C

CONTROL

MODULE

CENTER

DISPLAY

: TERMINAL No. OPTIONAL ARRANGEMENT

: WITH NAVIGATION

: WITHOUT NAVIGATION

: WITH AUTO A/C

LAN(diag)-77

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

LAN SYSTEM (DIAGNOSTICS)

Step

Check

Yes

No

1

CHECK DTC.
Connect the Subaru Select Monitor and read
the DTC of the body integrated unit.

Are there any other DTC
besides U1311?

Perform diagnosis
according to other
DTC.

Go to step 2.

2

CHECK DTC.
Check the DTC displayed in the body integrated
unit.

Is the DTC displayed a current
malfunction?

Check the connec-
tion of harness
connectors. Go to
step 3.

Go to step 3.

3

CHECK DTC.
Turn the ignition switch to OFF and read DTCs
again.

Is U1311 a current malfunc-
tion?

Replace the com-
bination meter.
<Ref. to IDI-22,
REMOVAL, Com-
bination Meter.>

Go to step 4.

4

CHECK COMBINATION METER.
Perform the self-diagnosis of combination
meter. <Ref. to IDI-5, SELF-DIAGNOSIS,
INSPECTION, Combination Meter System.>

Is the self-diagnosis OK?

Temporary poor
contact occurs.

Replace the com-
bination meter.
<Ref. to IDI-22,
REMOVAL, Com-
bination Meter.>
