Subaru Legacy IV (2008 year). Manual - part 1163





IM(diag)-9

Clear Memory Mode

IMMOBILIZER (DIAGNOSTICS)

7. Clear Memory Mode

A: OPERATION

1. ECM

1) On the «Main Menu» display, select the {Each
System Check}.
2) On the «System Selection Menu» display, select
the {Engine Control System}.
3) Select the [OK] after the information of engine
type is displayed.
4) On the «Engine Diagnosis» display, select the
{Clearing Memory}.
5) When “Done” is displayed on the display, end
the Subaru Select Monitor and turn the ignition
switch to OFF.

NOTE:
• After the memory is cleared, initial diagnosis of
the electronic throttle control is performed. Wait for
10 seconds or more after turning the ignition switch
to ON, and then start the engine.
• For detailed operation procedures, refer to the
“PC application help for Subaru Select Monitor”.

2. BODY INTEGRATED UNIT

1) On the «Main Menu» display, select the {Each
System Check}.
2) On the «System Selection Menu» display, select
the {Integ. Unit}.
3) After {Integ. Unit} is displayed, select [OK].
4) On the «Integ. unit mode failure diag» display,
select the {Clearing Memory}.
5) When “Done” is displayed on the display, end
the Subaru Select Monitor and turn the ignition
switch to OFF.

NOTE:
For detailed operation procedures, refer to the “PC
application help for Subaru Select Monitor”.

IM(diag)-10

Diagnostics Chart for Security Indicator Light

IMMOBILIZER (DIAGNOSTICS)

8. Diagnostics Chart for Security Indicator Light

A: INSPECTION

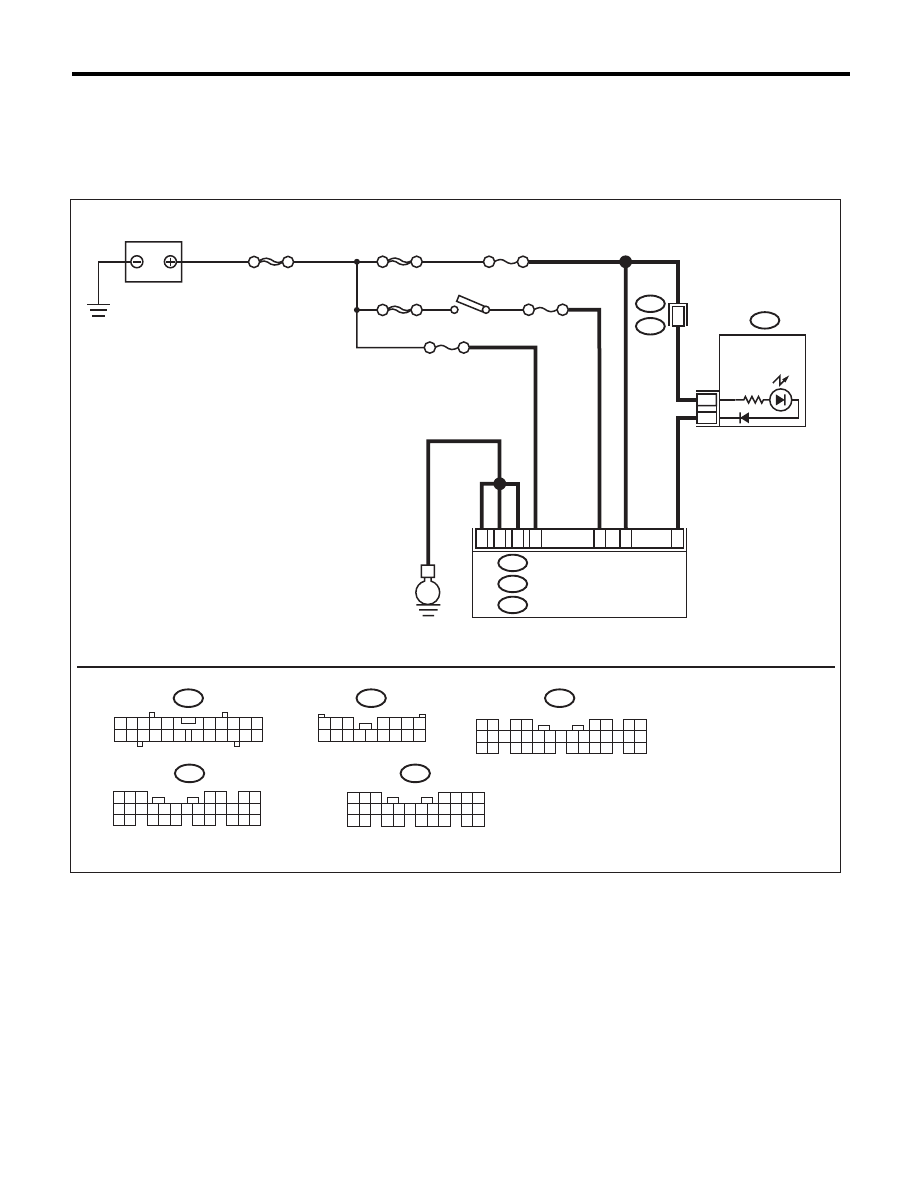

1. CHECK SECURITY INDICATOR LIGHT CIRCUIT

WIRING DIAGRAM:

MAIN SBF

SBF-3

BATTERY

COMBINATION METER

BODY INTEGRATED UNIT

i10

F/B No.7

F/B No.12

IGNITION
 SWITCH

A33

C2

B7

C9

C8

A17

E

A:

A1

A1

M/B No.8

SBF-8

B22

i84

A:

B280

B:

B281

C:

5 6 7

8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26

27 28

16 17 18 19

20 21

B281

i84

1 2

3 4

5 6

7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

24 25

26 27 28 29

30 31 32 33

34 35

5

4

6 7

8

2

1

9

3

10

22

23

11 12 13 14 15

24 25

26 27

16 17 18

28 29

19 20

21

30

B280

i10

2

1

3 4

6 7 8 9 10

22

21

20

19

18

17

16

15

14

13

12

11

5

A:

C:

B:

A:

10

R167

i102

i102

SECURITY
INDICATOR
LIGHT

1 2 3

4 5 6 7

8 9 10 11 12 13 14 15 16

IM-00203

IM(diag)-11

Diagnostics Chart for Security Indicator Light

IMMOBILIZER (DIAGNOSTICS)

Step

Check

Yes

No

1

CHECK SECURITY INDICATOR LIGHT.
1) Turn the ignition switch to OFF.
2) Disconnect the harness connector from
body integrated unit.
3) Connect a resistor (100

:) between the

body integrated unit harness connector termi-
nal (i84) No. 33 and chassis ground.

Does the security indicator light
illuminate?

Go to step 2.

Go to step 5.

2

CHECK BODY INTEGRATED UNIT GROUND
CIRCUIT.
Measure the resistance between body inte-
grated unit harness connector terminal and
chassis ground.

Connector & terminal

(B280) No. 22 — Chassis ground:
(B281) No. 8 — Chassis ground:
(B281) No. 9 — Chassis ground:

Is the resistance less than 10

:? Go to step 3.

Repair the open
circuit of body inte-
grated unit ground
circuit.

3

CHECK BODY INTEGRATED UNIT IGNITION
CIRCUIT.
1) Turn the ignition switch to ON. (engine OFF)
2) Measure the voltage between body inte-
grated unit harness connector terminal and
chassis ground.

Connector & terminal

(i84) No. 1 (+) — Chassis ground (–):

Is the voltage 10 V or more?

Go to step 4.

Check the harness
for open or short
circuit between the
body integrated
unit and ignition
switch.

4

CHECK BODY INTEGRATED UNIT POWER
SUPPLY CIRCUIT.
1) Turn the ignition switch to OFF.
2) Measure the voltage between body inte-
grated unit harness connector terminal and
chassis ground.

Connector & terminal

(B280) No. 7 (+) — Chassis ground (–):
(B281) No. 2 (+) — Chassis ground (–):

Is the voltage 10 V or more?

Replace the body
integrated unit.
<Ref. to SL-56,
Body Integrated
Unit.> Replace all
ignition keys
(including the tran-
sponder). Execute
the registration
procedure next.
Refer to the “PC
application help for
Subaru Select
Monitor”.

Check the harness
for open or short
circuit between the
body integrated
unit and fuse.

5

CHECK COMBINATION METER CIRCUIT.
1) Remove the combination meter. <Ref. to
IDI-22, Combination Meter.>
2) Measure the voltage between combination
meter harness connector terminal and chassis
ground.

Connector & terminal

(i10) No. 1 (+) — Chassis ground (–):

Is the voltage 10 V or more?

Go to step 6.

Check the harness
for open or short
between combina-
tion meter and
fuse.

6

CHECK COMBINATION METER CIRCUIT.
Measure the resistance between the body inte-
grated unit harness connector terminal and
combination meter harness connector termi-
nals.

Connector & terminal

(i84) No. 33 — (i10) No. 17:

Is the resistance less than 10

:? LED bulb is defec-

tive. Replace the
combination meter
case assembly.
<Ref. to IDI-23,
DISASSEMBLY,
Combination
Meter.>

Repair the harness
or connector.

IM(diag)-12

Diagnostics Chart for Security Indicator Light

IMMOBILIZER (DIAGNOSTICS)

2. CHECK KEY SWITCH CIRCUIT

WIRING DIAGRAM:

B350

B281

M/B No.14

C7

3

4

C:

5 6 7

8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26

27 28

16 17 18 19

20 21

B281

C:

B350

1 2 3 4

BATTERY

KEY WARNING  SWITCH

BODY INTEGRATED
            UNIT

IM-00200
