SE-12

Front Seat

SEATS

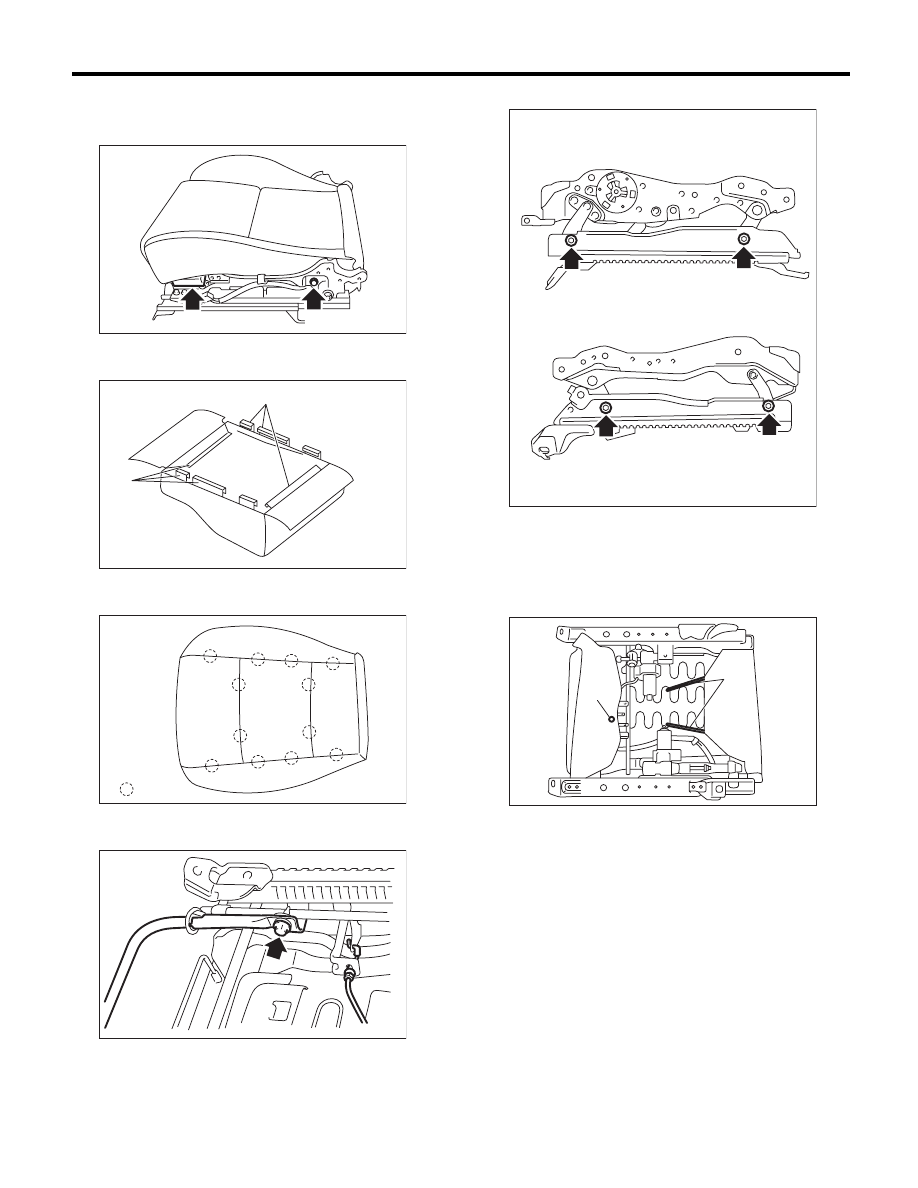

17) Remove the bolt (A) and hook (B) on left and
right side, and then remove the seat cushion frame
from slide rail assembly.

18) Remove the hooks (A), and then remove the
seat cushion from seat cushion frame.

19) Remove the hog rings (A), and then remove the
seat cushion cover from seat cushion pad.

20) Remove the bolt of the sliding adjustment bar
and connecting wire.

21) Remove the bolts, then remove the slide rail.

POWER SEAT

1) Remove the seat from vehicle. <Ref. to SE-9,
DRIVER’S SEAT, REMOVAL, Front Seat.>
2) Remove the clip (A) and straps (B) on the back
of seat cushion.

3) Disconnect the following connectors from the
backside of seat cushion.
• Side airbag
• Seat heater
• Power seat
• Seat belt

SE-00416

(B)

(A)

SE-00391

(A)

(A)

: (A)

SE-00670

SE-00340

SE-00409

(B)

(A)

SE-00643

SE-13

Front Seat

SEATS

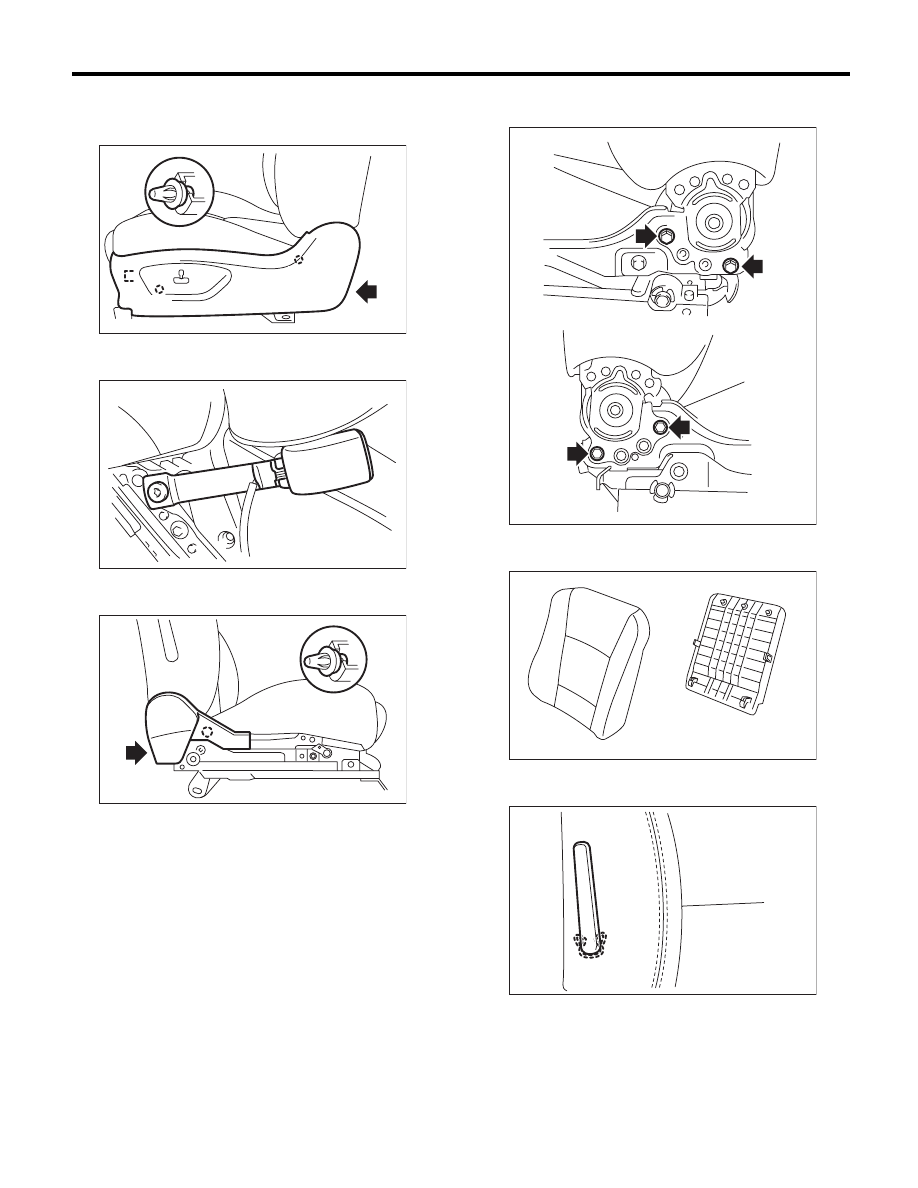

4) Remove the screw (A) and clips (B), and then
disconnect the seat switch connector to remove
seat side cover outside.

5) Remove the TORX

®

 bolt, and then remove the

inner seat belt assembly.

6) Remove the screw (A) and clip (B), and then re-
move the seat side cover inside.

7) Remove the two bolts from the reclining hinge on
each left and right side.

8) Remove the clips and hooks, and then detach
the backrest back cover.

9) Remove the lock clip, and then remove the lum-
ber support lever.

(B)

(B)

(A)

SE-00584

SE-00407

(A)

(B)

SE-00412

SE-00413

SE-00586

SE-00414

SE-14

Front Seat

SEATS

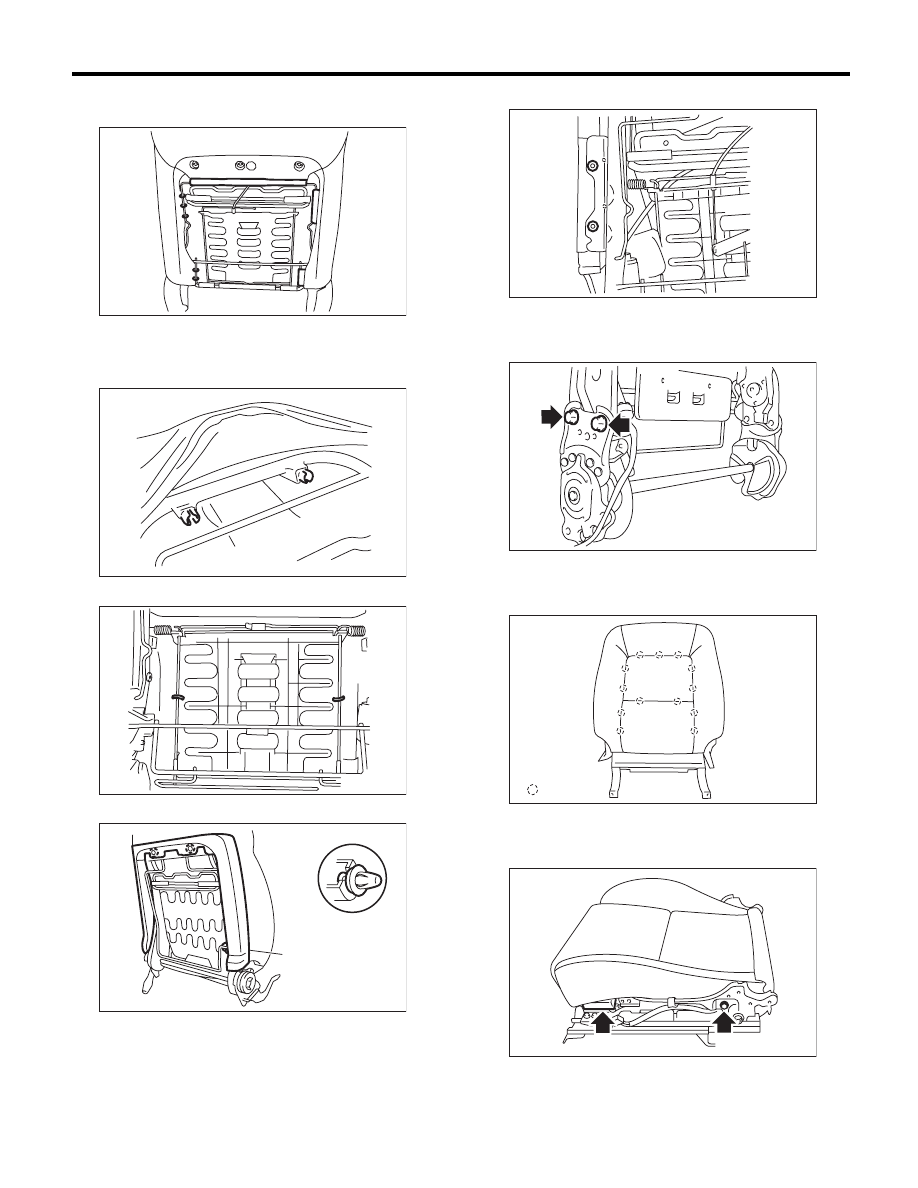

10) Remove the hooks and hog rings at the rear
side of backrest.

11) Remove the headrest lock bushing.

NOTE:
Push outside to remove it from the inside of seat.

12) Remove the hog rings.

13) Remove the cover frame (A).

14) Pull out the backrest frame assembly.

15) Remove the side airbag module.

16) Remove the two bolts on each left and right
side, and then remove the reclining motor assem-
bly.

17) Remove the hog rings (A) on the surface side
of backrest, and then remove the backrest cover
from backrest.

18) Remove the bolt (A) and hook (B) on left and
right side, and then remove the seat cushion frame
from slide rail assembly.

SE-00587

SE-00243

SE-00588

(A)

SE-00337

SE-00589

SE-00388

SE-00669

: (A)

SE-00416

(B)

(A)

SE-15

Front Seat

SEATS

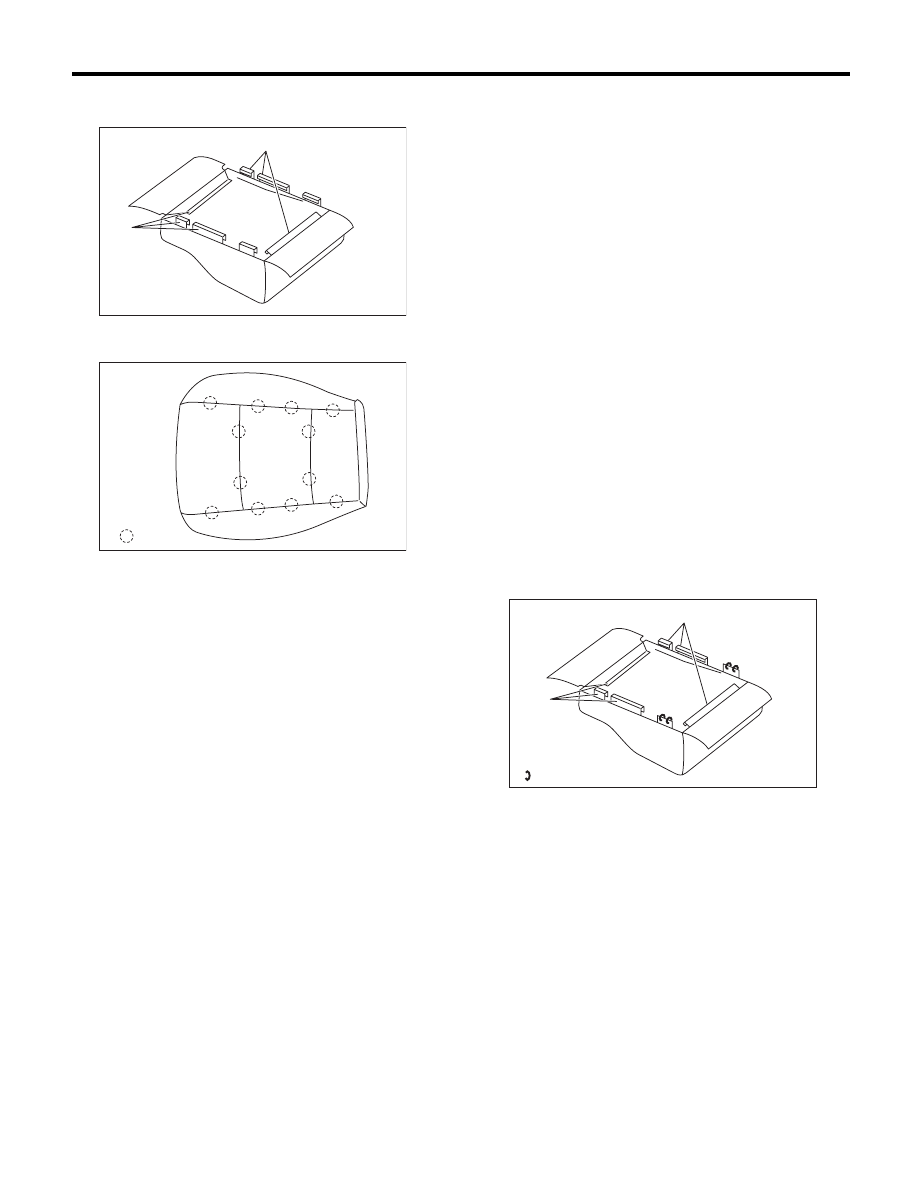

19) Remove the hooks (A), and then remove the
seat cushion from seat cushion frame.

20) Remove the hog rings (A), and then remove the
seat cushion cover from seat cushion pad.

2. PASSENGER’S SEAT

CAUTION:
• If the seat cushion cover is removed or re-
placed, make sure to perform occupant detec-
tion system adjustment after installing the seat.
<Ref. to OD(diag)-15, SYSTEM CALIBRATION
(REZEROING), OPERATION, Subaru Select
Monitor.>
Failure to do so may cause improper activation
of passenger’s airbag.
• The passenger detection system (passenger
seat only) control unit, passenger detection
sensor, seat cushion pad and seat cushion
frame are considered as a single seat cushion
pad and frame assembly. Never remove the
passenger detection control unit or the pres-
sure sensor from the seat cushion frame.
• If the seat cushion cover is removed, make
sure to replace the hang wire on the seat cush-
ion side with a new wire.
1) Remove the seat from vehicle. <Ref. to SE-9,
PASSENGER’S SEAT, REMOVAL, Front Seat.>
2) Refer to the disassembly procedures for the driv-
er’s seat.

NOTE:
The back side of the seat cushion is affixed by a
hook (A) and hog ring (B).

SE-00391

(A)

(A)

: (A)

SE-00670

(A)

(A)

SE-00642

: (B)
