IDI-29

Multi-Information Display Selector

INSTRUMENTATION/DRIVER INFO

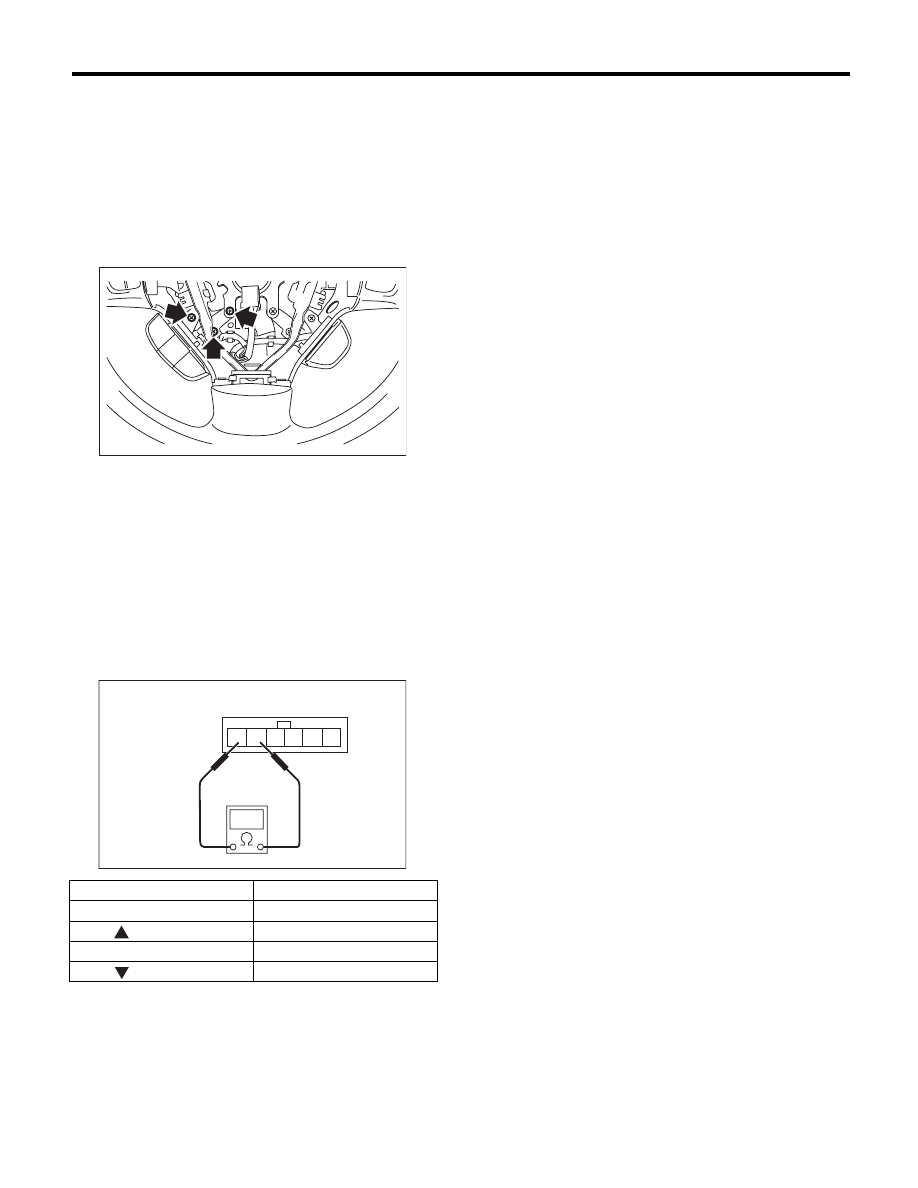

10.Multi-Information Display

Selector

A: REMOVAL

1) Remove the airbag module from the steering
wheel. <Ref. to AB-14, REMOVAL, Driver’s Airbag
Module.>
2) Disconnect the roll connector and steering
switch connector, and remove the bolts.

3) Remove the multi-information display selector.

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

1) Remove the airbag module from the steering
wheel. <Ref. to AB-14, REMOVAL, Driver’s Airbag
Module.>
2) Connect tester as shown in the figure, and mea-
sure the resistance between the terminals when
pressing each switch.

3) If resistance is out of specifications shown in the
above table, a fault in switch is indicated. Replace
the switch. <Ref. to IDI-29, REMOVAL, Multi-Infor-
mation Display Selector.>

Switch

Resistance

Not pressed.

1 M

: or more

Press .

10

: or less

Press i/SET.

Approx. 1 k

:

Press

.

Approx. 3.67 k

:

IDI00222

3

2

1

6

5

4

IDI00221

IDI-30

Multi-Information Display Selector

INSTRUMENTATION/DRIVER INFO

SE-2

General Description

SEATS

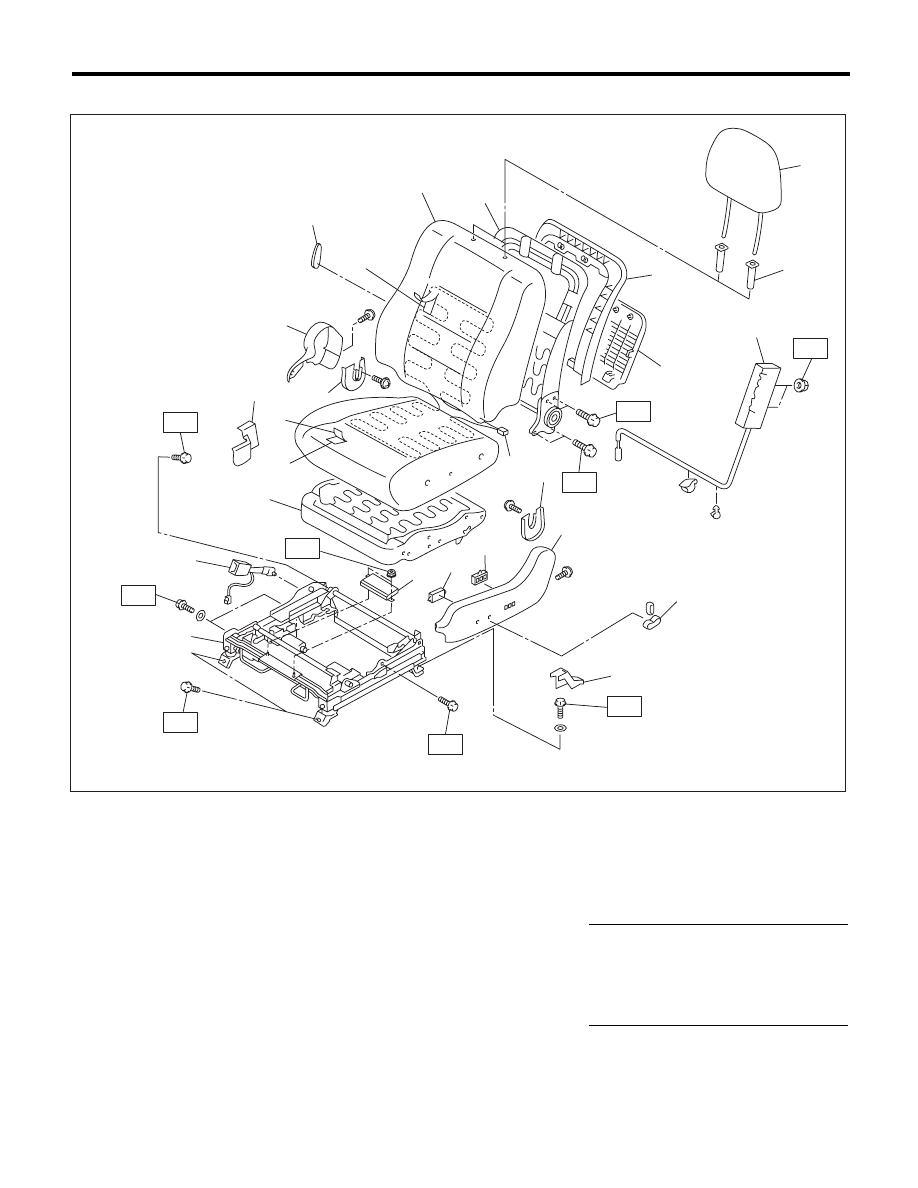

1. General Description

A: COMPONENT

1. FRONT SEAT LH (MANUAL SEAT)

(1)

Backrest cover

(12)

Seat cushion cover

(23)

Inner seat belt ASSY

(2)

Backrest pad

(13)

Seat cushion pad

(24)

Seat heater unit

(3)

Backrest frame ASSY

(14)

Seat cushion frame ASSY

(25)

Lumber support lever

(4)

Headrest ASSY

(15)

Rear bolt cover outside





(5)

Headrest lock bushing

(16)

Reclining lever

Tightening torque:N·m (kgf-m, ft-lb)

(6)

Side airbag module

(17)

Seat side cover outside

T1: 6 (0.61, 4.43)

(7)

Cover frame

(18)

Lifter lever

T2: 10 (1.02, 7.38)

(8)

Backrest back cover

(19)

Hinge inner cover LH

T3: 22 (2.24, 16.2)

(9)

Seat side cover inside

(20)

Outer slide rail

T4: 30 (3.06, 22.1)

(10)

Hinge inner cover RH

(21)

Inner slide rail

T5: 52 (5.30, 38.4)

(11)

Rear bolt cover inside

(22)

Connecting wire

T6: 53 (5.40, 39.1)

SE-00763

(1)

(2)

(3)

(8)

(4)

(5)

(6)

(9)

(10)

(11)

(12)

(13)

(14)

(15)

(16)

(17)

(20)

(21)

(22)

(23)

(18)

T4

T6

T6

T2

T5

T1

T2

(25)

T3

(7)

(19)

(24)

SE-3

General Description

SEATS

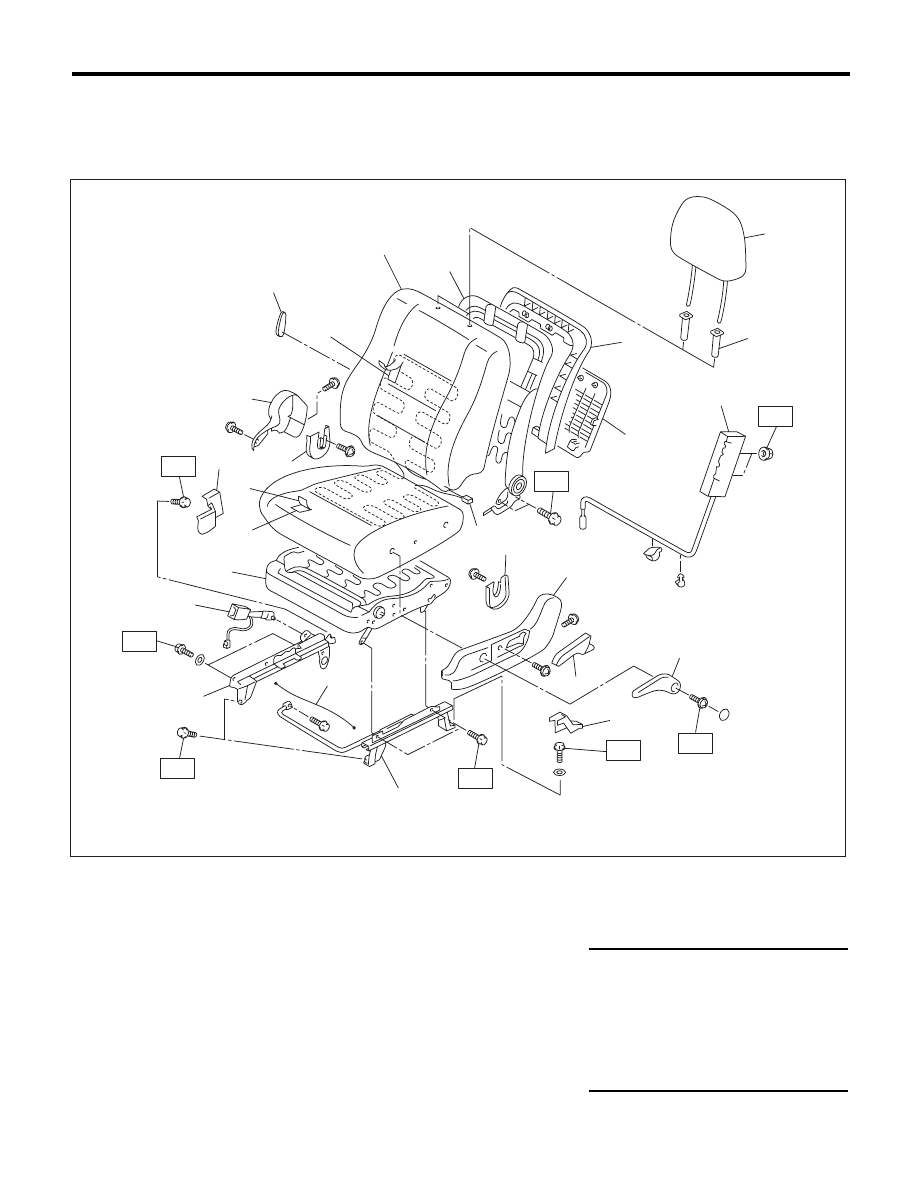

2. FRONT SEAT LH (POWER SEAT)

(1)

Backrest cover

(12)

Seat cushion cover

(23)

Lumber support lever

(2)

Backrest pad

(13)

Seat cushion pad

(24)

Memory switch
(memory-equipped)

(3)

Backrest frame ASSY

(14)

Seat cushion frame ASSY

(4)

Headrest ASSY

(15)

Rear bolt cover outside

(25)

Memory module
(memory-equipped)

(5)

Headrest lock bushing

(16)

Power seat switch knob

(6)

Side airbag module

(17)

Seat side cover outside





(7)

Cover frame

(18)

Hinge inner cover LH

Tightening torque:N·m (kgf-m, ft-lb)

(8)

Backrest back cover

(19)

Inner seat belt ASSY

T1: 6 (0.61, 4.43)

(9)

Seat side cover inside

(20)

Slide rail ASSY

T2: 22 (2.24, 16.2)

(10)

Hinge inner cover RH

(21)

Power seat switch unit

T3: 52 (5.30, 38.4)

(11)

Rear bolt cover inside

(22)

Seat heater unit

T4: 53 (5.40, 39.1)

SE-00764

(1)

(2)

(23)

(22)

(3)

(8)

(4)

(5)

(6)

(9)

(10)

(11)

(12)

(13)

(14)

(15)

(17)

(21)

(20)

(19)

(18)

T4

T4

T3

T3

T1

T3

T3

(7)

T4

(16)

(24)

T2

(25)
