General Description

INSTRUMENTATION/DRIVER INFO

1. General Description

A: SPECIFICATION

• Normal meter

Combination meter

Speedometer

Stepping motor type

Tachometer

Engine coolant temperature gauge

Fuel gauge

Malfunction indicator light

LED

Oil pressure warning light

ABS warning light

Airbag warning light

Seat belt warning light

Door open warning light

Brake fluid and parking brake warning light

Low fuel warning light

Charge warning light

AT oil temperature warning light

AWD warning light

Vehicle dynamics control (VDC) warning light and VDC OFF indicator light

Vehicle dynamics control (VDC) indicator light

Turn signal indicator light

HI-beam indicator light

Security and immobilizer indicator light

Cruise indicator light

Cruise set indicator light

Front fog light indicator light

SPORT shift indicator back-up light

SPORT indicator light

AT select lever position indicator light

Light illumination indicator light

Meter illumination back-up light

LCD back light

Odo/Trip indicator

LCD

SPORT shift indicator

IDI-3

General Description

INSTRUMENTATION/DRIVER INFO

• Meter with multi-information display

Combination meter

Speedometer

Stepping motor type

Tachometer

Engine coolant temperature gauge

Fuel gauge

ECO gauge

Malfunction indicator light

LED

Oil pressure warning light

ABS warning light

Airbag warning light

Seat belt warning light

Door open warning light

Brake fluid and parking brake warning light

Low fuel warning light

Charge warning light

AT oil temperature warning light

S# change prohibited indicator light

AWD warning light

Tire pressure warning light

Vehicle dynamics control (VDC) warning light and VDC OFF indicator light

Vehicle dynamics control (VDC) indicator light

Turn signal indicator light

HI-beam indicator light

Security and immobilizer indicator light

Cruise indicator light

Cruise set indicator light

Front fog light indicator light

Shift up indicator light (MT model)

AT select lever position & SPORT shift indicator back-up light

Light illumination indicator light

Meter illumination back-up light

LCD back light

AT select lever position & SPORT shift indicator

LCD

Multi-information Display (Odo/Trip indicator, Instant fuel economy/Aver-
age fuel economy, Ambient air temperature/Continuous driving time, Driv-
able distance, Current time, SI-DRIVE mode, Malfunction warning display)

IDI-4

General Description

INSTRUMENTATION/DRIVER INFO

B: CAUTION

• Be careful not to damage the meters and instrument panel.
• Be careful not to damage the meter glass.
• Make sure the electrical connector is connected securely.
• After installation, make sure that each meter operates normally.
• Use gloves to avoid damage and getting fingerprints on the glass surface and meter surfaces.
• Do not apply an excessive force on the printed circuit.
• Do not drop or otherwise apply impact.
• When the combination meter of model with immobilizer has been replaced, be sure to perform the regis-
tration of immobilizer.

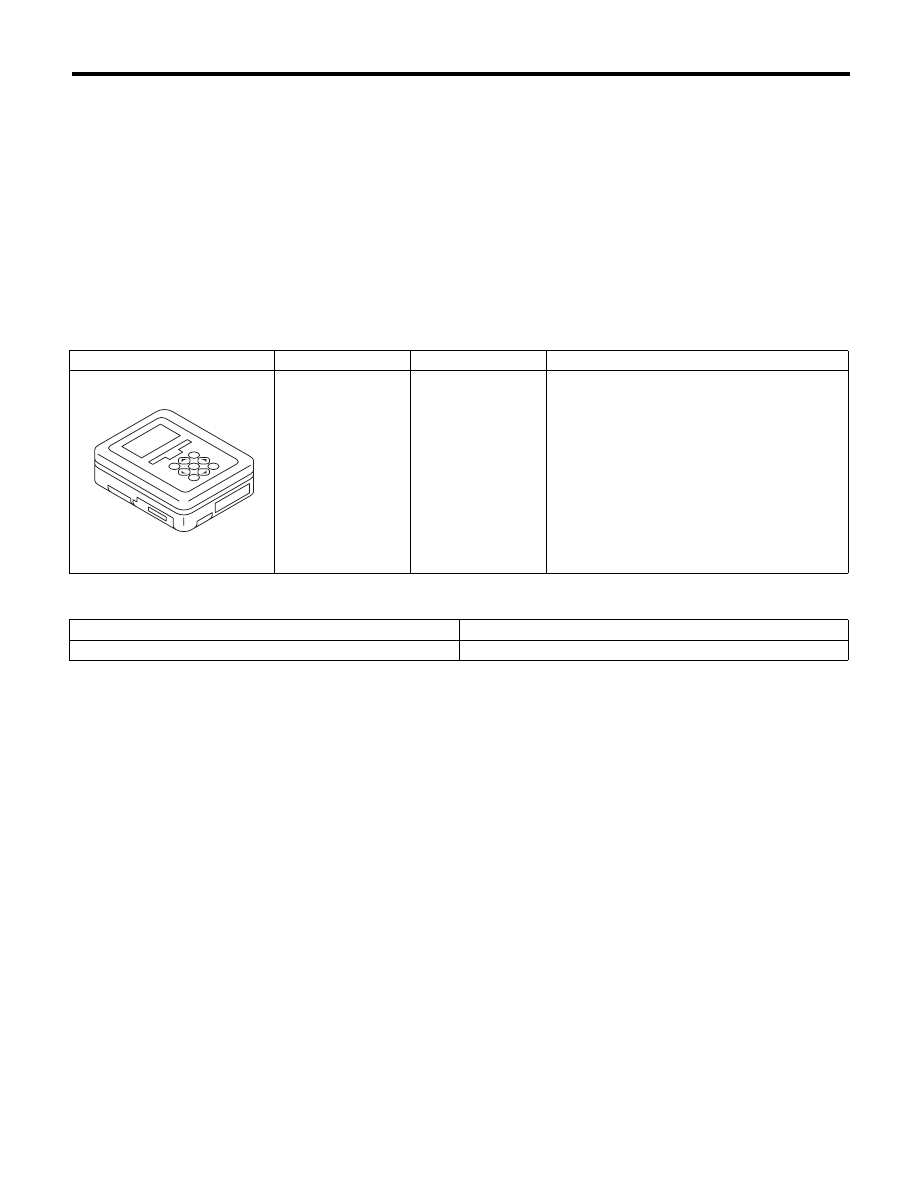

C: PREPARATION TOOL

1. SPECIAL TOOL

2. GENERAL TOOL

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

1B022XU0

SUBARU SELECT
MONITOR III KIT

Used for troubleshooting the electrical system.

TOOL NAME

REMARKS

Circuit tester

Used for measuring resistance and voltage.

ST1B022XU0
