BS-40

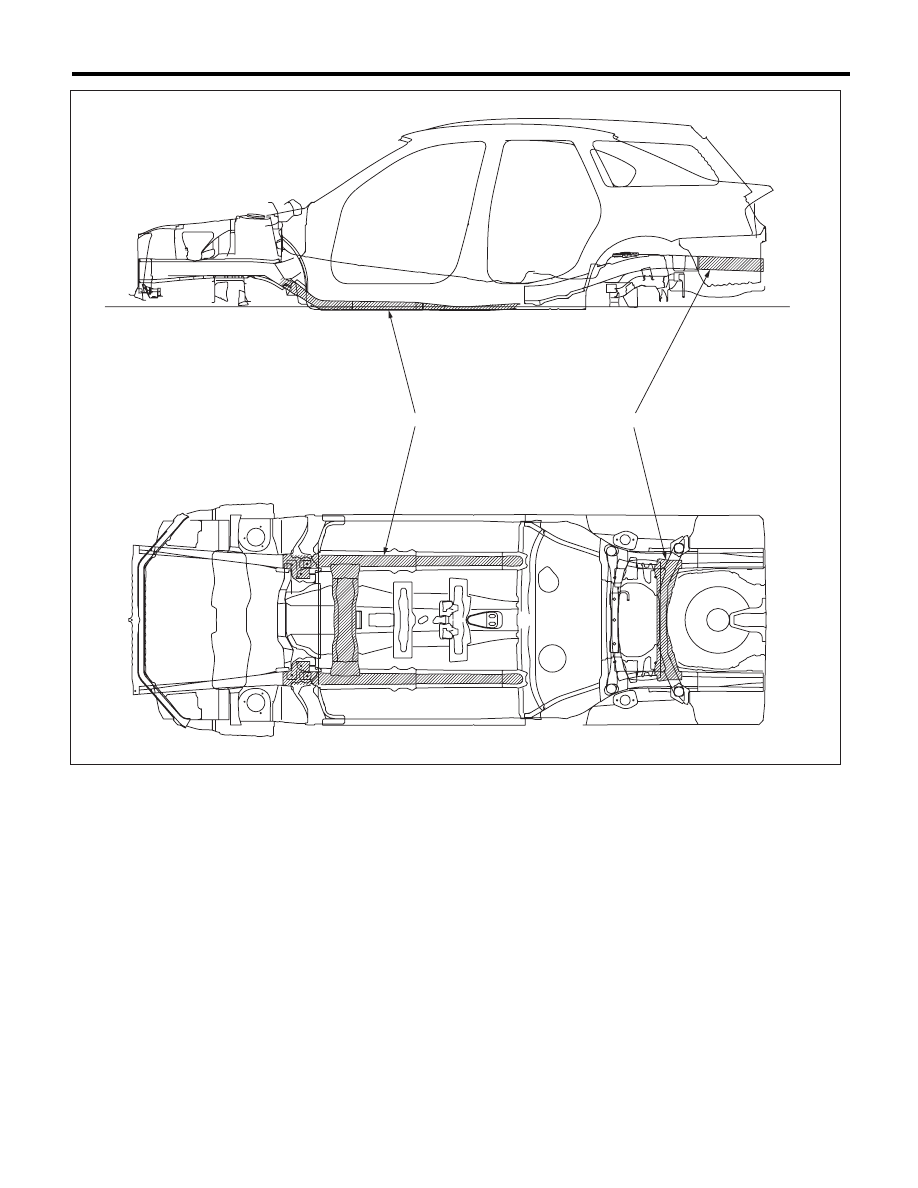

Anticorrosion Wax

BODY STRUCTURE

(1)

Apply wax to the underside of
vehicle.









BS-01609

(1)

(1)

BS-41

Under Coat

BODY STRUCTURE

7. Under Coat

A: SPECIFICATION

Repair material:

THREE BOND 6115

1) The application thickness is 0.4 mm or more when no instruction is indicated.
2) Take care that under coat does not become attached to other locations than shown in the figures and the
following locations.
• High-temperature parts related to the exhaust pipe
• Hoses, tubes, and harness parts
• Installation surfaces of rear suspension, transmission, subframe, etc.
3) Application area

BS-42

Under Coat

BODY STRUCTURE

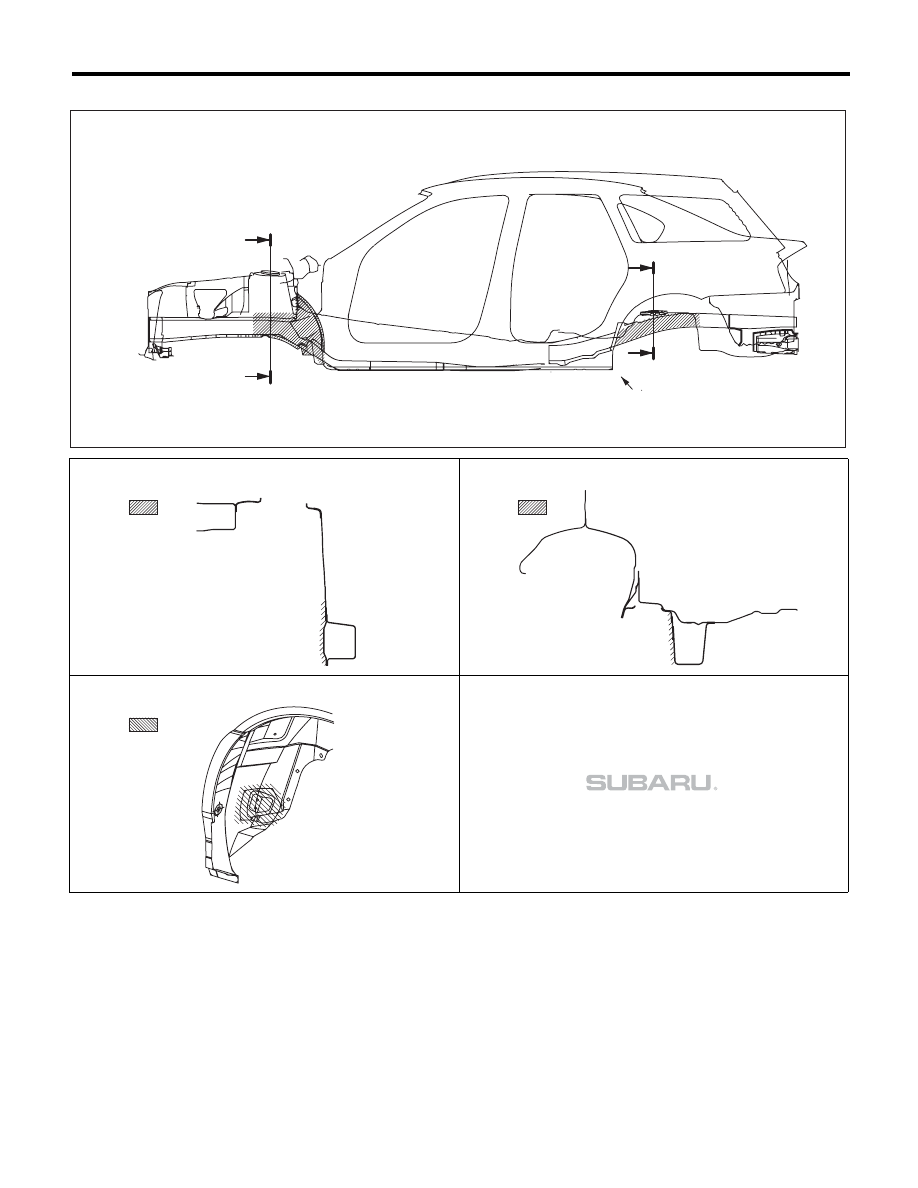

• Side  view

Cross section A — A

Cross section B — B

View C

(a)

Under coat application locations

(b)

Under coat application locations
(Film thickness = 600 μ or more)

A

A

B

C

B

BS-00779

BS-01429

:(a)

BS-01430

:(a)

BS-01605

:(b)

BS-43

Under Coat

BODY STRUCTURE

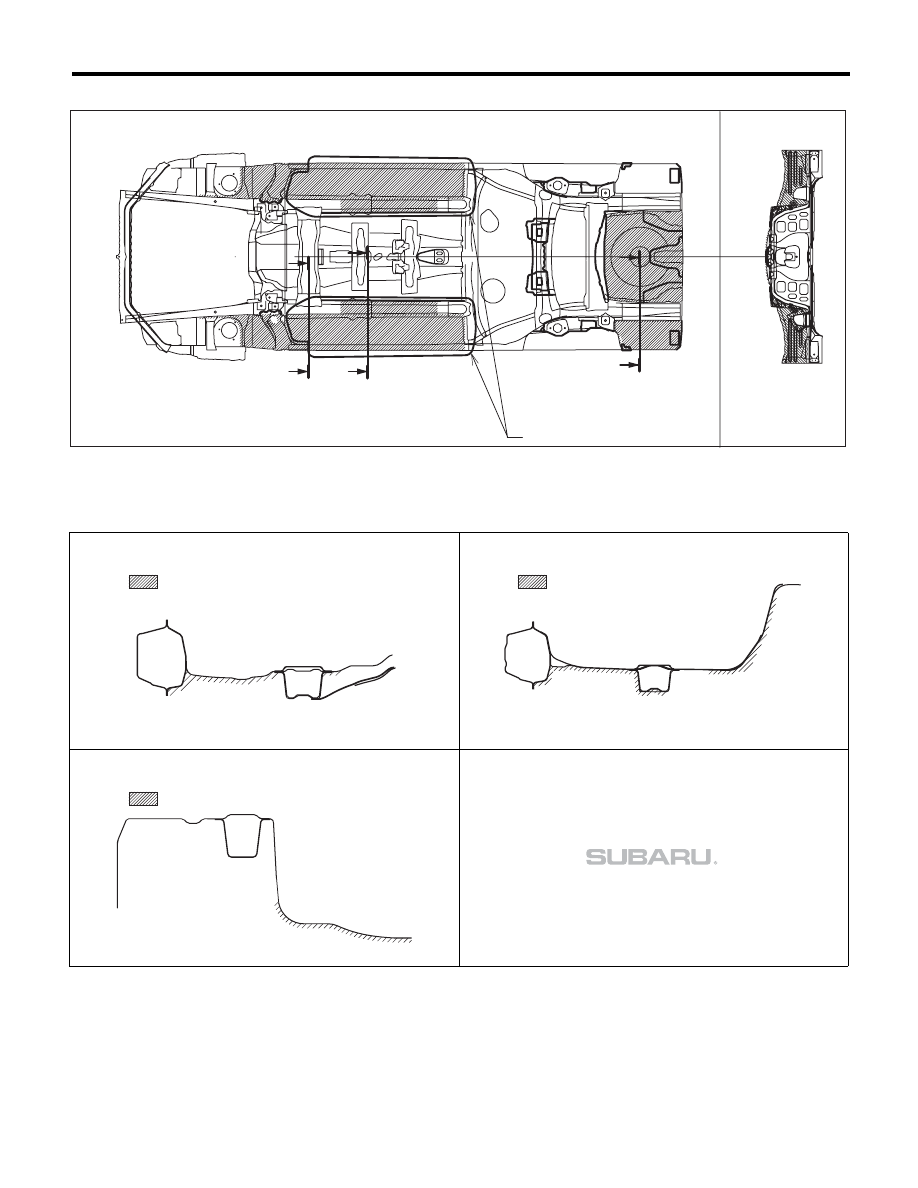

• Bottom view/rear view

(1)

For models with an under cover,
no under coat is required in this
area.









Section D — D (rotated 90°)

Section E — E (rotated 90°)

Section F — F (rotated 90°)

(a)

Under coat application locations









(1)

F

D

E

D

E

F

BS-02043

BS-01606

:(a)

BS-01607

:(a)

BS-01608

:(a)
