GW-15

Front Door Glass

GLASS/WINDOWS/MIRRORS

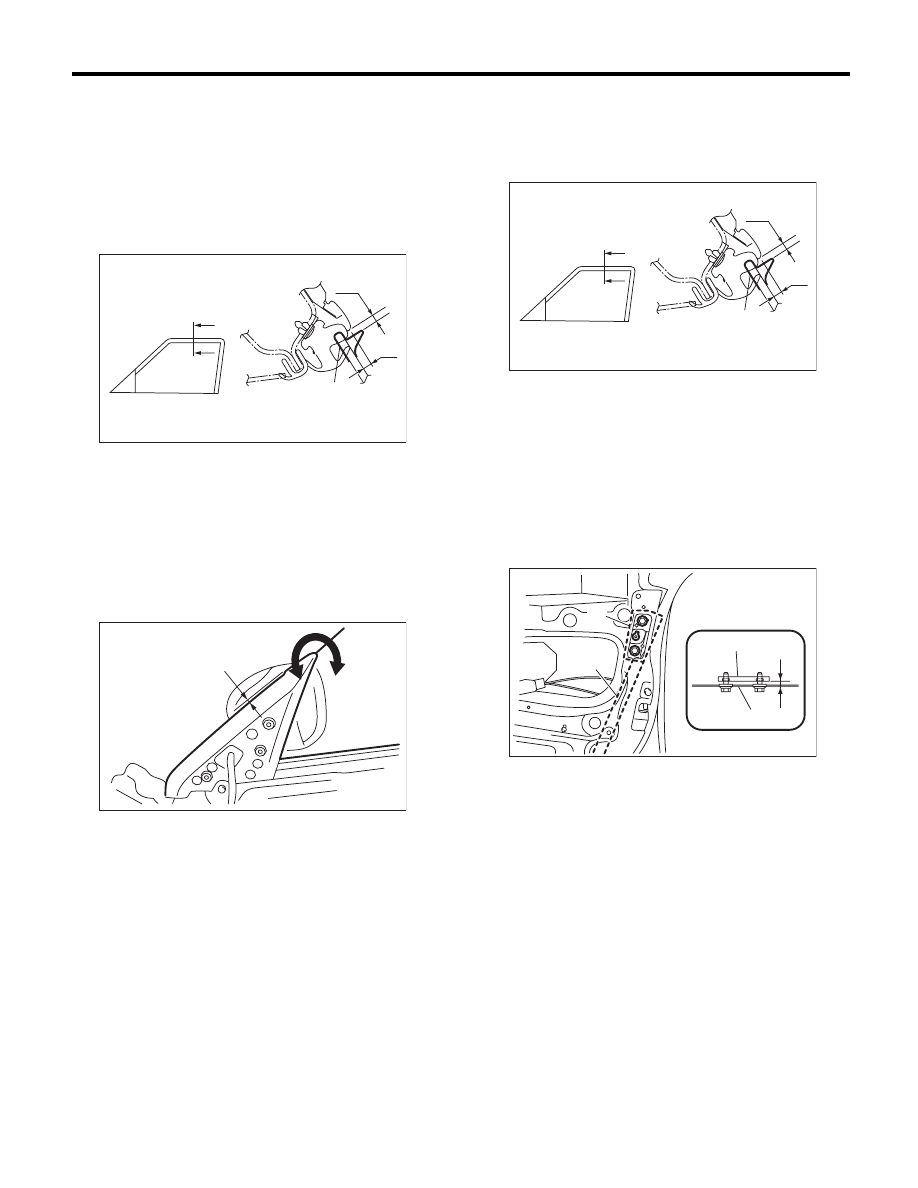

8) For glass stroke adjustment, attach special tool
to the glass, close door, and raise the glass to the
top edge using regulator until positional relation-
ship between glass and weather strip becomes as
shown. And secure the glass so that the upper
stopper touches the glass holder without fail.
ST

61299AE000

SPACER
(Glass thickness: 5 mm
(0.197 in) for front door glass)

For preventing wind noise, adjust the glass at the
position where the tip of the gusset is raised up
slightly.

9) After stabilizer adjustment, carry out glass cohe-
sion adjustment. First, visually ensure the position-
al relationship between the retainer & molding and
the glass of the roof side, then start the rear sash
adjustment. Attach the ST to the glass and adjust
two adjusting bolts alternately step by step, to ob-
tain dimensions shown below (section A).

NOTE:
If two nuts are loosened at the same time, the sash
moves back and forth. Therefore, when one nut is
adjusted, secure the other.

10) Make the same adjustment of two adjusting
bolts of rear sash.
ST

61299AE000

SPACER
(Glass thickness: 5 mm
(0.197 in) for front door glass)

NOTE:
Do not tilt the sash bracket to inner panel during ad-
justment. If tilting, the regulator does not operate
smoothly.

11) Make adjustment of front sash in the same
manner as that of rear sash.

NOTE:
Although front and rear sashes must, as a rule, be
adjusted in the same manner, in some door instal-
lation, the adjustment in a different manner may be
required. However, adjustment of one sash to the
maximum amount and the other to the minimum
amount is not permitted. Such adjustment may re-
sult in applying excessive load against regulator.
12) After adjustments, tighten the nuts.

(1) 3.2 — 4.8 mm (0.126 — 0.189 in)

(2) When re-using weather strip: 5.5 mm (0.217 in)

When replacing the weather strip:
3 mm (0.118 in)

(3) ST

(A) 0 — 1.5 mm (0 — 0.059 in)

GW-00430

A

A

A-A

(1)

(2)

(3)

(A)

GW-00325

(1) 3.2 — 4.8 mm (0.126 — 0.189 in)

(2) When re-using weather strip: 5.5 mm (0.217 in)

When replacing the weather strip:
3 mm (0.118 in)

(3) ST

(1) Sash bracket

(2) Rear sash

(3) Adjust the lines parallel

(4) Inner panel

GW-00430

A

A

A-A

(1)

(2)

(3)

GW-00544

(1)

(2)

(1)

(3)

(4)

GW-16

Front Door Glass

GLASS/WINDOWS/MIRRORS

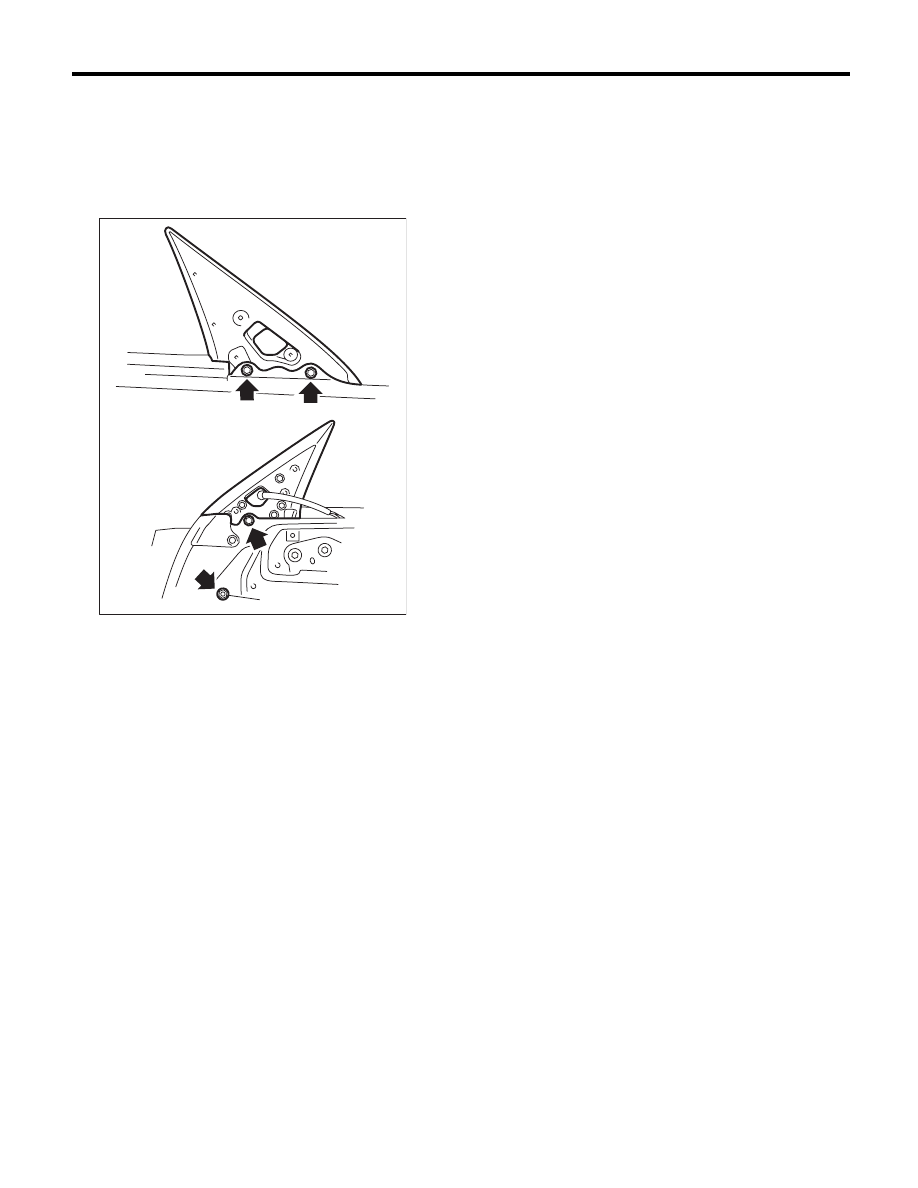

13) After adjustment of the glass, close the door. If
there is a gap between outer lip of gusset and glass
surface, adjust the gap by adjusting bolt (A) at the
attachment hardware at the lower side of the gus-
set to prevent generation of wind noise.
14) During adjustment, loosen the other three
clamping bolts.

15) After adjustment, tighten the bolts and nuts.

GW-00271

(A)

GW-17

Front Regulator and Motor Assembly

GLASS/WINDOWS/MIRRORS

5. Front Regulator and Motor

Assembly

A: REMOVAL

1) Remove the door glass. <Ref. to GW-11, RE-
MOVAL, Front Door Glass.>
2) Disconnect the motor connector.

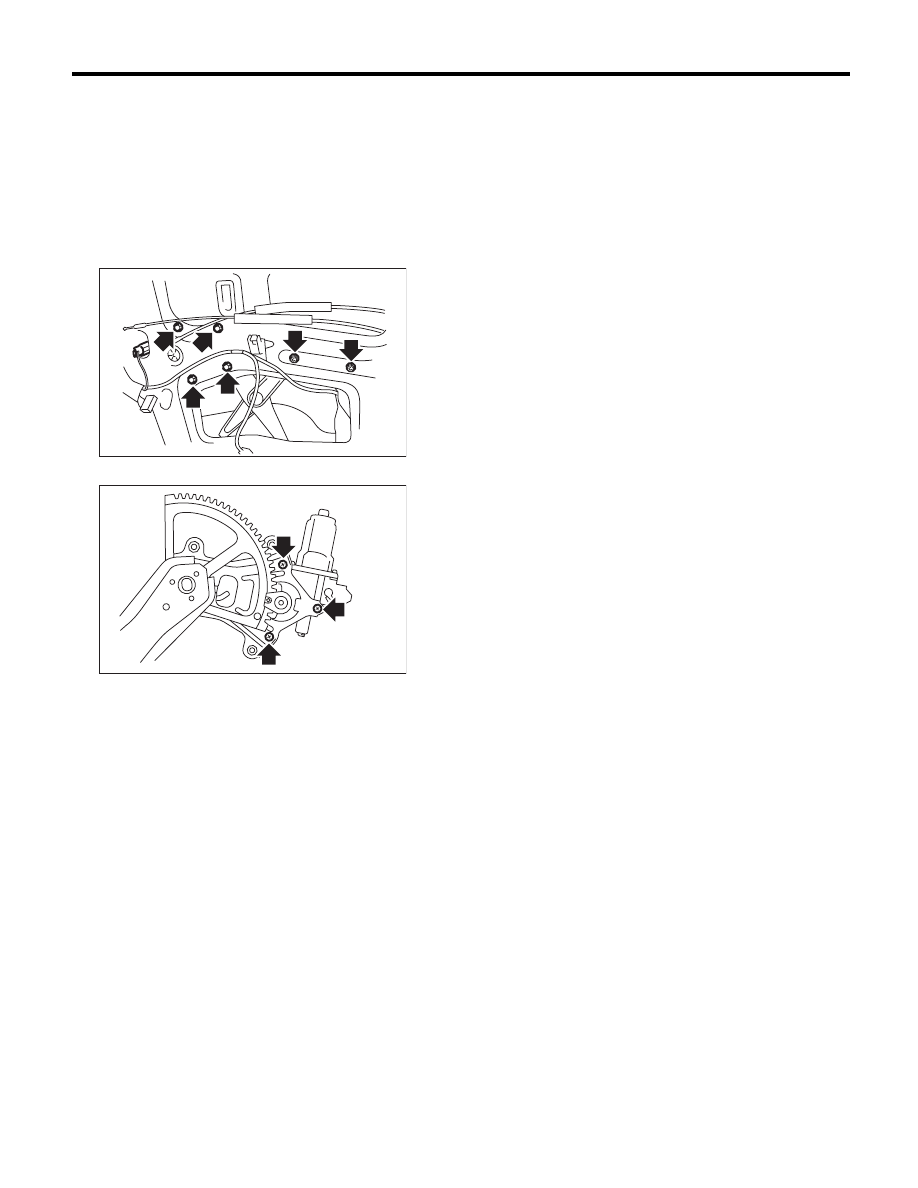

3) Remove the four bolts and two nuts to remove
regulator assembly.

4) Remove the screws to remove motor assembly.

NOTE:
When removing the motor assembly, secure the
arm correctly. Otherwise the regulator arm moves
with the force of balancing spring.

B: INSTALLATION

1) Install in the reverse order of removal.
2) Adjust the front door glass. <Ref. to GW-12, AD-
JUSTMENT, Front Door Glass.>

Tightening torque:

Refer to “COMPONENT” of “General Descrip-
tion”. <Ref. to GW-4, FRONT DOOR GLASS,
COMPONENT, General Description.>

C: INSPECTION

1) Make sure that the power window motor rotates
properly when the battery voltage is applied to the
terminals of motor connector.
2) Change polarity of battery connection to termi-
nals to ensure that the motor rotates in reverse di-
rection.

GW-00273

GW-00274

GW-18

Remote Control Mirror System

GLASS/WINDOWS/MIRRORS

6. Remote Control Mirror System

A: WIRING DIAGRAM

<Ref. to WI-164, Remote Control Mirror System.>

B: INSPECTION

Symptom

Repair order

All function does not operate.

1. Fuse (F/B No. 6)
2. Mirror switch
3. Wiring harness

One side of the mirror motor does not operate.

1. Mirror switch
2. Mirror motor
3. Wiring harness

Mirror heater does not operate.

1. Mirror switch
2. Mirror heater
3. Wiring harness
