WW-20

Rear Washer

WIPER AND WASHER SYSTEMS

ET-2

General Description

ENTERTAINMENT

1. General Description

A: CAUTION

• Before disassembling or reassembling parts, al-
ways disconnect the battery ground cable from bat-
tery. When replacing the audio, control module and
other parts provided with memory functions, record
the memory contents before disconnecting the bat-
tery ground cable. Otherwise, the memory is
cleared.
• Reassemble the parts in the reverse order of dis-
assembly procedure unless otherwise indicated.
• Adjust parts to the given specifications.
• Connect the connectors securely during reas-
sembly.
• After reassembly, make sure functional parts op-
erate smoothly.

B: PREPARATION TOOL

1. GENERAL TOOL

TOOL NAME

REMARKS

Circuit tester

Used for measuring resis-
tance and voltage.

Conductive silver composi-
tion
(DUPONT No. 4817 or
equivalent)

Used for repairing antenna
wire.

ET-3

Audio System

ENTERTAINMENT

2. Audio System

A: WIRING DIAGRAM

<Ref. to WI-148, WIRING DIAGRAM, Audio System.>

B: INSPECTION

Symptoms

Repair order

No power coming in. (No display and no sound from speakers)

1. Check the fuse and power supply for audio.
2. Check the audio ground.
3. Remove the audio and repair them.

A specific speaker does not operate.

1. Check the speaker.
2. Check the output circuit between audio and speaker.

Audio generates noise with engine is running.

1. Check the audio ground.
2. Check the generator.
3. Check the ignition coil.
4. Remove the audio and repair them.

Volume is low in AM and FM modes or interference noise
occurs.

1. Check the antenna.
2. Check the rear window defogger.
3. Check the antenna amplifier.
4. Check the noise suppressor.
5. Check the audio ground.
6. Remove the audio and repair them.

Rear window defogger generates noise when it operate.

1. Check the rear window defogger.

ET-4

Audio

ENTERTAINMENT

3. Audio

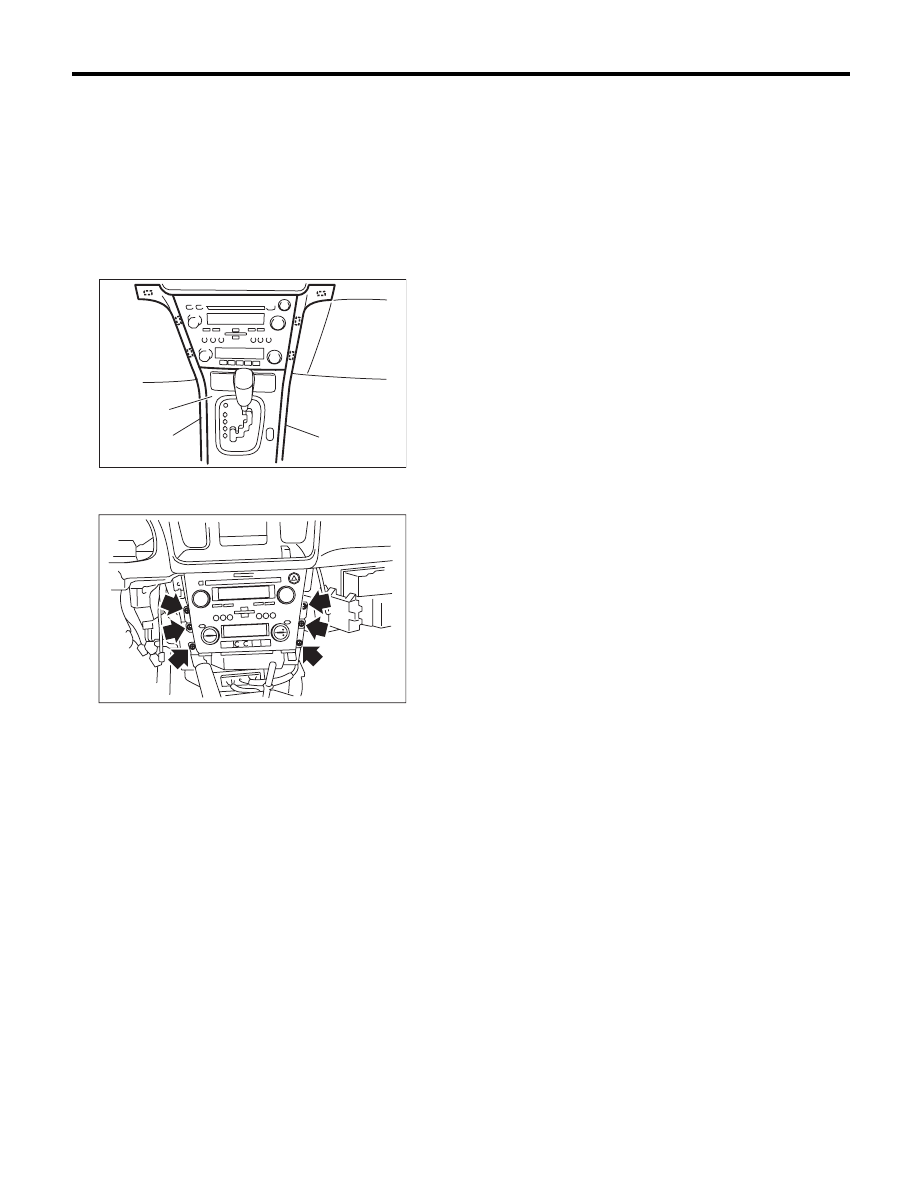

A: REMOVAL

1) Disconnect the ground cable from the battery.
2) Remove the console box. <Ref. to EI-54, RE-
MOVAL, Console Box.>
3) Remove the console front panel (A). <Ref. to EI-
55, REMOVAL, Center Console.>
4) Remove the console side garnish (B). <Ref. to
EI-55, REMOVAL, Center Console.>

5) Remove the screws, and partially pull the audio
out from center console.

6) Disconnect the harness connector and antenna
feeder cord, and then remove the audio.

B: INSTALLATION

Install in the reverse order of removal.

(B)

(B)

(A)

ET-00271

ET-00244
