General Description

WIPER AND WASHER SYSTEMS

3. WASHER TANK

C: CAUTION

• Connect the connectors and hoses securely during reassembly.
• After reassembly, make sure functional parts operate smoothly.
• Be careful with the airbag system wiring harness which passes near electrical parts and switches.
• All airbag system wiring harness and connectors are colored yellow. Do not use a tester equipment on
these circuits.
• Care must be taken when connecting the hoses to pipes so that there are no bends or blockage.
• If even a small amount of silicon oil or grease enters tank and washer fluid passages, an oil film will be
formed on the glass and will cause the wiper to chatter and judder. Make sure that no oil comes into contact
with the system.

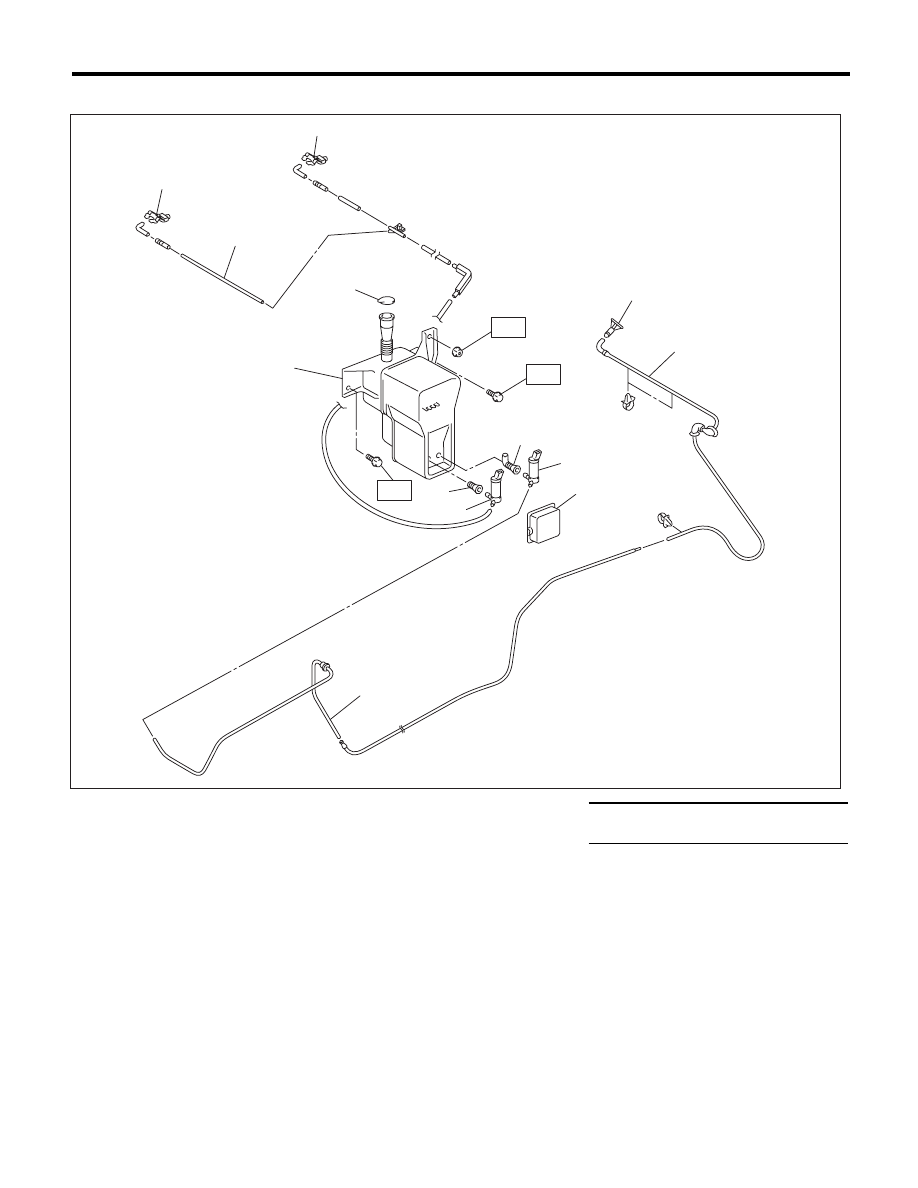

(1)

Washer nozzle

(5)

Front washer motor

Tightening torque:N·m (kgf-m, ft-lb)

(2)

Washer hose

(6)

Rear washer motor

T: 6.0 (0.61, 4.4)

(3)

Washer tank

(7)

Grommet



(4)

Washer tank cap

(8)

Washer motor cover





(2)

(2)

(7)

(6)

(5)

(2)

(4)

(7)

(1)

T

T

T

(1)

(3)

(8)

(1)

WW-00445

WW-5

General Description

WIPER AND WASHER SYSTEMS

D: PREPARATION TOOL

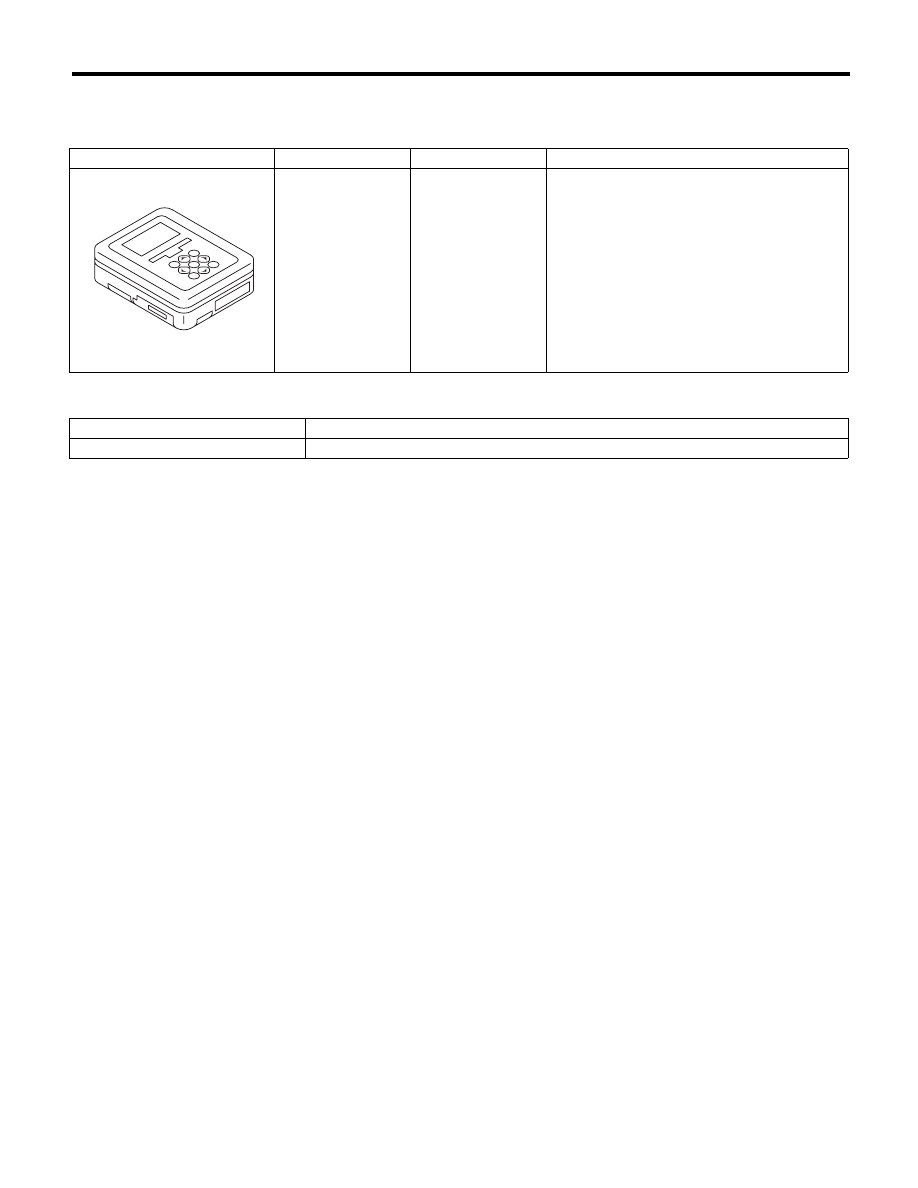

1. SPECIAL TOOL

2. GENERAL TOOL

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

1B022XU0

SUBARU SELECT
MONITOR III KIT

Used for setting of each function and trouble-
shooting for electrical system.

TOOL NAME

REMARKS

Circuit tester

Used for checking voltage and continuity.

ST1B022XU0

WW-6

Wiper and Washer System

WIPER AND WASHER SYSTEMS

2. Wiper and Washer System

A: WIRING DIAGRAM

1. WIPER AND WASHER (FRONT)

<Ref. to WI-145, WIRING DIAGRAM, Front Wiper and Washer System.>

2. WIPER AND WASHER (REAR)

<Ref. to WI-146, WIRING DIAGRAM, Rear Wiper and Washer System.>

B: INSPECTION

Symptom

Repair order

Wiper and washers do not operate.

1. Wiper fuse (Front: F/B No. 30, Rear: F/B No. 23)
2. Combination switch
3. Wiper motor assembly
4. Wiring harness
5. Body integrated unit (rear wiper only)

Wipers do not operate in LO or HI.

1. Combination switch
2. Wiper motor assembly
3. Wiring harness

Wipers do not operate in INT.

1. Combination switch
2. Wiper motor assembly
3. Wiring harness
4. Body integrated unit (rear wiper only)

Washer motor does not operate.

1. Washer switch
2. Washer motor
3. Wiring harness

Wipers do not operate when washer switch is ON.

1. Wiper motor assembly
2. Wiring harness

Washer fluid spray does not operate properly.

1. Washer motor
2. Washer hose and nozzle

WW-7

Combination Switch (Wiper)

WIPER AND WASHER SYSTEMS

3. Combination Switch (Wiper)

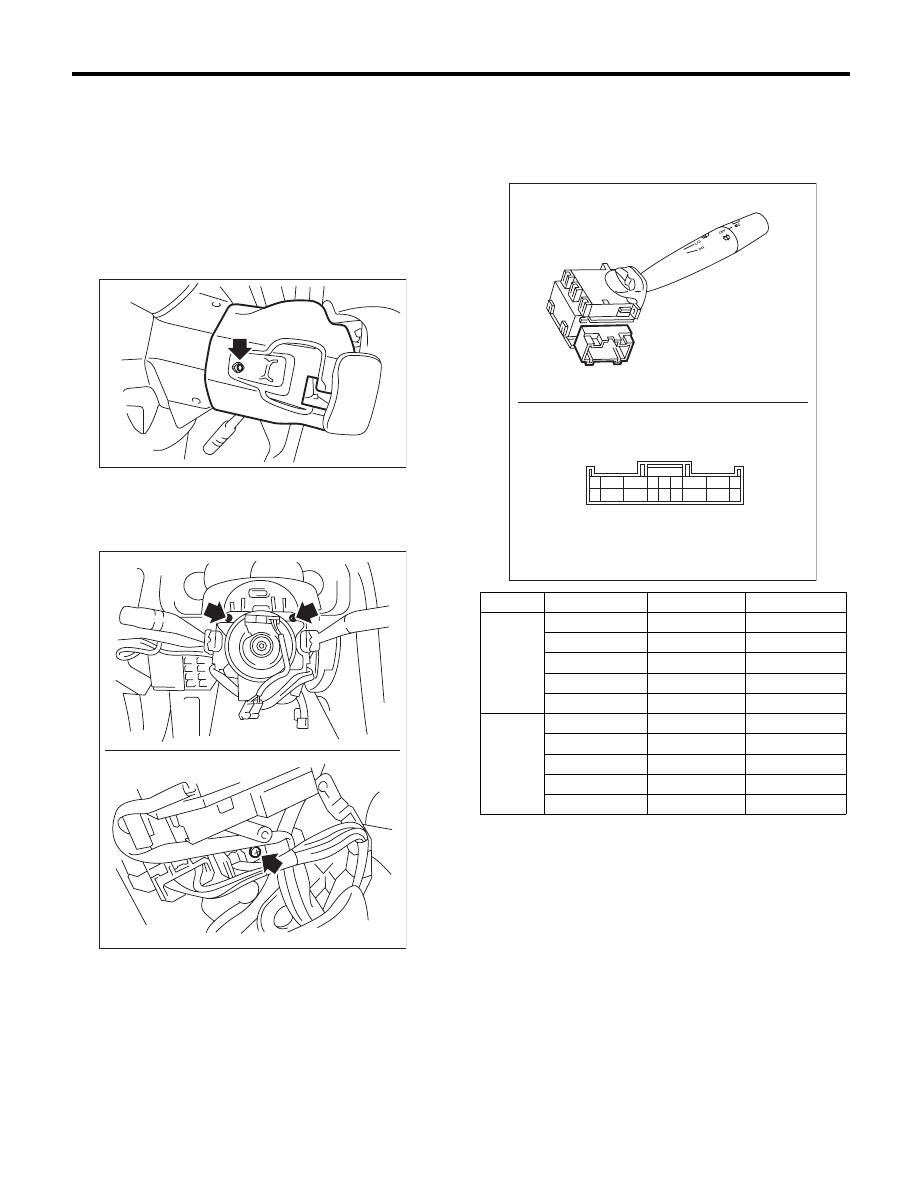

A: REMOVAL

1) Disconnect the ground cable from the battery.
2) Remove the driver’s airbag module. <Ref. to AB-
14, REMOVAL, Driver’s Airbag Module.>
3) Remove the steering wheel. <Ref. to PS-13, RE-
MOVAL, Steering Wheel.>
4) Remove the screws and remove the steering
column covers (upper & lower).

5) Disconnect the connector from combination
switch.
6) Remove the three screws, and pull out the com-
bination base switch assembly toward you.

7) Remove the screws which secure the switch,
then remove the combination switch.

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

1. COMBINATION SWITCH

1) Inspect the continuity between each connector
terminal.

2) If continuity is not as specified, replace the
switch.

SL-00258

LI -00332

 Switch

position

Terminal

No.

Standard

Front

OFF

7 and 16

Less than 1

:

INT

7 and 16

Less than 1

:

LO

7 and 17

Less than 1

:

HI

8 and 17

Less than 1

:

Washer ON

2 and 11

Less than 1

:

Rear

Washer ON

2 and 12

Less than 1

:

OFF

 —

1 M

: or more

INT

2 and 13

Less than 1

:

ON

2 and 10

Less than 1

:

Washer ON

2 and 12

Less than 1

:

WW-00046
