EN(H4SO)(diag)-15

Electrical Component Location

ENGINE (DIAGNOSTICS)

(1)

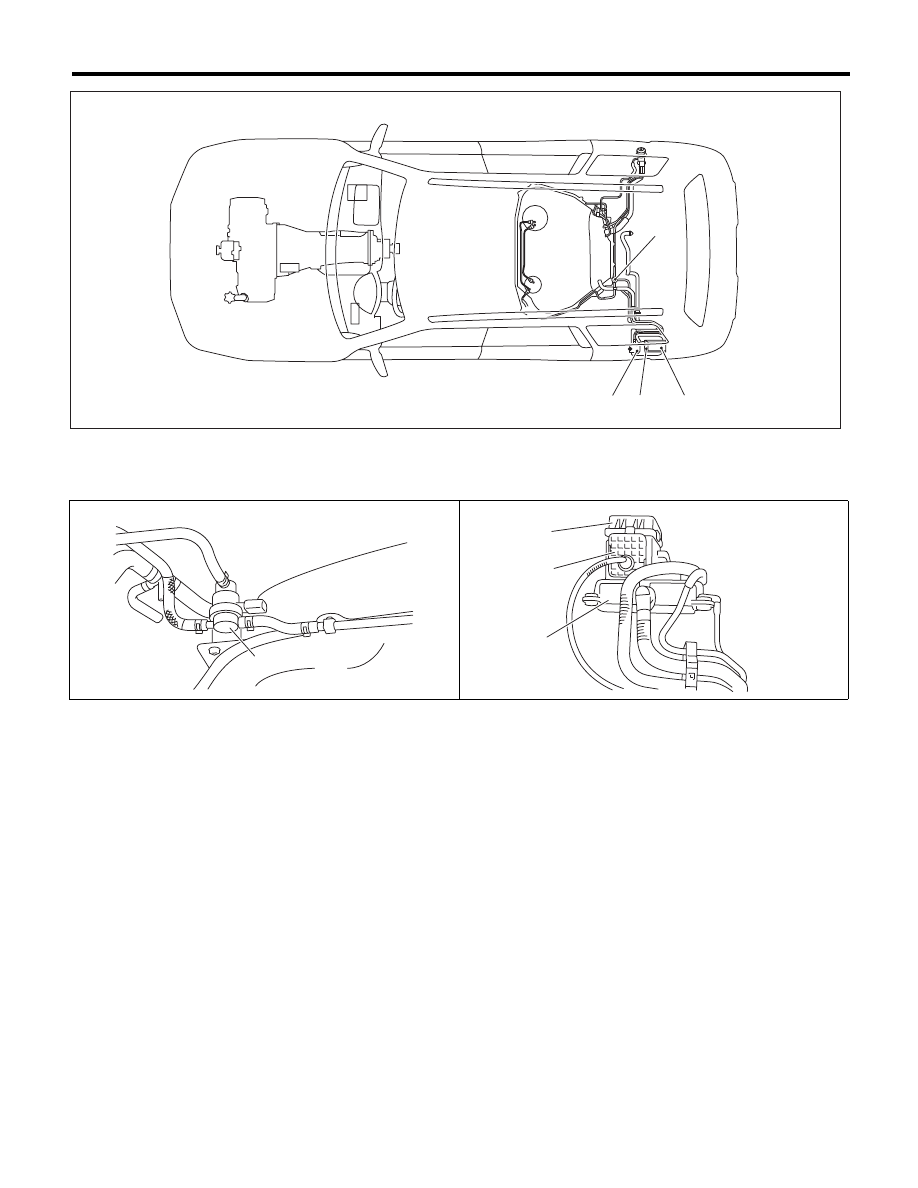

Pressure control solenoid valve

(3)

Drain valve

(4)

Drain filter

(2)

Canister





EN-05733

(1)

(2)

(3)

(4)

EN-02980

(1)

EN-02981

(4)

(3)

(2)

EN(H4SO)(diag)-16

Electrical Component Location

ENGINE (DIAGNOSTICS)

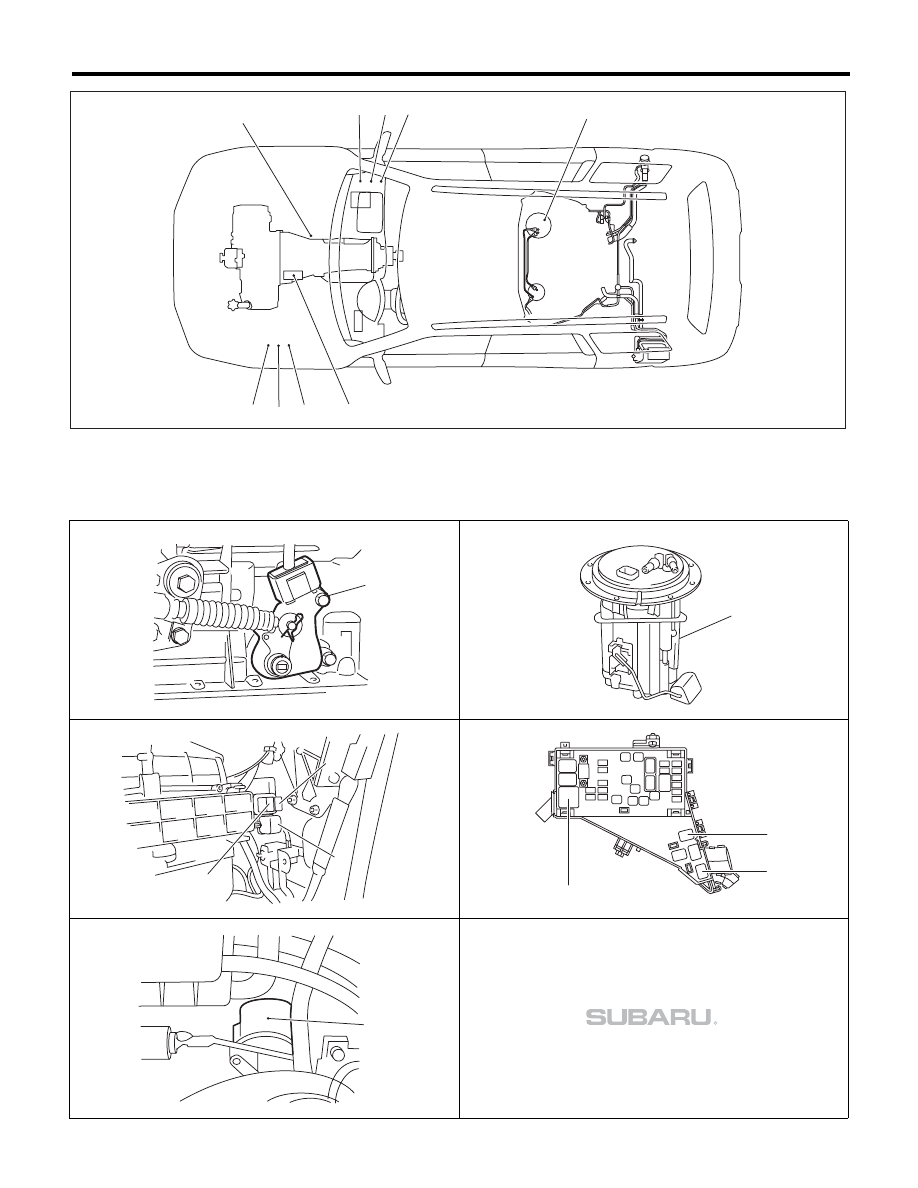

(1)

Inhibitor switch

(4)

Fuel pump relay

(7)

Radiator sub fan relay

(2)

Fuel pump

(5)

Electronic throttle control relay

(8)

Radiator main fan relay 2

(3)

Main relay

(6)

Radiator main fan relay 1

(9)

Starter

EN-05734

(3)

(2)

(7)

(8)

(6)

(9)

(1)

(4)

(5)

EN-06888

(1)

(2)

EN-05726

EN-03150

(3)

(4)

(5)

EN-06796

(6)

(8)

(7)

EN-02096

(9)

EN(H4SO)(diag)-17

Engine Control Module (ECM) I/O Signal

ENGINE (DIAGNOSTICS)

5. Engine Control Module (ECM) I/O Signal

A: ELECTRICAL SPECIFICATION

Contents

Connector

No.

Terminal

No.

Signal (V)

Note

Ignition SW ON

(engine OFF)

Engine ON

(idling)

Crankshaft
position sensor

Signal (+)

B134

13

0

–7 — +7

Waveform

Signal (–)

B134

14

0

0

 —

Shield

B134

24

0

0

 —

Camshaft posi-
tion sensor

Signal (+)

B134

12

0

–7 — +7

Waveform

Signal (–)

B134

22

0

0

 —

Shield

B134

24

0

0

 —

Electronic throt-
tle control

Main

B134

18

0.64 — 0.72

Fully opened: 3.96

0.64 — 0.72

(After engine is

warmed up.)

Fully closed: 0.6

Fully opened: 3.96

Sub

B134

28

1.51 — 1.58

Fully opened: 4.17

1.51 — 1.58

(After engine is

warmed up.)

Fully closed: 1.48

Fully opened: 4.17

Power supply

B134

19

5

5

 —

GND (sensor)

B134

29

0

0

 —

Electronic throttle control motor
(+)

B137

5

Duty waveform

Duty waveform

Drive frequency:

500 Hz

Electronic throttle control motor
(–)

B137

4

Duty waveform

Duty waveform

Drive frequency:

500 Hz

Electronic throttle control motor
power supply

B136

1

10 — 13

12 — 14

 —

Electronic throttle control motor
relay

B136

21

ON: 0

OFF: 10 — 13

ON: 0

OFF: 12 — 14

When ignition switch

is turned to ON: ON

EN-05288

B134

5

6

7

8

2

1

9

4

3

10

24

22

23

25

11

12

13

14

15

26

27

28

16

17

18

19

20

21

33

34

29

32

30

31

B136

5

6

7

8

2

1

9

4

3

10

24

22

23

25

11

12

13

14

15
26

27

28

16

17

18

19

20

21

33

34

29

32

30

31

35

B135

5

6

7

8

2

1

9

4

3

10

24

22

23

25

11

12

13

14

15

26

27

28

16

17

18

19

20

21
29

30

31

32

33

34

35

B137

5

6

7

8

2

1

9

4

3

10

22

23

11

12

13

14

15

24

25

26

16

17

18

19

20

21

27

28

29

30

31
