EN(H4SO)(diag)-11

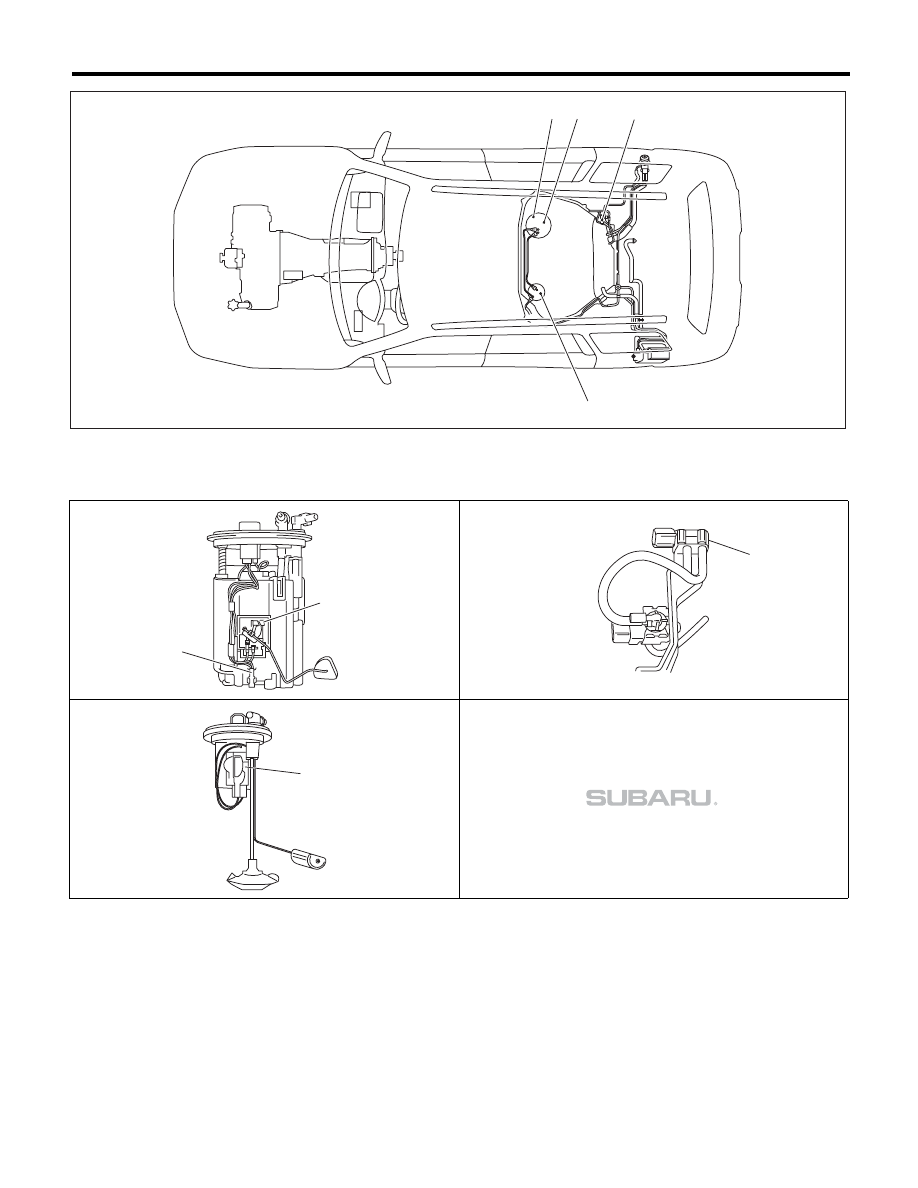

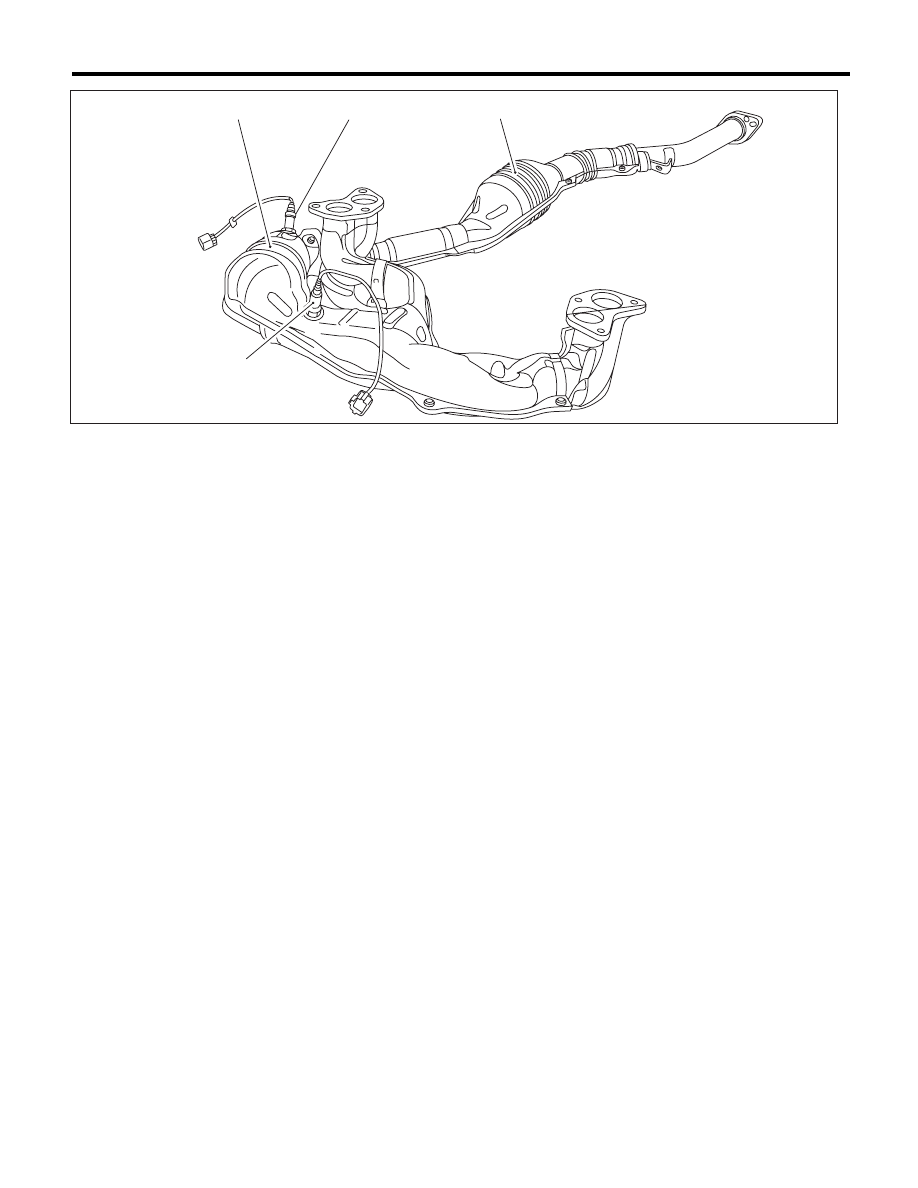

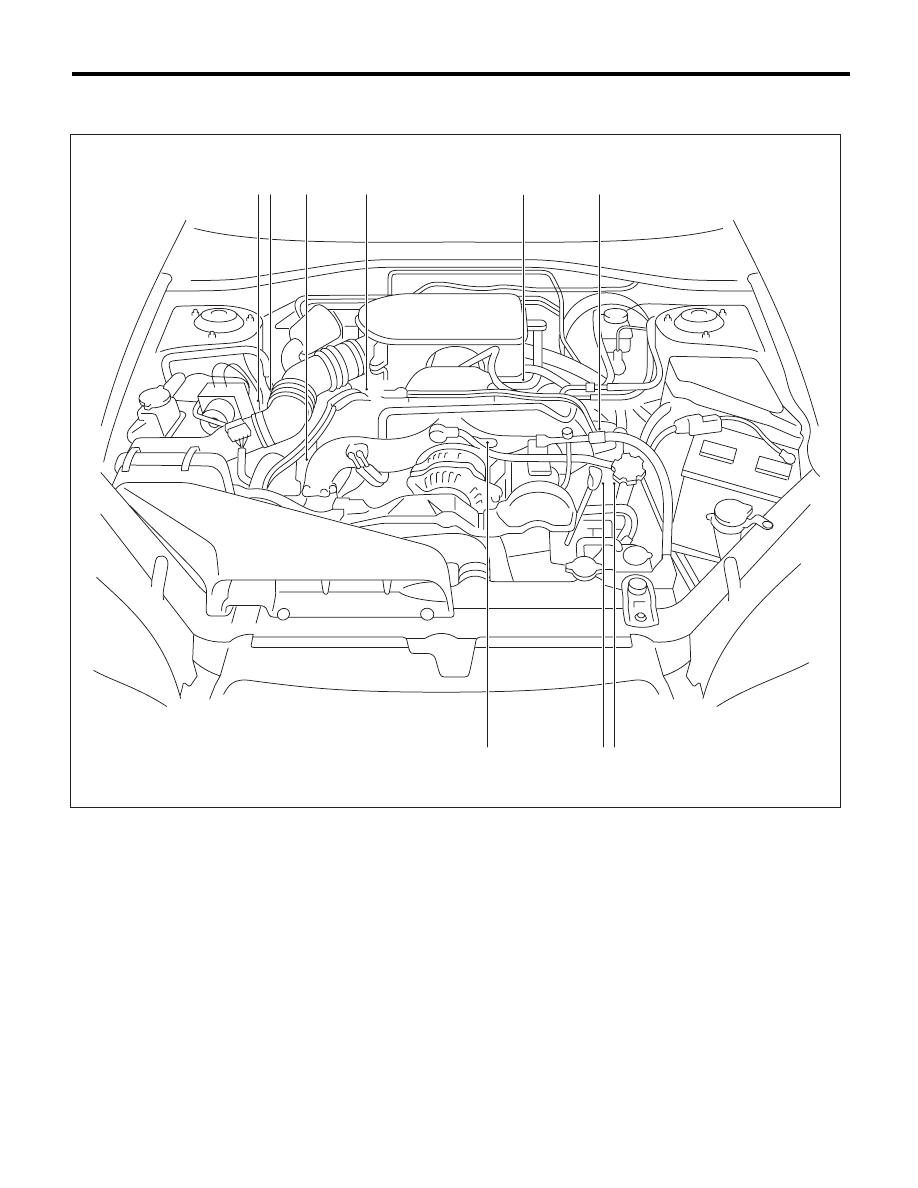

Electrical Component Location

ENGINE (DIAGNOSTICS)

(1)

Front oxygen (A/F) sensor

(3)

Front catalytic converter

(4)

Rear catalytic converter

(2)

Rear oxygen sensor









EN-03847

(1)

(4)

(2)

(3)

EN(H4SO)(diag)-12

Electrical Component Location

ENGINE (DIAGNOSTICS)

(1)

Fuel level sensor

(3)

Fuel tank pressure sensor

(4)

Fuel sub level sensor

(2)

Fuel

temperature

sensor





EN-05730

(1)

(4)

(2)

(3)

EN-05725

(2)

(1)

EN-03003

(3)

EN-03132

(4)

EN(H4SO)(diag)-13

Electrical Component Location

ENGINE (DIAGNOSTICS)

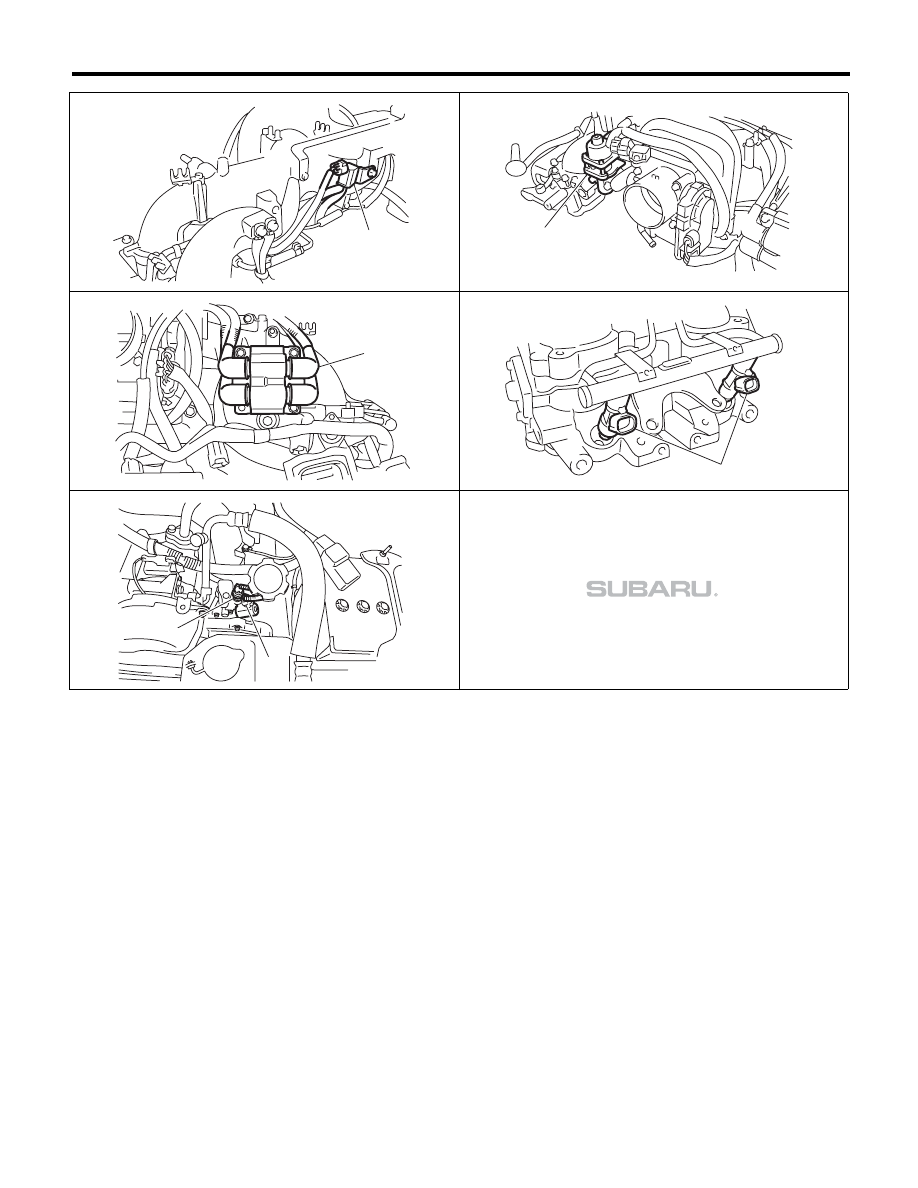

3. SOLENOID VALVE, ACTUATOR, EMISSION CONTROL SYSTEM PARTS AND IGNITION
SYSTEM PARTS

(1)

Purge control solenoid valve

(4)

Fuel injector

(6)

Variable valve lift diagnosis oil
pressure switch

(2)

EGR valve

(5)

Oil switching solenoid valve

(3)

Ignition coil and ignitor ASSY

EN-05731

(4)

(3)

(2)

(1)

(4)

(6)

(5)

(6) (5)

EN(H4SO)(diag)-14

Electrical Component Location

ENGINE (DIAGNOSTICS)

(1)

EN-05732

EN-01976

(2)

EN-03105

(3)

EN-03106

(4)

EN-04985

(5)

(6)
