Subaru Legacy IV (2008 year). Manual - part 55

ME(H4SO)-16

General Description

MECHANICAL

499017100

PISTON PIN GUIDE

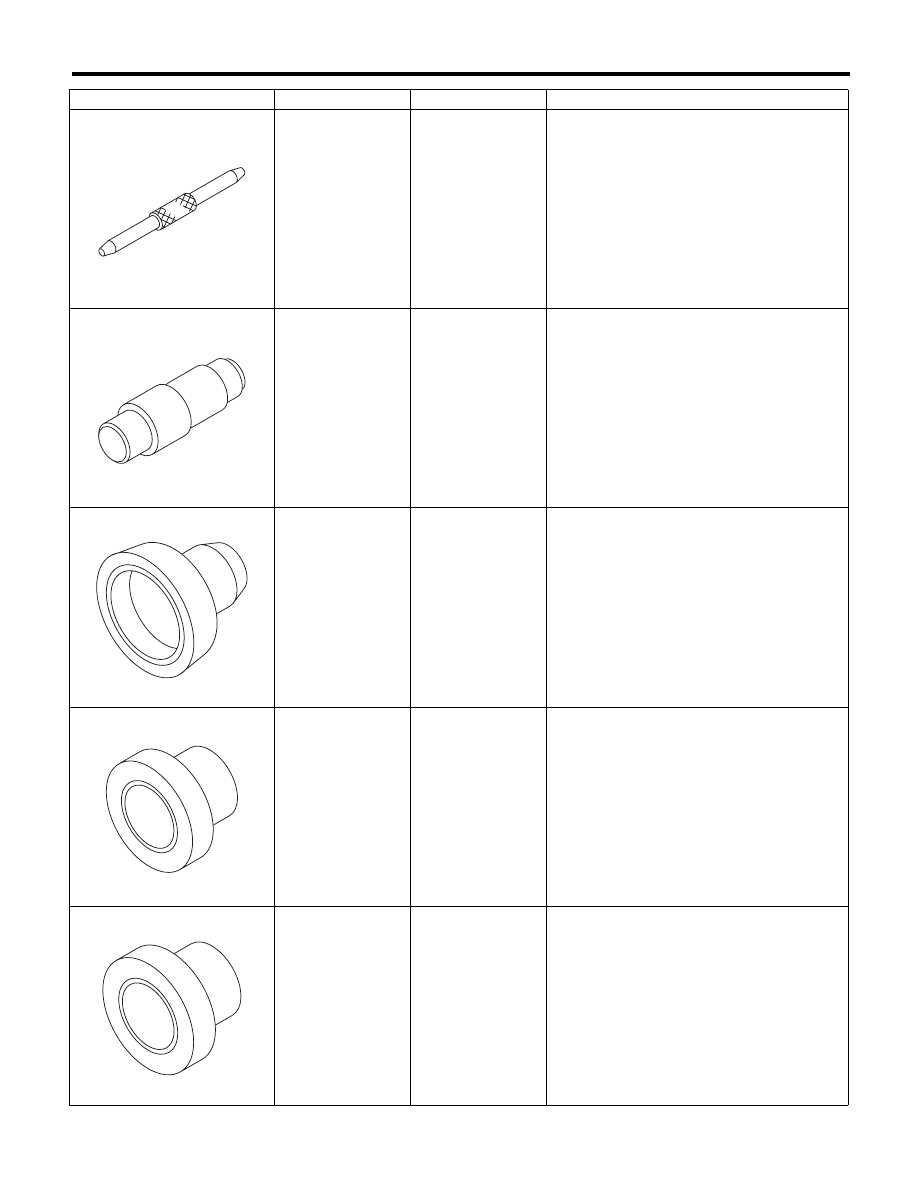

Used for installing piston pin, piston and con-
necting rod.

499037100

CONNECTING ROD
BUSHING
REMOVER AND
INSTALLER

Used for removing and installing connecting rod
bushing.

499587200

CRANKSHAFT OIL
SEAL INSTALLER

• Used for installing crankshaft oil seal.
• Used together with the CRANKSHAFT OIL
SEAL GUIDE (499597100).

499587500

OIL SEAL
INSTALLER

• Used for installing camshaft oil seal.
• Used together with the OIL SEAL GUIDE
(499597000).

499587700

CAMSHAFT OIL
SEAL INSTALLER

Used for installing cylinder head plug.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-499017100

ST-499037100

ST-499587200

ST-499587500

ST-499587700

ME(H4SO)-17

General Description

MECHANICAL

499097700

PISTON PIN
REMOVER ASSY

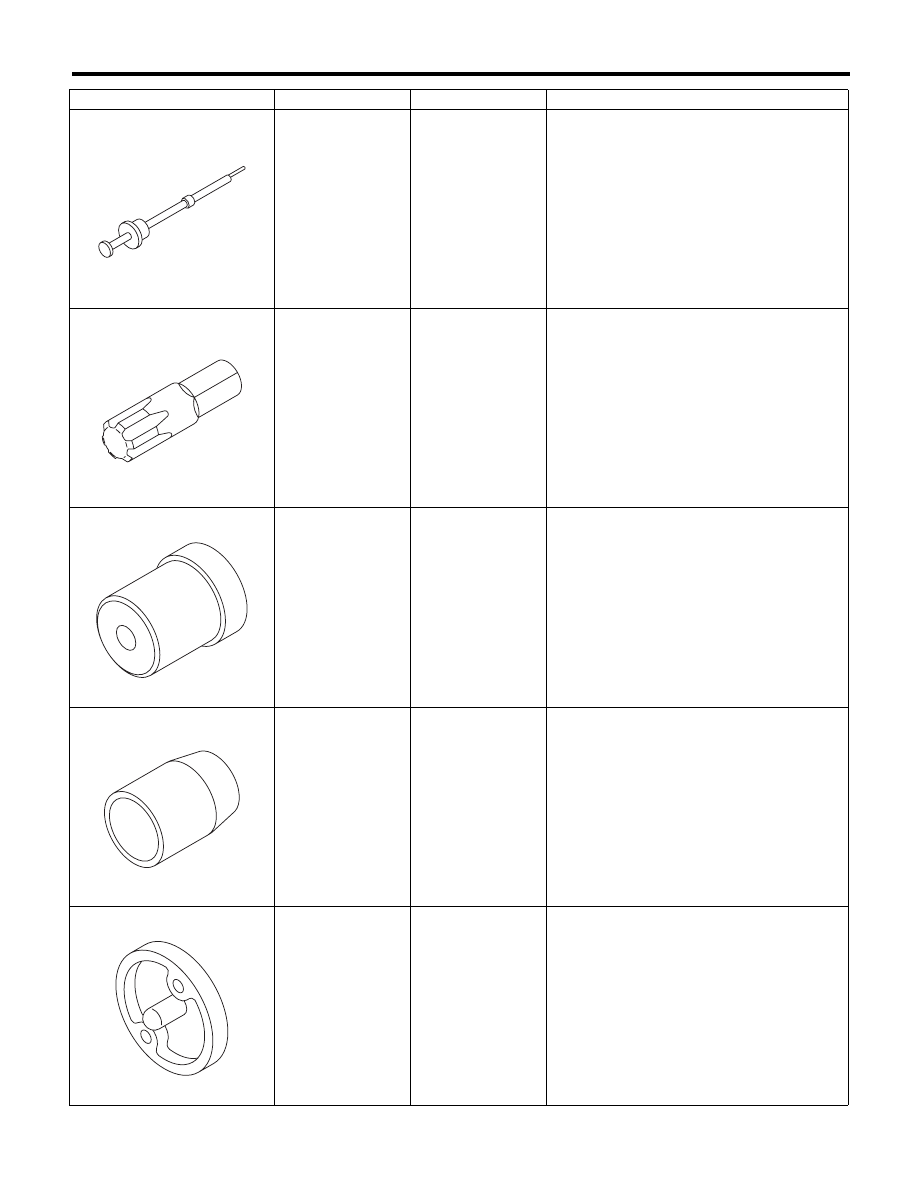

Used for removing piston pin.

499497000

TORX

®

 PLUS

Used for removing and installing camshaft cap.

499587100

OIL SEAL
INSTALLER

Used for installing oil pump oil seal.

499597000

OIL SEAL GUIDE

• Used for installing camshaft oil seal.
• Used together with the OIL SEAL INSTALLER
(499587500).

499597100

CRANKSHAFT OIL
SEAL GUIDE

• Used for installing crankshaft oil seal.
• Used together with the CRANKSHAFT OIL
SEAL INSTALLER (499587200).

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-499097700

ST-499497000

ST-499587100

ST-499597000

ST-499597100

ME(H4SO)-18

General Description

MECHANICAL

499718000

VALVE SPRING
REMOVER

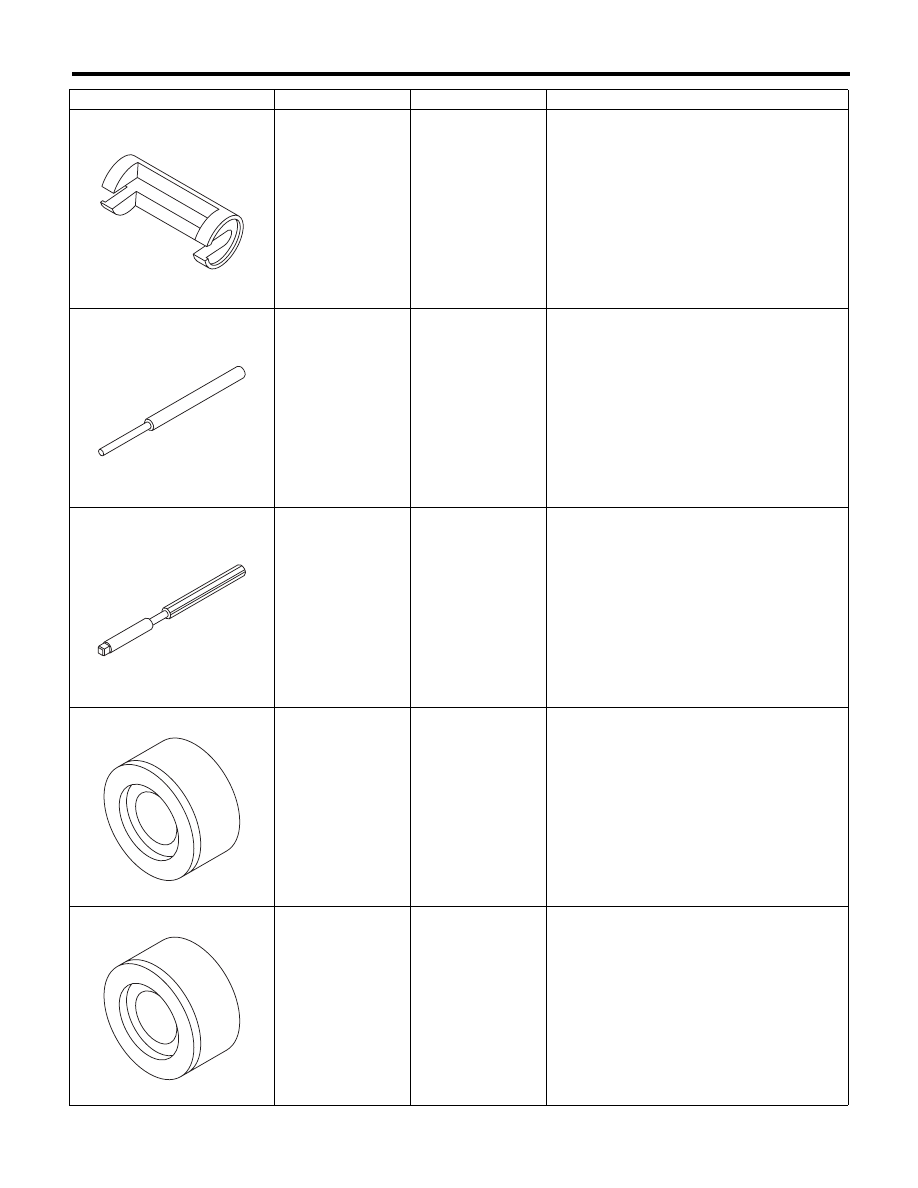

Used for removing and installing valve spring.

499767200

VALVE GUIDE
REMOVER

Used for removing valve guides.

499767400

VALVE GUIDE
REAMER

Used for reaming valve guides.

499767700

VALVE GUIDE
ADJUSTER

Used for installing valve guides. (Intake side)

499767800

VALVE GUIDE
ADJUSTER

Used for installing valve guides. (Exhaust side)

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-499718000

ST-499767200

ST-499767400

ST-499767700

ST-499767800

ME(H4SO)-19

General Description

MECHANICAL

499817100

ENGINE STAND

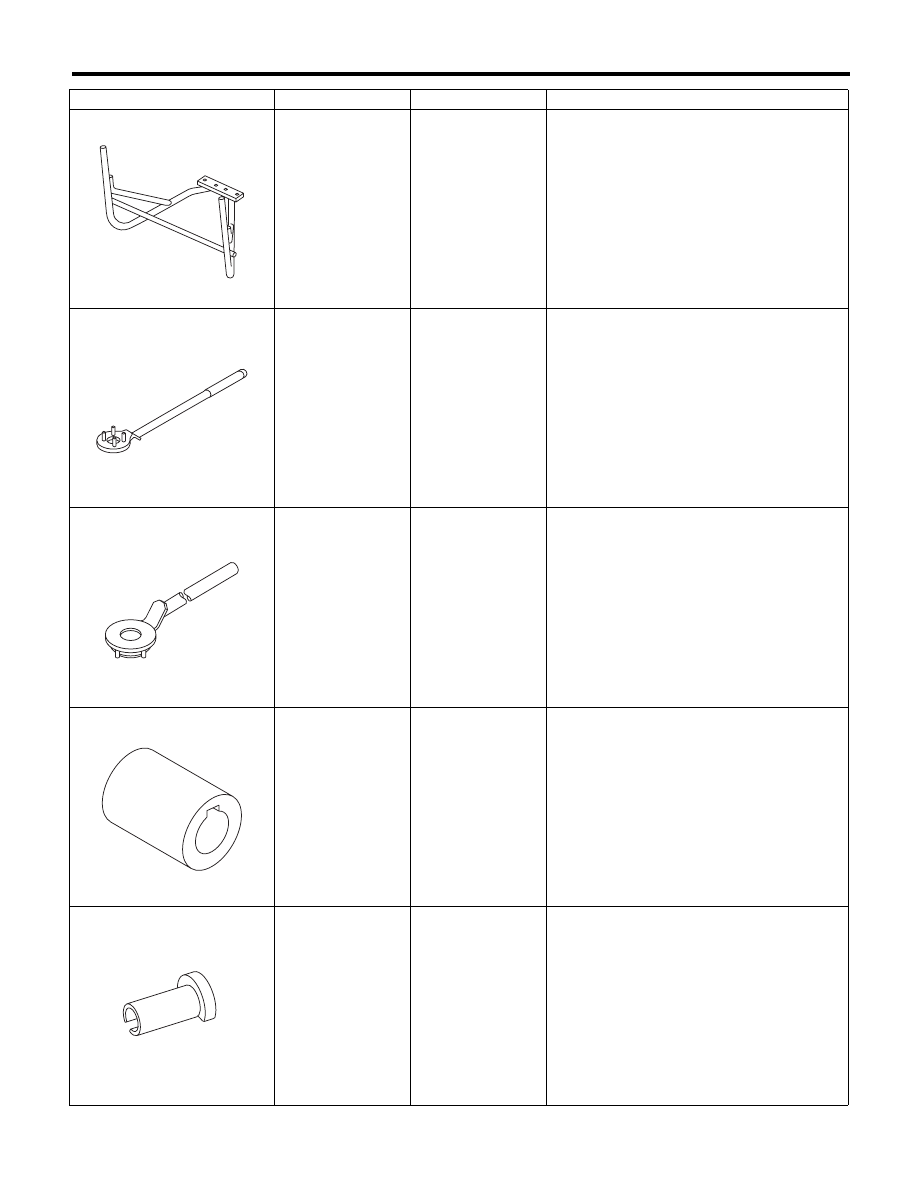

• Stand used for engine disassembly and
assembly.
• Used together with the ENGINE STAND
ADAPTER RH (498457000) & LH (498457100).

499977100

CRANK PULLEY
WRENCH

Used to stop rotation of the crank pulley when
loosening or tightening crank pulley bolts. (MT
model)

499977400

CRANK PULLEY
WRENCH

Used to stop rotation of the crank pulley when
loosening or tightening crank pulley bolts. (AT
model)

499987500

CRANKSHAFT
SOCKET

Used for rotating crankshaft.

42099AE000

QUICK
CONNECTOR
RELEASE

Used for disconnecting quick connector in the
engine compartment.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-499817100

ST-499977100

ST-499977400

ST-499987500

ST42099AE000
