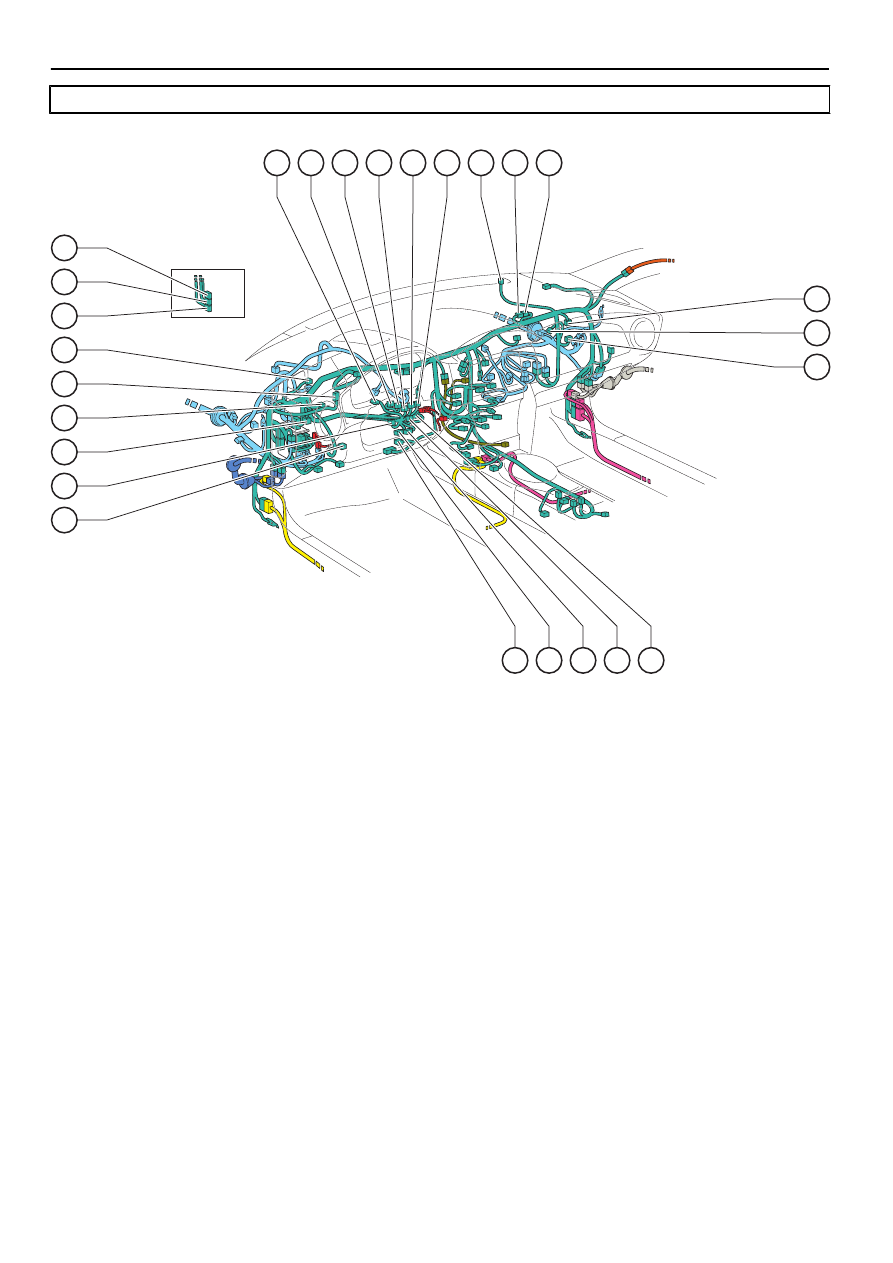

Position of Parts in Instrument Panel

[LHD]

D66

D48

D41

D40

D43

D44

D61

D64

D42

D63

D50

D62

D54

D52

D74

D60

D51

D59

D56

D53

D55

D58

D57

D45

D46

D47

*1

for the installation position of the parts.

* 1:Refer to the Immobillizer Teaching Operation Manual

D40

Certification ECU Assembly

D41

Certification ECU Assembly

D42

Shift Lock Release Button Cover

D43

Junction Connector

D44

No. 1 Power Outlet Socket Assembly

D45

Automatic Light Control Sensor

D46

Junction Connector

D47

Junction Connector

D48

Certification ECU Assembly

D50

Headlight Dimmer Switch Assembly

D51

Roll Connector

D52

Roll Connector

D53

Un-Lock Warning Switch Assembly
(Ignition Switch Lock Cylinder Assembly)

D54

Transponder Key Amplifier

D55

Ignition or Starter Switch Assembly

D56

Steering Sensor

D57

Windshield Wiper Switch Assembly

D58

Windshield Wiper Switch Assembly

D59

Steering Lock Actuator Assembly

D60

Key Inter Lock Solenoid
(Ignition Switch Lock Cylinder Assembly)

D61

Turn Signal Flasher Assembly

D62

Driver's Knee Airbag Module

D63

Option Connector

D64

Trip Switch

D66

Front No. 2 Speaker Assembly LH

D74

No. 1 Cooler Thermistor

G

BRZ (G4400GE)

41

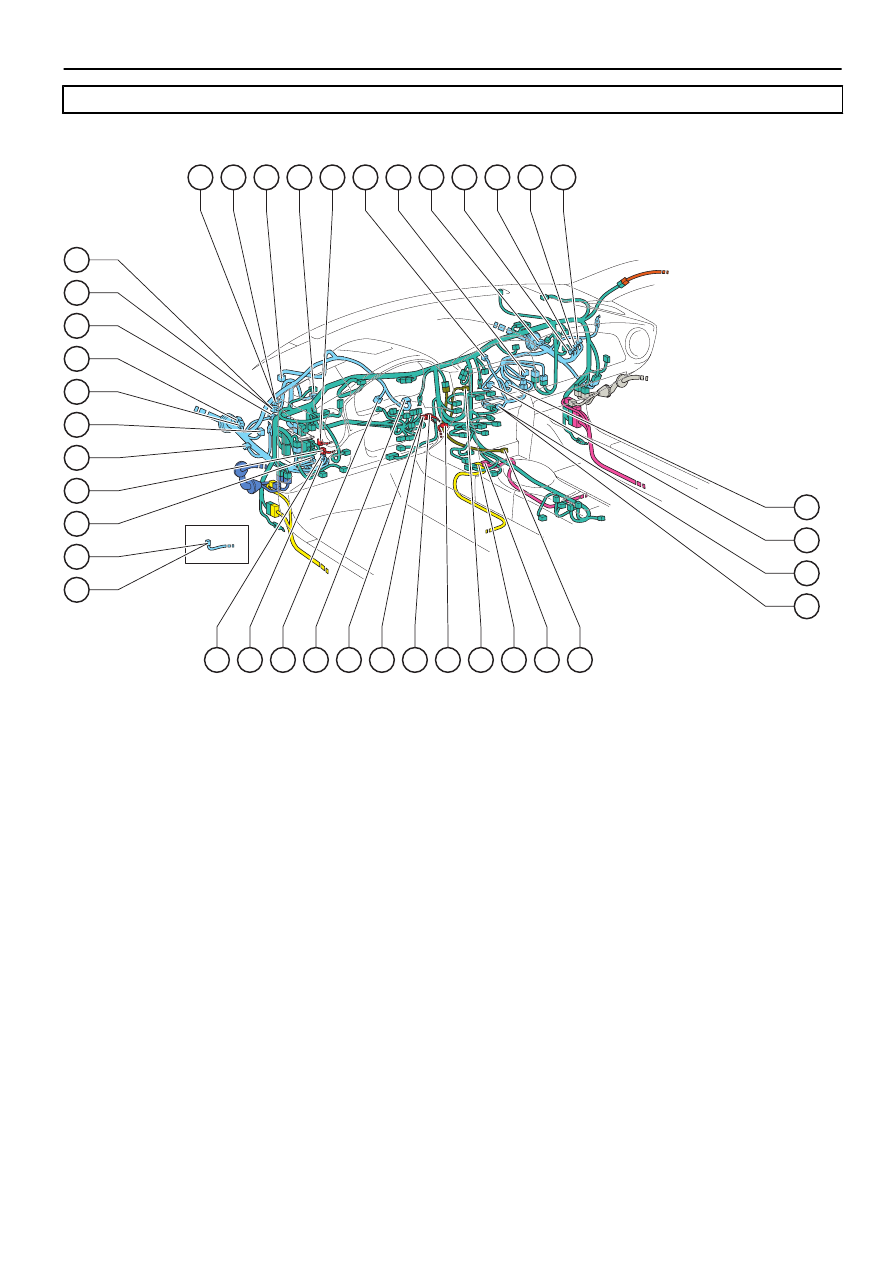

Position of Parts in Instrument Panel

[LHD]

A10

A9

z2

A21

A18

A17

A28

A13

A31

A26

A27

A73

A30

A64

A19

A20

A15

A23

A14

A22

A24

z1

A25

z5

z8

z4

A34

A33

A36

A35

A29

A32

A37

z6

a2

H17

G1

a1

A16

*1

(*3)

(*2)

(*4)

(*5)

* 2:M/T
* 3:A/T

* 5:w/o Entry & Start System

* 4:w/ Entry & Start System

* 6:Manual A/C
* 7:Automatic A/C
* 8:w/ Cruise Control
* 9:w/o Cruise Control

(*3)

(*2)

(*6)

(*7)

for the installation position of the parts.

Teaching Operation Manual

* 1:Refer to the Immobillizer

(*9)

(*8)

A9

Junction Connector

A10

Junction Connector

A13

Noise Filter

A14

Power Steering ECU Assembly

A15

Power Steering ECU Assembly

A16

Headlight Leveling ECU

A17

Junction Connector

A18

Transmission Control Module

A19

Transmission Control Module

A20

Clutch Start Switch Assembly

A21

Clutch Switch Assembly

A22

Stop Light Switch Assembly

A23

Accelerator Pedal Sensor Assembly

A24

No. 1 A/C Radiator Damper Servo Sub-Assembly

A25

Cooler Thermistor (Room Temperature Sensor)

A26

Blower Resistor

A27

Blower Assembly

A28

No. 3 A/C Radiator Damper Servo Sub-Assembly

A29

No. 4 A/C Radiator Damper Servo Sub-Assembly

A30

ID Code Box

A31

Blower with Fan Motor Sub-Assembly

A32

No. 5 A/C Radiator Damper Servo Sub-Assembly

A33

ECM

A34

ECM

A35

ECM

A36

ECM

A37

Junction Connector

A64

Transponder Key ECU Assembly

A73

Main Body ECU

G1

Airbag Control Module

H17

Airbag Control Module

a1

No. 1 Stereo Jack Adapter Assembly

a2

Radio Receiver Assembly

z1

Power Steering ECU Assembly
Steering Column Assembly

z2

Power Steering ECU Assembly
Steering Column Assembly

z4

Roll Connector
Paddle Shift Switch

z5

Roll Connector
Cruise Control Main Switch

z6

Roll Connector
Driver's Airbag Module

z8

Roll Connector
Horn Button Assembly

G  ELECTRICAL WIRING ROUTING

BRZ (G4400GE)

42

Memo

BRZ (G4400GE)

43

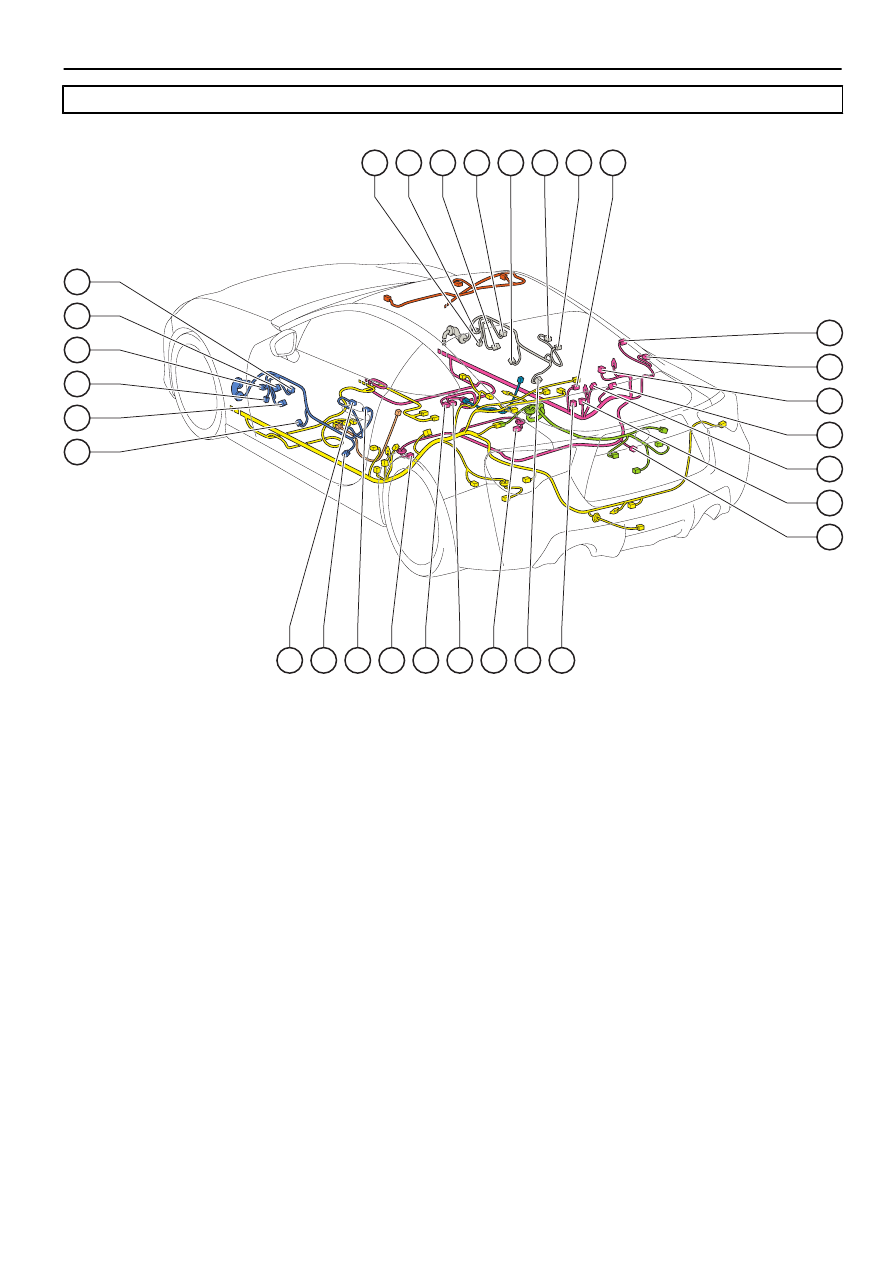

Position of Parts in Body

[LHD]

E2

E1

F9

E3

F8

G7

G4

F6

G3

F1

F2

G6

F5

F4

F3

G18

G17

E5

G10

G11

E7

E9

G12

E6

E8

G14

G15

E4

G16

G9

E1

Electrical Key Antenna LH
(Front Door Outside Handle Assembly LH)

E2

Front Courtesy Light Assembly LH

E3

Door Lock with Motor Assembly LH

E4

Front Door Impact Sensor LH

E5

Power Window Regulator Motor Assembly LH

E6

Front No. 1 Speaker Assembly LH

E7

Outer Rear View Mirror Assembly LH

E8

Power Window Regulator Master Switch Assembly

E9

Outer Mirror Switch Assembly

F1

Power Window Regulator Motor Assembly RH

F2

Front Door Impact Sensor RH

F3

Door Lock with Motor Assembly RH

F4

Front Courtesy Light Assembly RH

F5

Electrical Key Antenna RH
(Front Door Outside Handle Assembly RH)

F6

Power Window Regulator Switch Assembly

F8

Outer Rear View Mirror Assembly RH

F9

Front No. 1 Speaker Assembly RH

G3

Front Seat Inner Belt Assembly RH

G4

Seat Heater RH

G6

No. 2 Fuel Sender Gage Assembly

G7

Fuel Sender Gage Assembly

G9

Rear Speed Sensor RH

G10

Rear Window Defogger (Back Window Glass)

G11

Curtain Airbag Module RH

G12

Fuel Pump Control ECU Assembly

G14

Curtain Airbag Sensor RH

G15

Rear Speaker Assembly RH

G16

Side Airbag Sensor RH

G17

Pretensioner RH

G18

Front Door Courtesy Light Switch Assembly RH
