Subaru BRZ Electrical Manual - part 10





[Fusible Link Block Assembly Inner Circuit]

Fusible Link Block Assembly

A75(A), A76(B)

140A ALT

Battery

80A MAIN

A

1

B

1

F

BRZ (G4400GE)

37

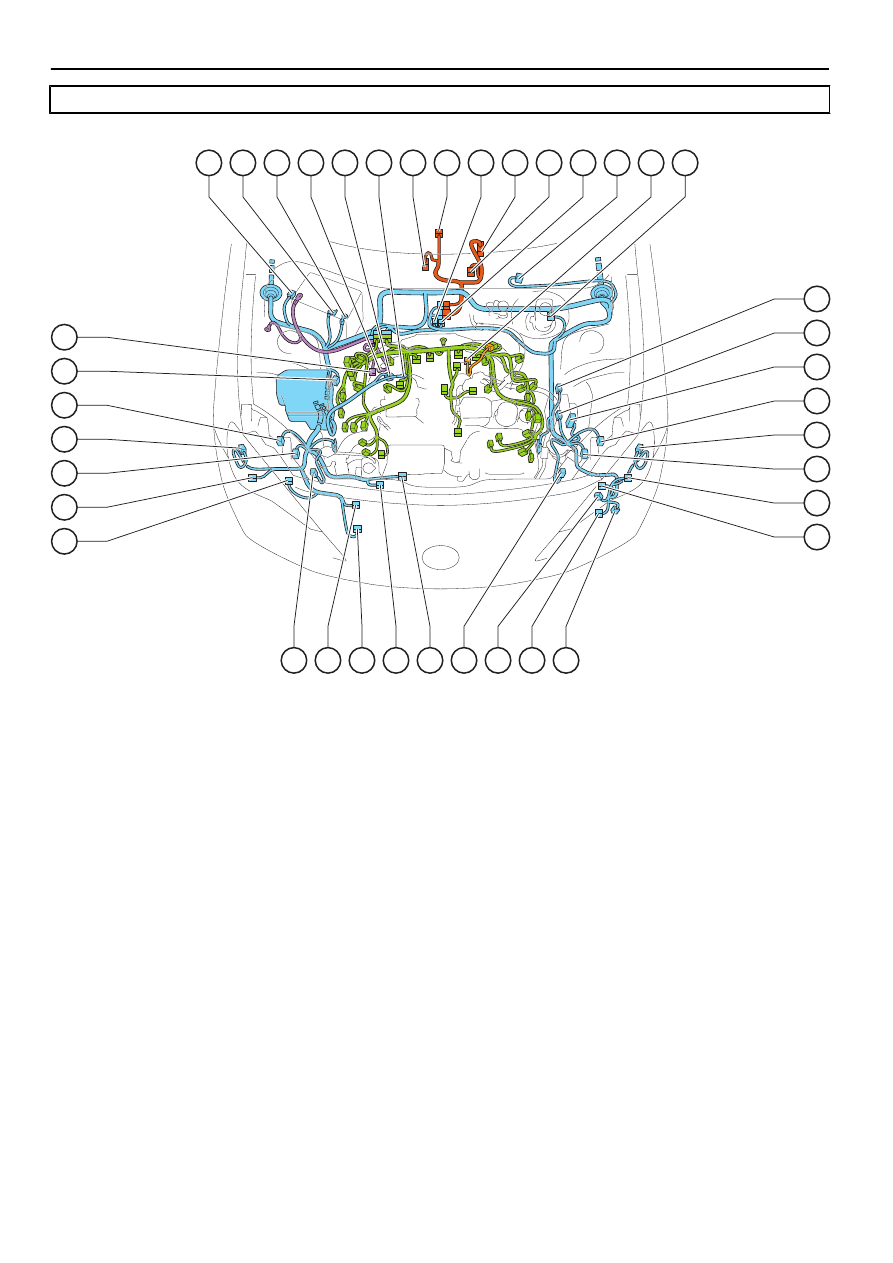

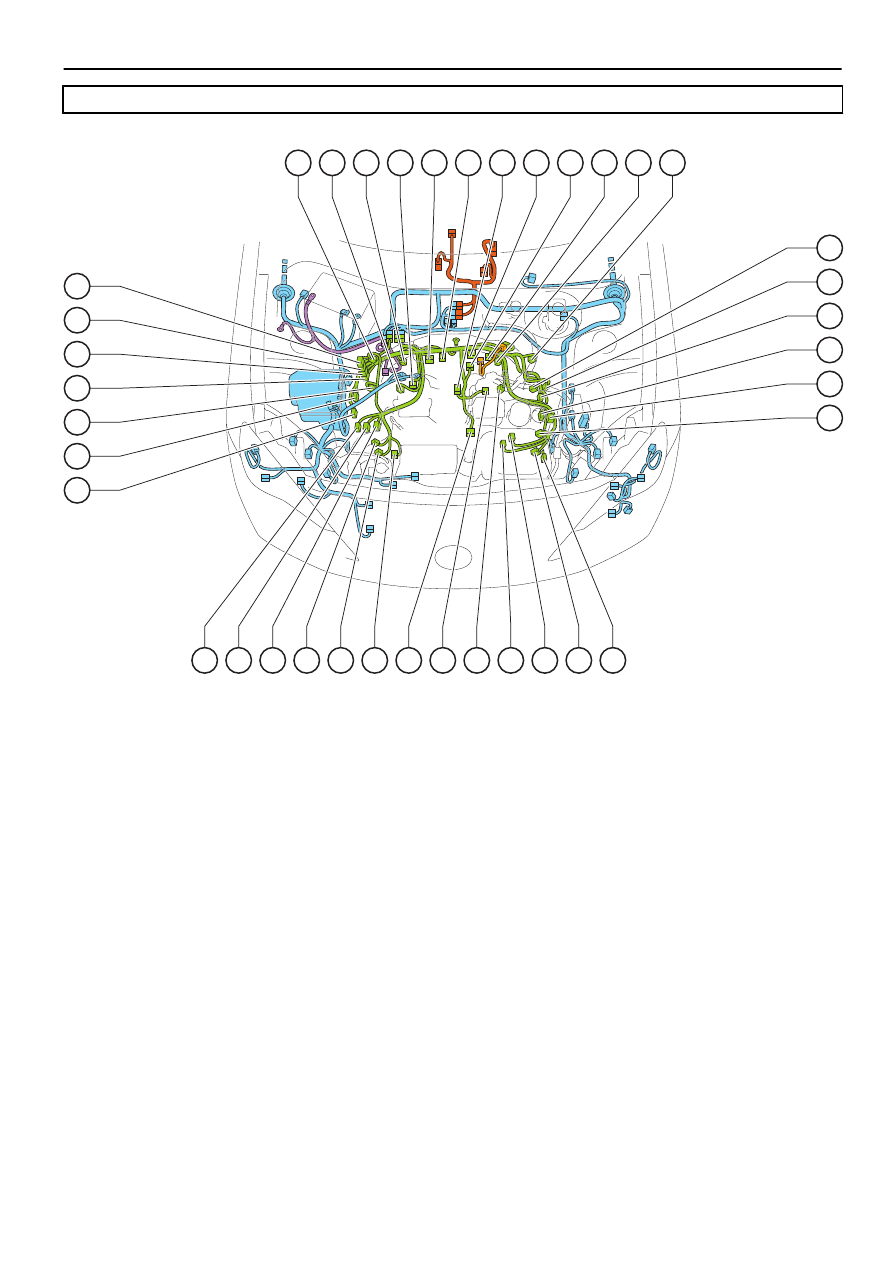

Position of Parts in Engine Compartment

[LHD]

C26

C24

C28

C29

C30

C27

C3

C4

C1

C2

C8

C39

C38

C12

C9

C13

C11

C14

C37

C7

C10

C5

C36

C6

C35

C16

C17

C15

C20

C33

C22

C18

C21

C34

C23

C19

C25

C31

C1

Injector Driver (EDU)

C2

Injector Driver (EDU)

C3

Injector Driver (EDU)

C4

Injector Driver (EDU)

C5

Camshaft Timing Oil Control Valve Assembly
(Bank 1 Exhaust Side)

C6

VVT Sensor (Camshaft Position Sensor)
(Bank 1 Exhaust Side)

C7

Camshaft Timing Oil Control Valve Assembly
(Bank 1 Intake Side)

C8

Fuel Injector Assembly (for Port Injection No. 1)

C9

Fuel Injector Assembly (for Port Injection No. 3)

C10

Fuel Pressure Sensor

C11

Fuel Injector Assembly (for Direct Injection No. 1)

C12

VVT Sensor (Camshaft Position Sensor)
(Bank 1 Intake Side)

C13

Heated Oxygen Sensor (Bank 1 Sensor 2)

C14

Wide Range Air Fuel Ratio Sensor (Bank 1 Sensor 1)

C15

Throttle Body with Motor Assembly

C16

Intake Mass Air Flow Meter Sub-Assembly

C17

Compressor with Magnet Clutch

C18

VSV

C19

Fuel Injector Assembly (for Direct Injection No. 4)

C20

Fuel Injector Assembly (for Direct Injection No. 2)

C21

Oil Temperature Sensor

C22

Engine Oil Pressure Switch Assembly

C23

Camshaft Timing Oil Control Valve Assembly
(Bank 2 Exhaust Side)

C24

Camshaft Timing Oil Control Valve Assembly
(Bank 2 Intake Side)

C25

VVT Sensor (Camshaft Position Sensor)
(Bank 2 Exhaust Side)

C26

VVT Sensor (Camshaft Position Sensor)
(Bank 2 Intake Side)

C27

Ignition Coil Assembly No. 4

C28

Ignition Coil Assembly No. 2

C29

Spill Control Valve (Fuel Pump Assembly)

C30

Fuel Injector Assembly (for Port Injection No. 2)

C31

Fuel Injector Assembly (for Port Injection No. 4)

C33

Crankshaft Position Sensor

C34

Knock Control Sensor (Bank 2)

C35

E.F.I. Engine Coolant Temperature Sensor

C36

Knock Control Sensor (Bank 1)

C37

Fuel Injector Assembly (for Direct Injection No. 3)

C38

Ignition Coil Assembly No. 1

C39

Ignition Coil Assembly No. 3

G  ELECTRICAL WIRING ROUTING

BRZ (G4400GE)

38

Position of Parts in Engine Compartment

[LHD]

A40

A42

B1

A7

A38

A12

A44

A5

A62

A41

A3

A52

A60

A4

A6

A11

A55

A59

A51

B2

A48

A76

A75

A77

d1

A49

A54

A43

L2

L3

L4

L5

A53

A45

A46

A58

A63

A2

A1

A1

Windshield Washer Motor and Pump Assembly

A2

Headlight Cleaner Washer Motor and Pump Assembly

A3

Side Turn Signal Light Assembly LH

A4

Headlight Assembly LH

A5

VSC (VDC) Control Module

A6

Headlight Cleaner Control Relay

A7

Pressure Switch

A11

Battery Current Sensor Assembly

A12

Front Speed Sensor LH

A38

Headlight Assembly RH

A40

Headlight Assembly RH

A41

Headlight Assembly RH

A42

Front Speed Sensor RH

A43

Generator Assembly

A44

Side Turn Signal Light Assembly RH

A45

Cooling Fan Motor

A46

No. 2 Cooling Fan Motor

A48

Ambient Temperature Sensor (Thermistor Assembly)

A49

High Pitched Horn Assembly

A51

Front Sub Sensor RH

A52

Low Pitched Horn Assembly

A53

Back-Up Light Switch Assembly

A54

Park/Neutral Position Switch Assembly

A55

Front Wiper Motor and Link Assembly

A58

Front Sub Sensor LH

A59

Brake Fluid Level Warning Switch
(Brake Master Cylinder Sub-Assembly)

A60

Headlight Assembly LH

A62

Headlight Assembly LH

A63

Wireless Door Lock Buzzer

A75

Fusible Link Block Assembly

A76

Fusible Link Block Assembly

A77

Generator Assembly

B1

Starter Assembly

B2

Starter Assembly

L2

Park/Neutral Position Switch Assembly

L3

Transmission Revolution Sensor (SP2)

L4

Electronically Controlled Transmission Solenoid

L5

Transmission Revolution Sensor (NT)

d1

CPC Solenoid

G

BRZ (G4400GE)

39

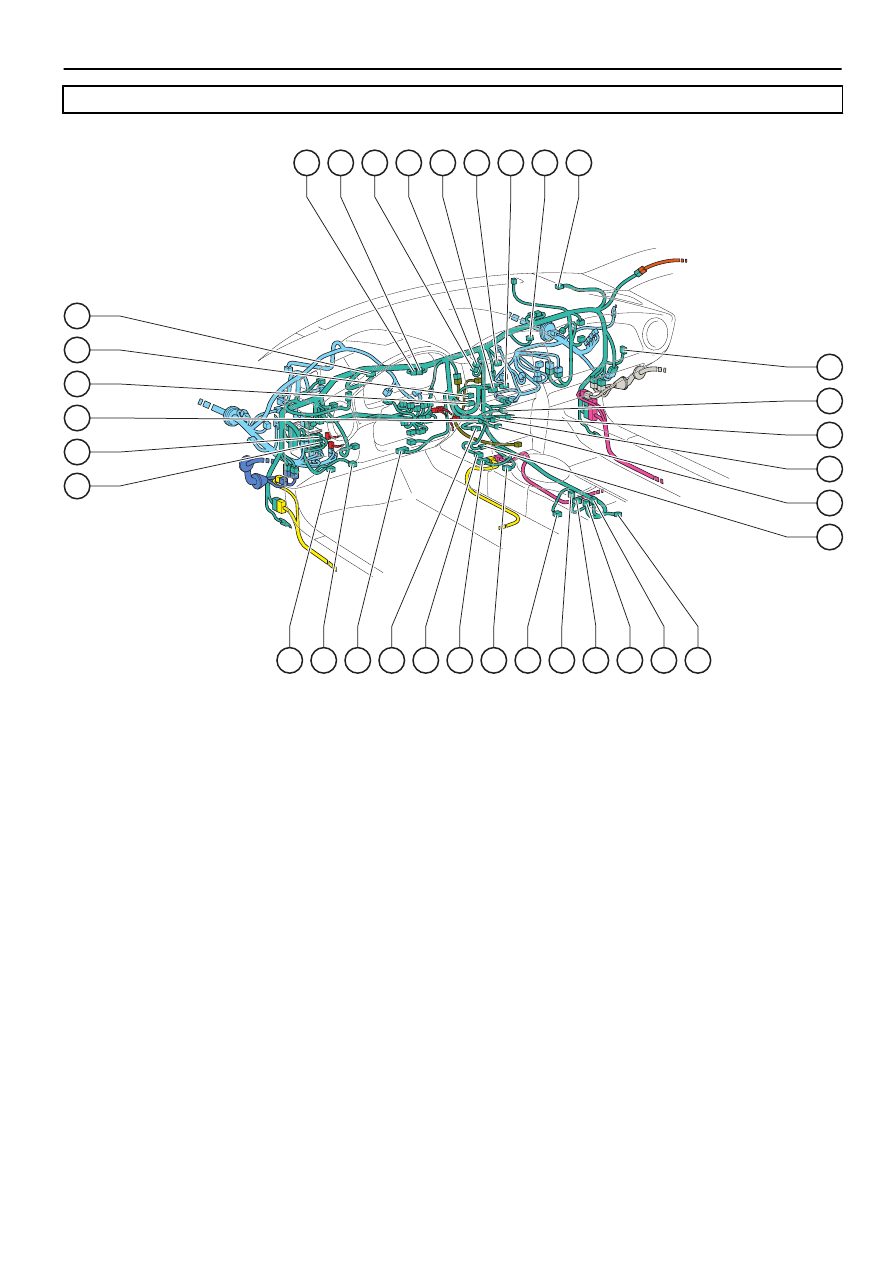

Position of Parts in Instrument Panel

[LHD]

D37

D7

D21

D12

D20

D18

D23

D6

D22

D5

D26

D24

D2

D4

D8

D10

D9

D19

D25

D27

D17

D31

D16

D28

D29

D35

D13

D36

D39

D32

D33

D34

D14

D30

D2

Light Control Rheostat

D4

Luggage Door Opening Switch Assembly

D5

Main Body ECU

D6

Main Body ECU

D7

Combination Meter Assembly

D8

Junction Connector

D9

Junction Connector

D10

DLC3

D12

Radio Receiver Assembly

D13

Radio Receiver Assembly

D14

Radio Receiver Assembly

D16

Junction Connector

D17

Junction Connector

D18

Clock Assembly

D19

A/C Amplifier Assembly

D20

A/C Amplifier Assembly

D21

No. 1 Heater Control Sub-Assembly

D22

No. 3 Heater Control Sub-Assembly

D23

No. 3 Heater Control Sub-Assembly

D24

Heater Control Sub-Assembly

D25

Engine Switch

D26

Indoor Electrical Key Oscillator Assembly

D27

Airbag Control Module

D28

Shift Lever Position Sensor (Floor Shift Control Lever)

D29

Option Connector

D30

Passenger's Airbag Module

D31

Parking Brake Switch Assembly

D32

Seat Heater Switch LH

D33

Seat Heater Switch RH

D34

No. 2 Power Outlet Socket Assembly

D35

Pattern Select Switch Assembly

D36

Shift Position Indicator

D37

Airbag Cut Off Switch

D39

Front No. 2 Speaker Assembly RH

G  ELECTRICAL WIRING ROUTING

BRZ (G4400GE)

40
