Subaru BRZ (2012 year). Manual - part 29

PM-45

Fuel Filter

PERIODIC MAINTENANCE SERVICES

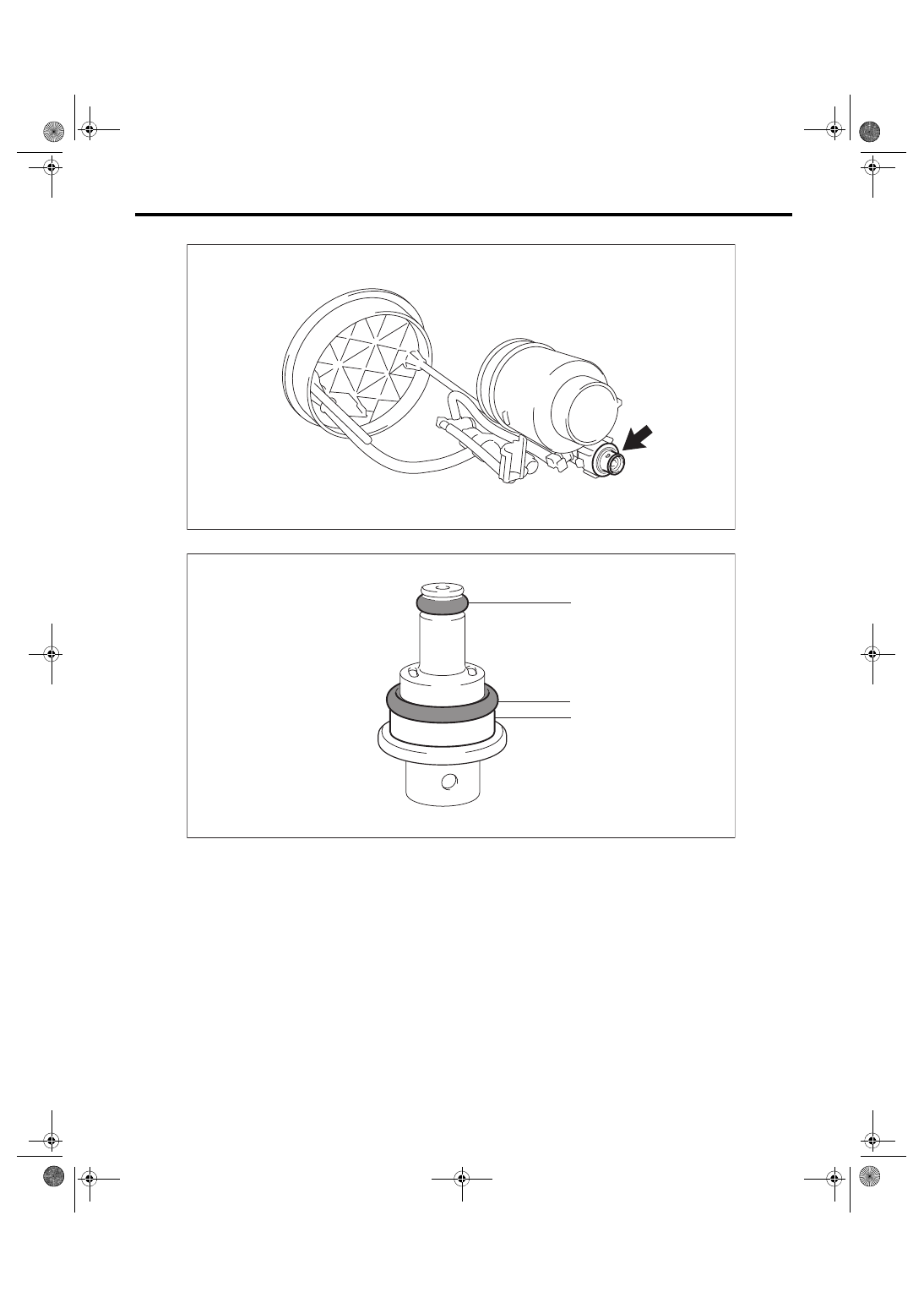

34) Remove the pressure regulator from the fuel filter assembly.

35) Remove the O-rings (A) and (B) and back-up ring (C) from the pressure regulator.

PM-00609

PM-00610

(A)

(B)

(C)

PM-46

Fuel Filter

PERIODIC MAINTENANCE SERVICES

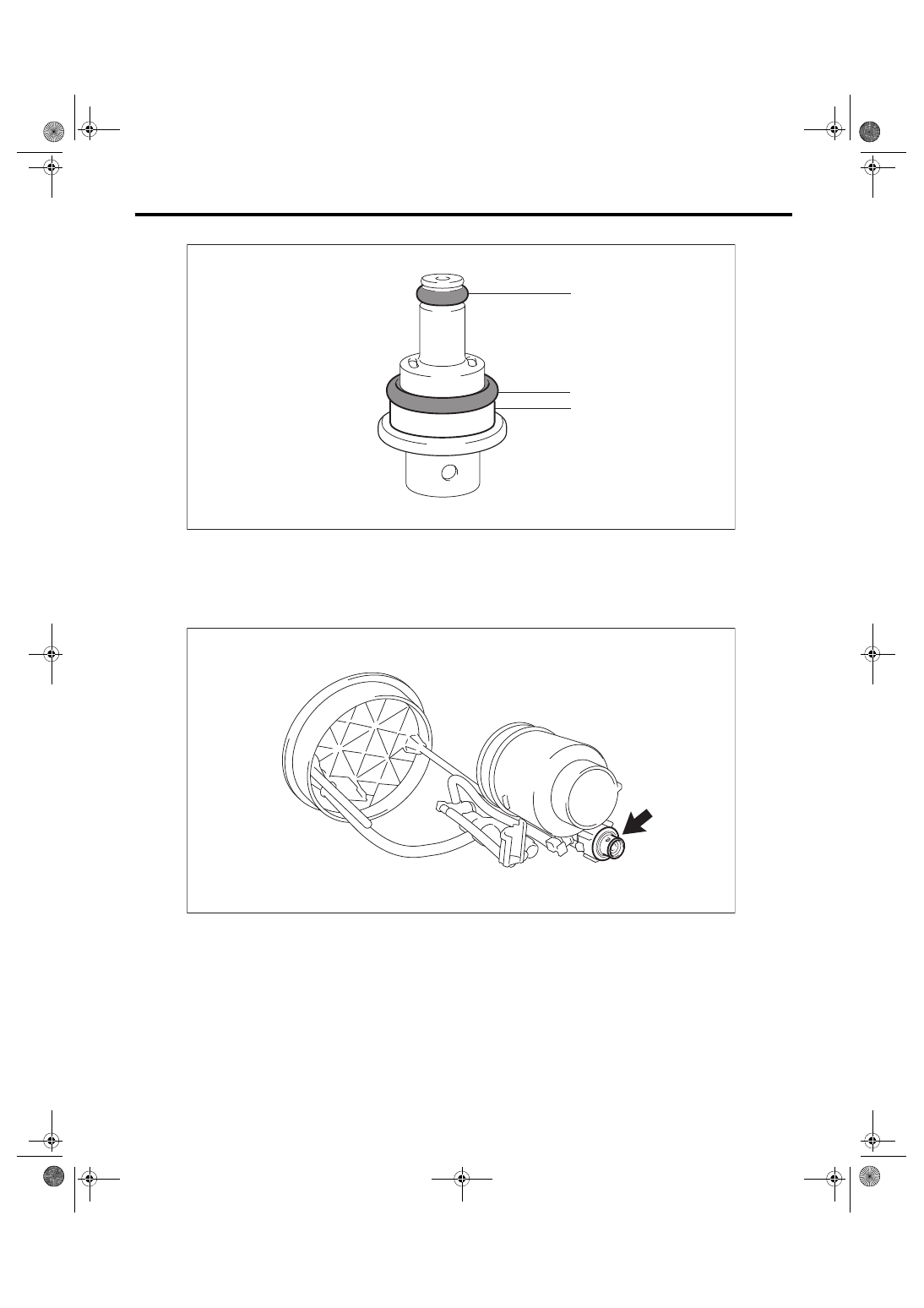

36) Install new O-rings (A) and (B), and new back-up ring (C) to the pressure regulator.

37) Install the pressure regulator to the fuel filter assembly.
CAUTION:

Make sure that the O-ring is not cut or pinched when installing.
NOTE:

Apply gasoline to the pressure regulator.

PM-00610

(A)

(B)

(C)

PM-00609

PM-47

Fuel Filter

PERIODIC MAINTENANCE SERVICES

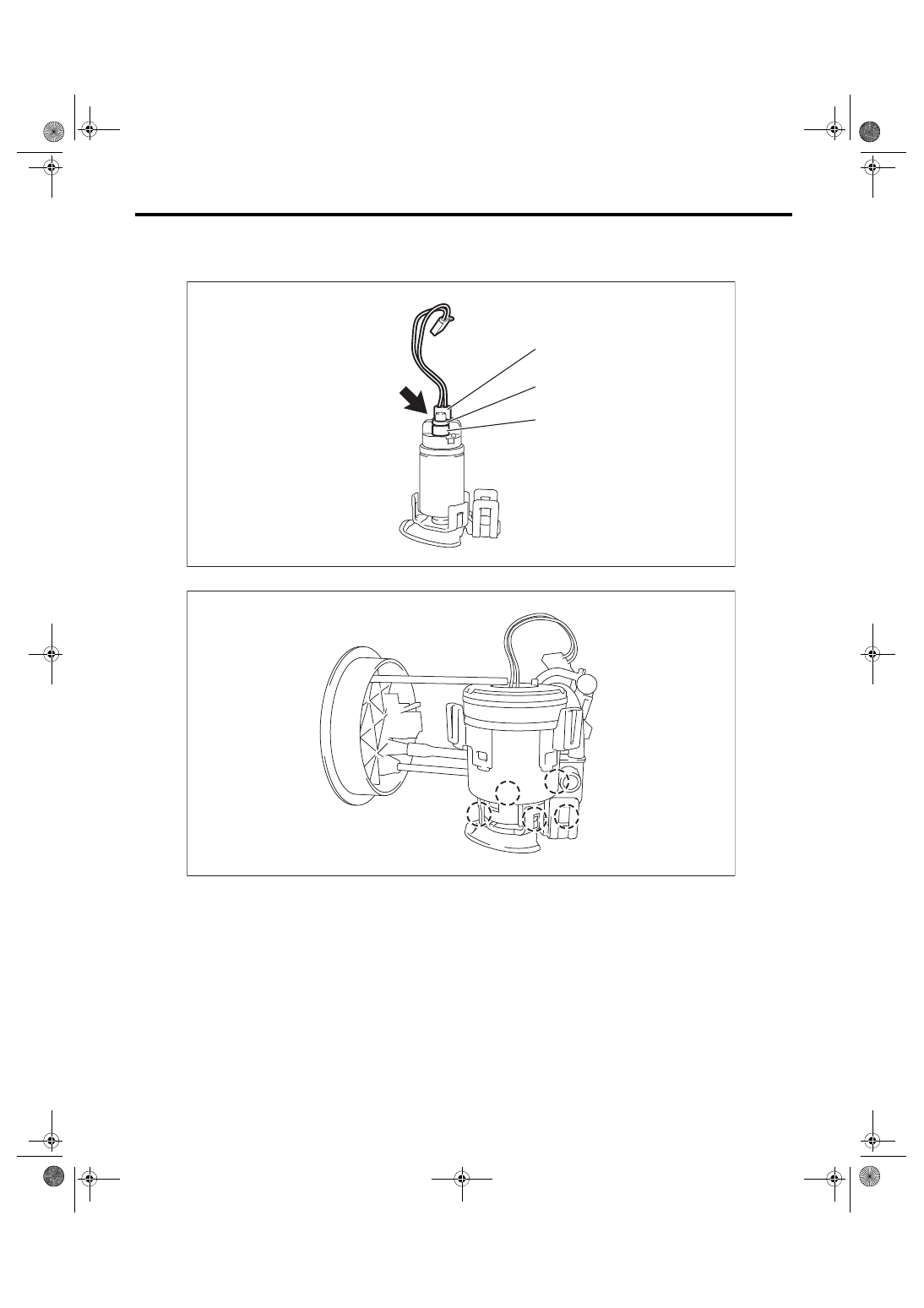

38) Install a new O-ring (A), spacer (B) and new connector cable (C) to the fuel pump.
NOTE:

Apply gasoline to the O-ring and spacer.

39) Install the fuel pump to the fuel filter assembly.

PM-00608

(A)

(B)

(C)

PM-00611

PM-48

Fuel Filter

PERIODIC MAINTENANCE SERVICES

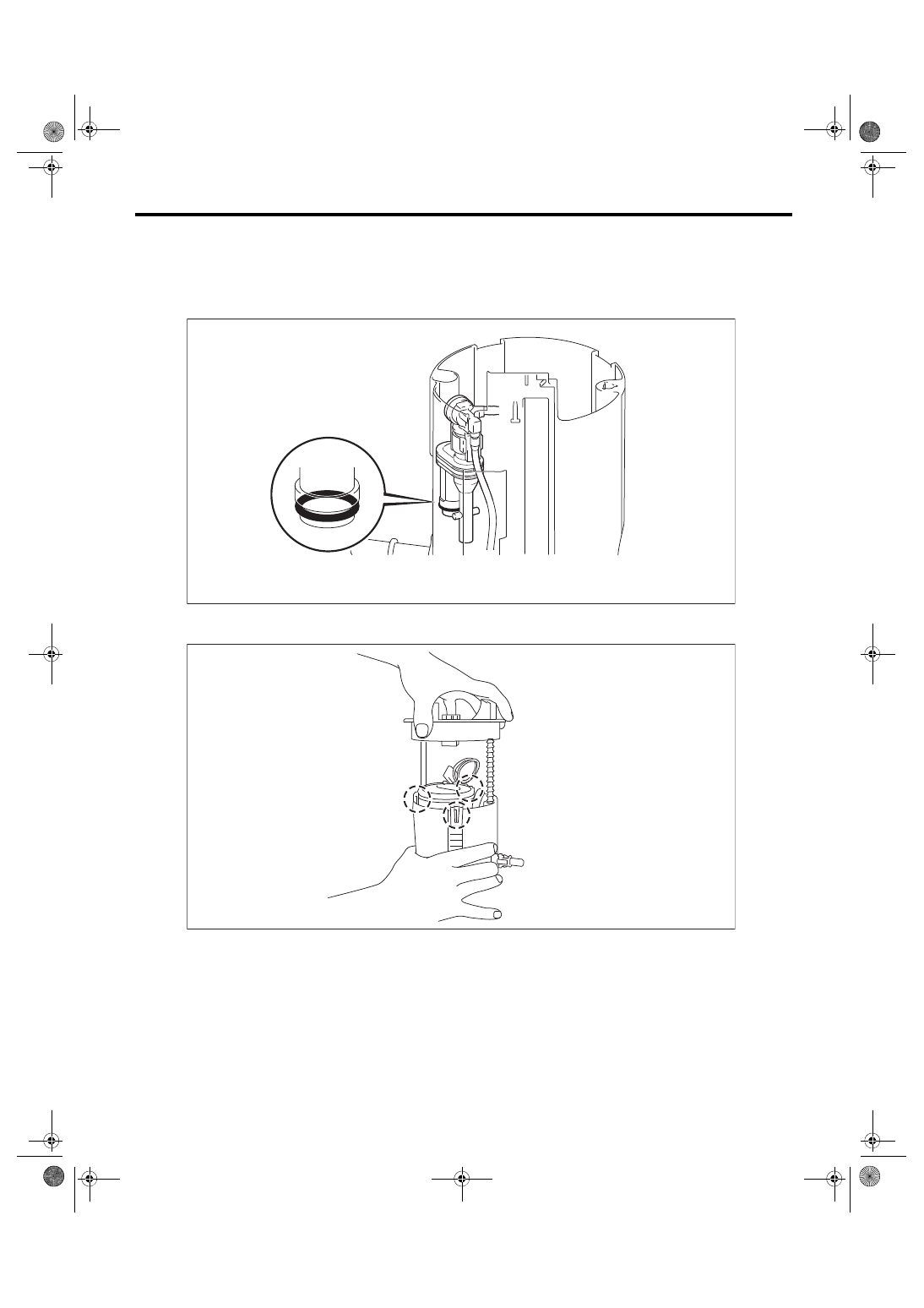

40) Install a new O-ring to the fuel filter assembly.
CAUTION:

Make sure that the O-ring is not cut or pinched when installing.
NOTE:

Apply gasoline to the O-ring.

41) Install the jet pump to the fuel sub tank.

42) Engage the three tabs, and install the fuel filter to the fuel sub tank.

PM-00612

PM-00603
