SSANGYONG  Y200

9D-42  BODY ELECTRICAL

YAD9D870

YAD9D880

YAD9D890

YAD9D900

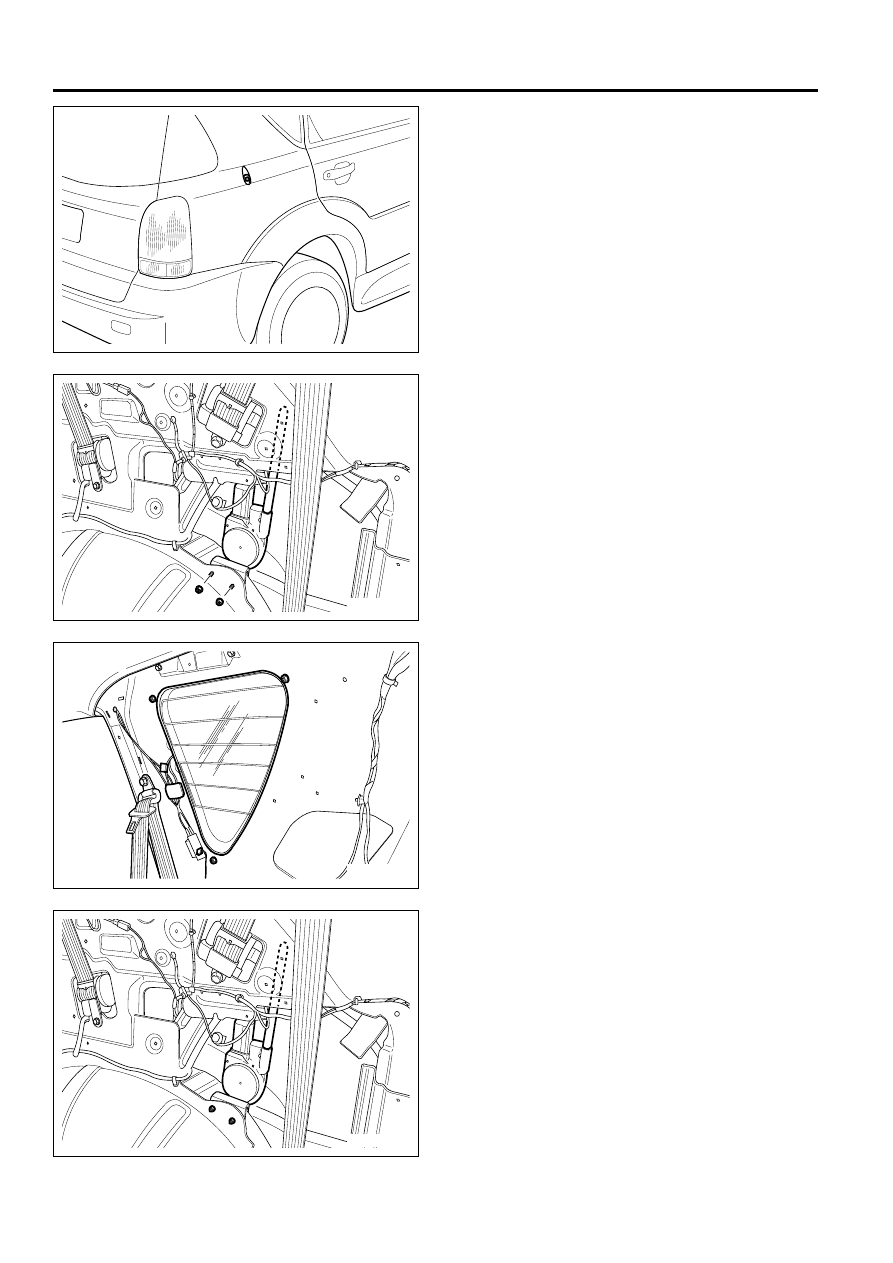

Power antenna and module

Power antenna

1. After separating the negative terminal, remove

lower quarter panel of seat in the passenger seat.

2. Remove fixing cover of power antenna.

3. Install the reverse order of removal.

Module of glass antenna

1. Remove the upper quarter panel.

2. Remove module of glass antenna.

•

Separate connector of glass antenna.

•

Separate jack of antenna.

•

Release bolt (2ea).

•

Separate connector of rear heating line.

•

Remove module of glass antenna.

3. After separating motor connector of power

antenna, and then release fixing nut of motor.

4. Remove power antenna assembly.

BODY ELECTRICAL  9D-43

SSANGYONG  Y200

YAD9D910

YAD9D920

YAD9D930

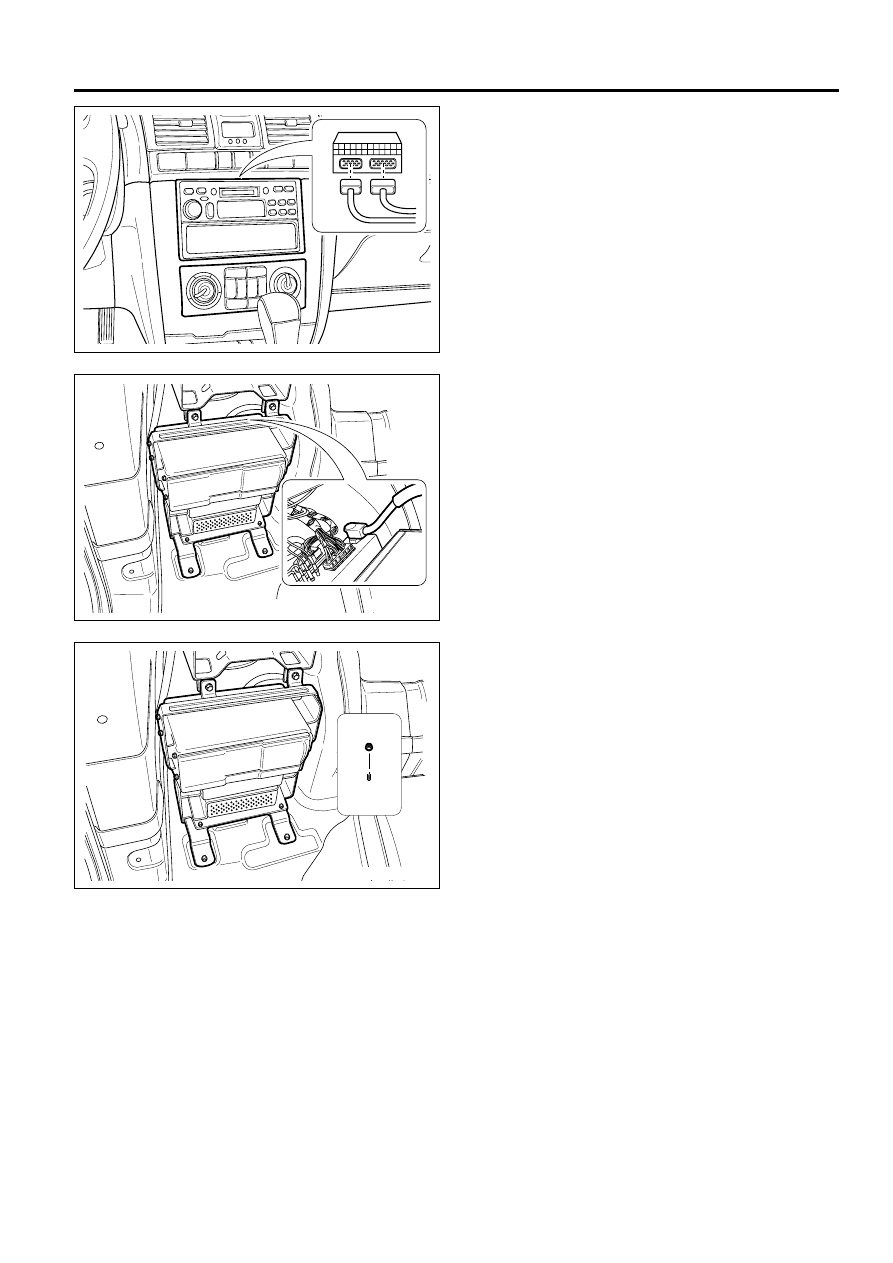

CD Changer

1. Remove the negative terminal of battery and

AUDIO.

2. Separate cable of CD changer from the AUDIO.

5. After releasing bracket fixing bolt of changer of

CD, remove changer of CD.

6. After Installing the reverse order of removal, check

unusual noise or state of operation.

3. Remove rear lower quarter panel in the driver seat.

4. Remove cable from the changer of CD.

SSANGYONG  Y200

9D-44  BODY ELECTRICAL

WIPER AND WASHER

General Description

Wiper system of sensing rain

Summary

Wiper motor of musso and korando is controlled by
stics. In the case of this, time of operation of wiper is
controlled by stics, driver should control time which is
drived of stics. But wiper system of rexton is sensing
quantity of rain by the unit of sensing rain which is
installed on the upper center of windshield, this unit is
controlling operation of wiper, low and high speed
according to quantity of rain.

Diagram Of System

Multifunction switch

Control wiper mode and ON/OFF

Quantity of rain

        Unit of sensing rain

Unit of sensing is sensing quantity of rain,

according to quantity of rain, this unit is controlling

operation of wiper,low and high speed.

Wiper motor

BODY ELECTRICAL  9D-45

SSANGYONG  Y200

;;;;;;

;;;;;;

;;;;;;;

;;;;;;;

Mode of operation

Wiper control system consist of OFF, MIST, LOW,
WASHER, plus  AUTO mode, if turn to the position of
AUTO, rain sensor is sensing drop of rain, and then, is
controliing time of operation, speed of operation with
LOW, HIGH.

YAD9D950

1. Unit of sensing rain is sensing by the LED and

the diode of photo.

2. As infrared ray is emitting from LED, diode of

photo which is reflected by drop of rain is sensing
the quantity of rain.

3. Unit of sensing rain is correcting itself, so

regardless of transmitting of windshield, this unit
is constantly sensing rain.

4. This unit is sensing the area between the LED and

diode of photo.

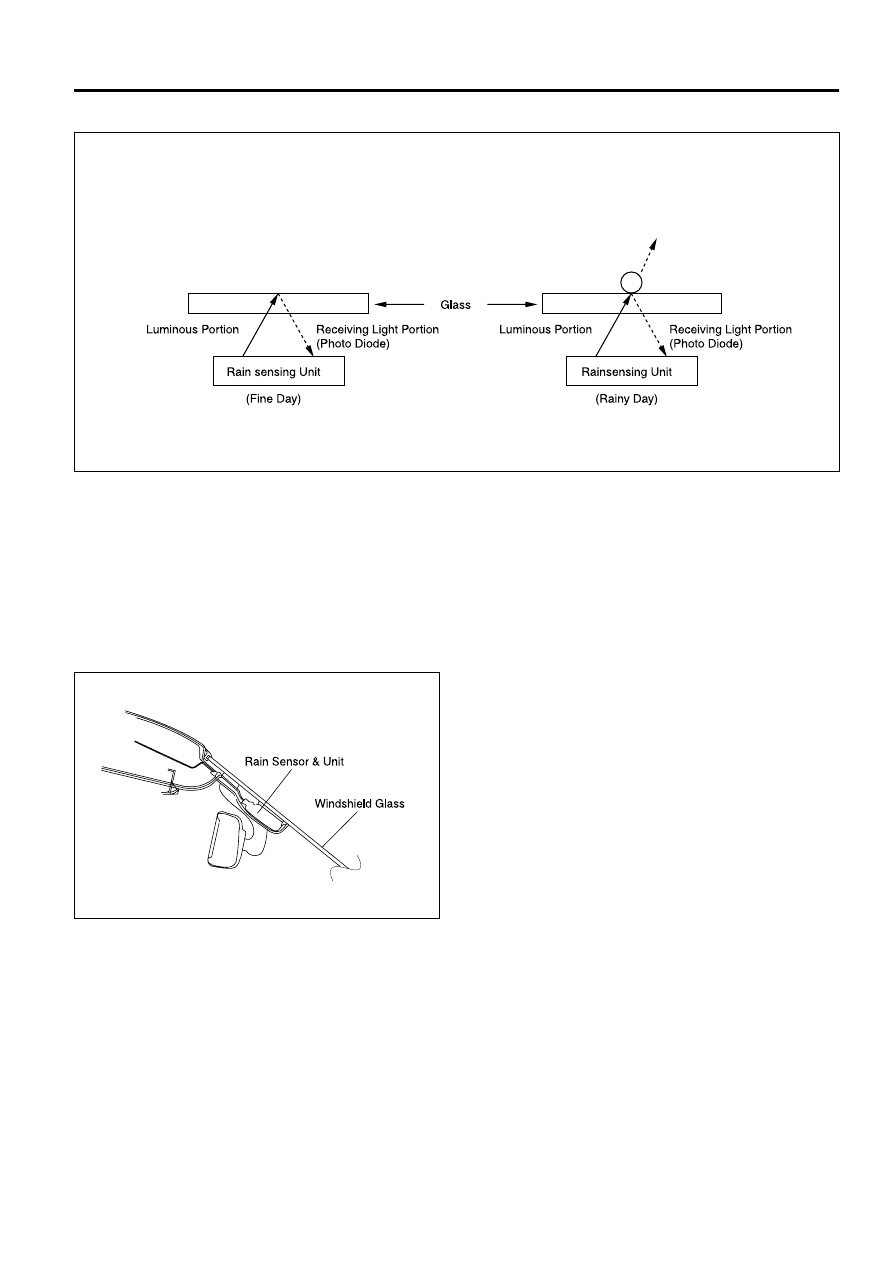

Principle of Rain Sensor

YAD9D940

Wave which is transmitted reflects and reinput

(Wave drop of rain is contacting, loss
happen by transmitting electronic wave)
