SsangYong Rexton. Manual - part 680

SSANGYONG  Y200

9D-34  BODY ELECTRICAL

YAD9D590

YAD9D600

YAD9D610

YAD9D620

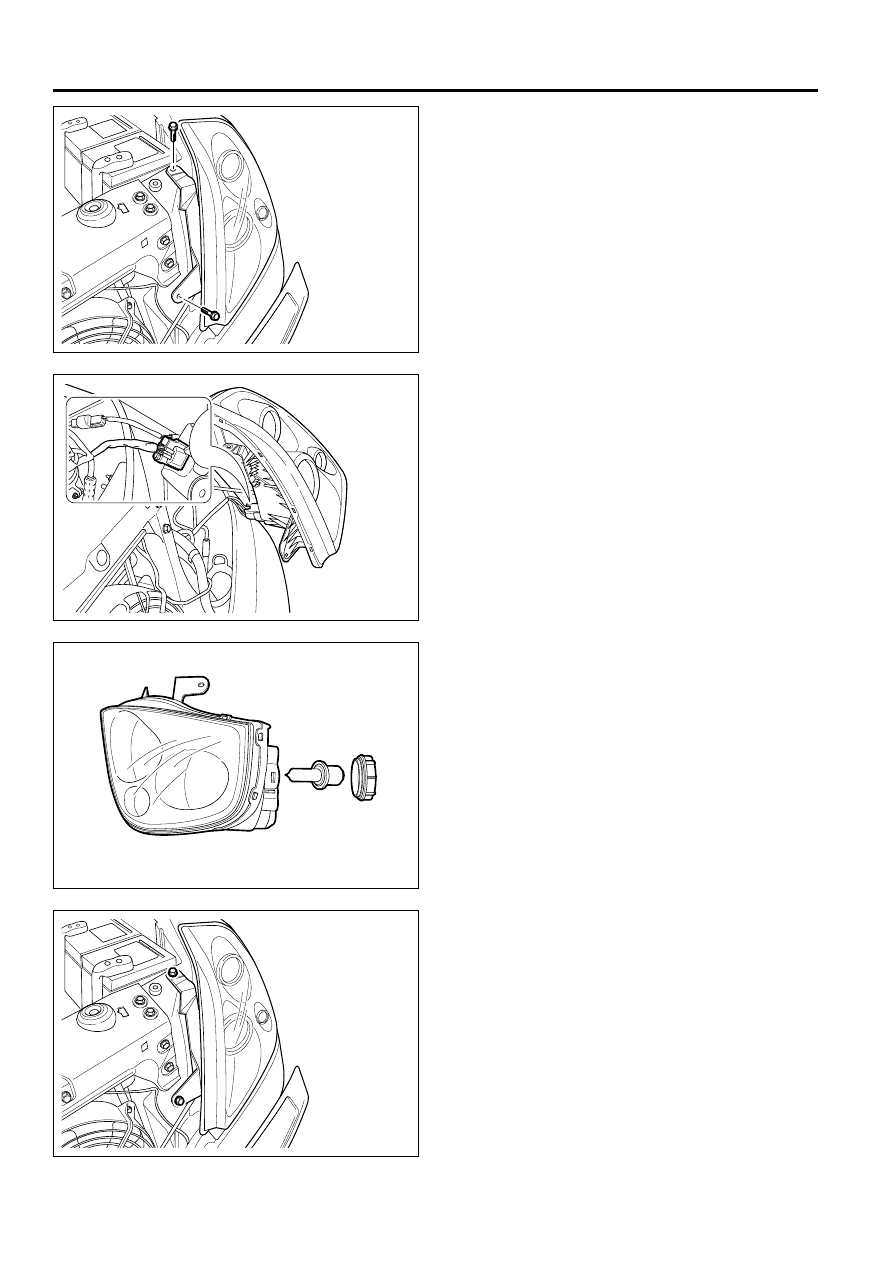

Removal and Installation

Head Lamp

1. Remove negative terminal of battery.

2. Remove the grill of radiator.

3. Remove mounting bolt (3ea) of head lamp.

6. Install the reverse order of removal.

5. Separate cover of bulb, connector, and bulb

orderly, from head lamp separated.

4. After separating connector of head lamp, remove

the head lamp.

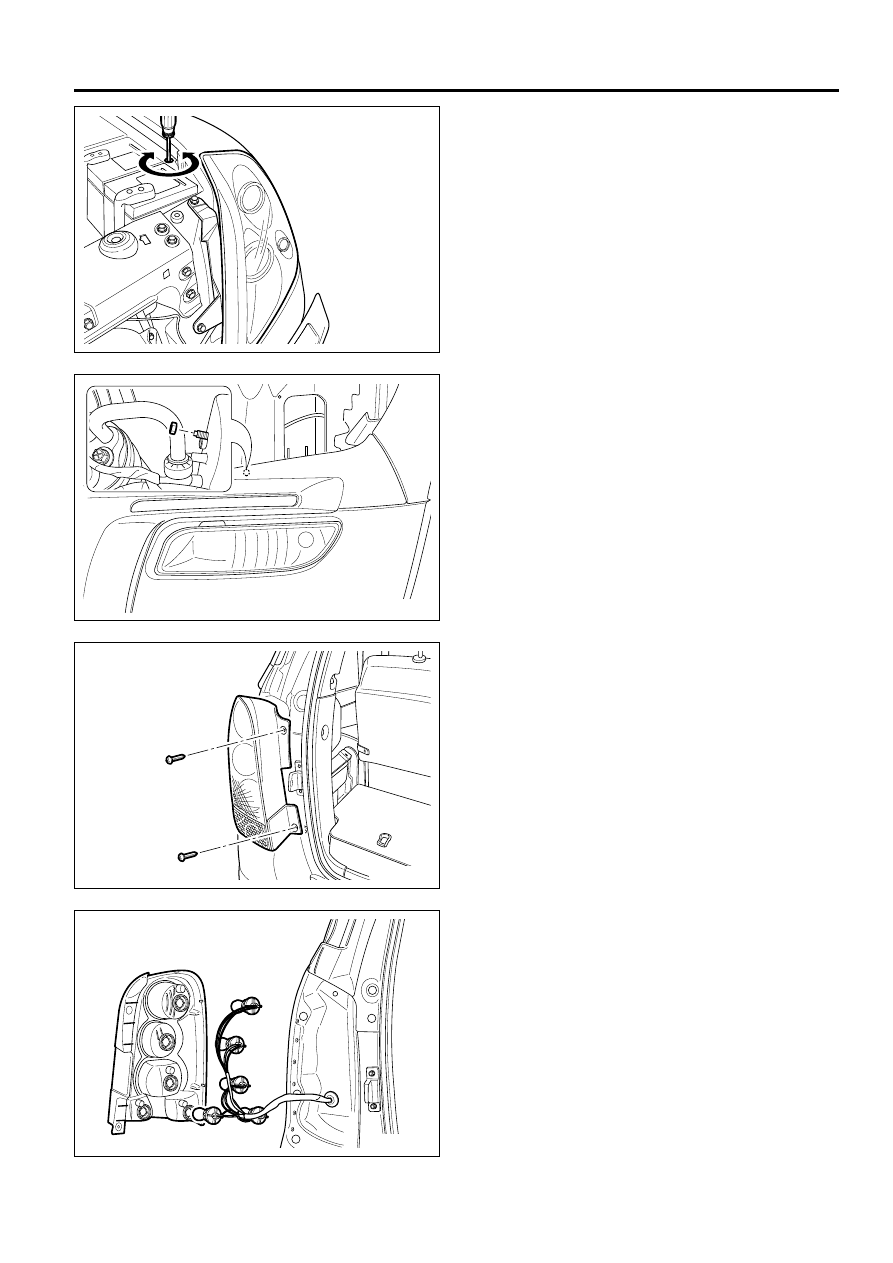

BODY ELECTRICAL  9D-35

SSANGYONG  Y200

YAD9D630

YAD9D640

YAD9D650

YAD9D660

•

After installing head lamp, proceed to arrange
of focus.

3. After separating bulb from rear combi-lamp and

then remove rear combi - lamp.

Rear combi - lamp

1. Remove the negative terminal from battery.

2. Separate fixing screw (2ea) of rear combi - lamp.

Turn signal lamp / fog lamp

1. Remove the negative terminal of battery and head

lamp.

2. After releasing fixing bolt of lamp of front turn

signal lamp and fog lamp, remove connector.

3. Remove lamp assembly from the bumper.

4. Install the reverse order of removal.

•

Fix the left of lamp on the hook of bumper, and
then  tighten the right with fixing nut (2 ea).

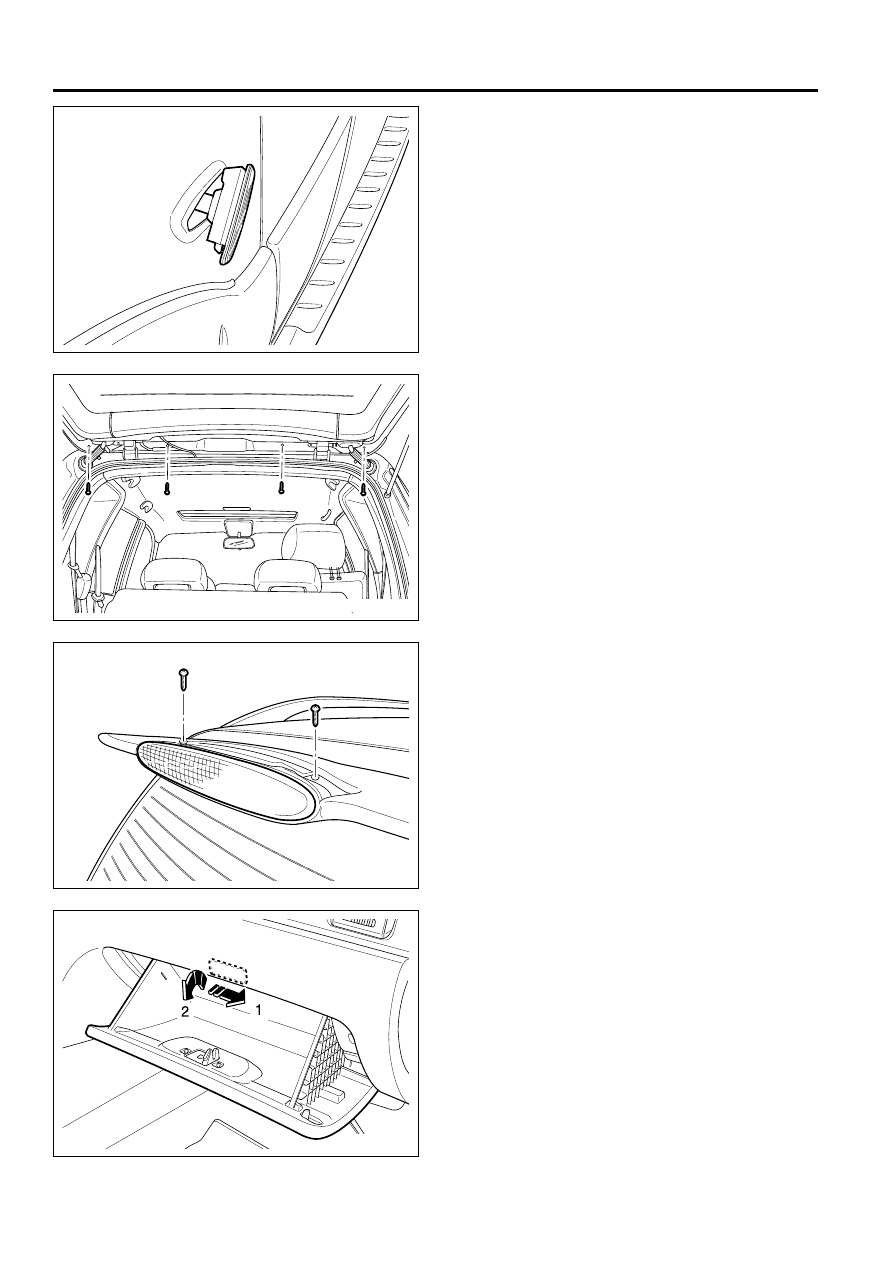

SSANGYONG  Y200

9D-36  BODY ELECTRICAL

YAD9D670

YAD9D680

YAD9D690

YAD9D700

Side lamp

1. After pushing side lamp to front side, pulling rear

of lamp, and then remove side lamp.

2. After removing the connector, remove side lamp.

Lamp of glove box

1. Open up cover of glove box.

2. After pushing lamp as indicated mark, remove

lamp of glove box.

3. After separating connector of lamp, remove lamp.

4. Install the reverse order of removal.

2. After separating fixing screw (2 ea) of lamp spoiler

of tail gate, and then remove connector.

3. Remove lamp assembly.

4. Install the reverse order of removal.

High mounted lamp

1. Remove spoiler from the tail gate.

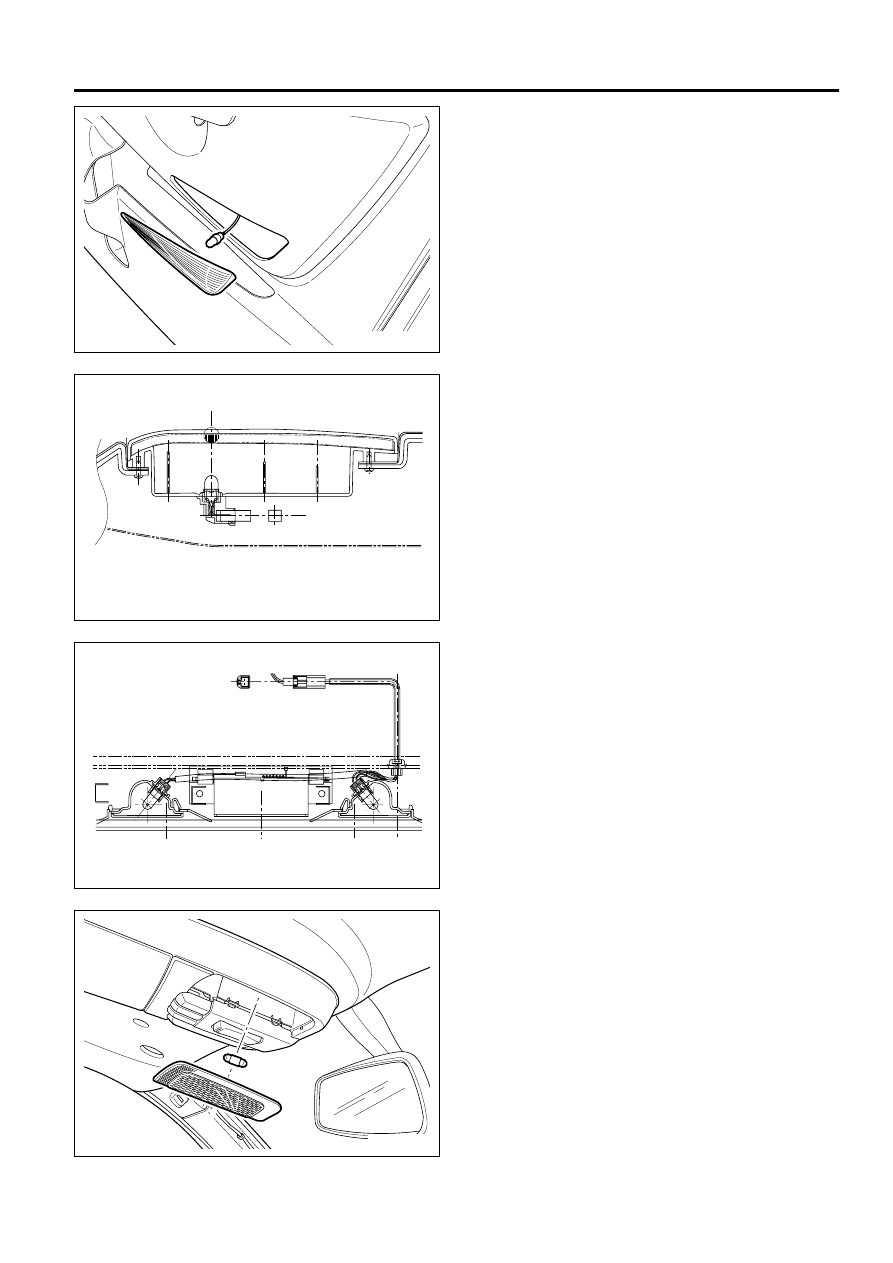

BODY ELECTRICAL  9D-37

SSANGYONG  Y200

YAD9D710

YAD9D720

YAD9D730

YAD9D740

Door lamp

1. Remove the negative terminal of battery.

2. After removing door trim, and then separate

connector of lamp.

Room lamp

Front lamp

1. After removing lense of lamp, remove bulb.

Lamp of license plate

1. Remove lamp of license plate.

2. Separate bulb from lamp.

3. After insert bulb into lamp, and then insert in the

hole of mounting of tail gate.

3. After releasing fixing screw of lamp, remove lamp.

4. Install the reverse order of removal.
