SSANGYONG  Y200

9D-22  BODY ELECTRICAL

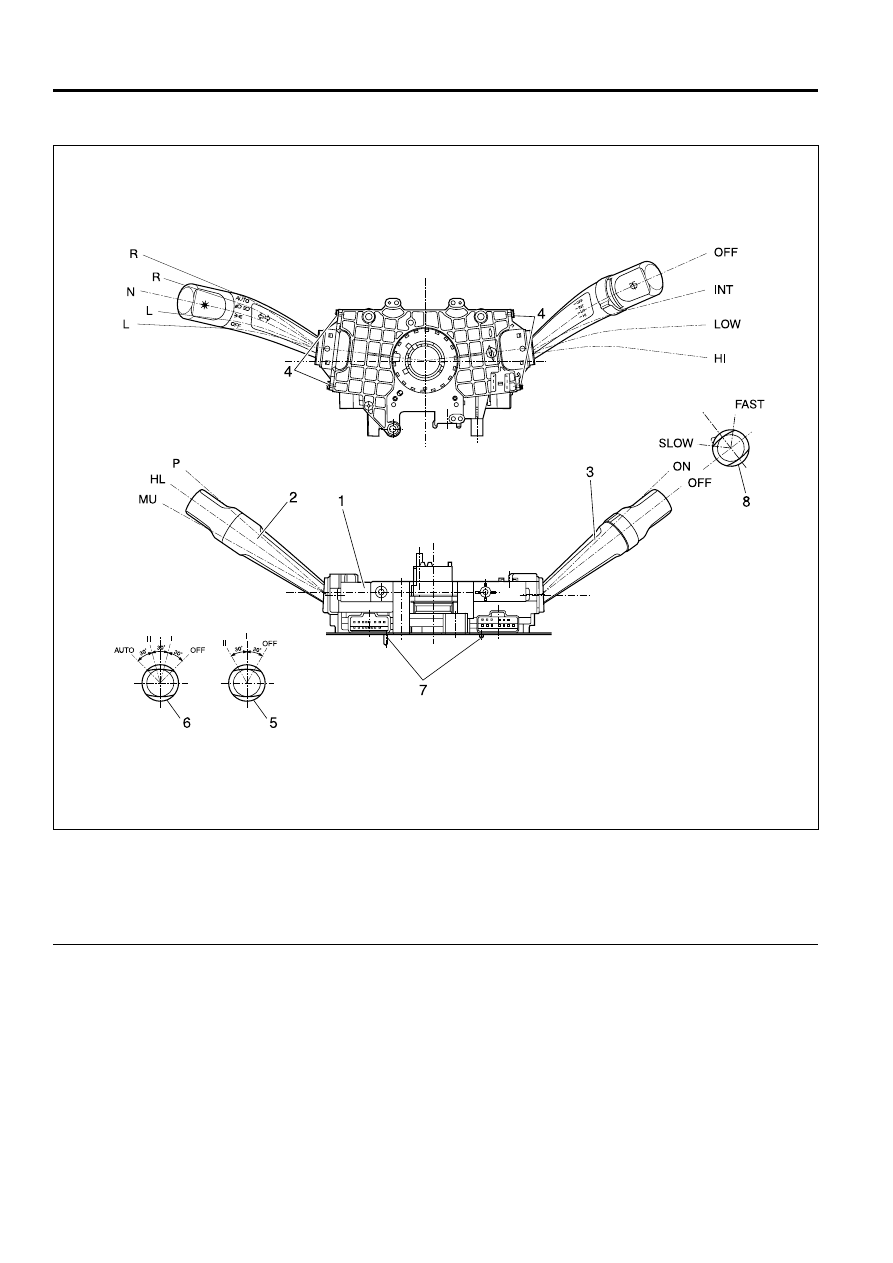

SWITCH OF MULTI – FUNCTION

YAD9D400

1 Multi - Function Switch Assembly
2 Turn Signal Switch Assembly
3 Turn Signal Switch Assembly
4 Screw

5 Switch of Light
6 Switch of Auto - Light
7 Connector
8 Switch of Wiper

BODY ELECTRICAL  9D-23

SSANGYONG  Y200

Components of Connector Pin

Layout of connect

Number of pin

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

Switch of turn signal (LH)

Power of flasher unit

Switch of turn signal (RH)

Power of  head lamp upper beam

Switch passing of head lamp

Front washer switch

Wiper and washer ground

Auto  wiper

Wiper parking

Ground of light switch

Auto light switch

Switch of head lamp

Switch of tail lamp

Ground of dimmer and passing switch

-

Low speed of wiper

High speed of wiper

Ground of intermittent wiper

Intermittent wiper

Horn relay

Name of connector

TL

TB

TR

HU

HS (2)

W

EW

AUTO

P

ES

A

HS (1)

TS

EB

-

LO

HI

ET

INT

HORN

YAD9D410

SSANGYONG  Y200

9D-24  BODY ELECTRICAL

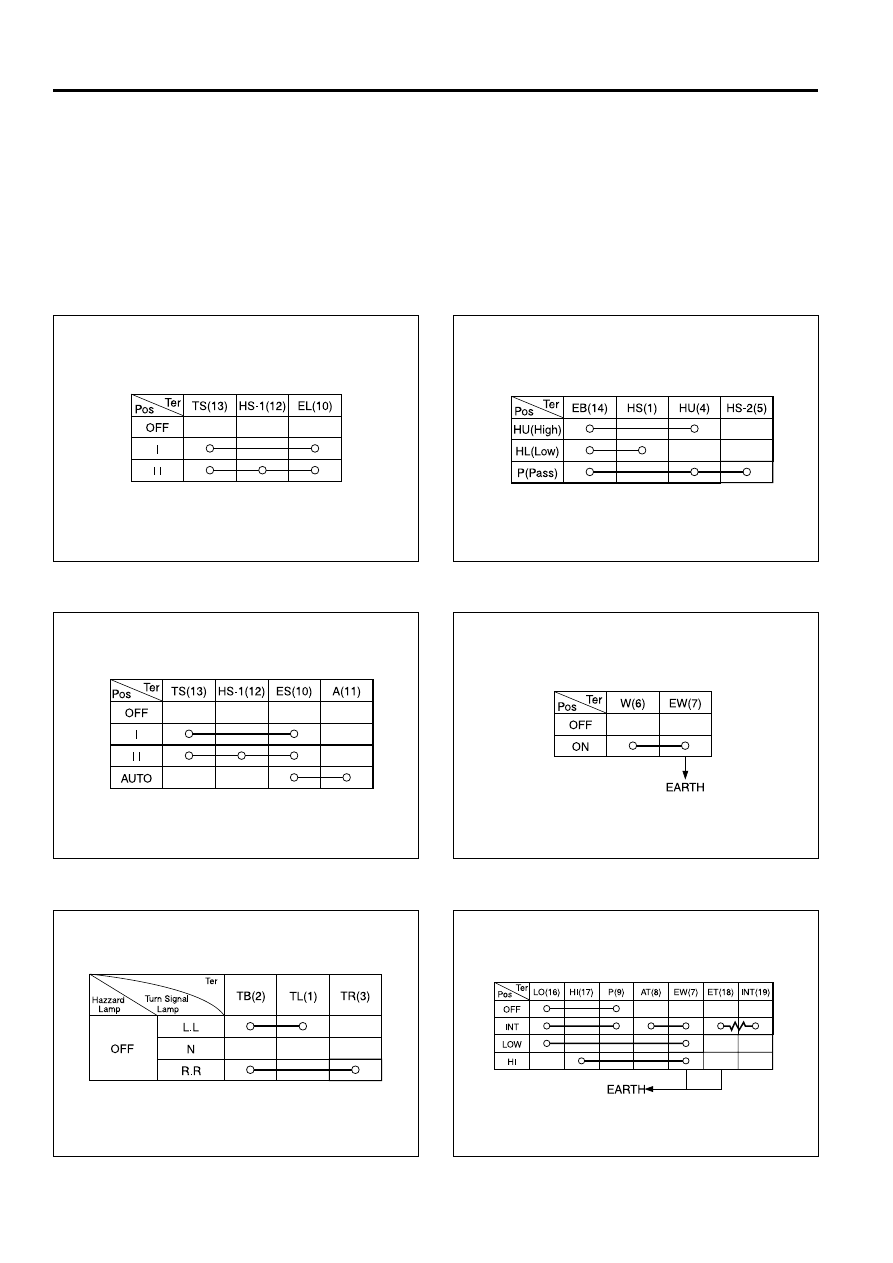

Check and Repair

Check applying of electric current below terminal at
each position of multi-function switch, if each terminals
are not applied of electric current, replace multi-function
switch.

YAD9D420

YAD9D450

YAD9D430

YAD9D440

YAD9D470

YAD9D460

Light switch

Dimmer and passing

 Auto - light switch

Turn signal lamp

Wiper switch

Washer

BODY ELECTRICAL  9D-25

SSANGYONG  Y200

Removal and Installation

Before multi-function switch is removed in the vehicle
with air bag, keep in mind the following.

Notice:

•

Do not separate module of air bag or coil of contact,
if malfunction of air bag or coil of contact happen,
replace them.

•

Do not drop down module of air bag or coil of
contact, do not contact module of air bag or coil of
contact over water, grease, and oil, if crack
deformation and corrosion are detected, replace
them, if module of air bag keep in the place, put
this on the even place, set the surface of pad on
the above, do not put anything on them, module of
air bag is not kept in the room temp 93 °C.

•

After air-bag is exploded, coil of contact and module
of air bag should be replaced. While exploded air
bag is treated, wear glove and glasses of protection.

•

In case for module of air bag not to explode, treat
as the procedure described.

•

While module of air bag and coil of contact are
separated, do not force them to push excessively.

•

Before coil of contact is not installed, after keep
front tire forward in align, keep in line between mark
of contact coil and mark of neutral and then install
contact coil. If mark of contact coil does not keep
in line properly, steering wheel does not revolve,
flat cable can be damaged, air bag does not operate
normally, so can cause driver to damage, if contact
coil is inspected any situation, refer to the section
of air bag.

•

If module of air bag is not blown, module of air bag
should be treated by procedure.

•

If module of air bag and connector of contact coil
are separated, excessive force does not be put in
those one.

•

Before contact coil is installed front wheel should
be aligned to the forward, mark on the contact coil
should keep on the one line with mark of NEUTRAL,
and then contact coil should be installed.

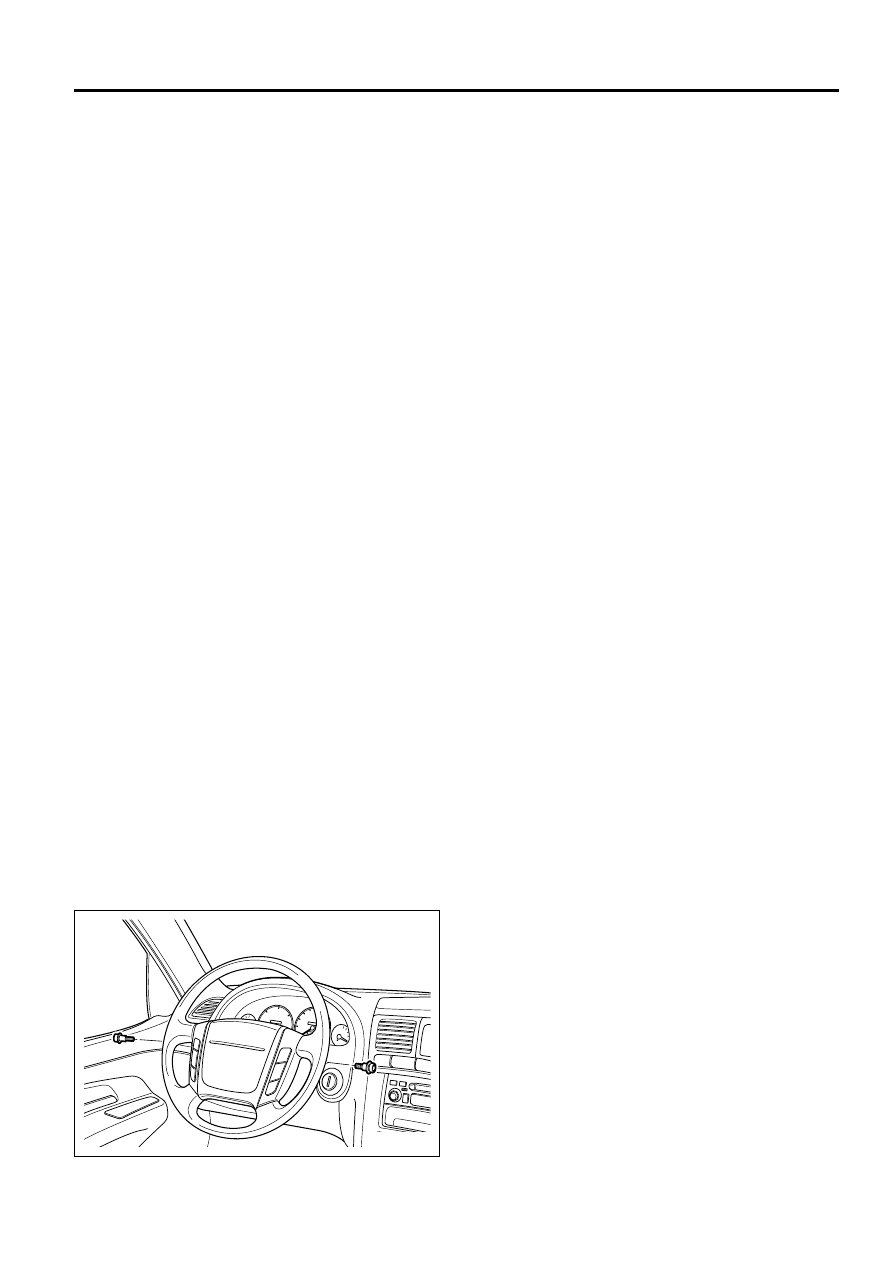

1. Separate negative terminal of battery.

2. Put direction of wheel on the forward and moving

direction of vehicle, after releasing screw (left and
right), remove module of air bag.

YAD9D480
