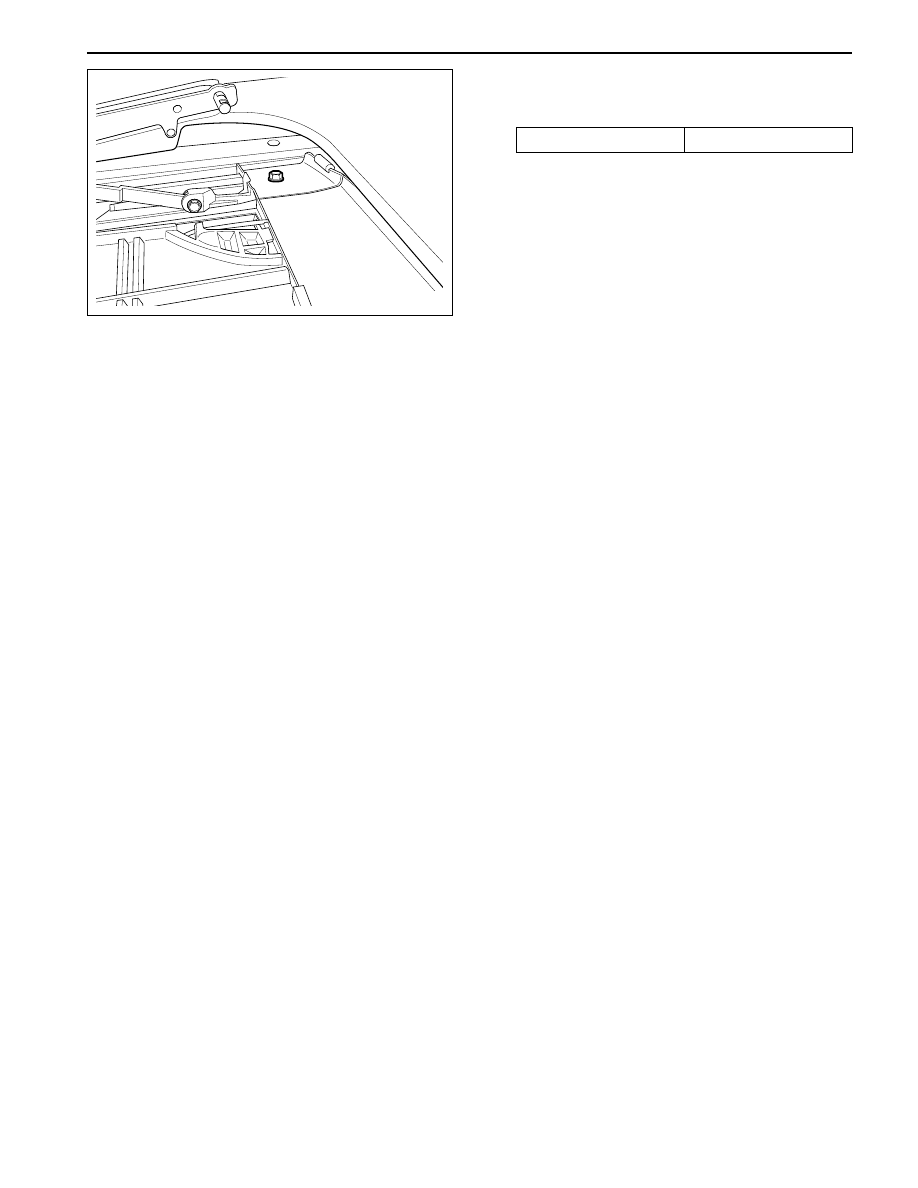

2. Tighten temporarily fixing bolt.

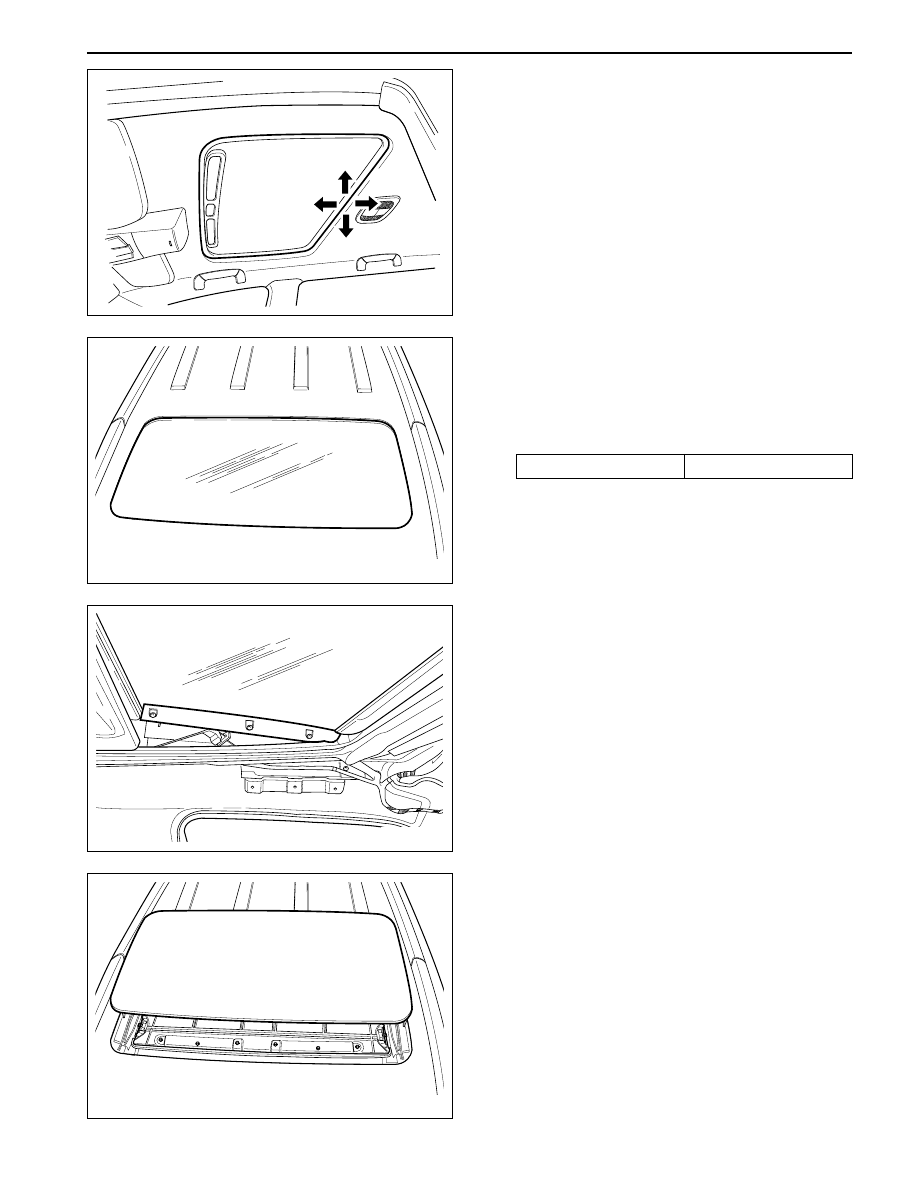

3. Using operation switch of sunroof, close glass

panel slow. (Check motion of glass, up and down,
forwards and backwards freely).

4. Pulling the glass panel, adjust the height of glass

and body.

5. After hight of front glass put the same of height of

body and glass seal and 1 mm height to the rear
is higher than height of body, and then tighten
the bolt.

Tightening Torque

5 N•m (26 lb-ft)

  6. Using switch of sunroof, check operation.

7. Turn on the switch, up the glass.

8. Insert side cover (left/right).

Notice:  Check the state of installation between
side inner cover and side outer cover.

SUN SHADE

Removal

1. Remove glass panel.

SSANGYONG Y200

9C-58 BODY EXTERIOR

YAD9C3Q0

YAD9C3R0

YAD9C3S0

YAD9C3T0

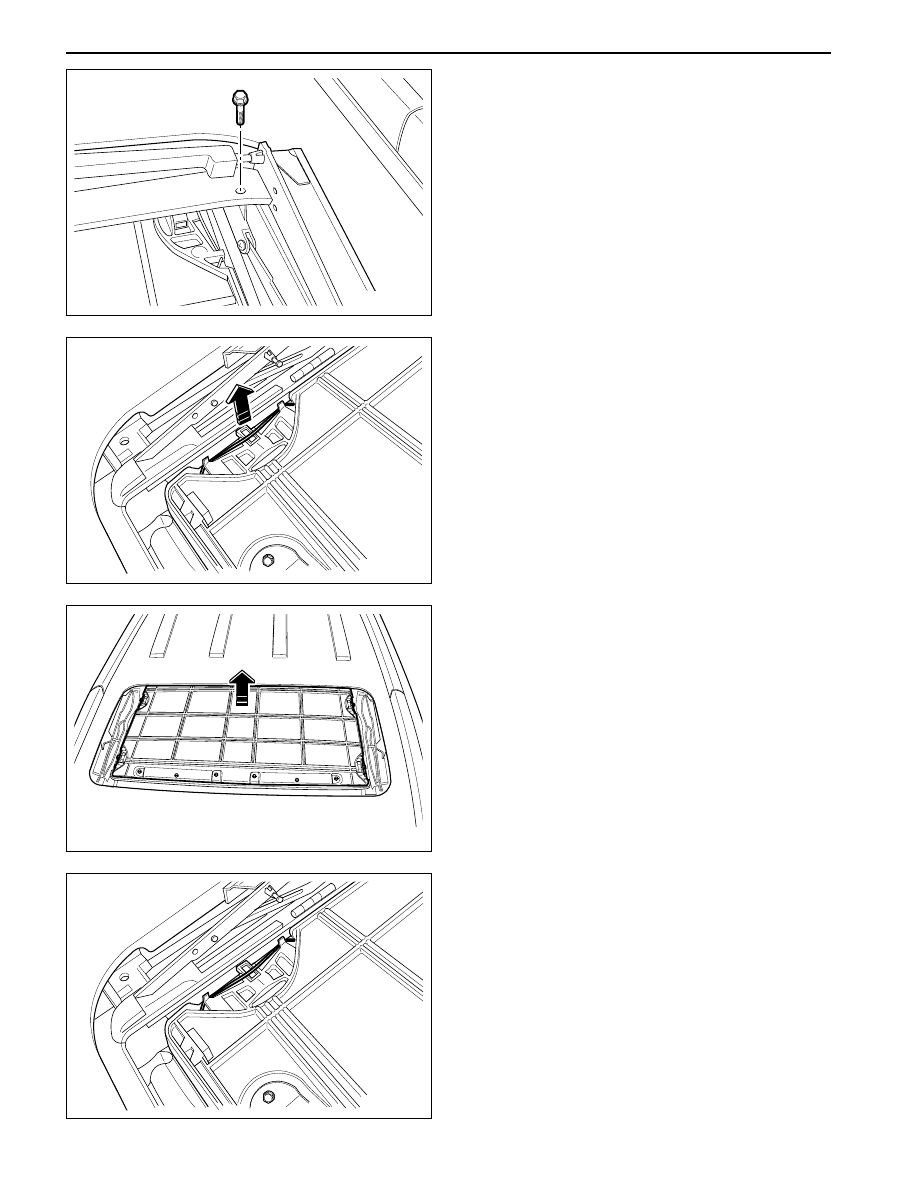

2. After removing fixing bolt of drain channel, push

hook of support drain channel by hand, remove
drain channel.

3. Close panel of sun shade, using driver, extract

slide block of sun shade panel from the guide rail
(4 ea).

4. Remove panel of sun shade.

Installation

1. Put sun shade on the guide rail.

2. Using driver, pushing slide block of sun shade

panel, and then insert guide rail.

BODY EXTERIOR 9C-59

SSANGYONG Y200

YAD9C3U0

3. After inserting drain channel into roof, and then

insert drain channel into support drain channel and
push front hook.

Tightening Torque

12 N•m (26 lb-ft)

4. Check operation of sun shade panel.

5. Install the glass panel.
