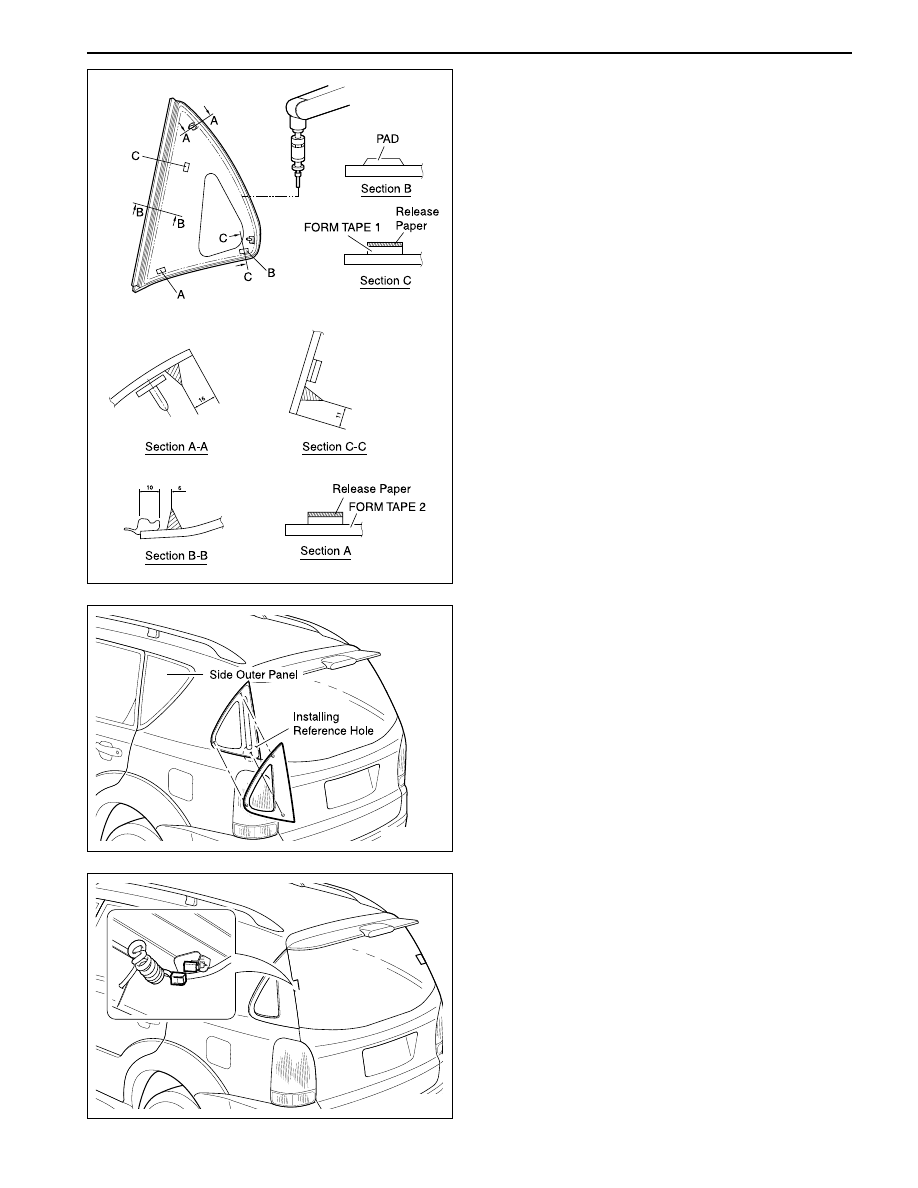

4. Spread sealant on the rear quarter glass.

5. After installing rear quarter glass on the body

frame, tighten nut on the bolt of mounting.

6. After installing rear quarter glass, proceed to

check leaking of water.

TAIL GATE GLASS

Removal

1. Separate negative cable of battery.

2. Separate connector of heat line of back door glass.

SSANGYONG Y200

9C-50 BODY EXTERIOR

YAD9C2K0

YAD9C2L0

YAD9C2M0

YAD9C2N0

3. Using special tool, remove sealant of door glass

of tail gate.

4. Remove door glass of tail gate from the vehicle.

5. Using the knife, remove sealant around door glass

of tail gate and frame.

Installation

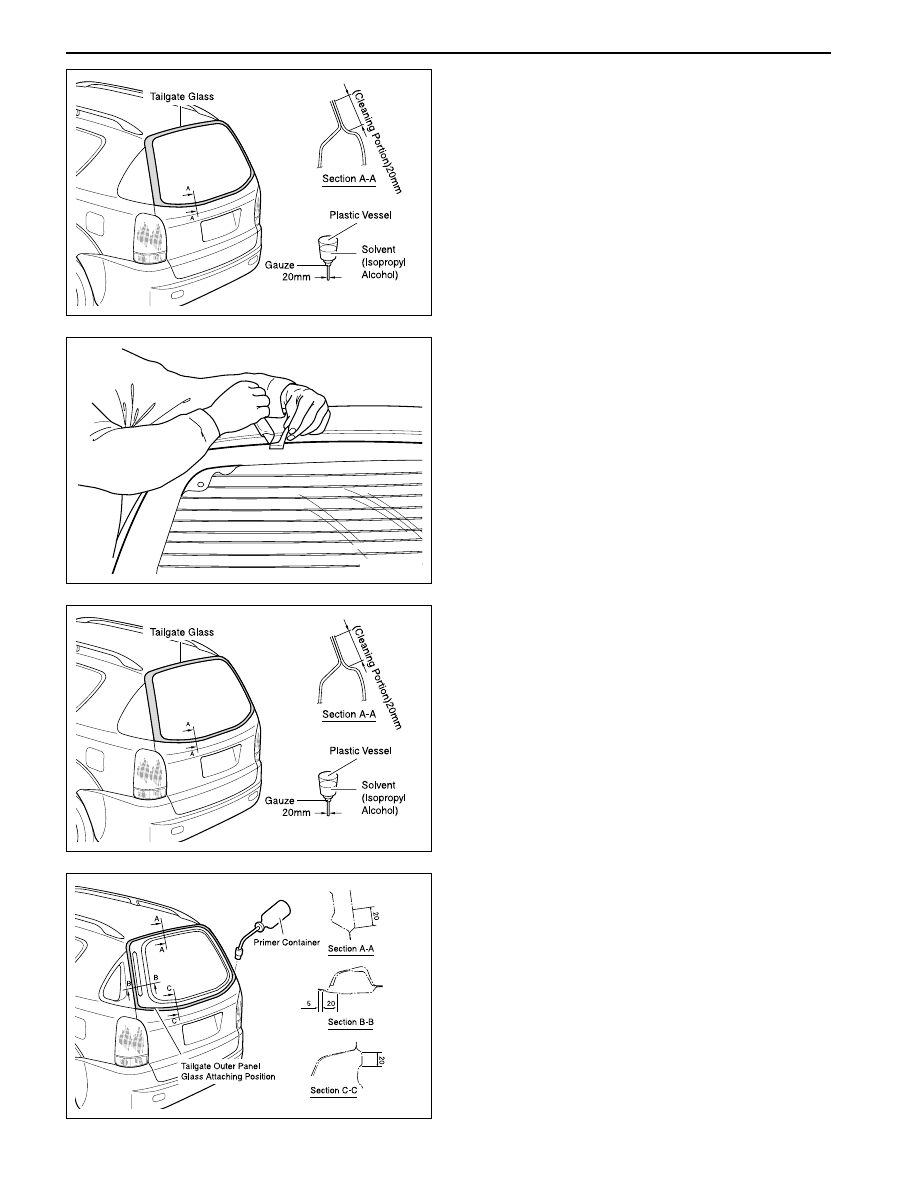

1. Wash up outer panel of tail gate.

•

After using gauze 20 times, gauze is thrown
away.

•

Gauze is a solvent (isopropyl alcohol), gauze
keep wet completely.

•

Keep an eye on the washing section of glass
not to be touched by any thing polluted.

•

After washing glass, spread primer on the glass
section of wet state.

•

Wash up on the section of spreading primer
without being touched by any thing polluted.

2. After washing up outer panel of tail gate, and then

spread primer.

•

Keep primer in the refrigerator.

•

Mix up primer.

•

Opening vessel, use them within 2 hours.

•

Opening vessel, immediately use them, if you
reopen them, use them within 24 hours, as soon
as possible.

•

Spread uniformly primer on the surface of
vehicle.

•

Available hour for spreading primer to the
vehicle : after 3 hour.

BODY EXTERIOR 9C-51

SSANGYONG Y200

;;;;;;;

;;;;;;;

;;;;;;;

;;;;;;;

;;;;;;;

YAD9C2P0

YAD9C2Q0

•

If body of vehicle is polluted by primer :  solvent
is washed up to body of vehicle.

•

Keep eye on section of spreading ,not to
overflow other section to vehicle

3. Wash up glass tail gate.

•

The section washed of glass keep distance 15
mm from the end of glass.

•

After using gauze 20 times, gauze is thrown
away.

•

Gauze is a solvent (isopropyl alcohol), gauze
keep wet completely.

•

Keep an eye on the washing section of glass
not to be touched by any thing polluted.

•

After washing glass, spread primer on the glass
section of wet state.

•

Wash up on the section of spreading primer
without being touched by any thing polluted.

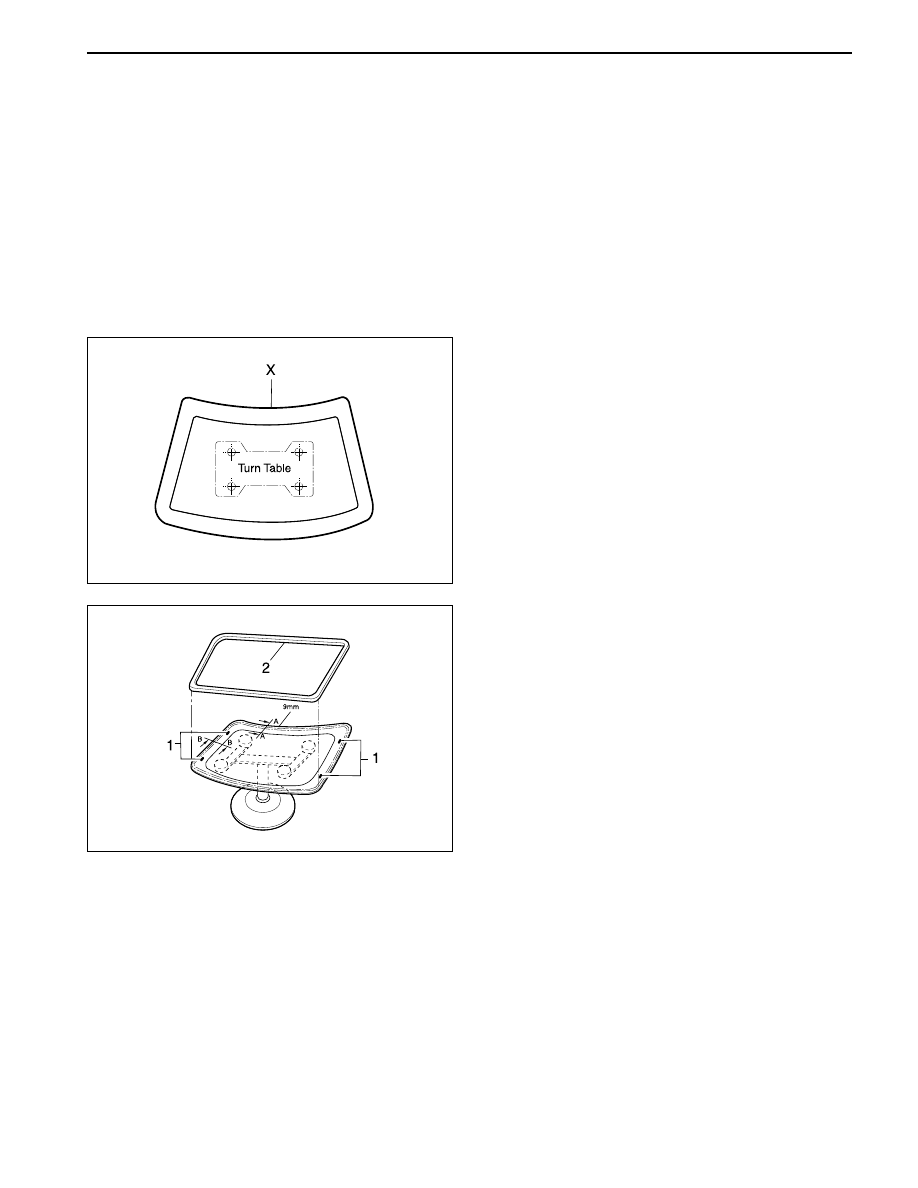

4. Installing dual lock (1) on the glass (2), install the

glass dam.

SSANGYONG Y200

9C-52 BODY EXTERIOR

;;;

;;;

;;;

YAD9C2R0

YAD9C2S0

YAD9C2T0

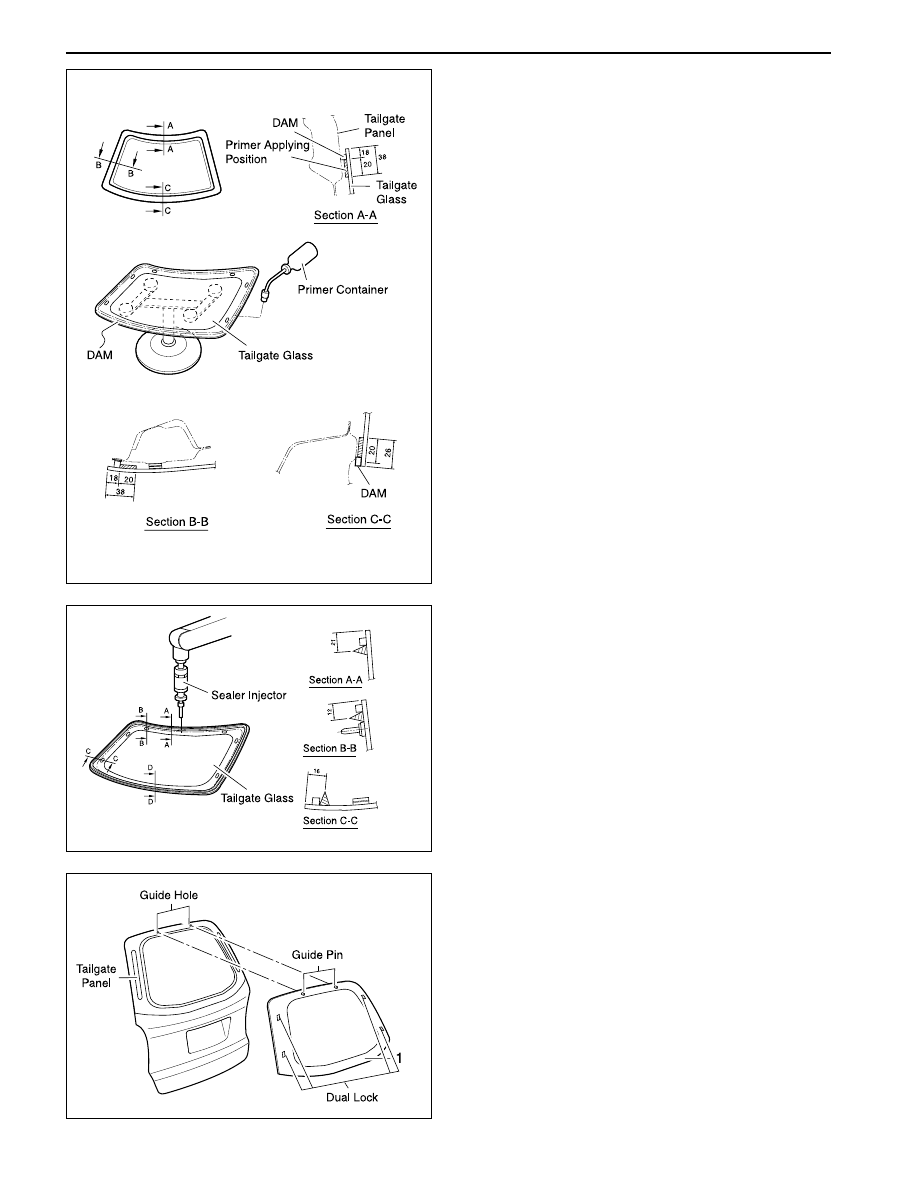

5. Spread primer on the glass of tail gate.

•

Mix up primer.

•

Due to excessive spreading, keep eye on
overflowing spreading other section.

•

Available hour for spreading primer to the
vehicle: after 3hour.

•

S e a l a n t   i s   n o t   a v a i l a b l e ,   i f   s e a l a n t   h a s
sludgematerial.

•

If available date of sealant is passed, this
sealant is throwing away. available date of
sealant is 90 day for use.

•

After using gauze 20 times, gauze is thrown
away.

•

Spread uniformly primer on the surface of glass.

6. Spread sealant on the glass.

•

Spread sealant point (200 mm) of lower section
of right, like right picture.

•

If shape of spreading, thickness is not uniform,
leaking of water may occur.

  7. After spreading sealant, using compressor, install

glass of tail gate within 5 minutes.

•

After install glass, tape tail gate, two the point
of glass and one point of the section of arm
side.
