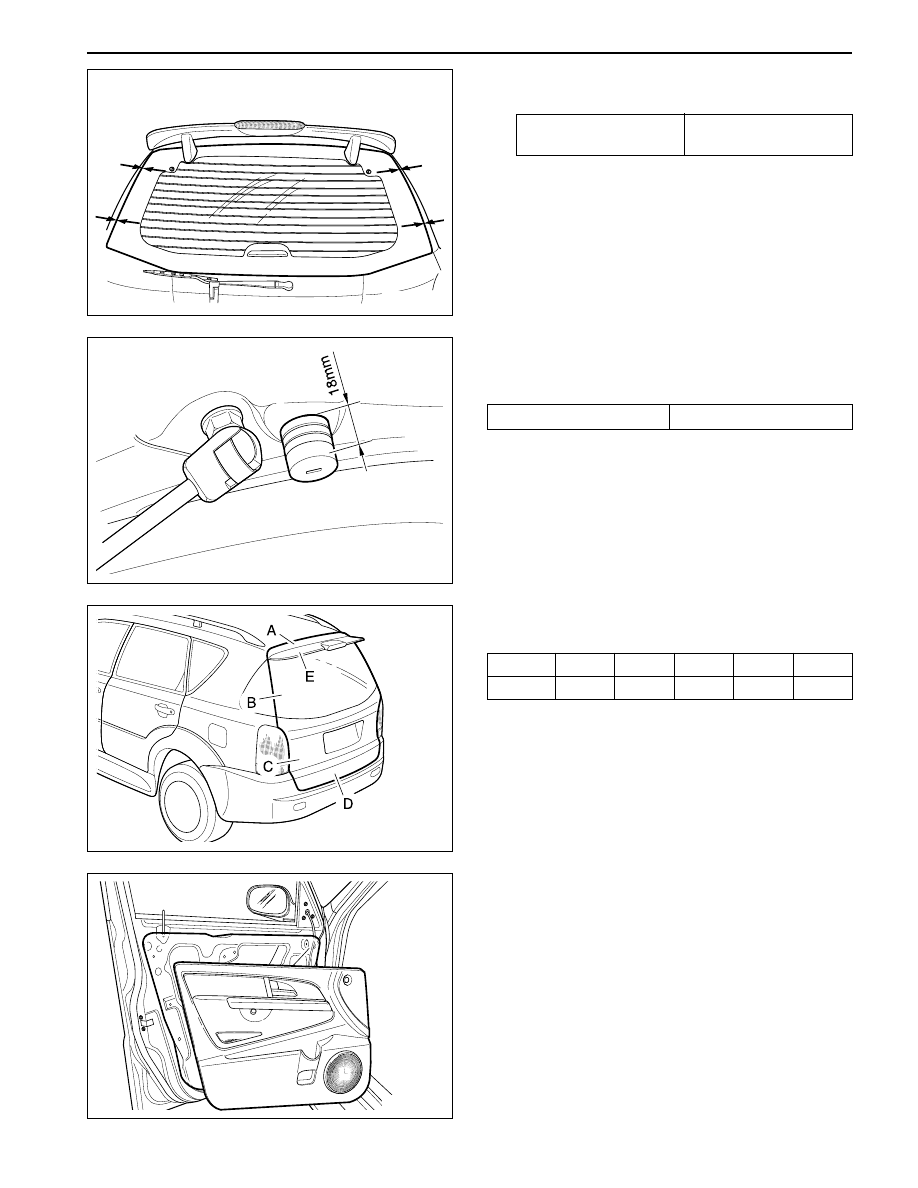

BODY EXTERIOR 9C-37

SSANGYONG Y200

YAD9C0P0

YAD9C0Q0

YAD9C0R0

YAD9C0S0

FRONT DOOR WINDOW

Removal and Installation

1. Remove seal and door trim.

2. After adjusting glass left and right, fit gap with

quarter glass.

Torque of Tightening

9 - 10 N•m

(44 - 52 lb-ft)

Check the Deflection

As tail gate is pushed from the external, not to occur
the deflection, adjust overlap.

Standard

18 mm

Adjust Gap of Fitting

(mm)

Section

Gap

C

5

A

11

B

5

D

5.7

E

4.2

SSANGYONG Y200

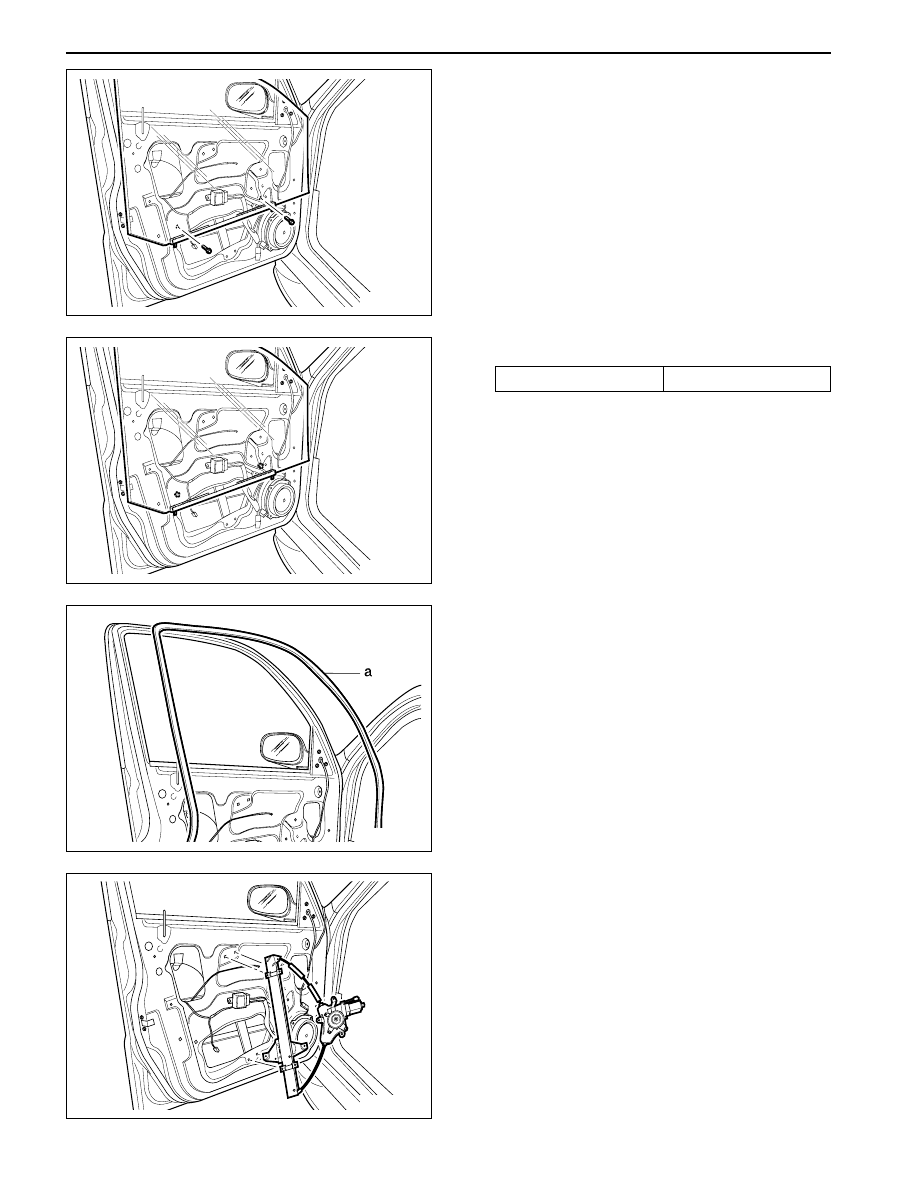

9C-38 BODY EXTERIOR

YAD9C0T0

YAD9C0U0

YAD9C0V0

YAD9C0W0

2. Remove glass of front door.

1) Release fixing screw (2 ea) of glass, at this

time, position of plate of regulator carrier should
be position of installation.

2) Remove glass.

Notice: If glass interfere to the body, damage of
section of body painting may happen, so glass
should not interfere body.

3. Install reverse order of removal.

Fixing Bolt of Glass

3 N•m (26 lb-ft)

Notice: If water of soap spread on contacting
section between glass run and glass, so that, can
be installed easily.

FRONT DOOR GLASS RUN AND
REGULATOR

Removal and Installation

1. Remove door trim, seal, and window glass.

2. Remove door glass run from door .

3. After releasing fixing nut of door regulator, and

then remove motor connector of power window.

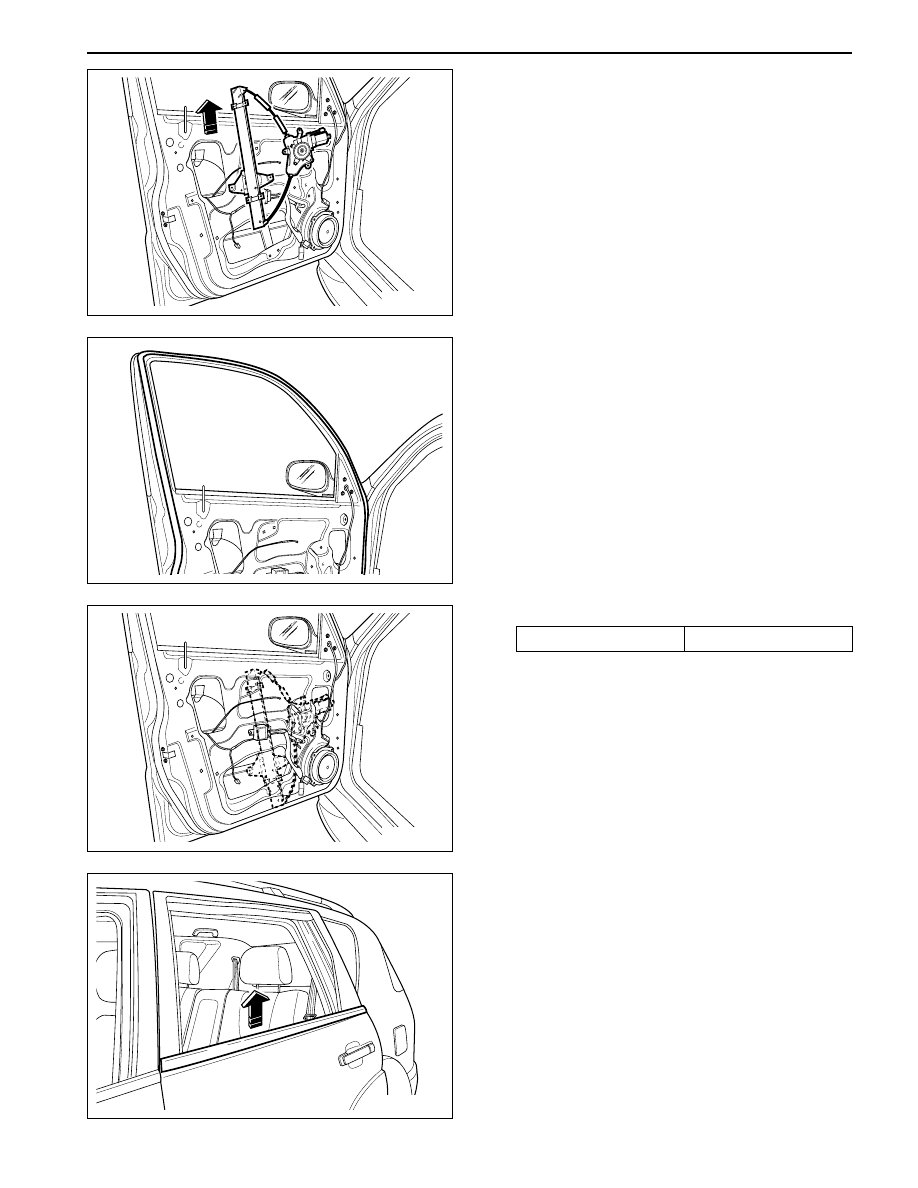

BODY EXTERIOR 9C-39

SSANGYONG Y200

YAD9C0X0

YAD9C0Y0

YAD9C0Z0

YAD9C1A0

REAR WINDOW

Removal and Installation

1. Remove external weather strip of door window

2. Remove front garnish of rear door.

4. Remove door regulator assembly.

Notice: After separating door glass run and
regulator, remove and install them .

5. As door glass run is installed, water of soap spead

on section of glass run so door glass run can be
installed easily.

6. Install reverse order of removal.

Fixing Nut of Regulator

8 N•m (26 lb-ft)

SSANGYONG Y200

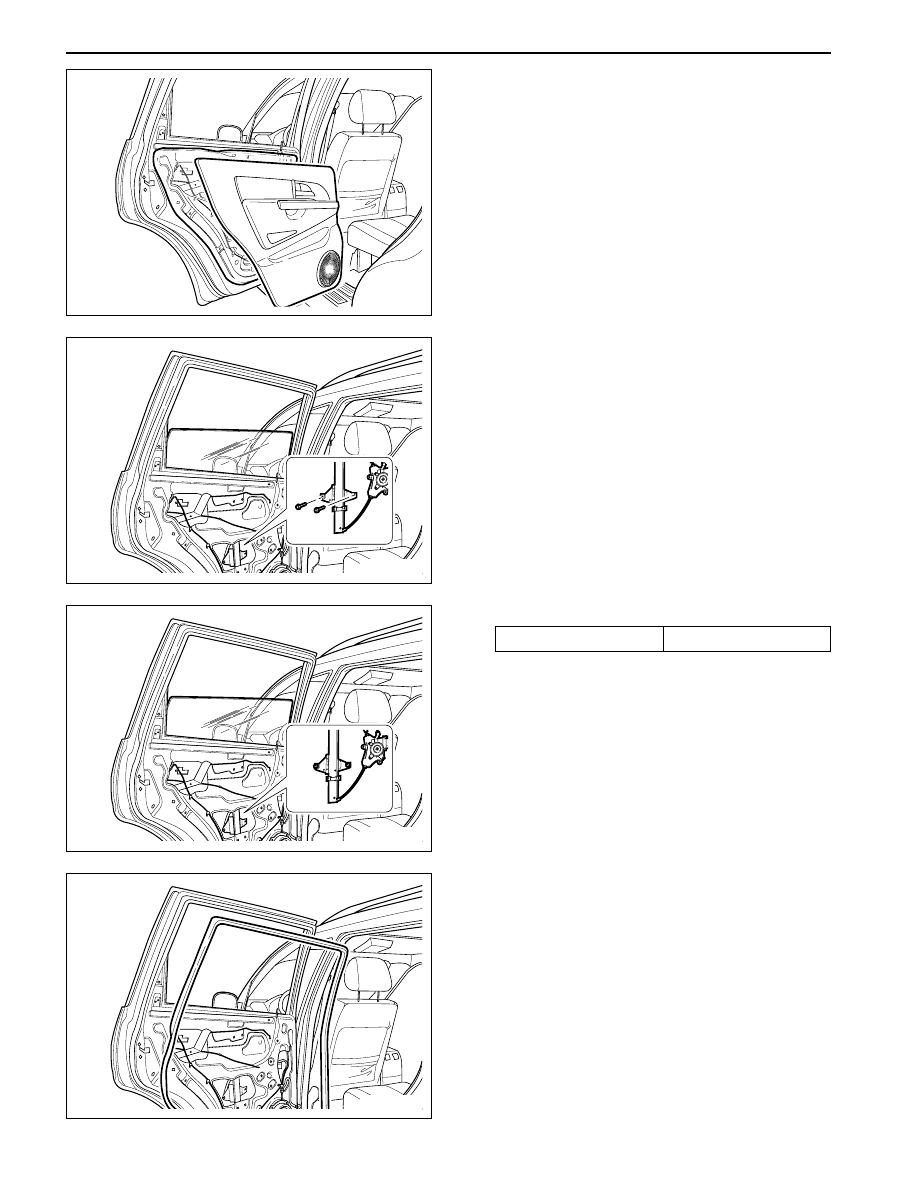

9C-40 BODY EXTERIOR

YAD9C1B0

YAD9C1C0

YAD9C1D0

YAD9C1E0

3. Remove seal and door trim.

4. Remove rear door glass.

1) Release screw (move up carrier plate of

regulator).

2) Extract glass upwards.

Notice: If glass interfere to the body, damage of
section of body painting may happen, so glass
should not interfere body.

5. Install reverse order of removal.

Fixing Nut of Glass

3 N•m (26 lb-ft)

Notice:  As door glass run is installed, water of
soap spead on section of glass run so door glass
run can be installed easily.

REAR GLASS RUN/ REGULATOR/
CHANNEL

1. Remove door trim, seal, and glass

2. Remove glass run.

•

Pull door glass run internally, and then extract
glass run.

Notice: As door glass run is installed, water of
soap spead on section of glass run so door glass
run can be installed easily.
