SsangYong Rexton. Manual - part 664

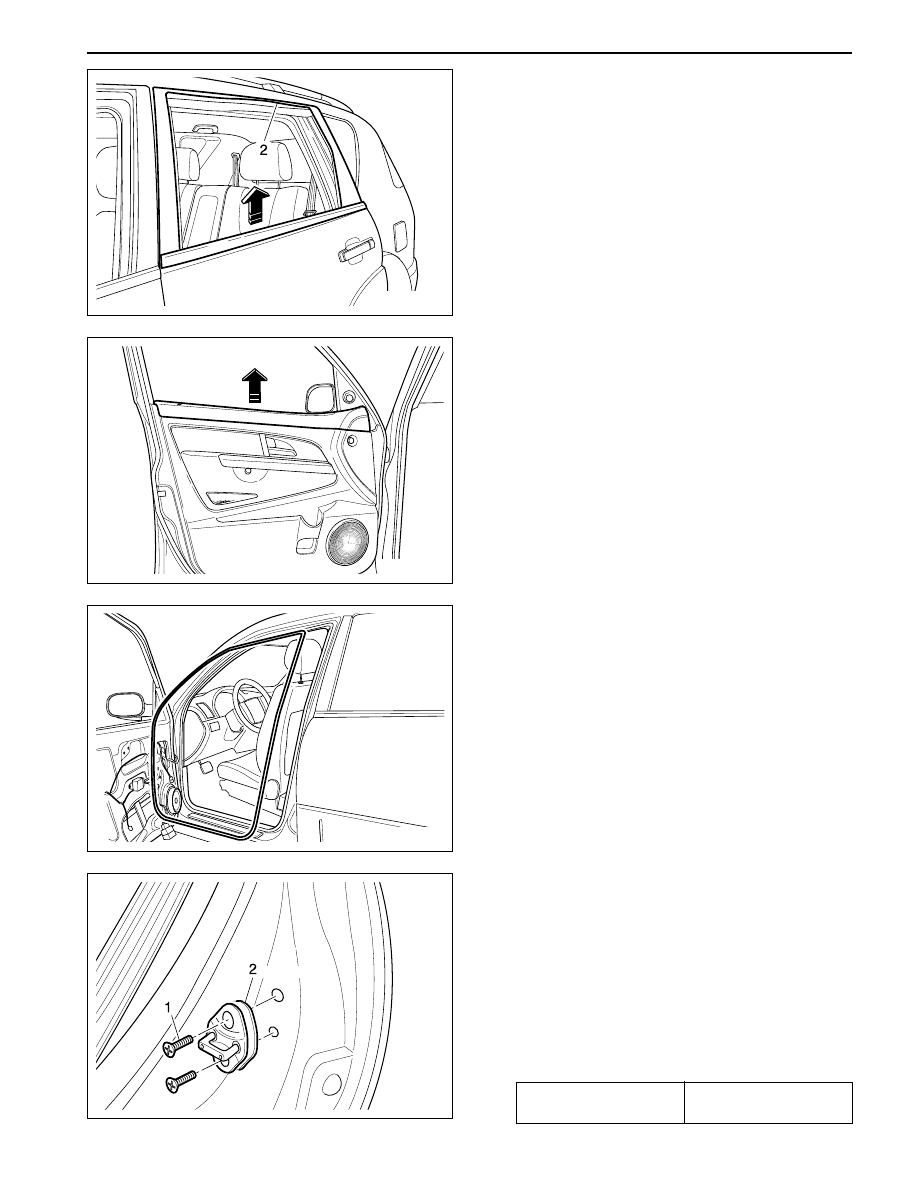

BODY EXTERIOR 9C-29

SSANGYONG Y200

YAD9C830

YAD9C840

YAD9C850

YAD9C860

FORK STRIKER

Removal and Inatallation

1. Remove the striker of door lock.

1) Release screw (2 ea).

2) Remove the striker.

2. Install the striker of door lock.

1) Install temporarily striker of door lock .

2) After opening and closing the door, tighten

screw in the proper position.

Screw of Door Lock

20 - 28 N•m

(44 - 52 lb-ft)

2. Remove the upper section from the rail.

3. After removing the clip, remove the lower section.

Notice: As clip and door opening weather strip is
removed, due to damage of those part, install the
new one.

SSANGYONG Y200

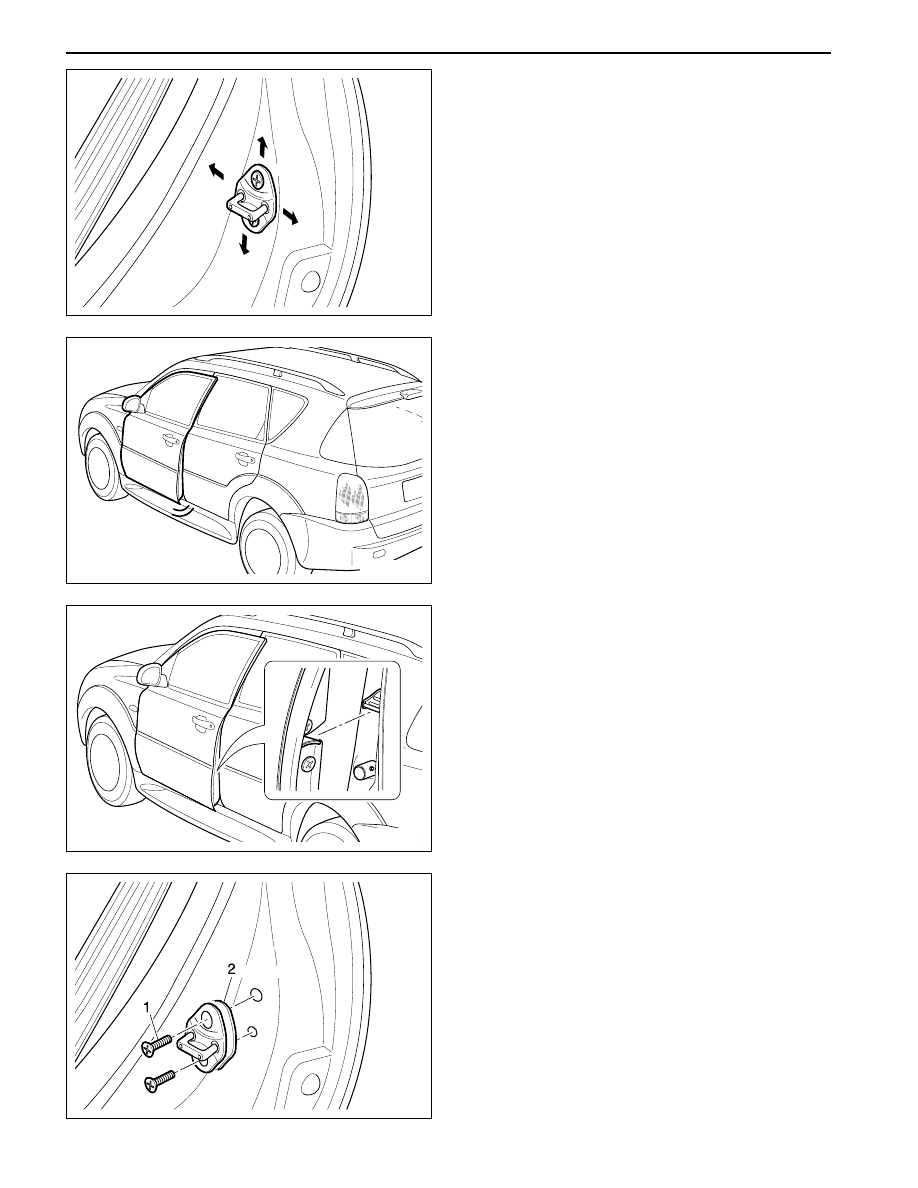

9C-30 BODY EXTERIOR

YAD9C870

YAD9C880

YAD9C890

4. Technician can see keeping fork of door lock

alignment with striker. Fork of door lock is linking
perpendicular to center of striker, is linking center
of body pillar.

5. As striker is required for adjusting to forward and

backward, proceed following the descriptions.

1) Release fixing bolt of striker.

2) If striker move to backward of vehicle , spacer

is removed.

3) If striker move to forward of vehicle, put addition

spacer (2 mm).

4) Tighten fixing bolt of striker.

6. Proceed to repair adjusting up and down, forward

and backward.

Adjusting Striker of Door Lock

Notice: Striker of door lock consists of striker and plate
of floating cage in the pillar body, plate of floating
cage can easily adjust by controlling striker up and
down, left and right. As fork snap of door lock is linking
the striker, the door comes to position of closing.

Adjusting Forward and Backward

1. Door keep on the one line between door lock fork

and striker.

2. Handle of door is pushing fork of door lock into

contact on striker.

3. After door is set on position of opening, to keep

contact fork of door lock with striker, open and
close the door slow repeatedly.

YAD9C900

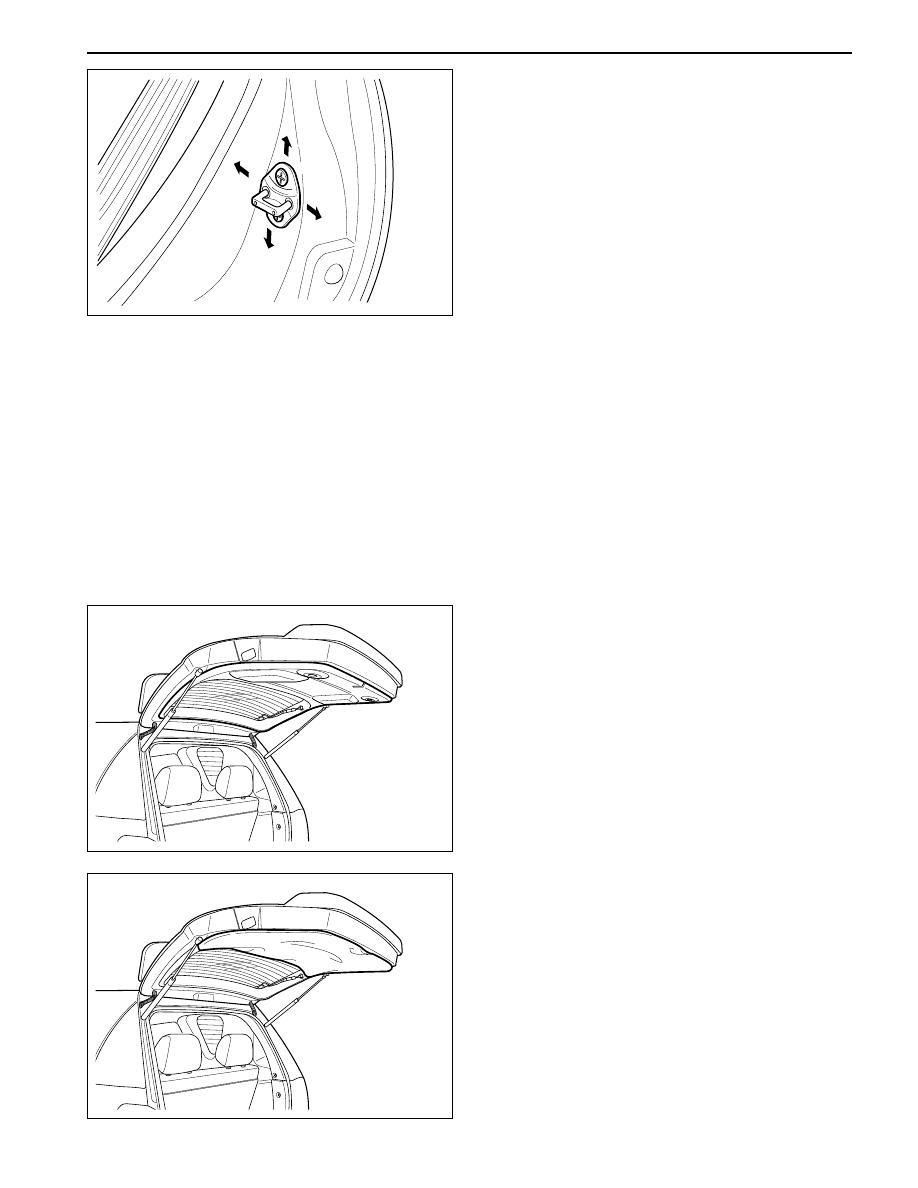

BODY EXTERIOR 9C-31

SSANGYONG Y200

YAD9C910

YAD9C920

YAD9C930

TAIL GATE CRANK

Removal and Installation

1. Separate the negative (-) terminal of battery.

2. Remove inner panel trim cover of tail gate.

3. Remove inner panel trim vinyl seal of tail gate.

4. Separate wiring connector of actuator.

5. Separate outside handle, glass handle.

6. Separate safety rod.

7. Remove tail gate, glass latch rod.

Adgusting Up and Down, Left and Right

Adjusting striker up and down, left and right is required
in following case, such as damage of vehicle collision,
installation of new weather strip , wind-noise, difficulty
of opening and closing door, in case adjusting up and
down, left and right, proceed to repair the following.

1. Door keep on the one line between door lock fork

and striker.

2. Release fixing bolt of door striker.

3. Plate of plotting gauge moves little bit to end of

striker screw, plate of plotting gauge is put to
adjust the position which is wanted.

Notice: To protect section of screw from damage,
while plate of plotting gauge is adjusted, flat rotary
pile is used for adjusting.

4. As adjusting is required beyond of limit of distance

movable, in order to make big hall , electrical hand
drill or flat rotary pile (3/8¢) is used.

5. According to direction adjusted, tighten fixing bolt

of striker.

SSANGYONG Y200

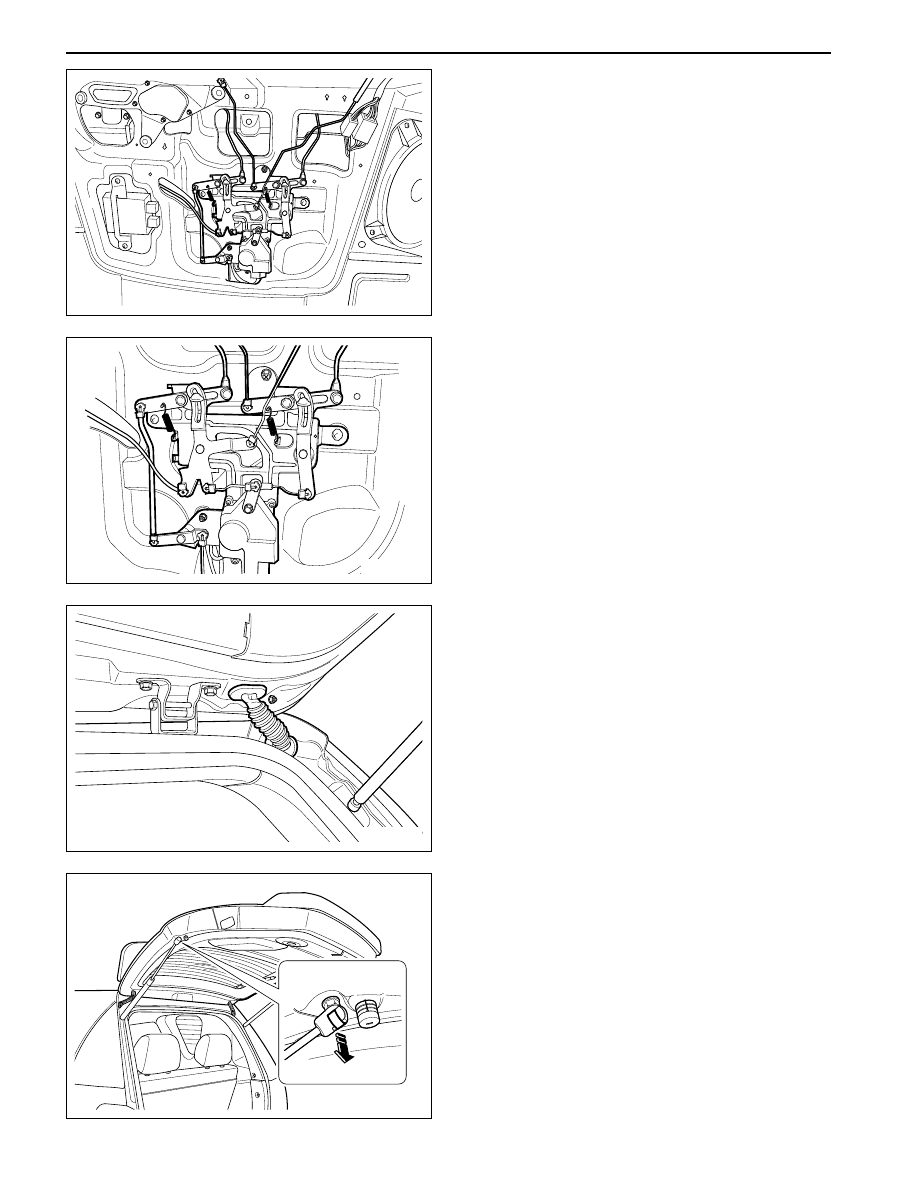

9C-32 BODY EXTERIOR

YAD9C940

YAD9C950

YAD9C960

YAD9C970

2. Using service tool, after opening up clip (4 ea) at

end of both gas lifter, remove gas lifter (right/left).

8. After separating fixing bolt (3 ea) of crank of tail

gate, remove crank.

Notice: If rekes is installed, key road is removed.

9. Install reverse order of removal.

TAIL GATE

Removal and Installation

1. After separating grommet of tail gate and wiring

connector (2 section), remove hose of nozzle
washer.
