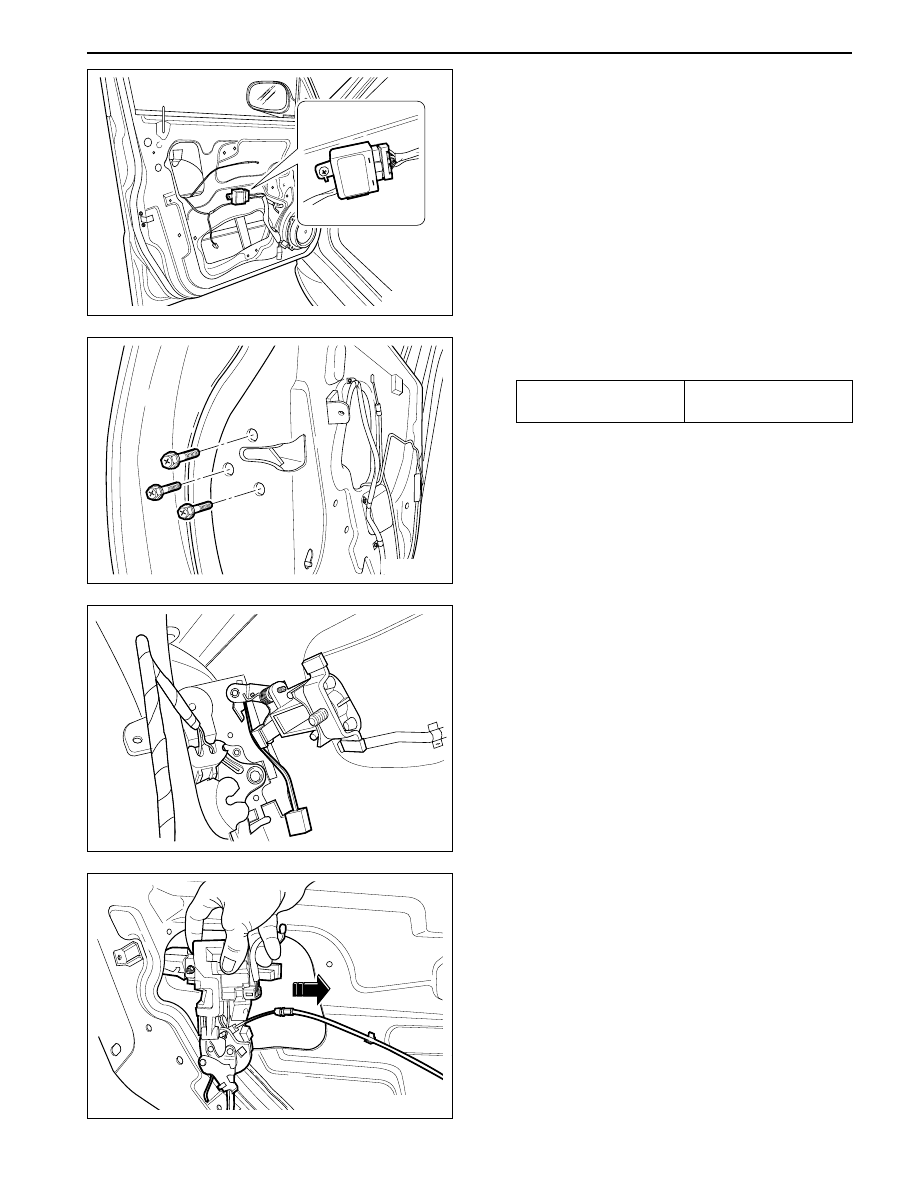

5. After removing rod and cable from the door lock

assembly, remove door lock assembly.

1) Separate rod of the external door handle.

2) Remove the connector.

3) After removing internal cable of handle, remove

door lock assembly.

DOOR LOCK ASSEMBLY

Removal and Installation

1. Remove the negative (-) terminal of battery

2. Remove vinyl seal and internal trim of door

3. In case door lock of central locking system,

separate connector  of door actuator and then
remove actuator.

4. After releasing fixing bolt of door lock, separate

glass panel.

Door Lock Bolt

7 - 9 N•m

(44 - 52 lb-ft)

SSANGYONG Y200

9C-26 BODY EXTERIOR

YAD9C710

YAD9C720

YAD9C730

YAD9C740

DOOR HANDLE

Removal and Installation

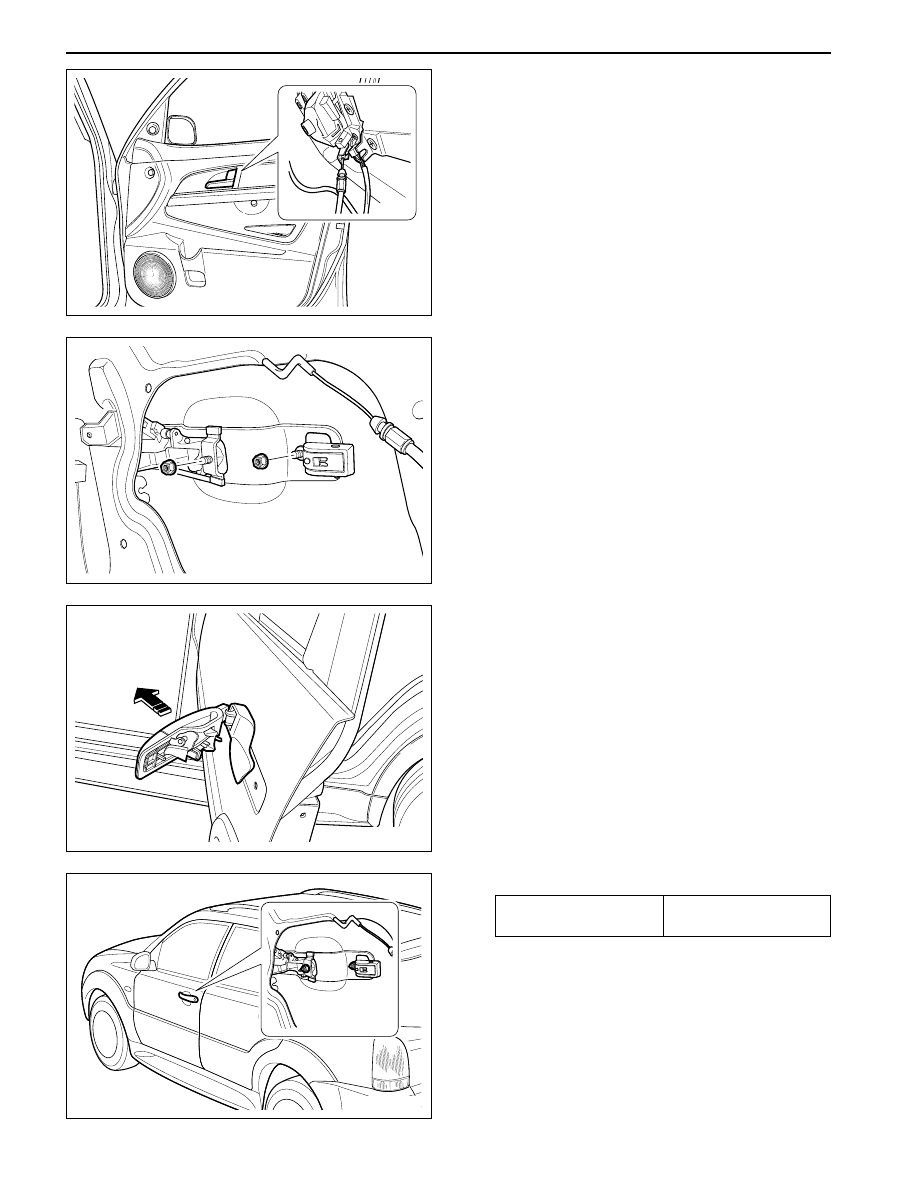

1. After removing door trim, separate internal handle

cable of door trim.

5. Install reverse order of installation.

4. Remove external handle of door.

Fixing Nut of Handle

4 - 5 N•m

(44 - 52 lb-ft)

2. Remove door lock assembly

Notice: After removing rod of key lock, separate
fixing nut of front external door handle

3. Release external fixing nut of door.

BODY EXTERIOR 9C-27

SSANGYONG Y200

YAD9C750

YAD9C760

YAD9C770

YAD9C780

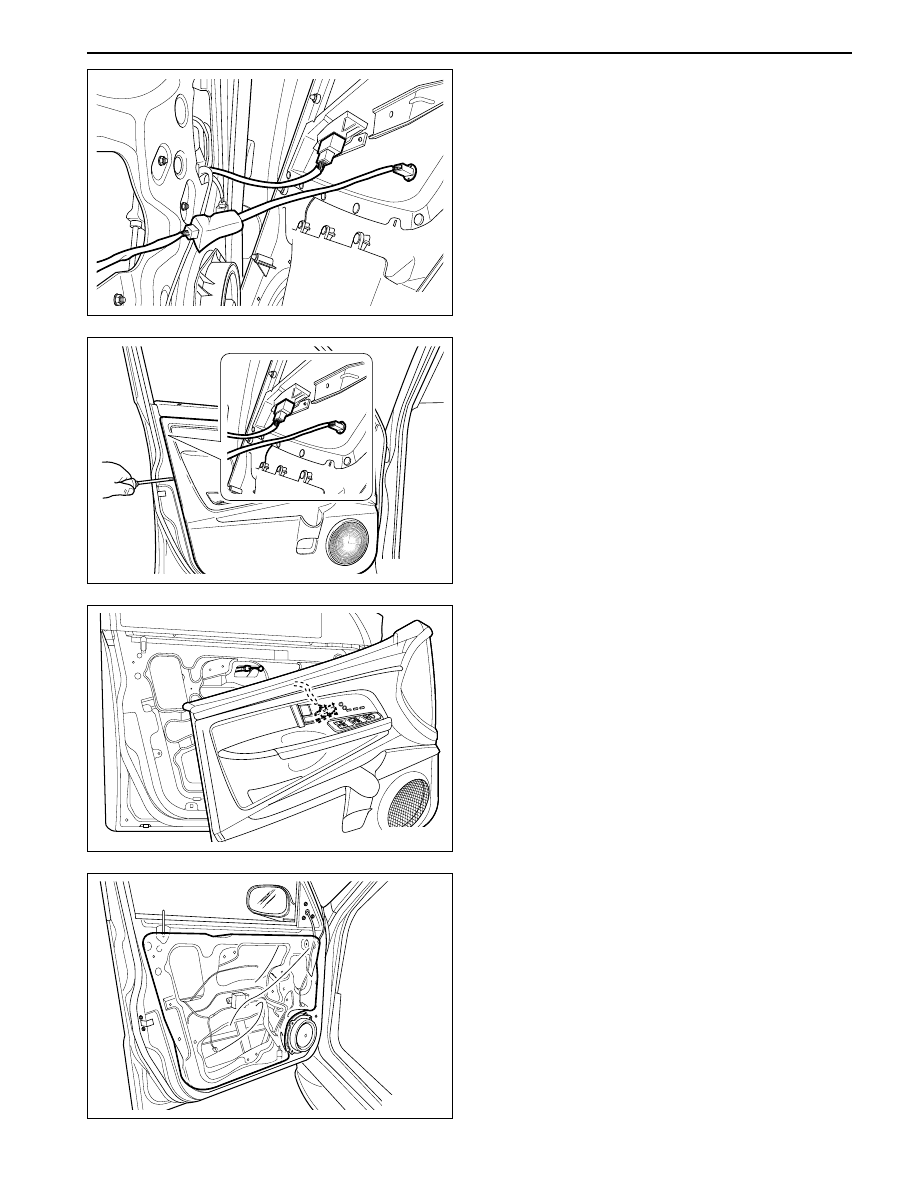

4. After removing door trim , remove connector of

door lamp and, cable of internal door handle.

5. Remove seal of door trim.

Notice: Pay attention about damage of seal.

DOOR TRIM

Removal and Installation

1. Remove the negative (-) terminal of battery.

2. Separate power window switch assembly.

3. After inserting special tool or driver, remove door

trim.

SSANGYONG Y200

9C-28 BODY EXTERIOR

YAD9C790

YAD9C800

YAD9C810

YAD9C820

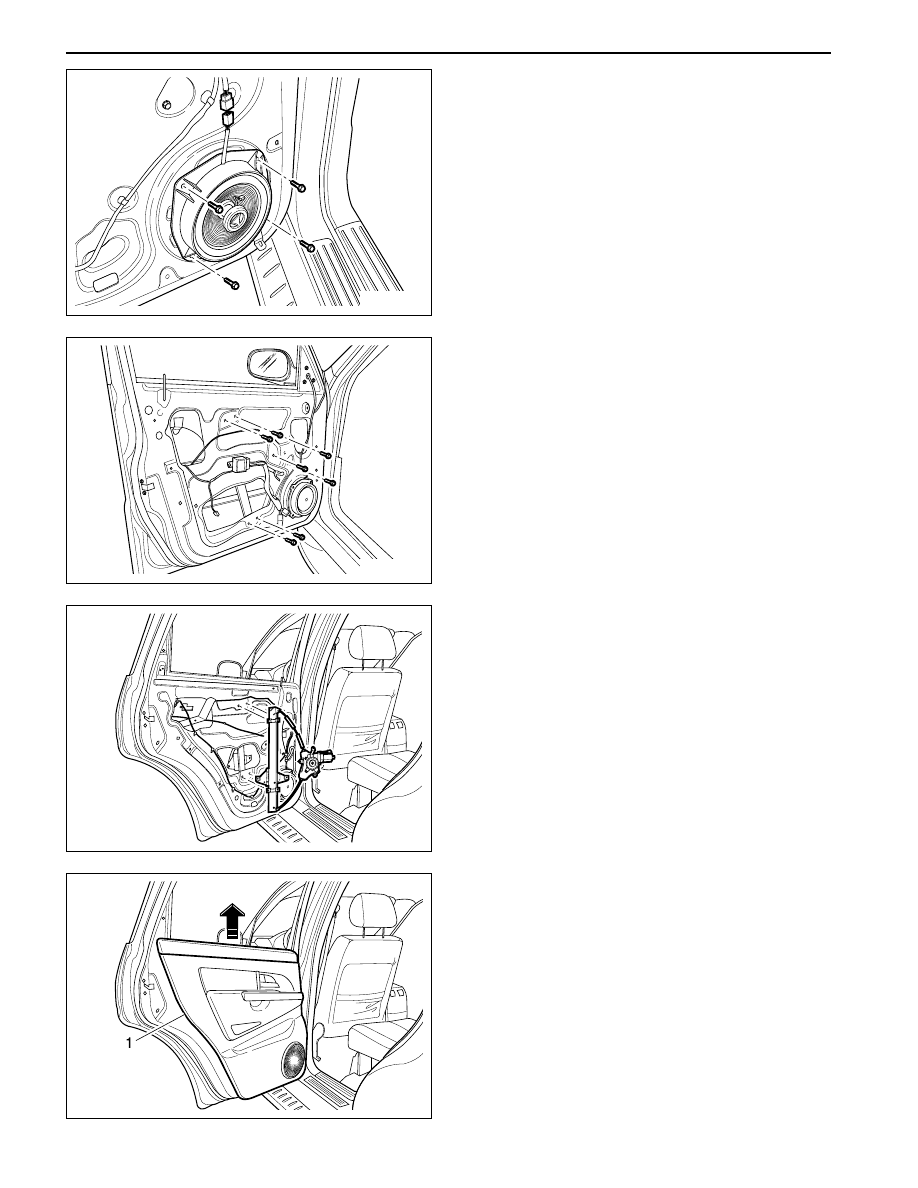

6. After fixing screw of door speaker, separate

connector and then, remove speaker.

7. After releasing nut of regulator and window motor,

remove regulator and window assembly.

8. Install reverse order of removal.

Notice: Spread sealant on the seal of door trim,
and then install the right position.

DOOR OPENING  WEATHER STRIP

Removal and Installation

1. Remove door checker in the body.
