MACHINING OF FLYWHEEL
1 Flywheel
Machining of Flywheel
Notice: Flywheels which have scorch marks, scoring
or cracks in the clutch surface should be machined by
grinding or precision-turning. If the scores or cracks
are severe than permissible specifications, replace the
flywheel.
•

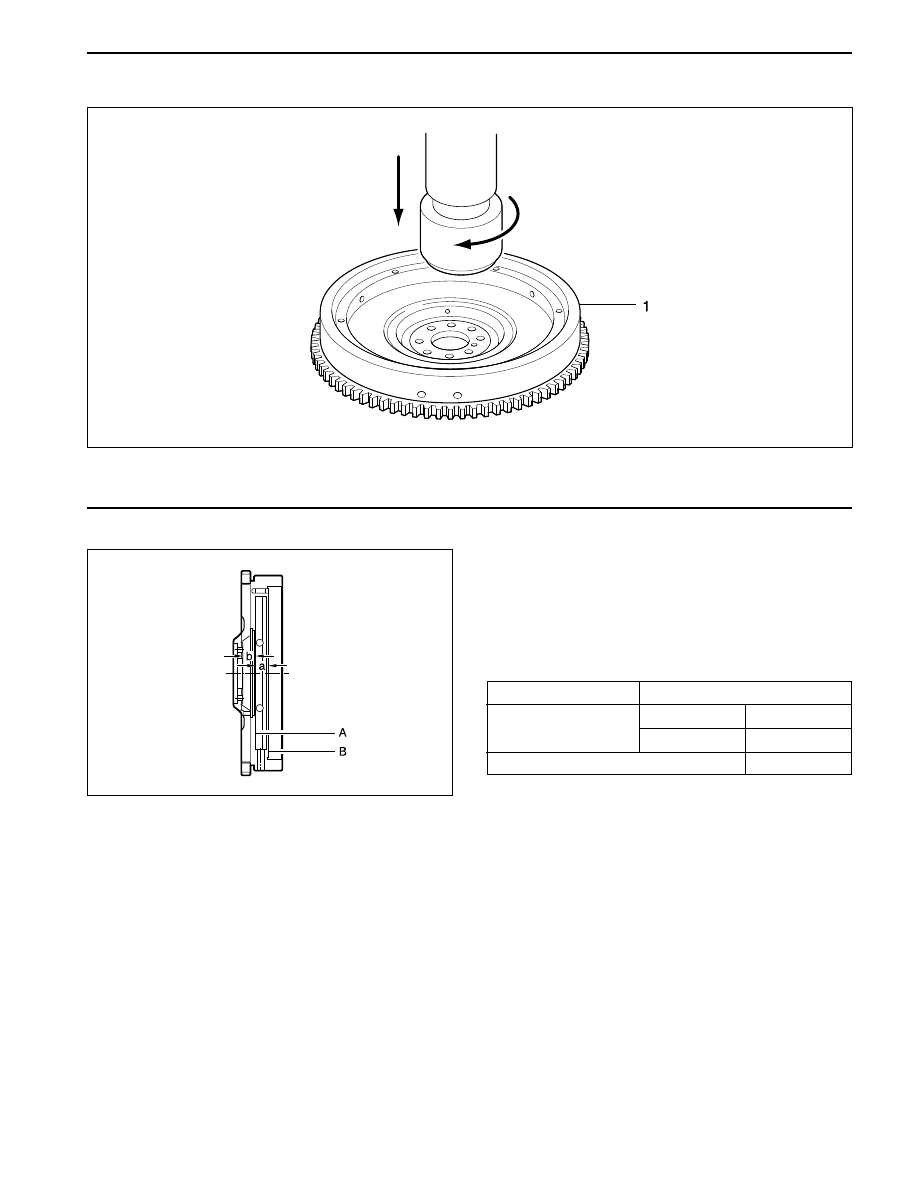

When machining the clutch surface ‘A’, the mounting
surface (B) for the clutch pressure plate should also
be machined in accordance with ‘A’ to keep the
distance ‘a’.
•
Do not machine under ‘b’ value.
•
When machining, fix the flywheel exactly not to
exceed the standard runout.
YAD1BJE0
YAD1BJF0
19.3 - 19.5 mm
Distance ‘a’
Distance ‘b’
Max. axial runout
16.6 mm
15.6 mm
0.05 mm
New
Repair up to
