SSANGYONG  Y200

1B3-88  DIESEL ENGINE MECHANICAL

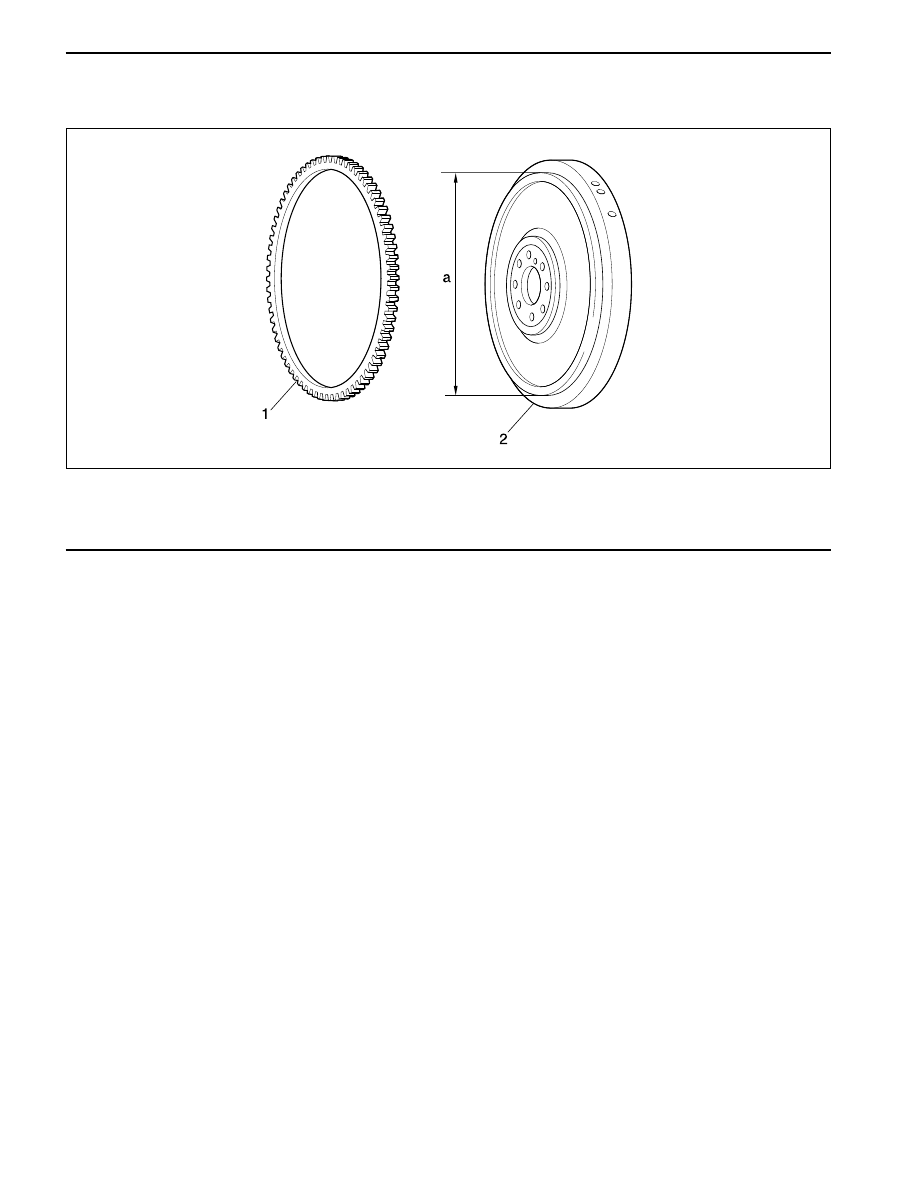

FLYWHEEL RING GEAR

Preceding Work:

Removal of flywheel

1 Ring Gear
2 Flywheel

a Centering Collar Diameter

YAD1BFX0

DIESEL ENGINE MECHANICAL  1B3-89

SSANGYONG  Y200

YAD1BFY0

YAD1BFZ0

YAD1BG00

YAD1BG10

Tools Required

001 589 53 21 00

Dial Gauge

363 589 02 21 00

Dial Gauge Holder

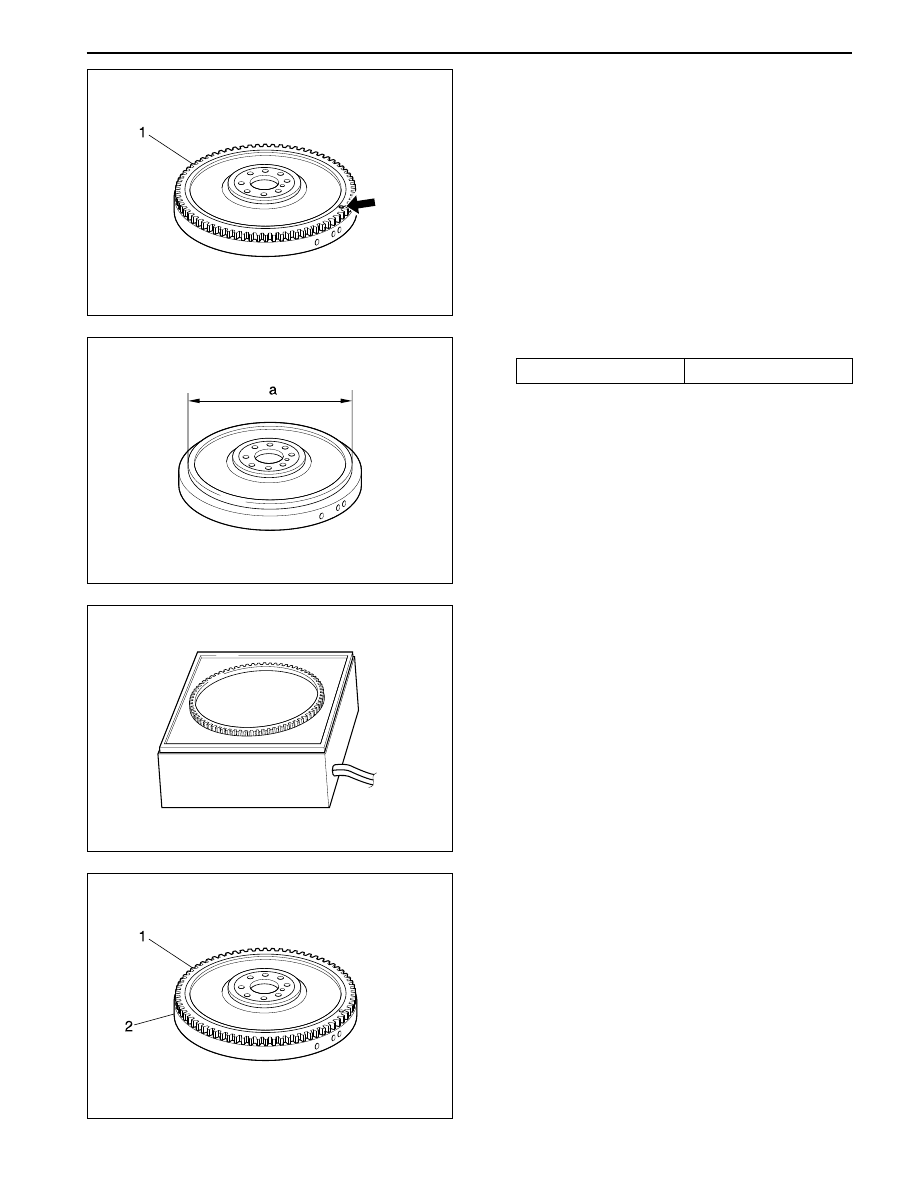

Replacement Procedure

1. Drill a hole into the ring gear (1) (arrow) and snap

with a chisel.

2. Thoroughly clean the collar surfaces of ring gear.

5. Install the new ring gear (1) onto the flywheel (2)

by using a drift.

4. Heat up the new ring gear up to 220°C (428°F) by

using a heating device.

Notice: Use temperature measuring chalk.

3. Measure diameter (a) of centering collar.

Diameter ‘a’

275 + 0.5 mm

Notice: If out of standard, replace the flywheel.

SSANGYONG  Y200

1B3-90  DIESEL ENGINE MECHANICAL

YAD1BG20

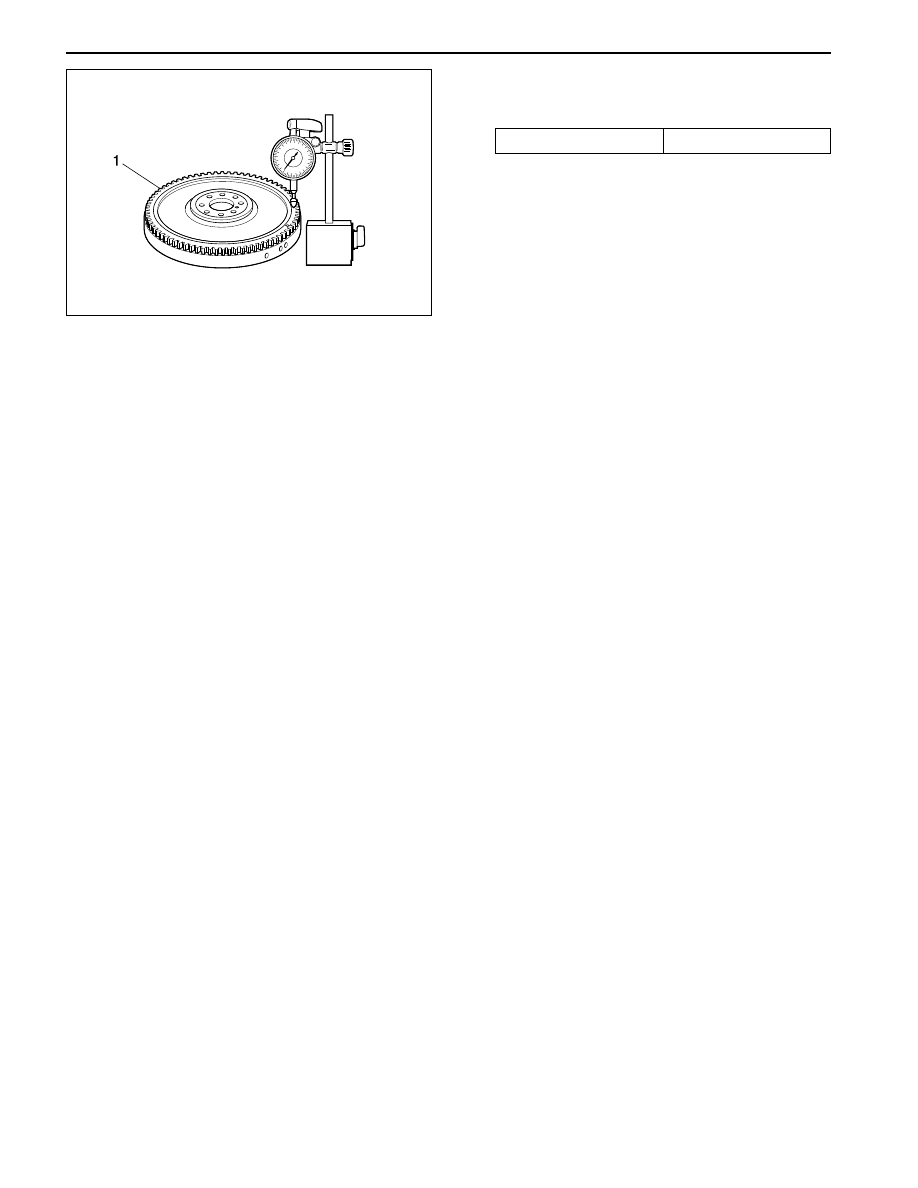

6. Measure axial runout of ring gear (1) on a surface

plate using dial gauge 001 589 53 21 00 and dial
gauge holder 363 589 02 21 00.

Notice: For correct measurement, put the flywheel
on the flat measuring board.

Limit

Max. 0.4 mm

DIESEL ENGINE MECHANICAL  1B3-91

SSANGYONG  Y200

TIMING DEVICE AND VALVE

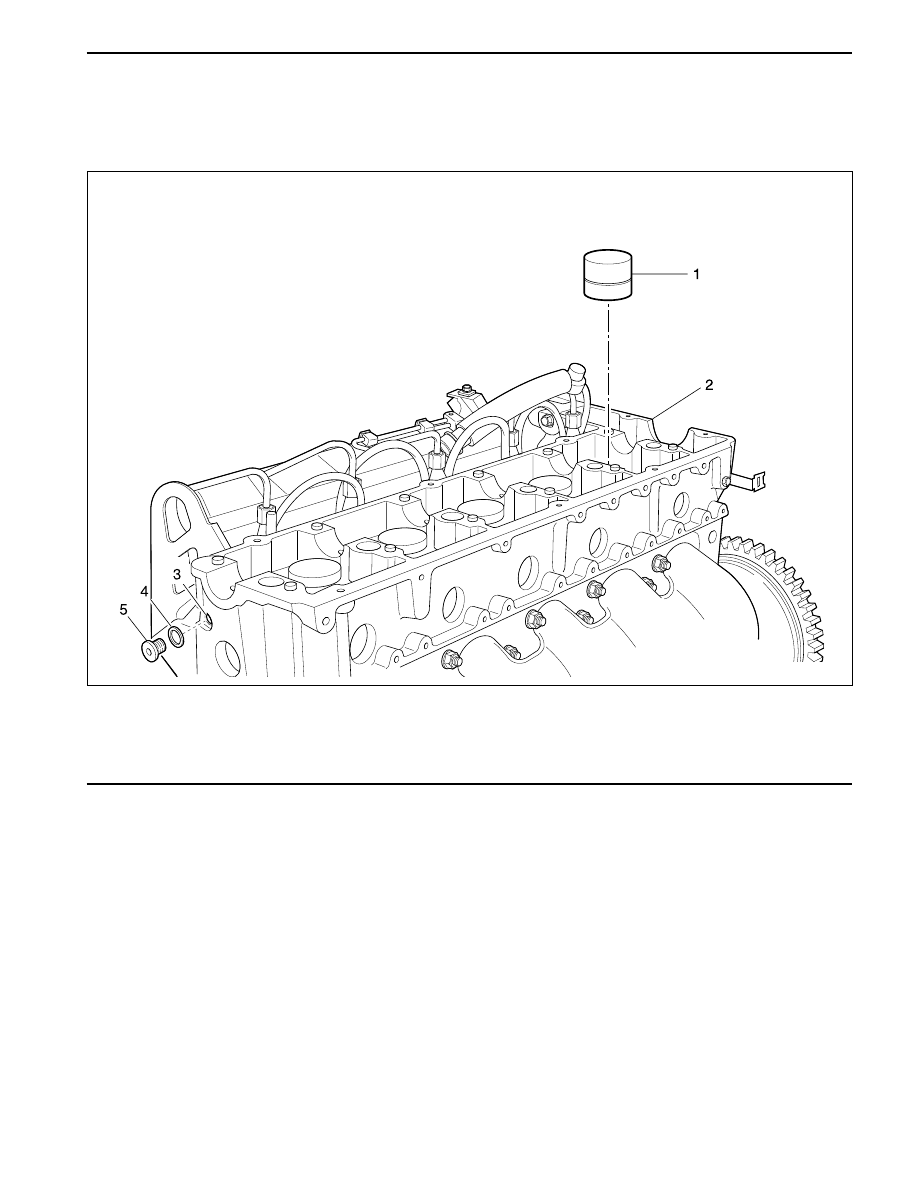

VALVE TAPPETS

Preceding Work:

Removal of camshaft

1 Valve Tappet
2 Cylinder Head
3 Oil Gallery

4 Seal ........................................................ Replace
5 Screw Plug

YAD1BG30
