SsangYong Rexton. Manual - part 364

SSANGYONG  Y200

1B3-32  DIESEL ENGINE MECHANICAL

YAD1BBQ0

YAD1BBT0

YAD1BBR0

YAD1BBS0

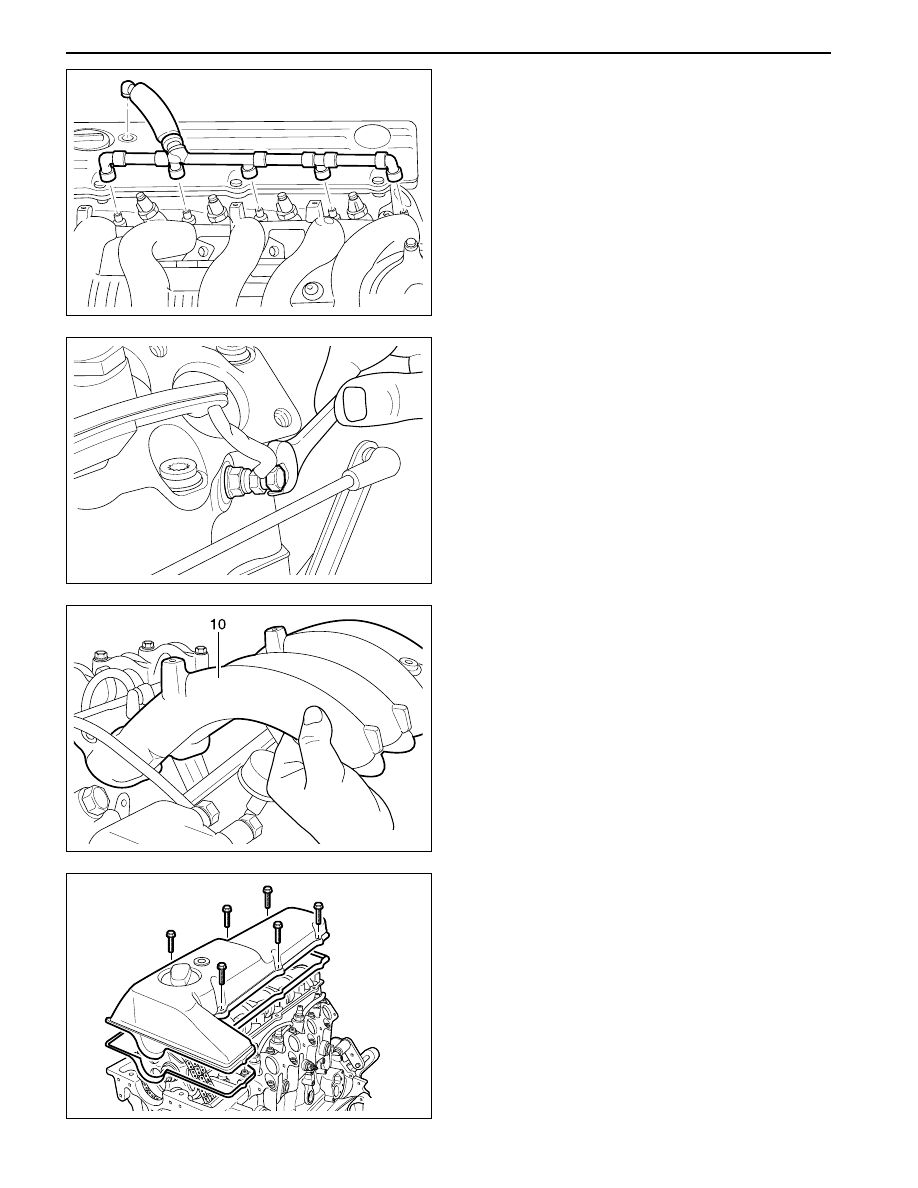

16. Disconnect the blow by hose from the cylinder

head cover.

17. Disconnect the glow plug cables.

18. Remove the intake manifold (10) and gasket.

19. Remove the cylinder head cover and gasket.

DIESEL ENGINE MECHANICAL  1B3-33

SSANGYONG  Y200

YAD1BBU0

YAD1BBV0

YAD1BBW0

YAD1BBX0

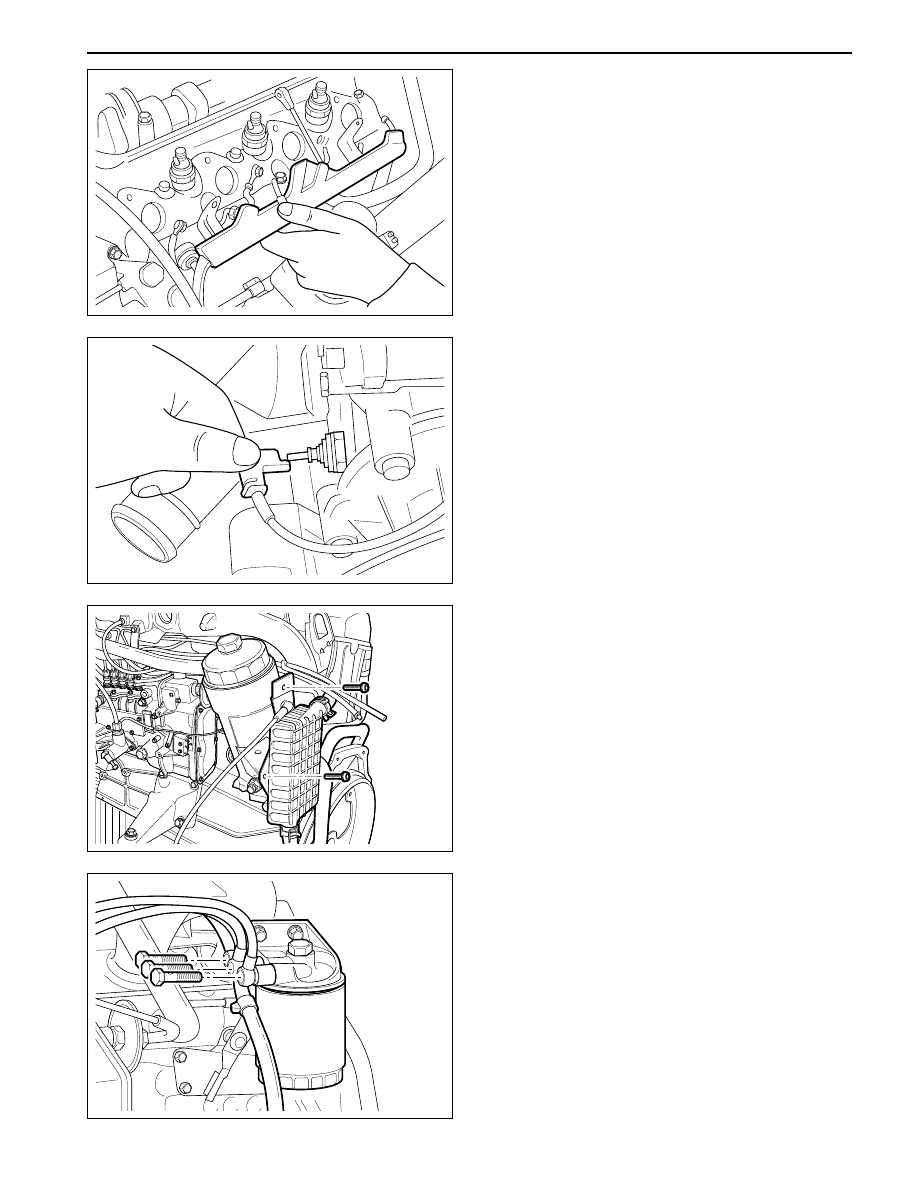

21. Disconnect the cables from the glow plug sensor

and engine coolant temperature sensor.

22. Remove the heater pipe bracket from the oil filter.

23. Pry off the clamp and push the heater feed pipe

forward and then pull out the pipe.

24. Disconnect the fuel lines from the fuel filter.

20. Remove the cable channel.

SSANGYONG  Y200

1B3-34  DIESEL ENGINE MECHANICAL

YAD1BBY0

YAD1BBZ0

YAD1BC00

YAD1BC10

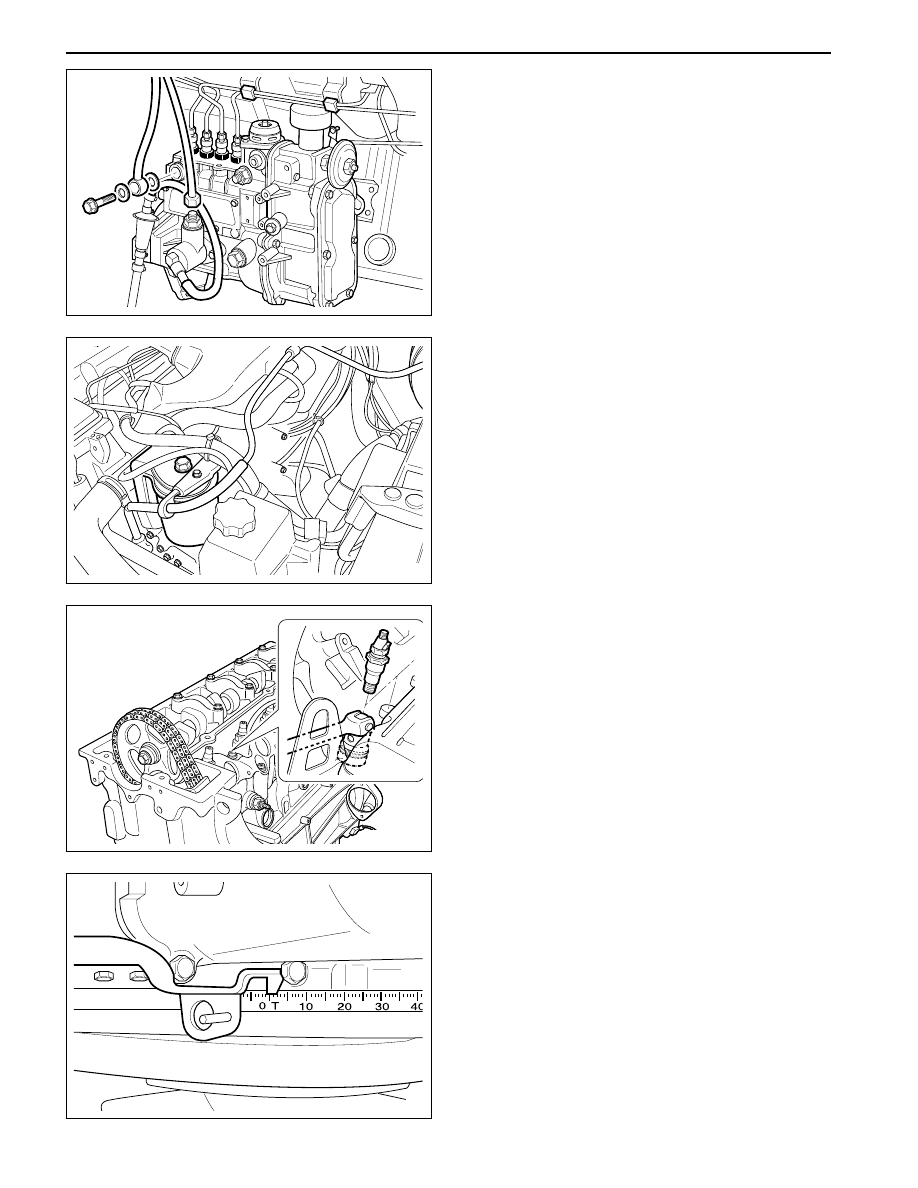

25. Disconnect the fuel lines from the injection pump.

27. Remove the fuel injection nozzle and nozzle

washer.

26. Remove the fuel filter.

28. Rotate the crankshaft and set the no.1 cylinder at

TDC.

Notice: Do not rotate the crankshaft to the
opposite direction of engine revolution.

DIESEL ENGINE MECHANICAL  1B3-35

SSANGYONG  Y200

YAD1BC20

YAD1BC30

YAD1BC40

YAD1BC50

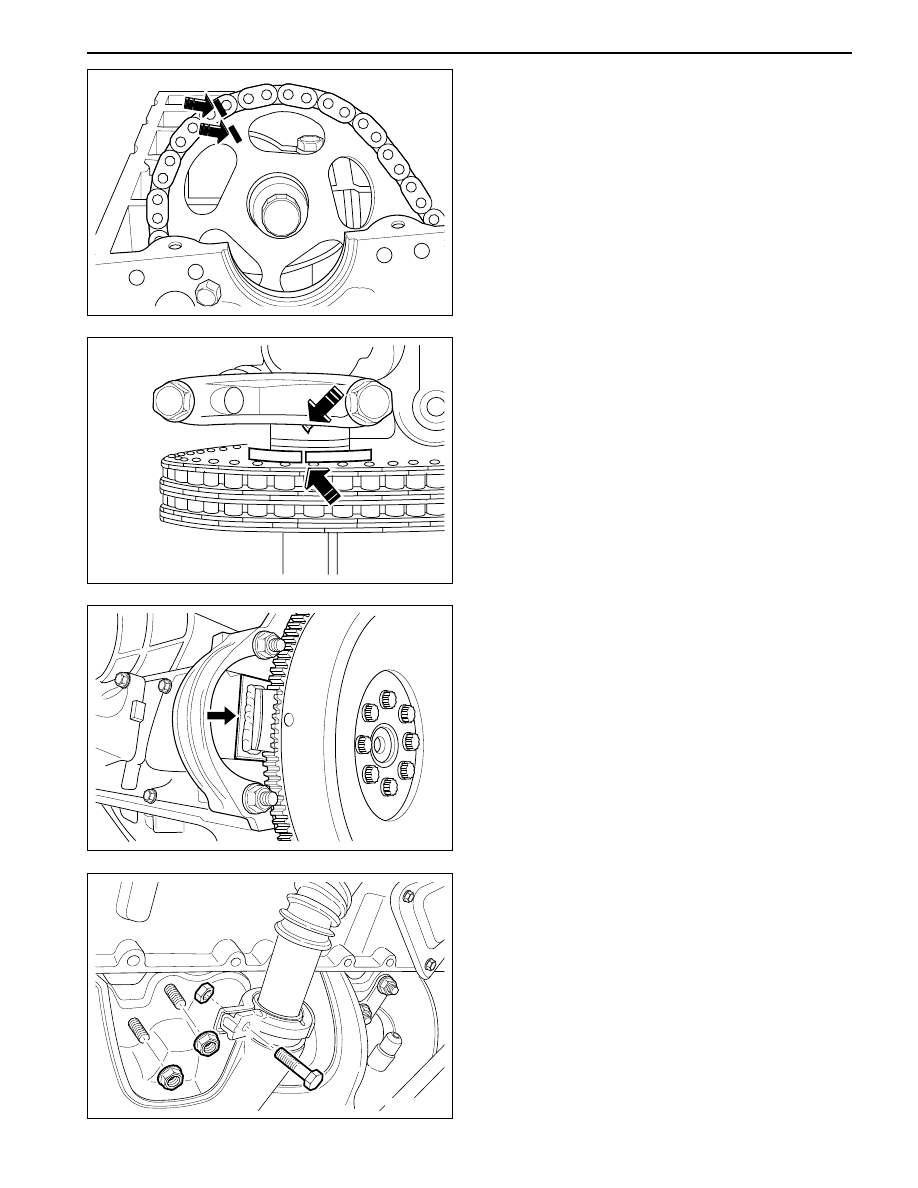

30. Ensure that the camshaft and the bearing cap

marking are aligned.

31. Remove the starter motor and install the engine

lock 602 589 00 40 00 onto the flywheel ring gear.

32. Remove the exhaust manifold and exhaust pipe.

29. Place alignment marks on the camshaft gear and

timing chain.
