M161 ENGINE MECHANICAL  1B2-35

SSANGYONG  Y200

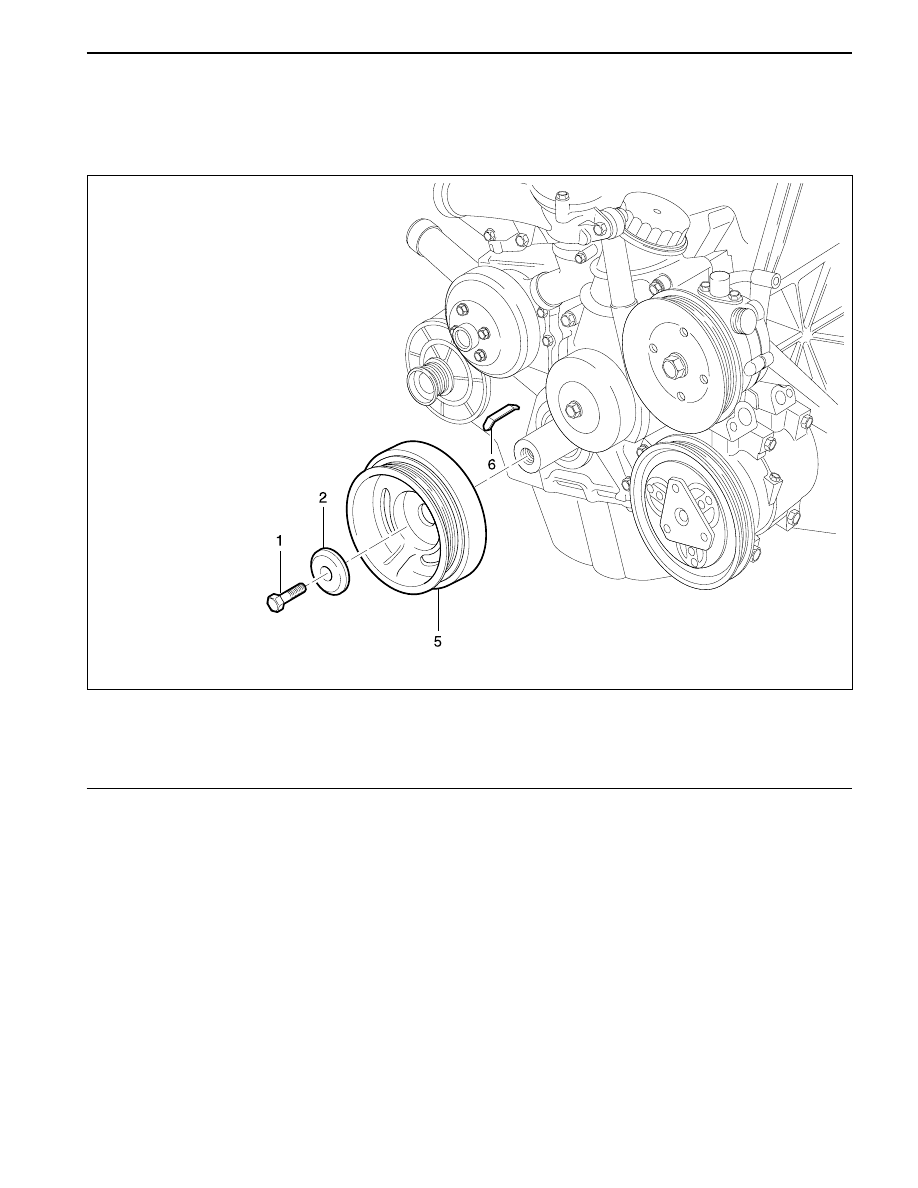

BELT PULLEY AND  VIBRATION DAMPER

Preceding Work:

Removal of cooling fan and viscous clutch

Removal of fan shroud

Removal of drive belt

1 Vibration Damper Center

............... 1st step 200+20 N•m (148 + 15 lb-ft)

2nd step 90 ° + 10 ° rotation added

YAD1B6U0

2 Vibration Damper Disk
5 Vibration Damper Assembly
6 Key

SSANGYONG  Y200

1B2-36  M161 ENGINE MECHANICAL

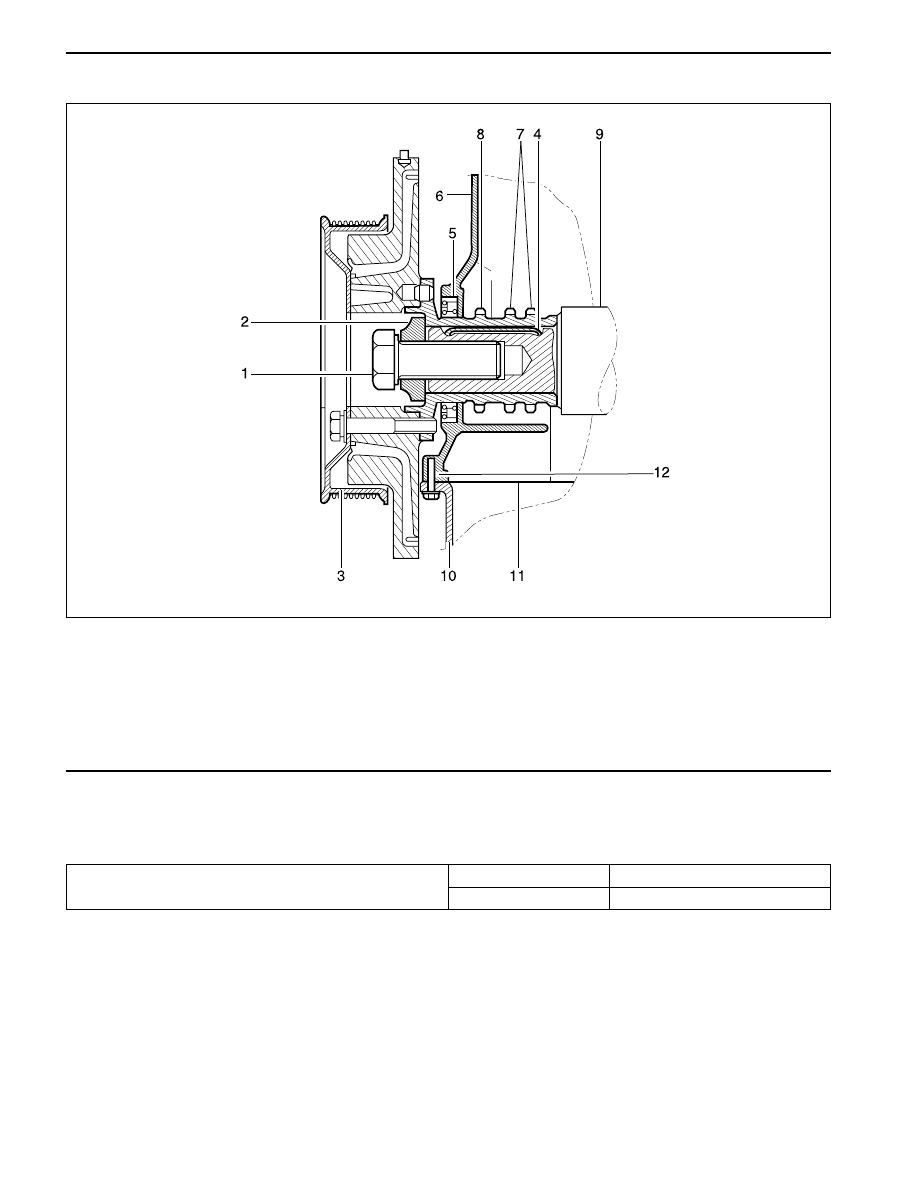

Components

1 Center Bolt (M18 x 50)
2 Center Bolt Washer
3 Vibration Damper and Pulley Assembly
4 Key
5 Crankshaft Front Seal
6 Timing Gear Case Cover

YAD1B660

7 Crankshaft Sprocket (Camshaft Driven)
8 Crankshaft Sprocket (Oil Pump Driven)
9 Crankshaft

10 Oil Pan
11 Oil Pan Gasket
12 Oil Pan Mounting Bolt (M6 x 22)

Service Data Standard

Permissble Deviation of The Vibration Damper

Radial Runout

Axial Ruout

0.6 mm

0.6 mm

M161 ENGINE MECHANICAL  1B2-37

SSANGYONG  Y200

YAD1B6V0

YAD1B680

YAD1B6W0

Tools Required

602 589 00 40 00

Engine Lock

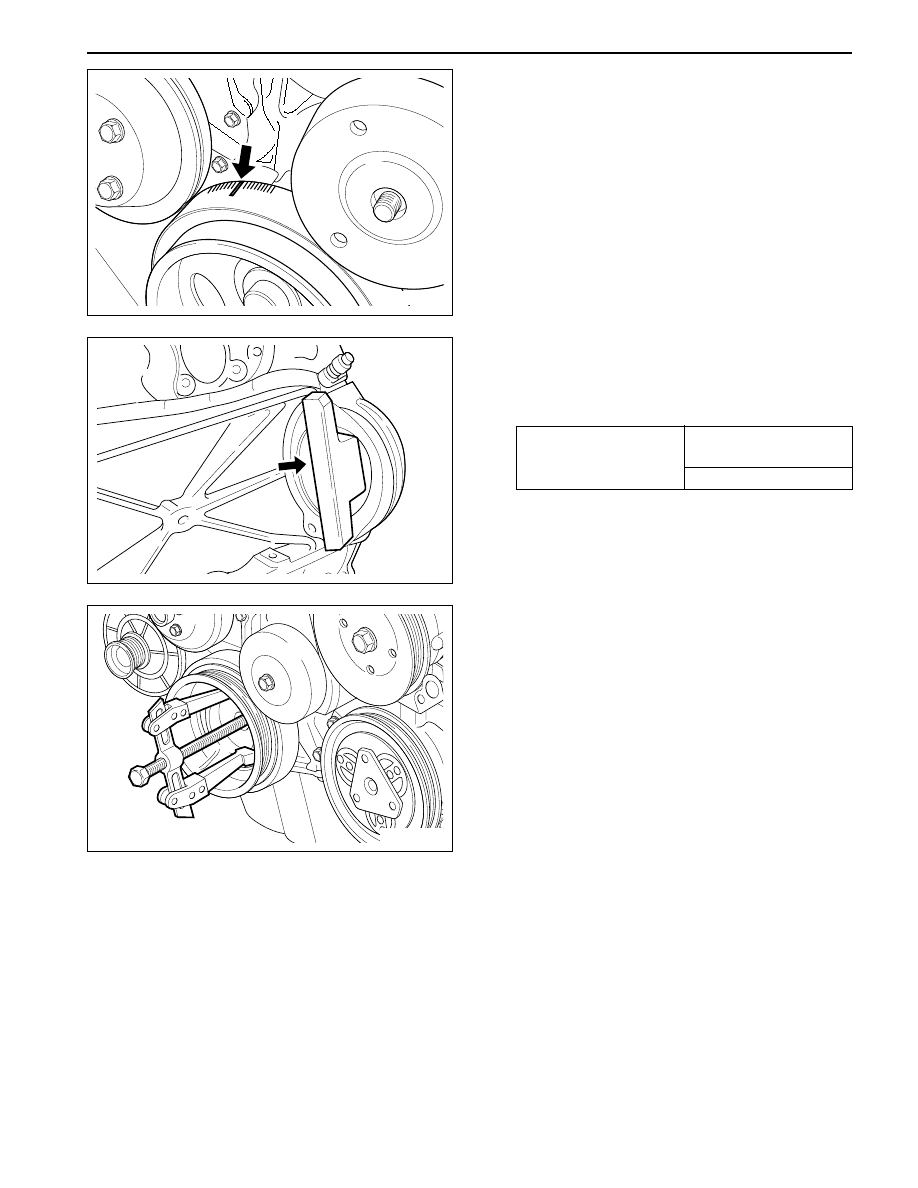

Removal & Installation Procedure

1. Adjust the piston of number 1 cylinder to the TDC.

4. Remove the vibration damper assembly using the

puller.

5. Installation should follow the removal procedure

in the reverse order.

Notice: If possible, don’t separate the vibration
damper and the pulley.

2. Remove the start motor and install the engine lock

602 589 00 40 00 to the flywheel ring gear.

3. Remove the vibration damper center bolt.

Installation Notice

Tightening Torque

1st step: 200 + 20 N•m

  (148 + 15 lb-ft)

2nd step: 90°  + 10°

SSANGYONG  Y200

1B2-38  M161 ENGINE MECHANICAL

CRANKSHAFT FRONT RADIAL SEAL

Preceding Work:

Removal of belt pulley and vibration damper

1 Center Bolt (M18 x 50)

......... 1st step 200 + 20 45 N•m (148 +15 lb-ft)

2nd step 90 ° + 10 °

2 Center Bolt Washer

YAD1B6X0

3 Crankshaft Front Seal Installer
4 Crankshaft Front Seal
5 Key
