SSANGYONG  Y200

1A-10  ENGINE GENERAL INFORMATION

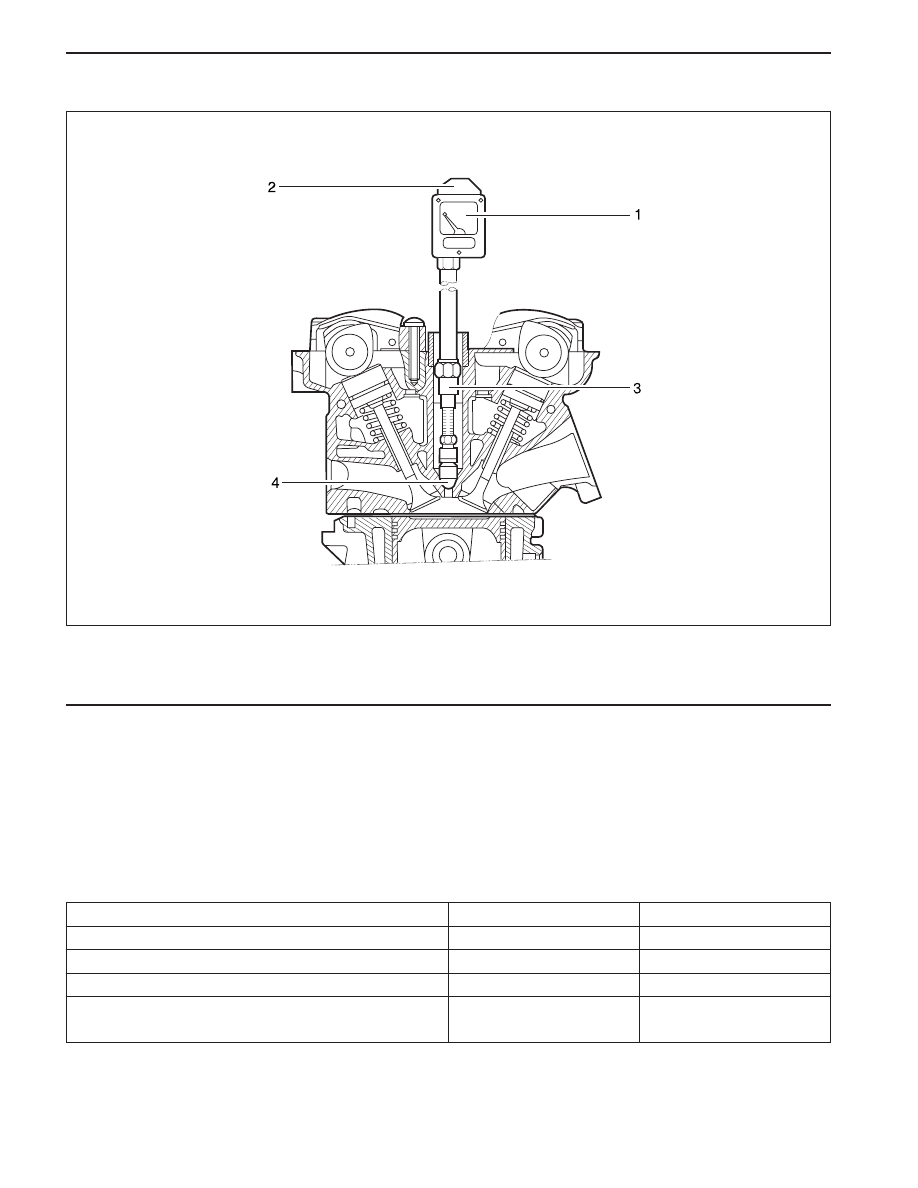

COMPRESSION PRESSURE TEST (GASOLINE ENGINE)

1 Compression Pressure Tester
2 Diagram Sheet

3 Adaptor
4 Sealing Cone

Standard Service Data

Application

Compression Ratio

Normal Engine Temperature

Normal Compression Pressure

Permissible Pressure Difference Between Individual
Cylinders

M162 Engine

10 : 1

80 °C (176 °F)

Min. 10 bar, Max. 14 bar

Max. 1.5 bar

YAD1A070

M161 Engine

10.4 : 1

←

Min. 11 bar, Max. 15 bar

←

ENGINE GENERAL INFORMATION  1A-11

SSANGYONG  Y200

Tools Required

001 589 76 21 00 Compression Pressure Tester

119 589 01 09 00

Spark Plug Wrench

Measuring Procedure

1. W a r m   t h e   e n g i n e   u p   t o   n o r m a l   o p e r a t i n g

temperature.

2. Remove the spark plugs using the spark plug

wrench 119 589 01 09 00.

3. Place the diagram sheet to compression pressure

tester 001 589 76 21 00.

4. Connect the adaptor to compression pressure

tester 001 589 76 21 00 and install it into the spark
plug hole.

5. Crank the engine approx. eight revolutions by

using the start motor.

6. Compare the measurements of compression

pressure tester 001 589 76 21 00 with the
specifications.

7. Measure the compression pressure of the other

cylinders in the same way.

8. If measured value is not within the specifications,

perform the cylinder pressure leakage test.

Notice:

•

Discharge the combustion residues in the
cylinders before testing the compression
pressure.

•

Apply the parking brake before cranking the
engine.

SSANGYONG  Y200

1A-12  ENGINE GENERAL INFORMATION

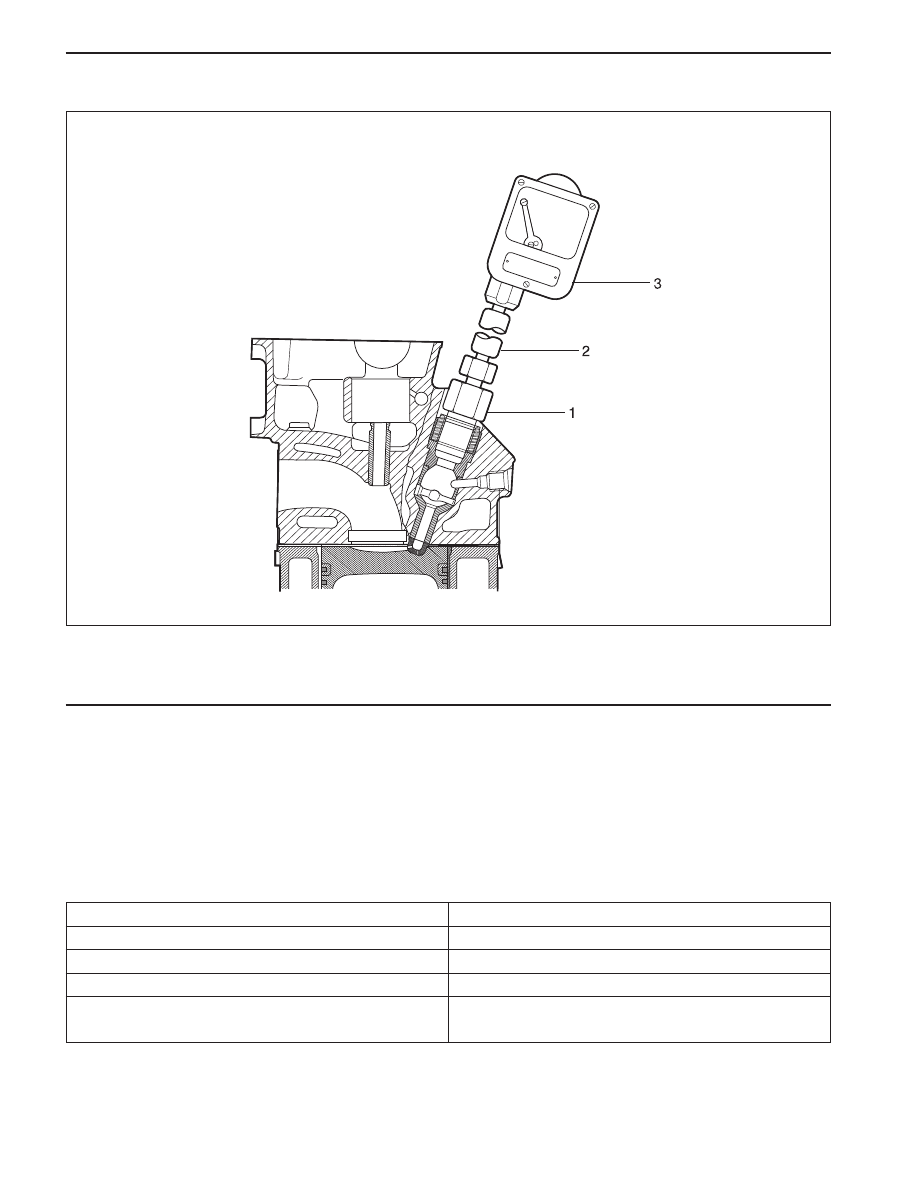

COMPRESSION PRESSURE TEST (DIESEL ENGINE)

1 Test Adaptor
2 Flexible Connector

3 Compression Pressure Tester

Standard Service Data

Compression Ratio

Normal Engine Temperature

Normal Compression Pressure

Minimum Compression Pressure

Permissible Pressure Difference Between Individual
Cylinders

22 : 1

80 °C (176 °F)

28bar

Approx.18bar

Max. 3bar

YAD1A080

ENGINE GENERAL INFORMATION  1A-13

SSANGYONG  Y200

Tools Required

001 589 76 21 00

Compression Pressure Tester

001 589 73 21 00 Hand Vacuum Pump

601 589 65 09 00 Socket

Measuring Procedure

Notice: Ensure that no gear is engaged and that
the vehicle is protected from rolling.

1. Run the engine to be the coolant temperature

80 °C (176 °F).

2. Remove the fuel injection nozzle.

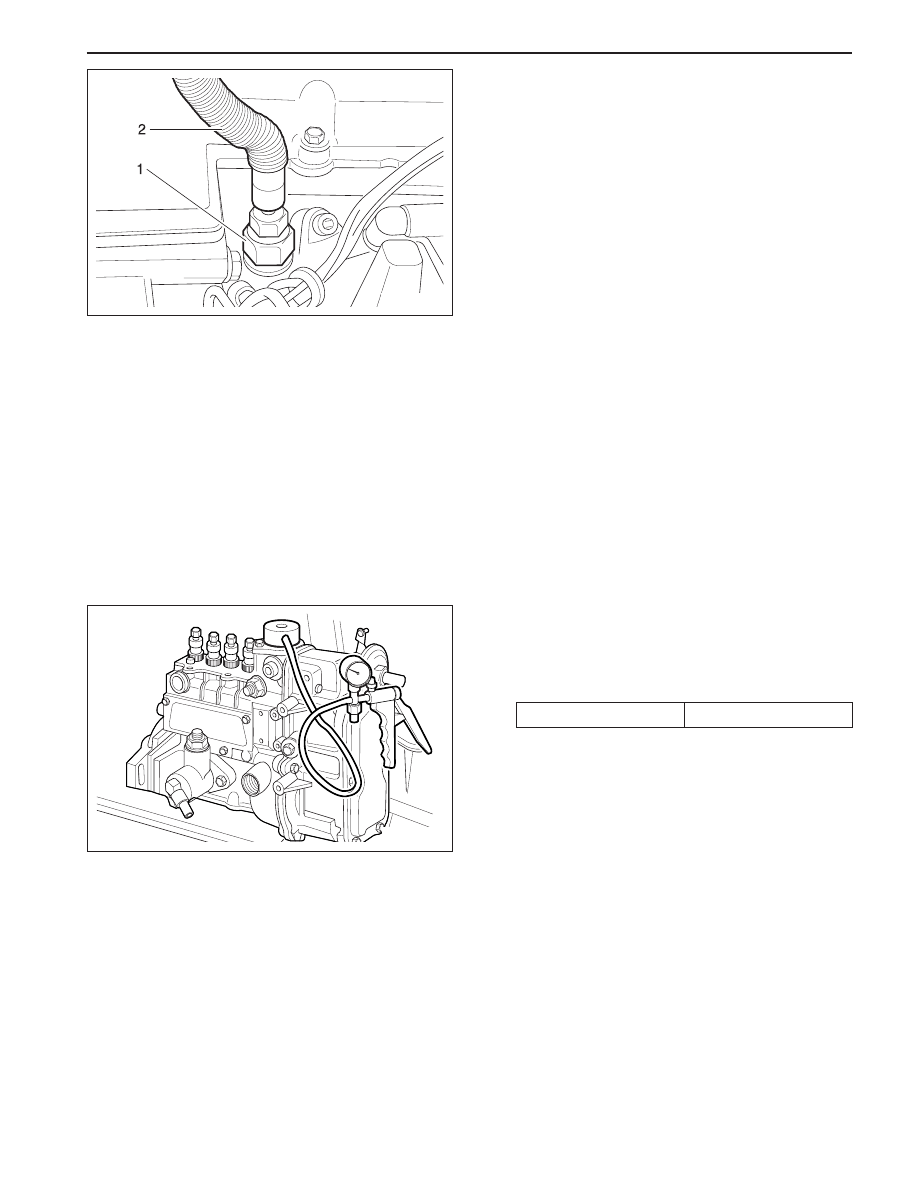

3. Install the test adapter (1) and connect the flexible

connector (2) to the compression pressure tester
001 589 76 21 00.

4. Disconnect the vacuum line from the stop unit and

connect the hand vacuum pump 001 589 73 21 00
to the stop unit.

5. Pump the hand vacuum pump 001 589 73 21 00

and make the fuel injection pump in stop position.

6. Using a starter motor, crank the engine 8

revolutions.

7. Measure the remaining cylinder compression

pressure in the same manner and compare it with
service data.

Notice:  If out of standard, do cylinder pressure
leakage test.

8. Remove the compression pressure tester 001 589

76 21 00.

9. Install the fuel injection nozzle.

Operating Pressure

Approx. 500bar

YAD1A090

YAD1A100
