SSANGYONG Y200

1A-6 ENGINE GENERAL INFORMATION

;;;;;;;;;;;;;;

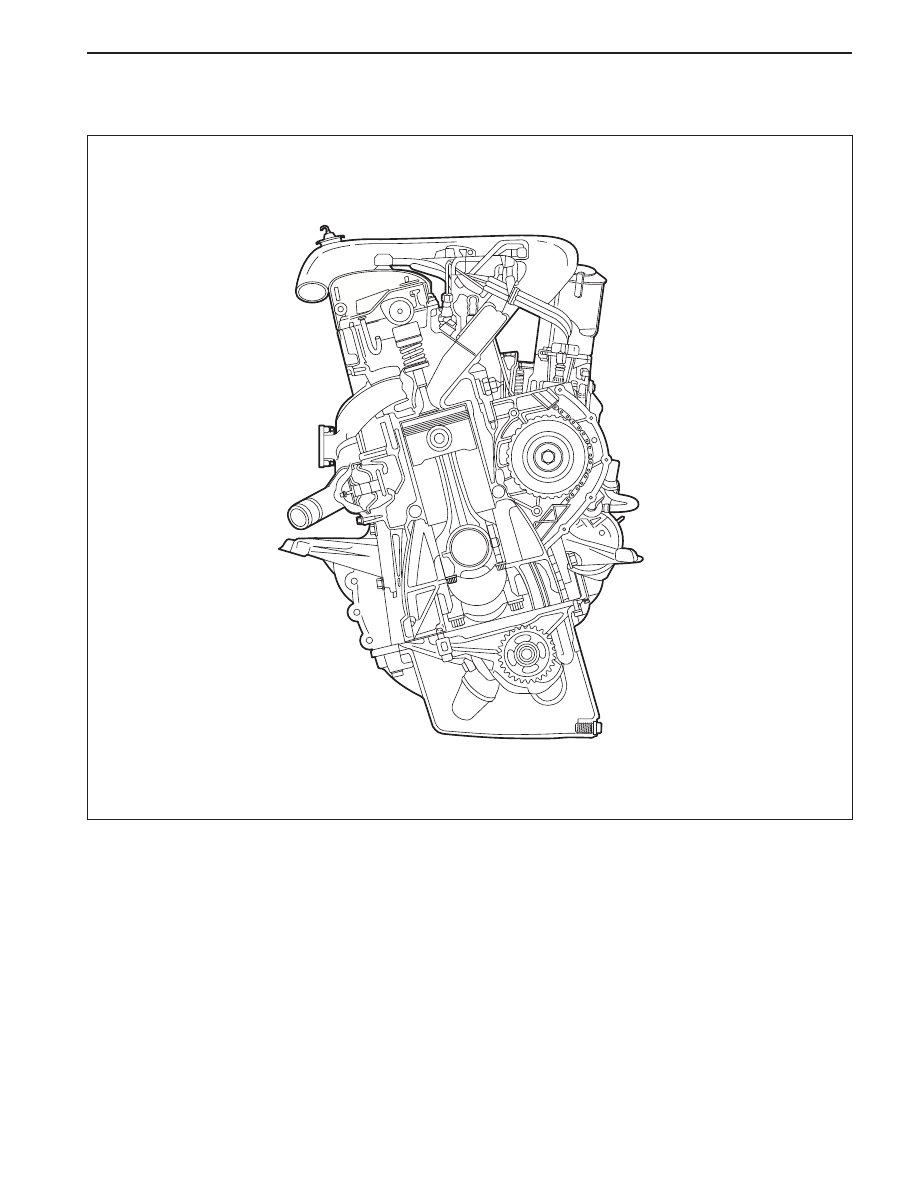

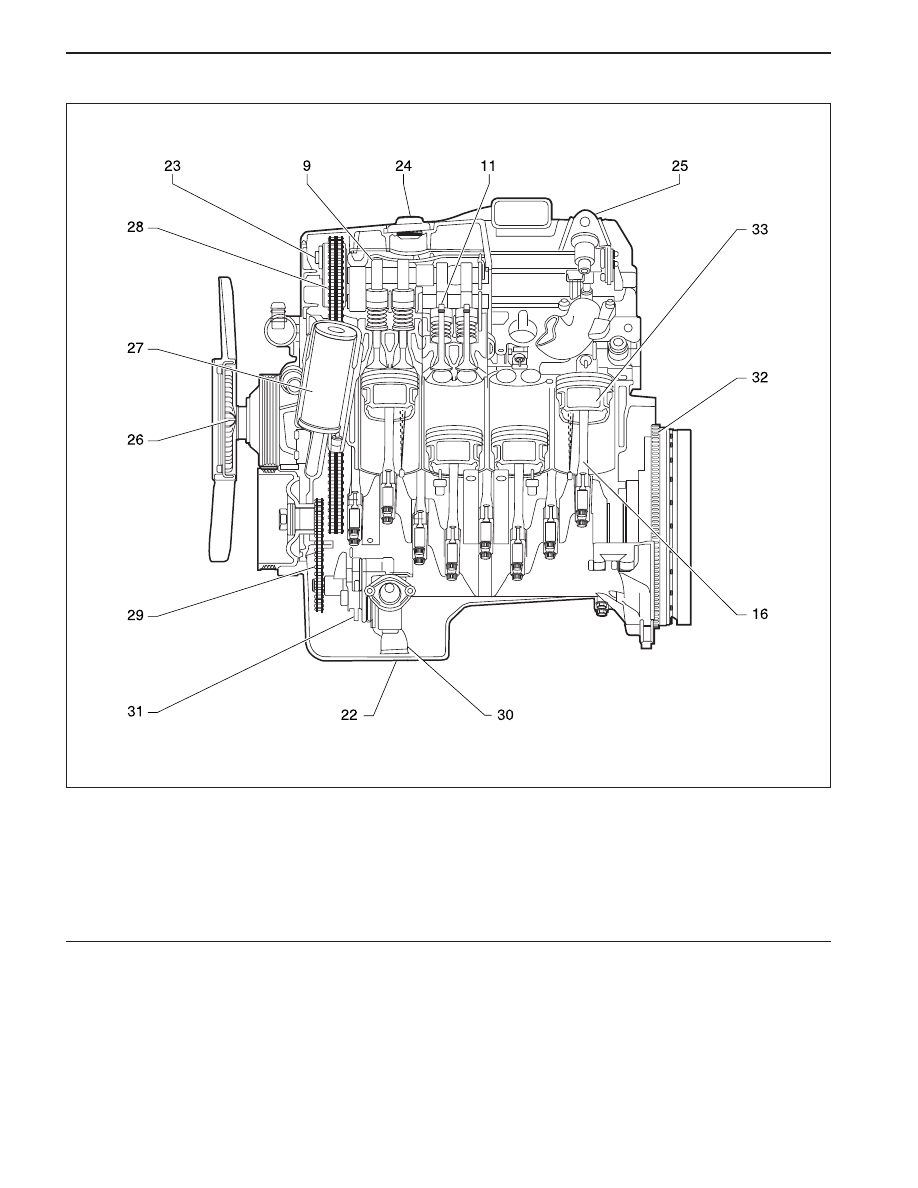

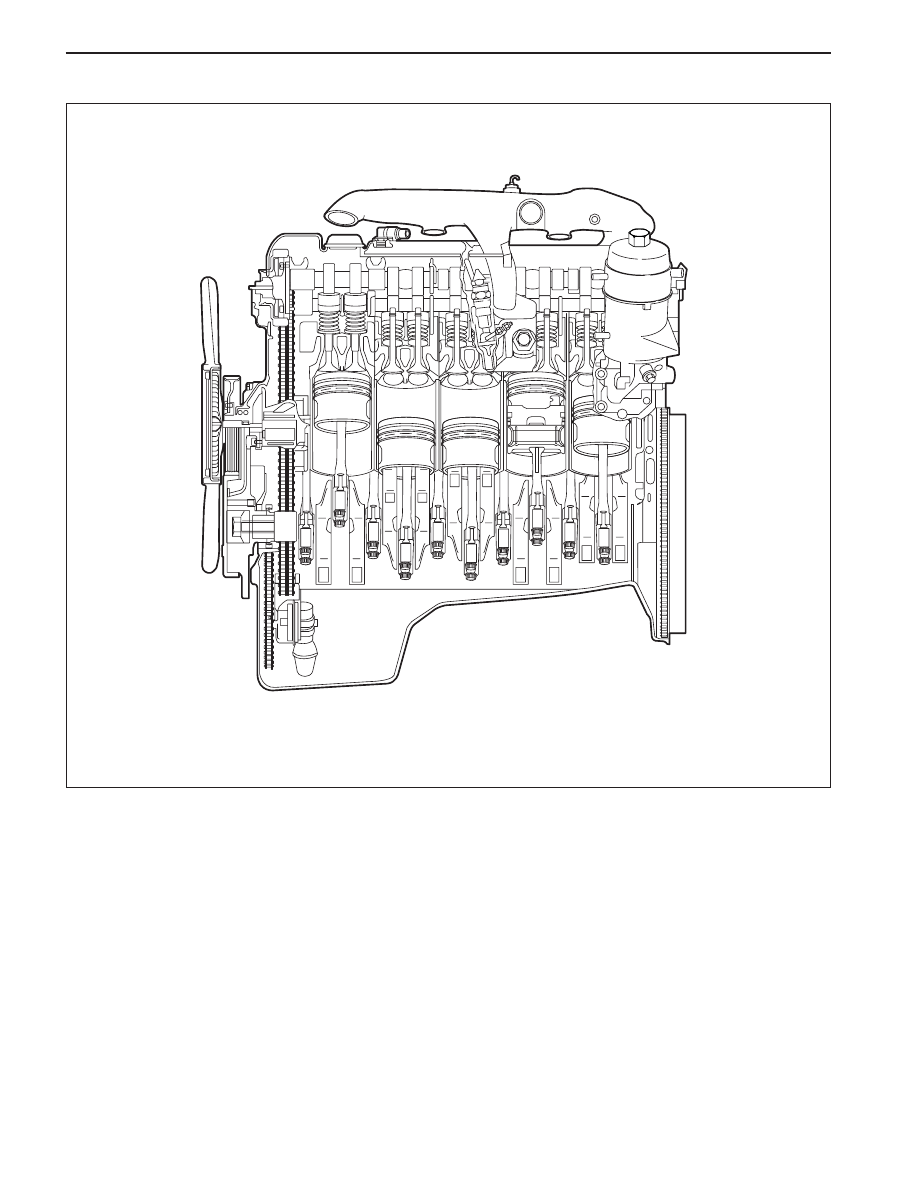

Side View

YAD1A040

23 Camshaft Adjuster
24 Oil Filler Cap
25 Engine Hanger Bracket
26 Cooling Fan and Viscous Clutch
27 Oil Filter
28 Timing Chain

29 Oil Pump Drive Chain
30 Oil Strainer
31 Oil Pump
32 Ring Gear and Flywheel of Drive Plate
33 Piston

ENGINE GENERAL INFORMATION 1A-9

SSANGYONG Y200

DIAGNOSTIC INFORMATION AND PROCEDURE

OIL LEAK DIAGNOSIS

Most fluid oil leaks are easily located and repaired by
visually finding the leak and replacing or repairing the
necessary parts. On some occasions a fluid leak may
b e d i f f i c u l t t o l o c a t e o r r e p a i r . T h e f o l l o w i n g
procedures may help you in locating and repairing
most leaks.

Finding the Leak

1. Identify the fluid. Determine whether it is engine

oil, automatic transmission fluid, power steering
fluid, etc.

2. Identify where the fluid is leaking from.

2.1 After running the vehicle at normal operating

temperature, park the vehicle over a large
sheet of paper.

2.2 Wait a few minutes.

2.3 You should be able to find the approximate

location of the leak by the drippings on the
paper.

3. Visually check around the suspected component.

Check around all the gasket mating surfaces for
leaks. A mirror is useful for finding leaks in areas
that are hard to reach.

4. If the leak still cannot be found, it may be

necessary to clean the suspected area with a
degreaser, steam or spray solvent.

4.1 Clean the area well.

4.2 Dry the area.

4.3 Operate the vehicle for several miles at

normal operating temperature and varying
speeds.

4.4 After operating the vehicle, visually check the

suspected component.

4.5 If you still cannot locate the leak, try using

the powder or black light and dye method.

Powder Method

1. Clean the suspected area.

2. Apply an aerosol-type powder (such as foot

powder) to the suspected area.

3. Operate the vehicle under normal operating

conditoins.

4. Visually inspect the suspected component. You

should be able to trace the leak path over the white
powder surface to the source.

Black Light and Dye Method

A dye and light kit is available for finding leaks, Refer
to the manufacturer's directions when using the kit.

1. Pour the specified amount of dye into the engine

oil fill tube.

2. Operate the vehicle normal operating conditions

as directed in the kit.

3. Direct the light toward the suspected area. The

dyed fluid will appear as a yellow path leading to
the source.

Repairing the Leak

Once the origin of the leak has been pinpointed and
traced back to its source, the cause of the leak must
be determined in order for it to be repaired properly.
If a gasket is replaced, but the sealing flange is bent,
the new gasket will not repair the leak. The bent flange
must be repaired also. Before attempting to repair a
leak, check for the following conditions and correct
them as they may cause a leak.

Gaskets

•

The fluid level/pressure is too high.

•

The crankcase ventilation system is malfunctioning.

•

The fasteners are tightened improperly or the
threads are dirty or damaged.

•

The flanges or the sealing surface is warped.

•

There are scratches, burrs or other damage to the
sealing surface.

•

The gasket is damaged or worn.

•

There is cracking or porosity of the component.

•

An improper seal was used (where applicable).

Seals

•

The fluid level/pressure is too high.

•

The crankcase ventilation system is malfunctioning.

•

The seal bore is damaged (scratched, burred or
nicked).

•

The seal is damaged or worn.

•

Improper installation is evident.

•

There are cracks in the components.

•

The shaft surface is scratched, nicked or damaged.

•

A loose or worn bearing is causing excess seal
wear.
