ELECTRICAL WIRING DIAGRAMS  5-137

SSANGYONG  REXTON XDi (LHD)

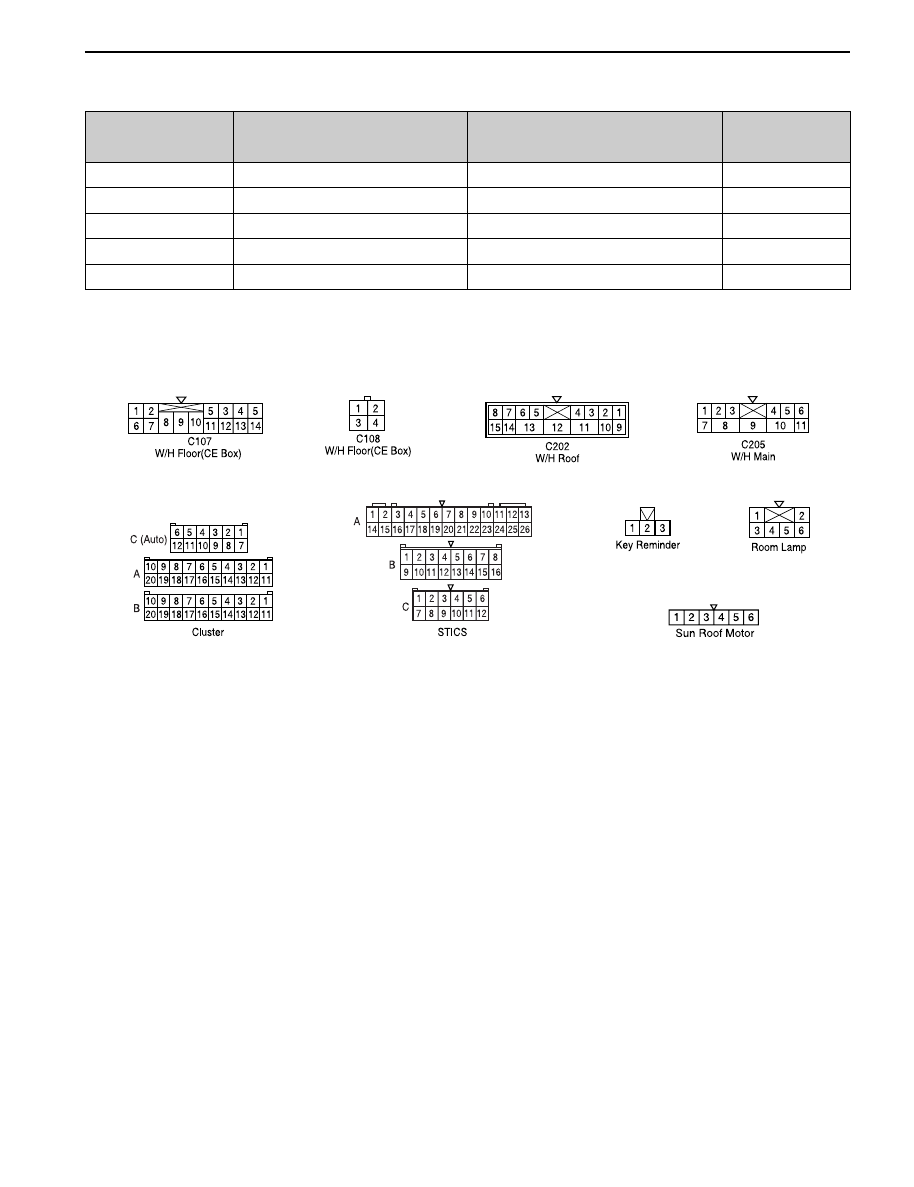

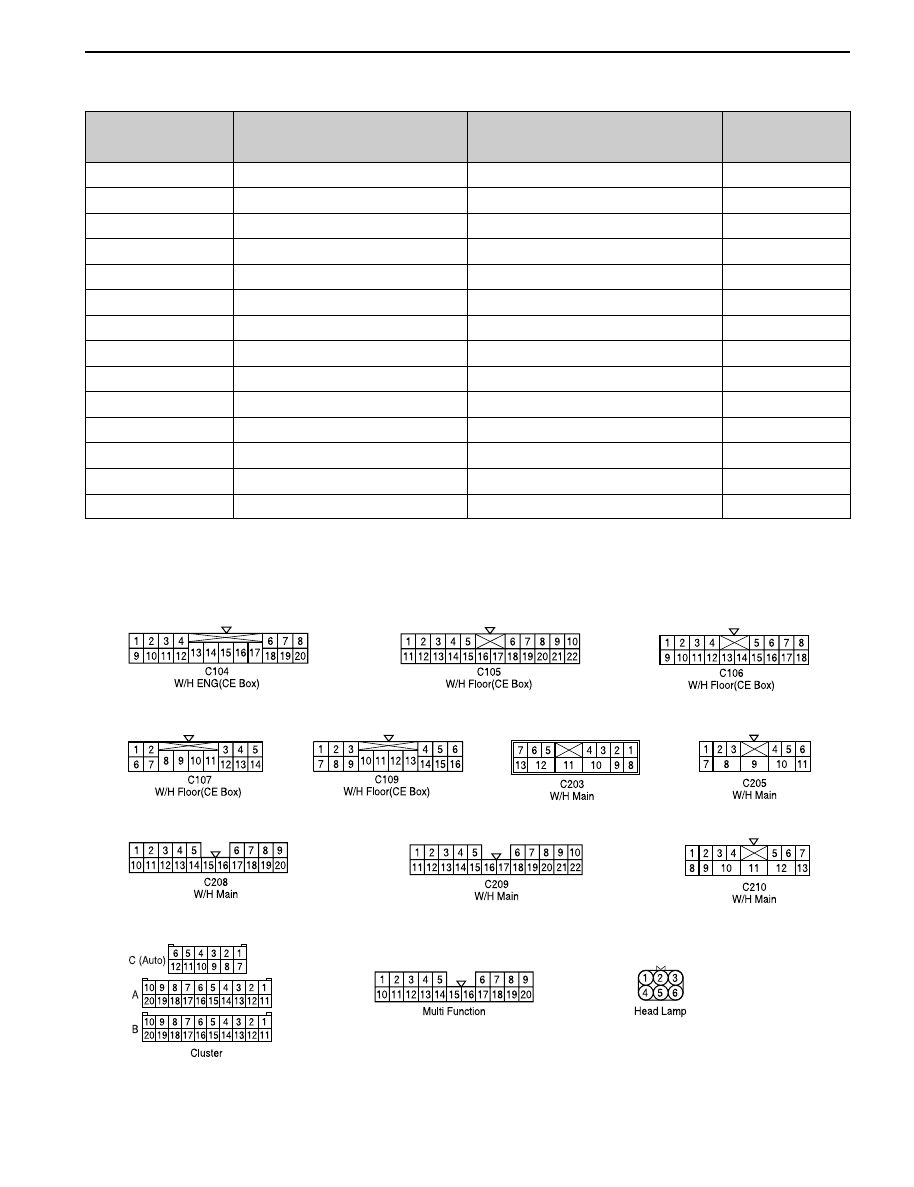

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box (J) - Engine

Engine Room Fuse Box (K) - Engine

Main - Roof

Main - Floor (LH)

W/H Main

C107 (14Pin, White)

C108 (4Pin, Colorless)

C202 (15Pin, White)

C205 (11Pin, White)

G201

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Under the I/P Fuse Box

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Remark

Connector Position

SSANGYONG  REXTON XDi (LHD)

5-138  ELECTRICAL WIRING DIAGRAMS

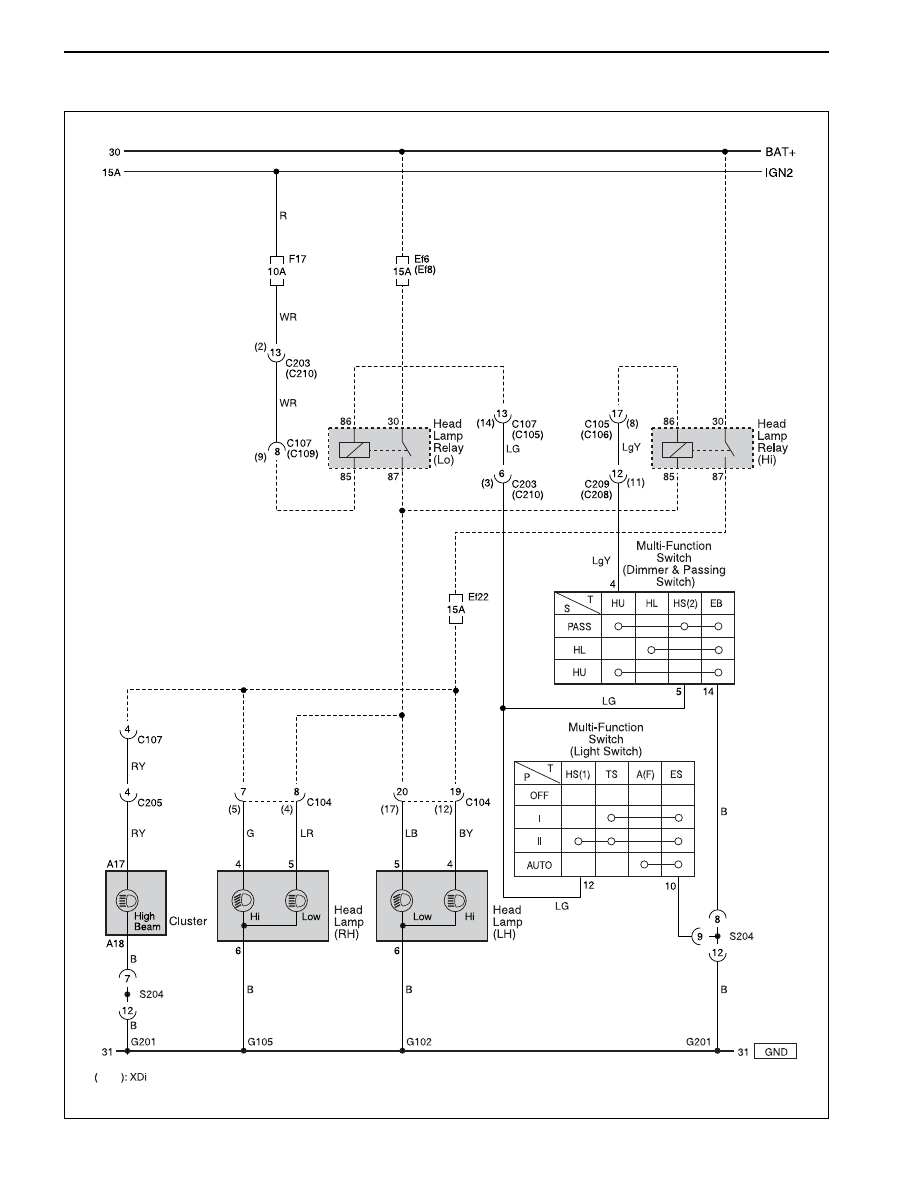

33. HEAD LAMP CIRCUIT

ELECTRICAL WIRING DIAGRAMS  5-139

SSANGYONG  REXTON XDi (LHD)

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box (D) - Engine

Engine Room Fuse Box (E) - Engine

Engine Room Fuse Box (F) - Engine

Engine Room Fuse Box (J) - Engine

Engine Room Fuse Box (M) - Engine

Main - Floor (LH)

Main - Floor (LH)

Main - Floor (LH)

Main - Floor (LH)

Main - Floor (LH)

W/H Main

W/H Engine

W/H Engine

W/H Main

C104 (20Pin, White)

C105 (22Pin, White)

C106 (18Pin, White)

C107 (14Pin, White)

C109 (16Pin, White)

C203 (13Pin, Green)

C205 (11Pin, White)

C208 (20Pin, Black)

C209 (22Pin, Yellow)

C210 (13Pin, Green)

S204 (14Pin, Black)

G102

G105

G201

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Under the I/P Fuse Box

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Behind the Left the FATC

Center BATT

Behine the Right Head Lamp

Inside Driver Side Cowl PNL

GND

Remark

Connector Position

SSANGYONG  REXTON XDi (LHD)

5-140  ELECTRICAL WIRING DIAGRAMS

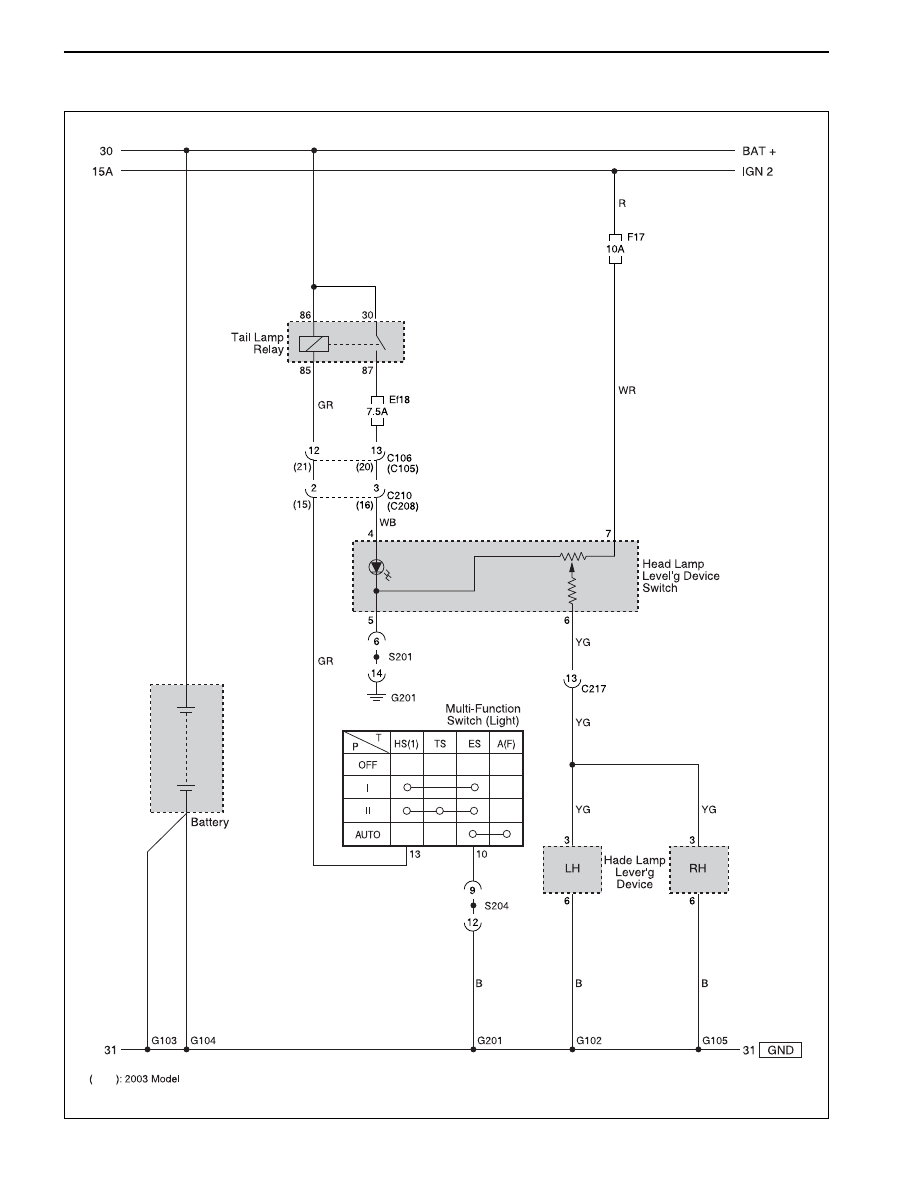

34. HEAD LAMP LEVELING DEVICE CIRCUIT
