SSANGYONG REXTON XDi(RHD)

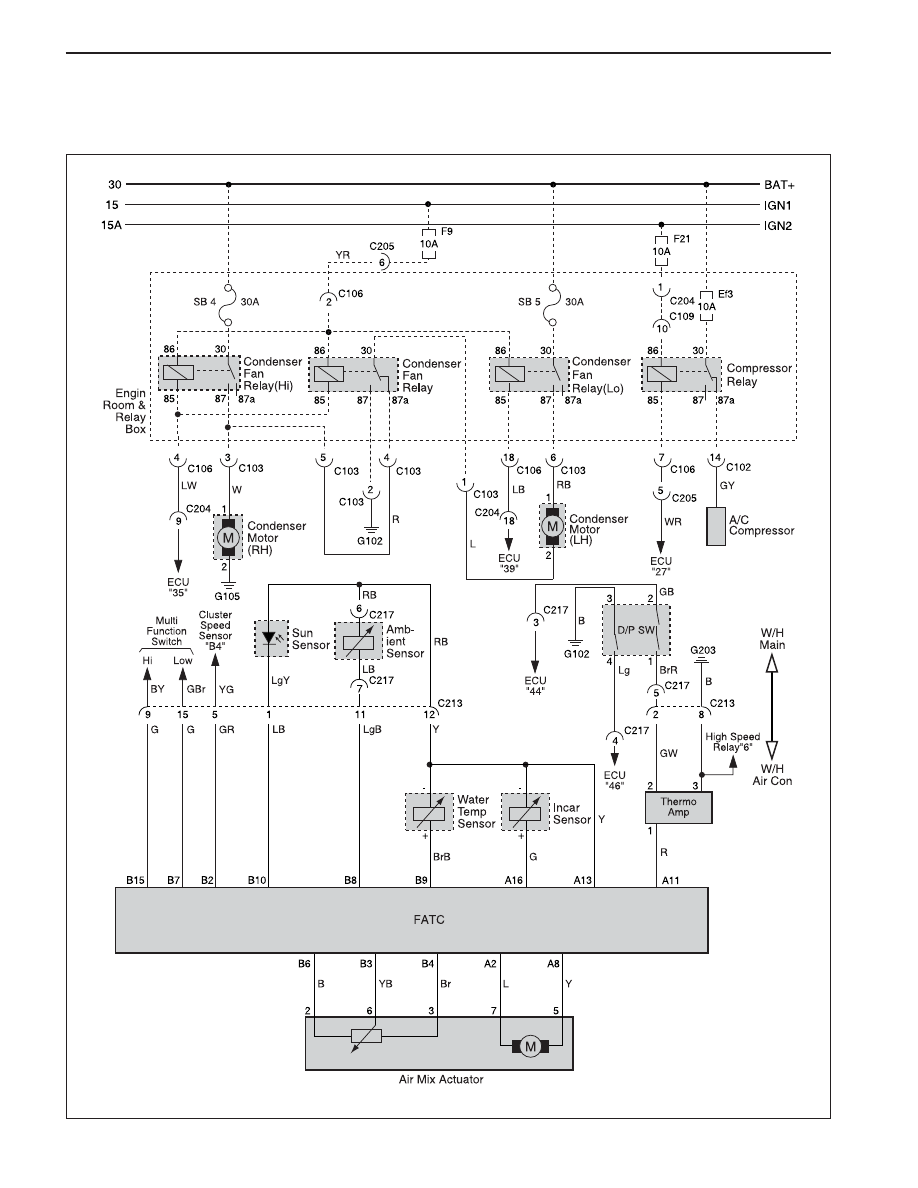

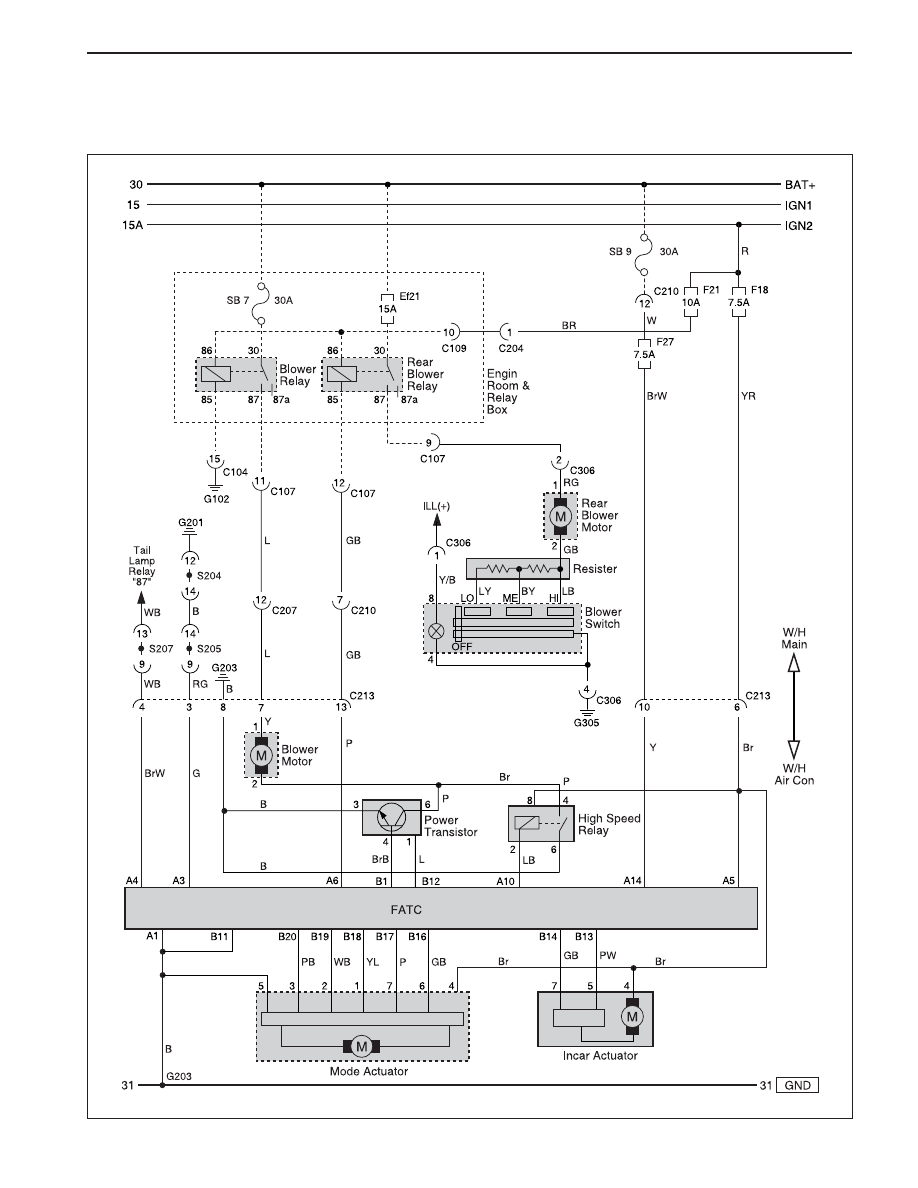

5-164 ELECTRICAL WIRING DIAGRAMS

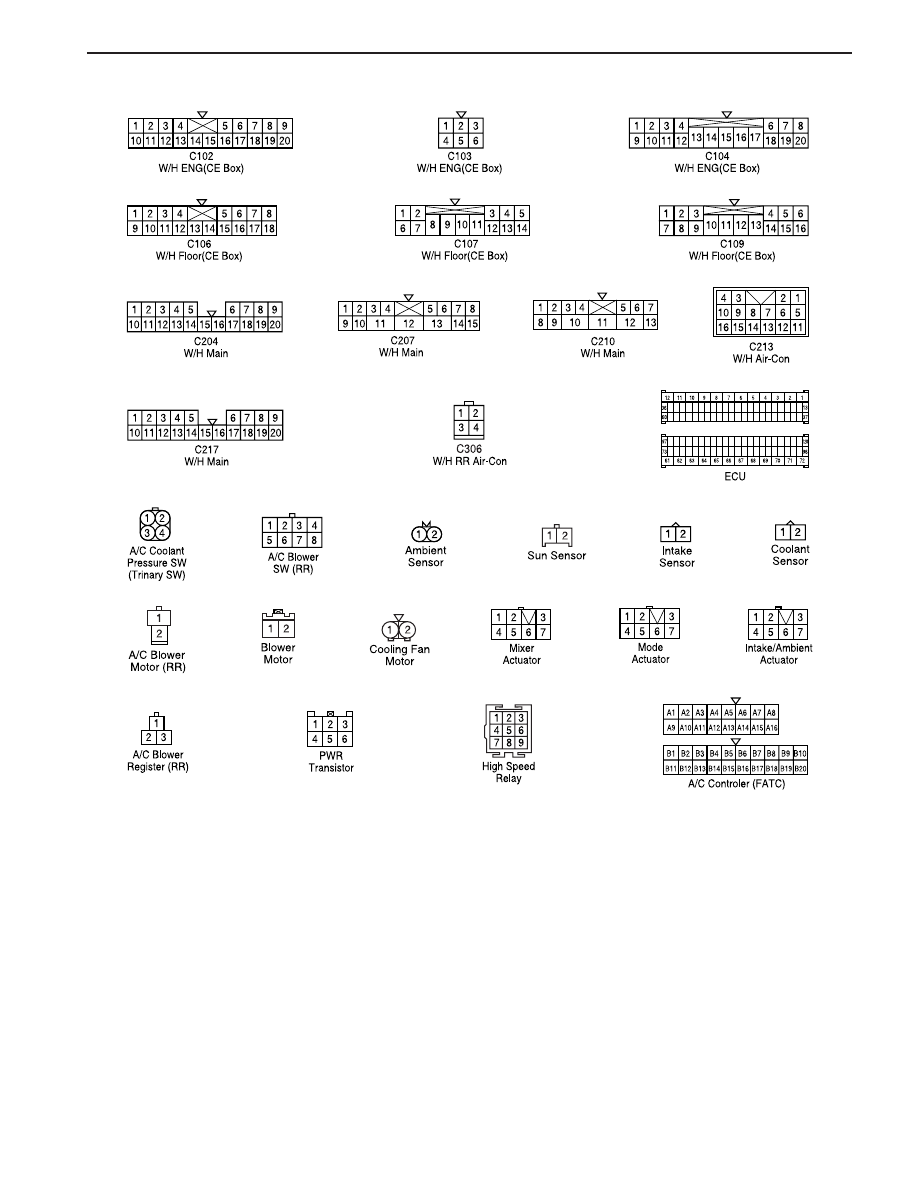

A. CONNECTOR INFORMATION
Connector Number
(Pin Number, Color)
Engine Room Fuse Box(B) - Engine
Engine Room Fuse Box(C) - Engine
Engine Room Fuse Box(D) - Engine
Engine Room Fuse Box(F) - Engine
Engine Room Fuse Box(J) - Engine
Engine Room Fuse Box(M) - Engine
Main - Floor(LH)
Main - Floor(LH)
Main - Floor(LH)
Main - Air-Con
Engine - Main(RH)
Floor - RR Air-Con
W/H Main
W/H Main
W/H Main
W/H Engine
W/H Engine
W/H Main
W/H Main
W/H Floor
C102(20Pin, White)
C103(6Pin, Colorless)
C104(20Pin, White)
C106(18Pin, White)
C107(14Pin, White)
C109(16Pin, White)
C204(20Pin, Black)
C207(15Pin, White)
C210(13Pin, Green)
C213(16Pin, White)
C217(20Pin, Black)
C308(4Pin, Colorless)
S204(14Pin, Black)
S205(14Pin, Black)
S207(14Pin, Black)
G102
G105
G201
G203
G305
Connecting Wiring
Harness
Engine Room Fuse Box
Engine Room Fuse Box
Engine Room Fuse Box
Engine Room Fuse Box
Engine Room Fuse Box
Engine Room Fuse Box
Inside Co-Driver Side Cowl PNL
Inside Co-Driver Side Cowl PNL
Inside Co-Driver Side Cowl PNL
Inside Dash PNL
Inside Driver Side Cowl PNL
Right Side 3rd Seat
Behind the Left the FATC
Behind the Left the FATC
Behind the Right the FATC
Center BATT
Behine the Right Head Lamp
Inside Driver Side Cowl PNL
Under the Seat Heating SW
Behind the Quarter Grass #1
A/C
GND
GND
Tail Lamp
W/H Air Bag
Remark
Connector Position
