SSANGYONG  REXTON XDi(RHD)

5-156  ELECTRICAL WIRING DIAGRAMS

44. AIR-CON(MANUAL, DSL)

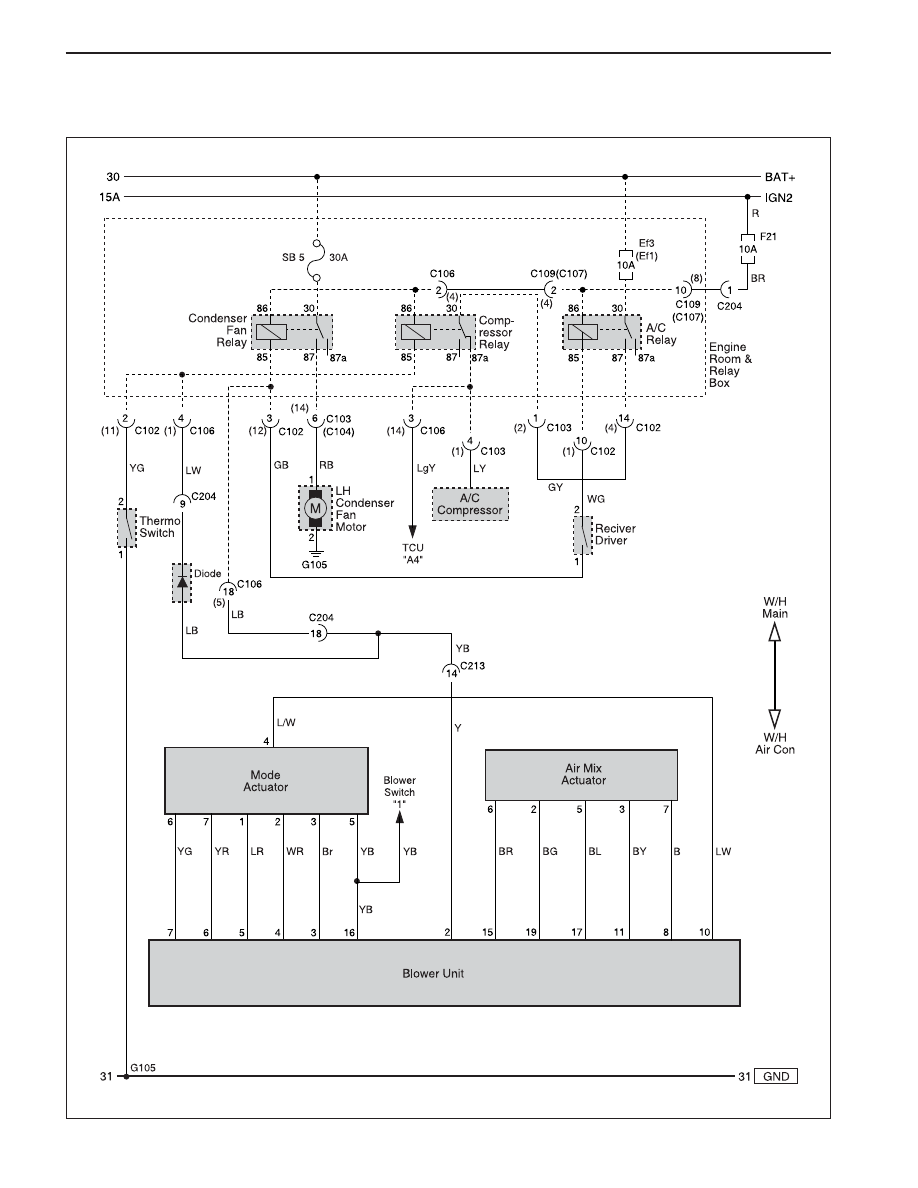

1) ACTUATOR(MODE, AIR MIX), BLOWER UNIT CIRCUIT

(   ): 2003 Model ~

ELECTRICAL WIRING DIAGRAMS  5-157

SSANGYONG  REXTON XDi(RHD)

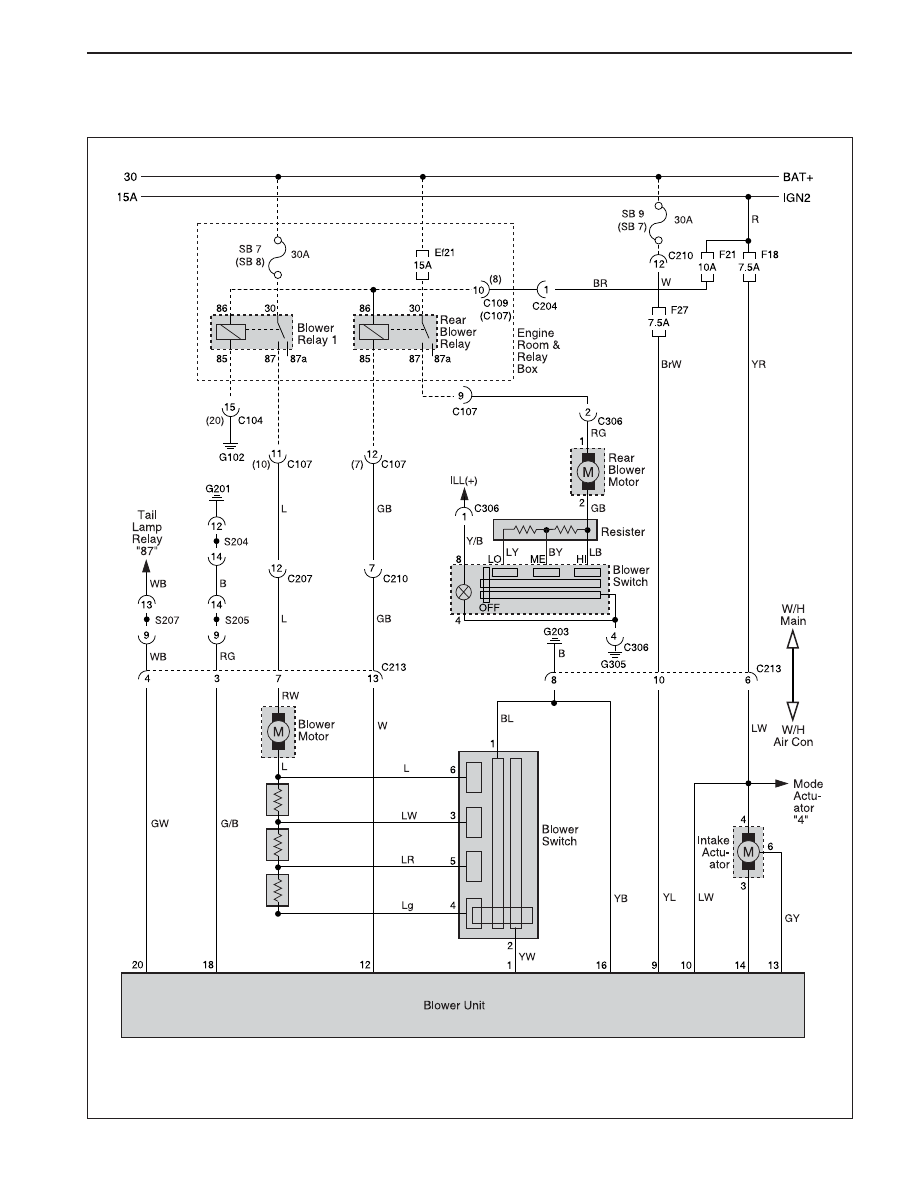

2) INTAKE MOTOR, BLOWER MOTOR CIRCUIT

(   ): 2003 Model ~

SSANGYONG  REXTON XDi(RHD)

5-158  ELECTRICAL WIRING DIAGRAMS

A. CONNECTOR INFORMATION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(B) - Engine

Engine Room Fuse Box(C) - Engine

Engine Room Fuse Box(D) - Engine

Engine Room Fuse Box(F) - Engine

Engine Room Fuse Box(J) - Engine

Engine Room Fuse Box(M) - Engine

Main - Floor(LH)

Main - Floor(LH)

Main - Floor(LH)

Main - Air-Con

Floor - RR Air-Con

W/H Main

W/H Main

W/H Main

W/H Engine

W/H Engine

W/H Main

W/H Main

W/H Floor

C102(20Pin, White)

C103(6Pin, Colorless)

C104(20Pin, White)

C106(18Pin, White)

C107(14Pin, White)

C109(16Pin, White)

C204(20Pin, Black)

C207(15Pin, Blue)

C210(13Pin, Green)

C213(16Pin, White)

C306(4Pin, Colorless)

S204(14Pin, Black)

S205(14Pin, Black)

S207(14Pin, Black)

G102

G105

G201

G203

G305

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Dash PNL

Right Side 3rd Seat

Behind the Left the FATC

Behind the Left the FATC

Behind the Right the FATC

Center BATT

Behine the Right Head Lamp

Inside Driver Side Cowl PNL

Under the Seat Heating SW

Behind the Quarter Grass #1

A/C

GND

GND

Tail Lamp

W/H Air Bag

Remark

Connector Position

ELECTRICAL WIRING DIAGRAMS  5-159

SSANGYONG  REXTON XDi(RHD)

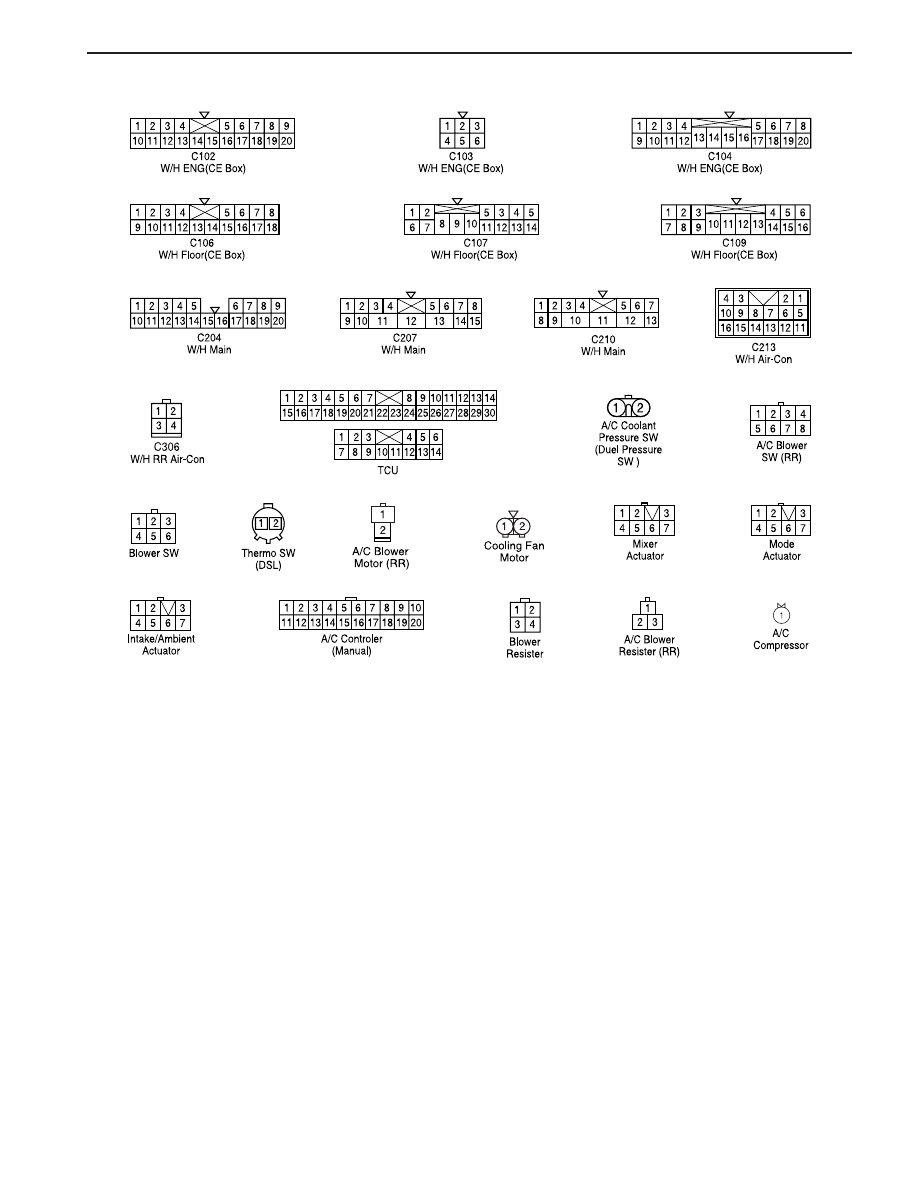

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
