SsangYong Rexton. Manual - part 211

SSANGYONG  REXTON XDi(RHD)

5-148  ELECTRICAL WIRING DIAGRAMS

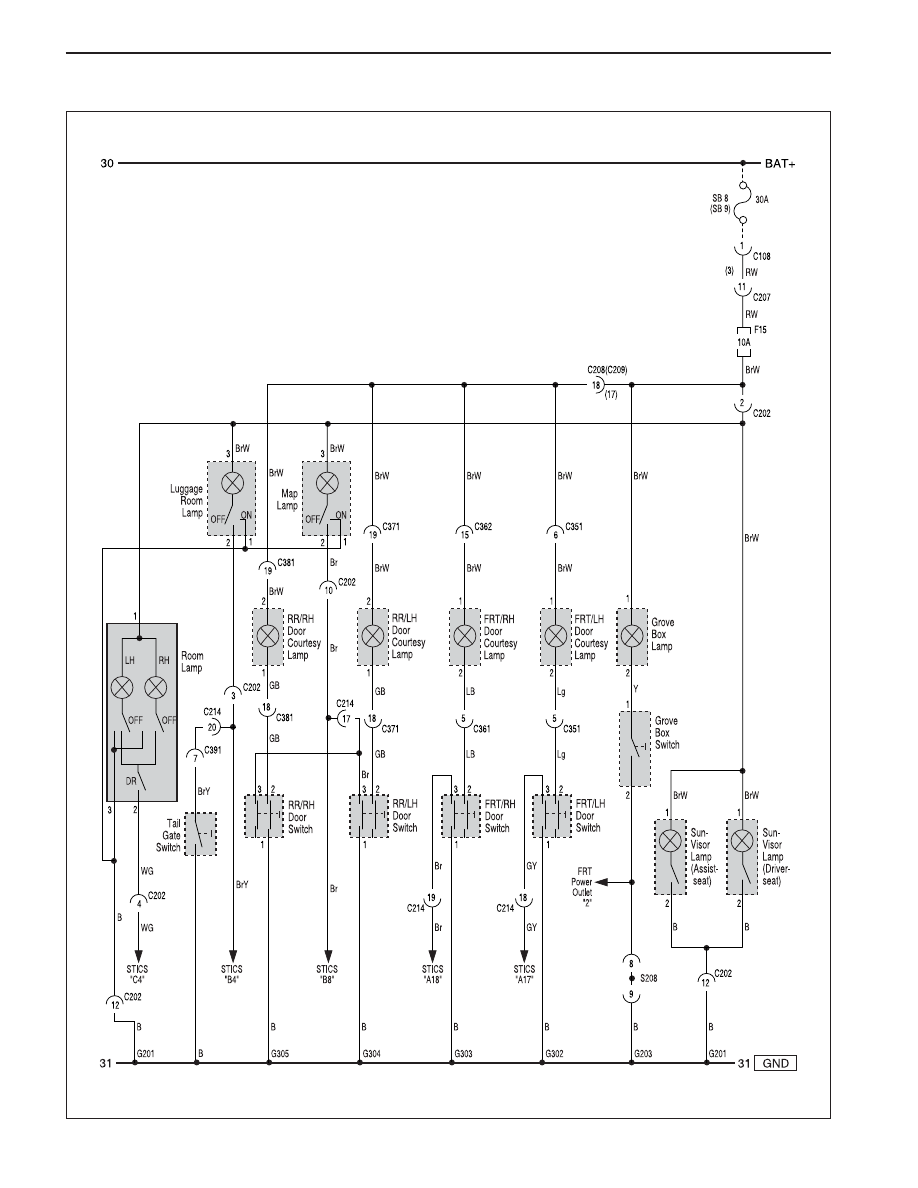

41. INTERIOR LAMP CIRCUIT

(   ): 2003 Model ~

ELECTRICAL WIRING DIAGRAMS  5-149

SSANGYONG  REXTON XDi(RHD)

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(K) - Engine

Main - Roof

Main - Floor(LH)

Main - Floor(LH)

Main - Floor(RH)

Floor - Co-Driver Door

Floor - Driver Door

Floor - Driver Door

Floor - RR Left Door

Floor - RR Right Door

Floor - Tail Gate

W/H Main

W/H Main

W/H Main

W/H Floor

W/H Floor

W/H Floor

W/H Floor

C108(4Pin, Colorless)

C202(15Pin, White)

C207(15Pin, Blue)

C209(22Pin, Yellow)

C214(20Pin, Black)

C351(13Pin, White)

C361(13Pin, White)

C362(20Pin, White)

C371(21Pin, White)

C381(21Pin, White)

C391(10Pin, White)

S208(14Pin, Black)

G201

G203

G302

G303

G304

G305

Connecting Wiring

Harness

Engine Room Fuse Box

Under the I/P Fuse Box

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Under Left “B” Filler

Under Right “B” Filler

Inside the Left Side Cover the Tail Gate

Behind the Right FATC

Inside Driver Side Cowl PNL

Under the Seat Heating SW

Under Co-Driver Seat

Under the Left “B” Filler

Behind the Quarter Grass #1

Behind the Quarter Grass #1

A/T

Behinel Conn Holder

Behinel Conn Holder

W/H Air Bag

Remark

Connector Position

SSANGYONG  REXTON XDi(RHD)

5-150  ELECTRICAL WIRING DIAGRAMS

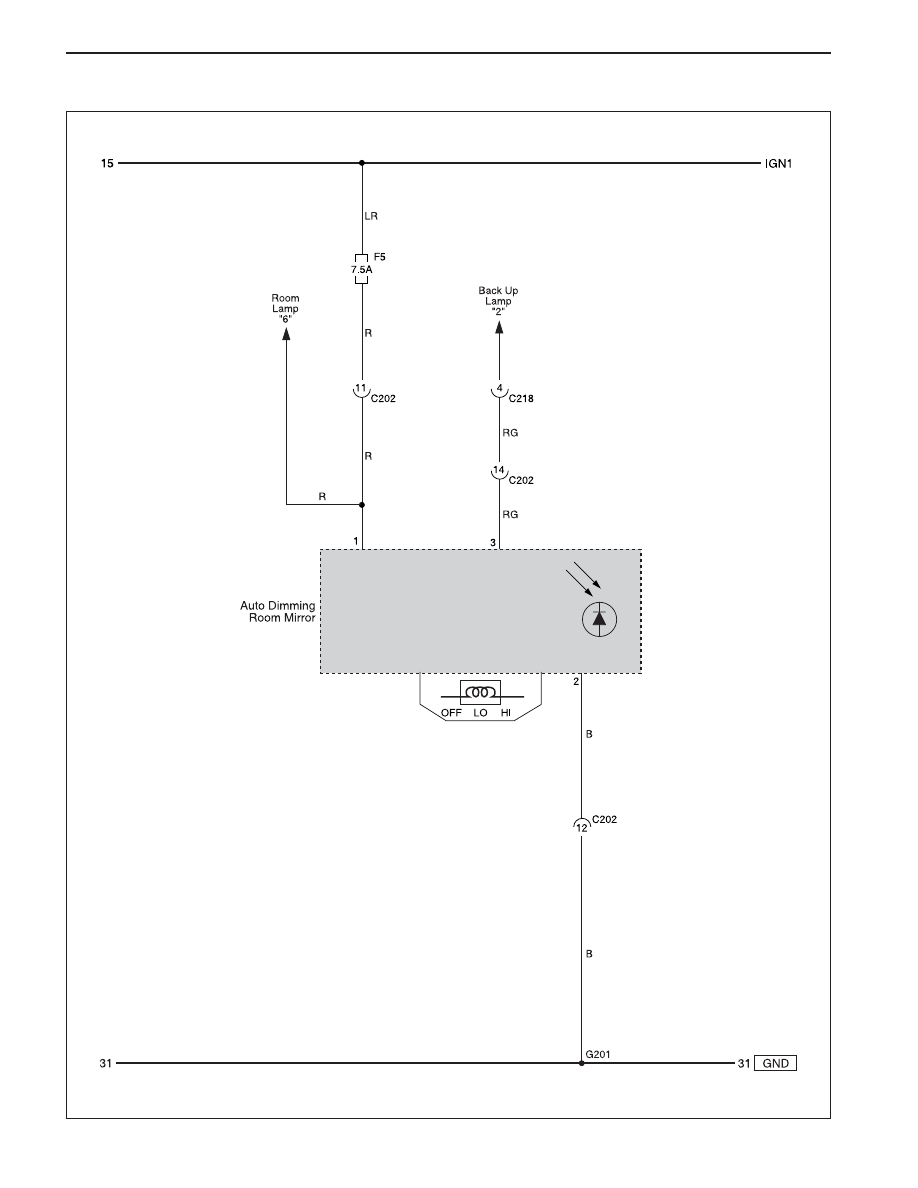

42. AUTO DIMMING ROOM MIRROR CIRCUIT

ELECTRICAL WIRING DIAGRAMS  5-151

SSANGYONG  REXTON XDi(RHD)

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Main - Roof

Main - Floor(RH)

W/H Main

C202(15Pin, White)

C218(22Pin, Yellow)

G201

Connecting Wiring

Harness

Under the I/P Fuse Box

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Remark

Connector Position
