SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 479

Wiring Diagram for Power Supplies  5-41

Electrical Wiring Diagram

(LHD)

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box - Engine

Engine Room Fuse Box - Main

Engine - Main

Engine - Floor (RH)

W/H Main - W/H Air-Bag

W/H Main

Main - Floor (RH)

C104 (20Pin, White)

C106 (18Pin, White)

C111 (4Pin, Colorless)

C115 (15Pin, Black)

C211B (2Pin, White)

C212 (4Pin, White)

C221 (20Pin, Gray)

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Under the Coolant Reserve Tank

RR A/V Unit

RR A/V Unit

Inside Passenger Side Cowl PNL

PTC

PTC

Remark

Connector Position

5-42  Wiring Diagram for Power Supplies

Electrical Wiring Diagram

(LHD)

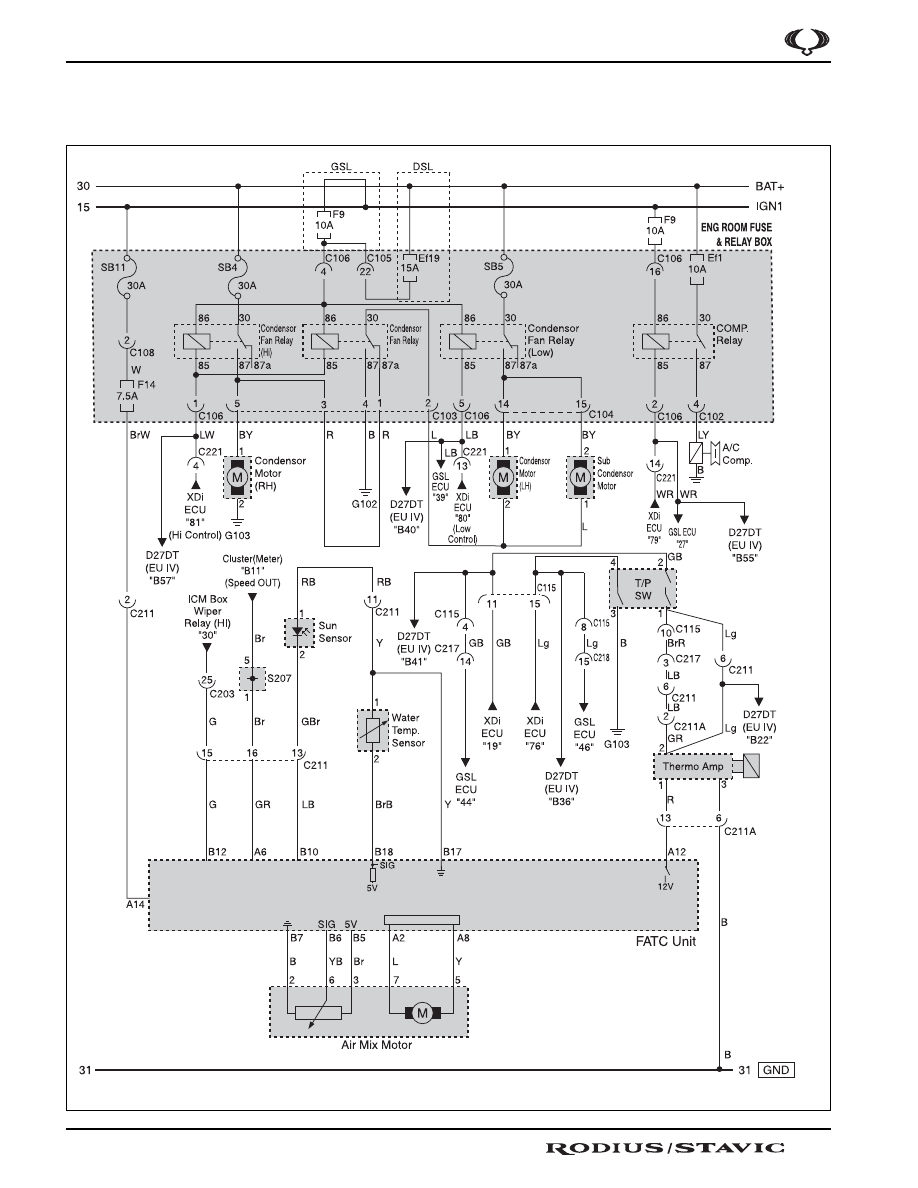

13. FATC (FULL AUTO TEMP. CONTROL) CIRCUIT

1) CONDENSOR FAN, AIR MIX, MOTOR, SUN/WATER TEMP SENSOR

Wiring Diagram for Power Supplies  5-43

Electrical Wiring Diagram

(LHD)

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box - Engine

Engine Room Fuse Box - Engine

Engine Room Fuse Box - Engine

Engine Room Fuse Box - Main

Engine Room Fuse Box - Main

Engine Room Fuse Box - Main

Engine - Floor (RH)

Engine - Floor (RH)

Main - ICM Box

Main - W/H Air-Bag

W/H Air-Bag - W/H Blower

Main - Floor (RH)

Main - Floor (RH)

Main - Floor (RH)

W/H Main

W/H Engine

W/H Engine

C102 (20Pin, White)

C103 (6Pin, Colorless)

C104 (20Pin, White)

C105 (22Pin, White)

C106 (18Pin, White)

C108 (4Pin, Colorless)

C115 (15Pin, Black)

C115 (8Pin, Black)

C203 (40Pin, Gray)

C211 (16Pin, White)

C211A (13Pin, White)

C217 (20Pin, Green)

C218 (20Pin, Red)

C221 (20Pin, Gray)

S207 (14Pin, Black)

G102

G103

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Under the Coolant Reserve Tank

Under the Coolant Reserve Tank

ICM Box (IP Relay Box)

Behide A/V Unit

Behide Glove Box

Inside Passenger Side Cowl PNL

Inside Passenger Side Cowl PNL

Inside Passenger Side Cowl PNL

Inside the Right A/V Head Unit

Behind the Washer Tank

Behind the Air Cliner Housing

Remark

Connector Position

DSL

GSL

FATC

Manual

Power Seat (Seat Warmer)

5-44  Wiring Diagram for Power Supplies

Electrical Wiring Diagram

(LHD)

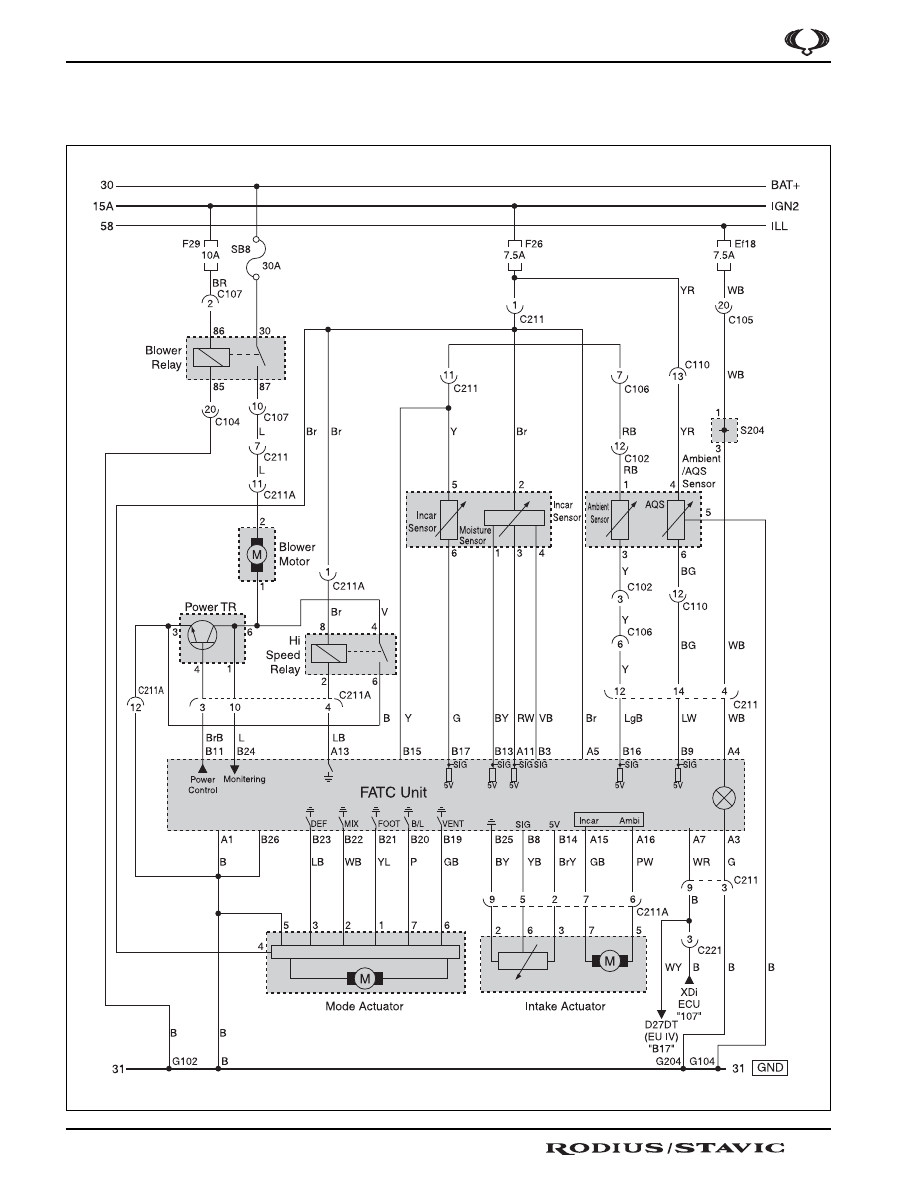

2) FRT BLOWER, ACTUATOR (MODE, INTAKE), AMBIENT SENSOR
