SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 478

Wiring Diagram for Power Supplies 5-37

Electrical Wiring Diagram

(LHD)

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box - Engine

Engine Room Fuse Box - Main

Main - ICM Box

Main - Floor (RH)

W/H Main

W/H Engine

W/H Main

C104 (20Pin, White)

C105 (22Pin, White)

C107 (14Pin, White)

C109 (16Pin, White)

C204 (20Pin, White)

C219 (20Pin, White)

S206 (14Pin, Black)

G102

G103

G201

G204

Connecting Wiring

Harness

Engine Room Fuse Box

ICM Box (IP Relay Box)

Inside Passenger Side Cowl PNL

Inside the Left A/V Head Unit

Behind the Washer Tank

Behind the Air Cliner Housing

Inside Driver Side Cowl PNL

RR TGS Lever

GND

Remark

Connector Position

5-38 Wiring Diagram for Power Supplies

Electrical Wiring Diagram

(LHD)

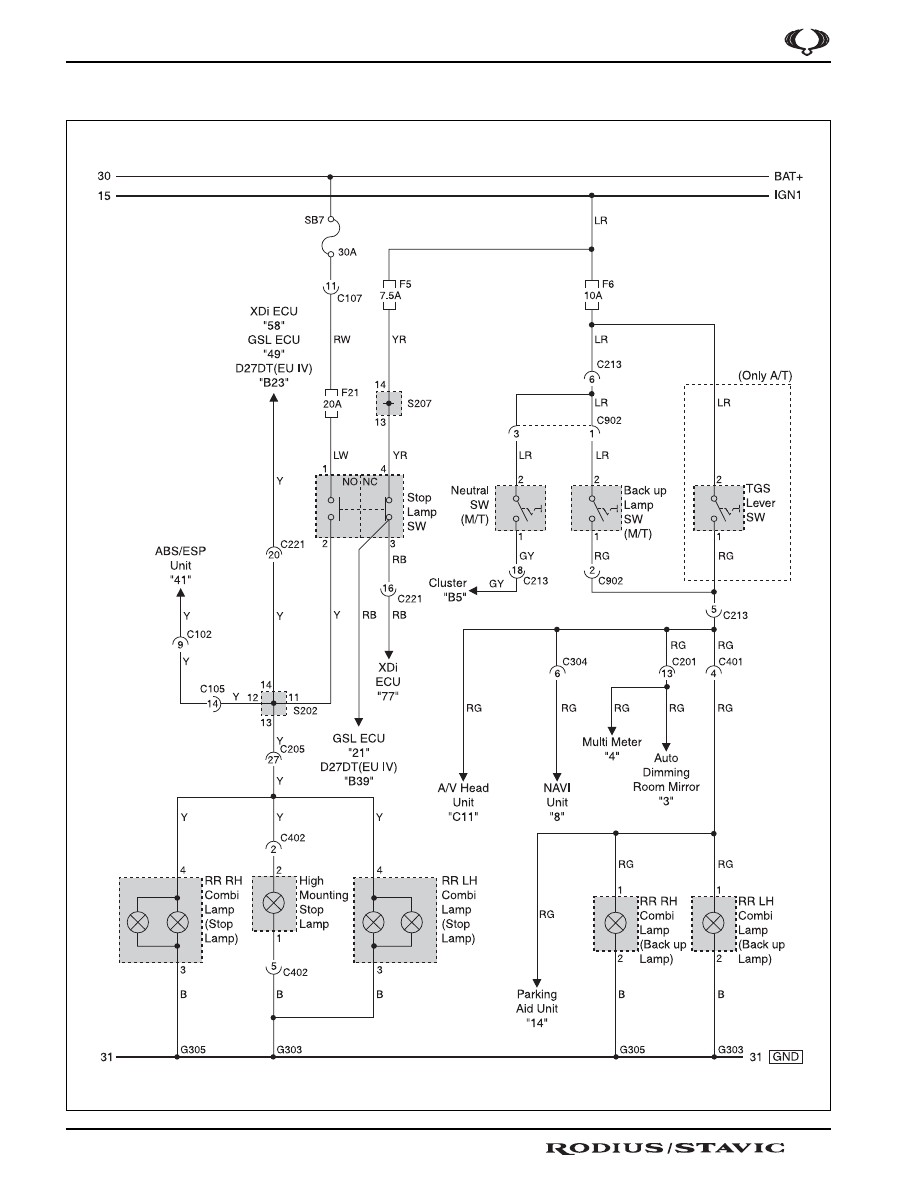

11. STOP, BACK UP LAMP CIRCUIT

Wiring Diagram for Power Supplies 5-39

Electrical Wiring Diagram

(LHD)

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box - Engine

Engine Room Fuse Box - Main

Main - Roof

Main - Floor (LH)

Main - Floor (RH)

Floor (RH) - Floor (LH)

Floor (LH) - Tail Gate

Floor (LH) - TM

W/H Main

W/H Floor (LH)

W/H Tail Gate

C102 (20Pin, White)

C105 (22Pin, White)

C107 (14Pin, White)

C201 (26Pin, White)

C205 (39Pin, Black)

C213 (22Pin, White)

C221 (20Pin, Gray)

C304 (12Pin, White)

C401 (14Pin, White)

C402 (8Pin, White)

C902 (2Pin. Black)

S202 (14Pin, Black)

S207 (14Pin, Black)

G303

G401

Connecting Wiring

Harness

Engine Room Fuse Box

RR Parking Brake

Inside Driver Side Cowl PNL

FRT TGS Lever

Inside Passenger Side Cowl PNL

RR Left Quarter Trim

Left Tail Gate Trim

Upper Tail Gate Trim

T/C Left (Under the Floor )

Under the Relay Box RR Left the Cluster

Inside the Right A/V Head Unit

Inside the Quarter Trim

Center the Tail Gate

Remark

Connector Position

RR View Camera

M/T

5-40 Wiring Diagram for Power Supplies

Electrical Wiring Diagram

(LHD)

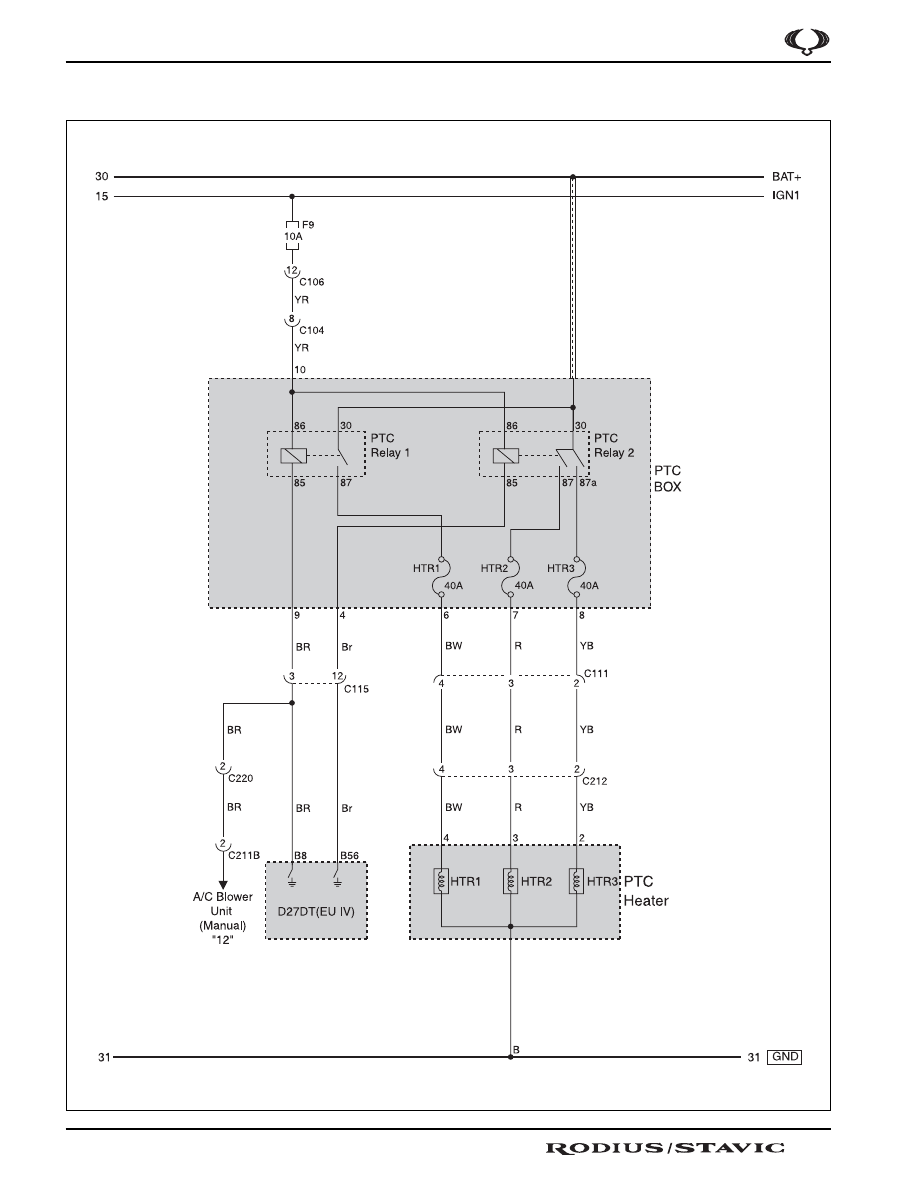

12. P.T.C (POSITIVE TEMPERATURE COEFFICIENT) HEATER
