SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 469

Wiring Diagram for Power Supplies  4-15

Electrical Wiring Diagram

(LHD)

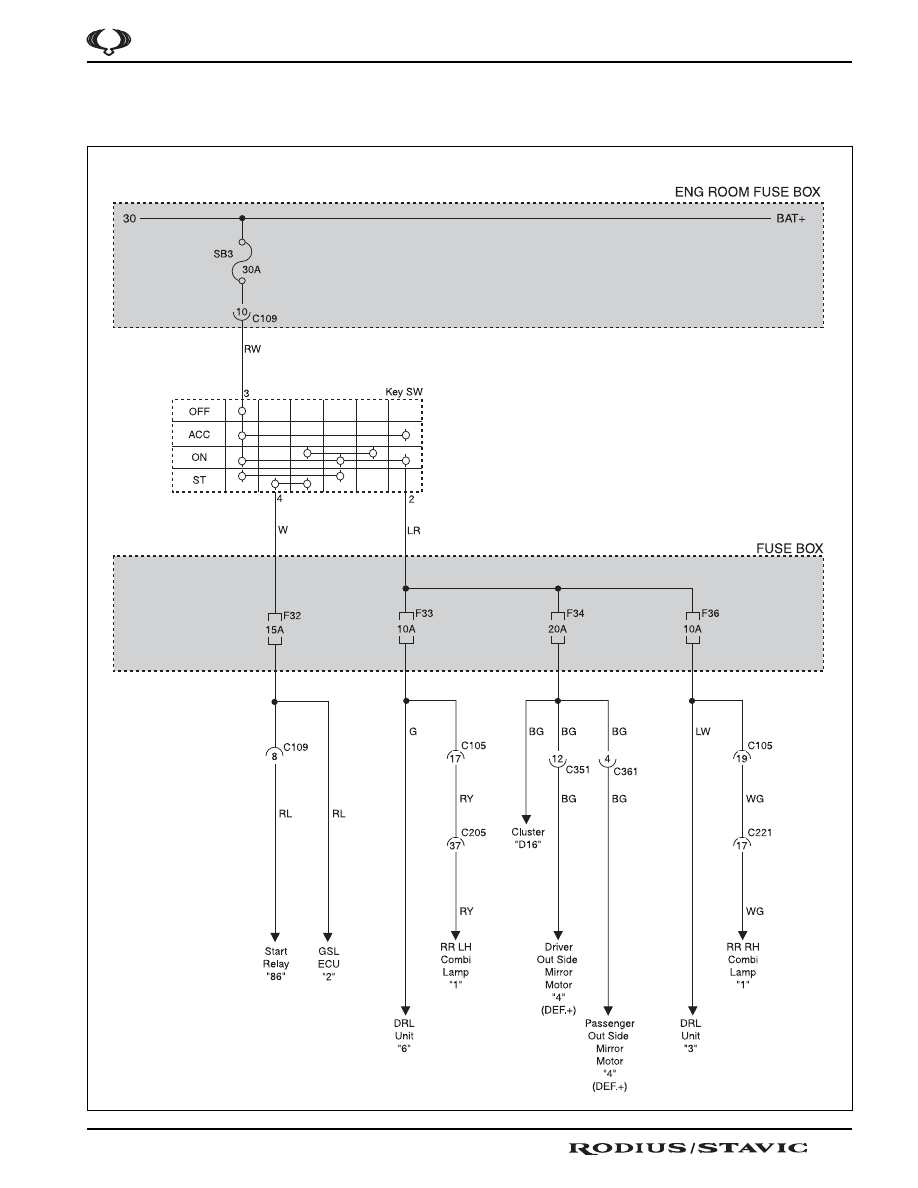

6) F32 ~ F36

SECTION 5

ELECTRICAL WIRING

DIAGRAMS

TABLE OF CONTENTS

1. STARTING & CHARGING ........................................................................................... 5-4

2. PREHEATING UNIT CIRCUIT (XDI) .......................................................................... 5-6

3. ECU (ENGINE CONTROL UNIT - D27DT EU IV) ................................................... 5-8

1) ENG MAIN RELAY, PEDAL MODULE, HFM SENSOR, VALVE, ENG MOUNT .. 5-8
2) FUEL FILTER WARNING LAMP, IMMOBILIZER, SENSOR (FUEL PRESSURE,

CAM SHAFT, BOOSTER PRESSURE, CRANK SHAFT, COOLANT/FUEL TEMP.)
A/CRUISE SW CIRCUIT ....................................................................................... 5-10

3) INJECTOR, CAN LINE, STOP LAMP SW, SENSOR (A/CON, E-GAS), CLUTCH

SW ......................................................................................................................... 5-12

4. ECU (GSL G32) ......................................................................................................... 5-14

1) IGN COIL, CPS, AIR FLOW SENSOR, THROTTLE SENSOR, TPS ............... 5-14
2) O

2

 SENSOR, PEDAL MODULE, CRUISE CONTROL SW,

STOP LAMP SW .................................................................................................. 5-16

3) INJECTOR, KNOCK SENSOR, IMMOBILIZER, CANISTER PURGE VALVE .... 5-18

5. DIAGNOSIS CIRCUIT ................................................................................................ 5-20

6. TCU (5-SPEED) .......................................................................................................... 5-22

1) START MOTOR, TGS LEVER, CAN LINE .......................................................... 5-22
2) SOLENOID, OIL TEMP. SENSOR, SPEED SENSOR (N2, N3) ....................... 5-24

7. TOD ............................................................................................................................. 5-26

8. CLUSTER .................................................................................................................... 5-28

1) GAUGE(SPEED, RPM, FUEL, TEMP, WARNING LAMP(4WD, FUEL FILTER,

ABS/ESP) .............................................................................................................. 5-28

2) WARNING (EAS, EPB, TGS LEVER, AUTO PARK’G) ...................................... 5-30
3) WARNING (BAT CHANGE, OIL, BRAKE ENG CHCK, AIR BAG, IMMOM SEAT-

BELT) TURN SIGNAL, DEFOGGER, DOOR OPEN .......................................... 5-32

9. CIGAR LIGHTER, POWER OUTLET ....................................................................... 5-34

10. HEAD LAMP, DRL(DAY TIME RUNNING LIGHT) UNIT ....................................... 5-36

11. STOP, BACK UP LAMP CIRCUIT ........................................................................... 5-38

12. P.T.C (POSITIVE TEMPERATURE COEFFICIENT) HEATER .............................. 5-40

13. FATC (FULL AUTO TEMP. CONTROL) CIRCUIT ................................................ 5-42

1) CONDENSOR FAN, AIR MIX, MOTOR, SUN/WATER TEMP SENSOR ........... 5-42
2) FRT BLOWER, ACTUATOR (MODE, INTAKE), AMBIENT SENSOR ............... 5-44
3) RR AIR CON (BLOWER, MODE ACTUATOR) .................................................. 5-46

14. AIR CON (MANUAL) .................................................................................................. 5-48

1) POWER A/C, COMP., MOTOR (MODE, INTAKE, AIR MIX) ............................. 5-48
2) BLOWER MOTOR (FRT, RR) ............................................................................ 5-50

5-4  Wiring Diagram for Power Supplies

Electrical Wiring Diagram

(LHD)

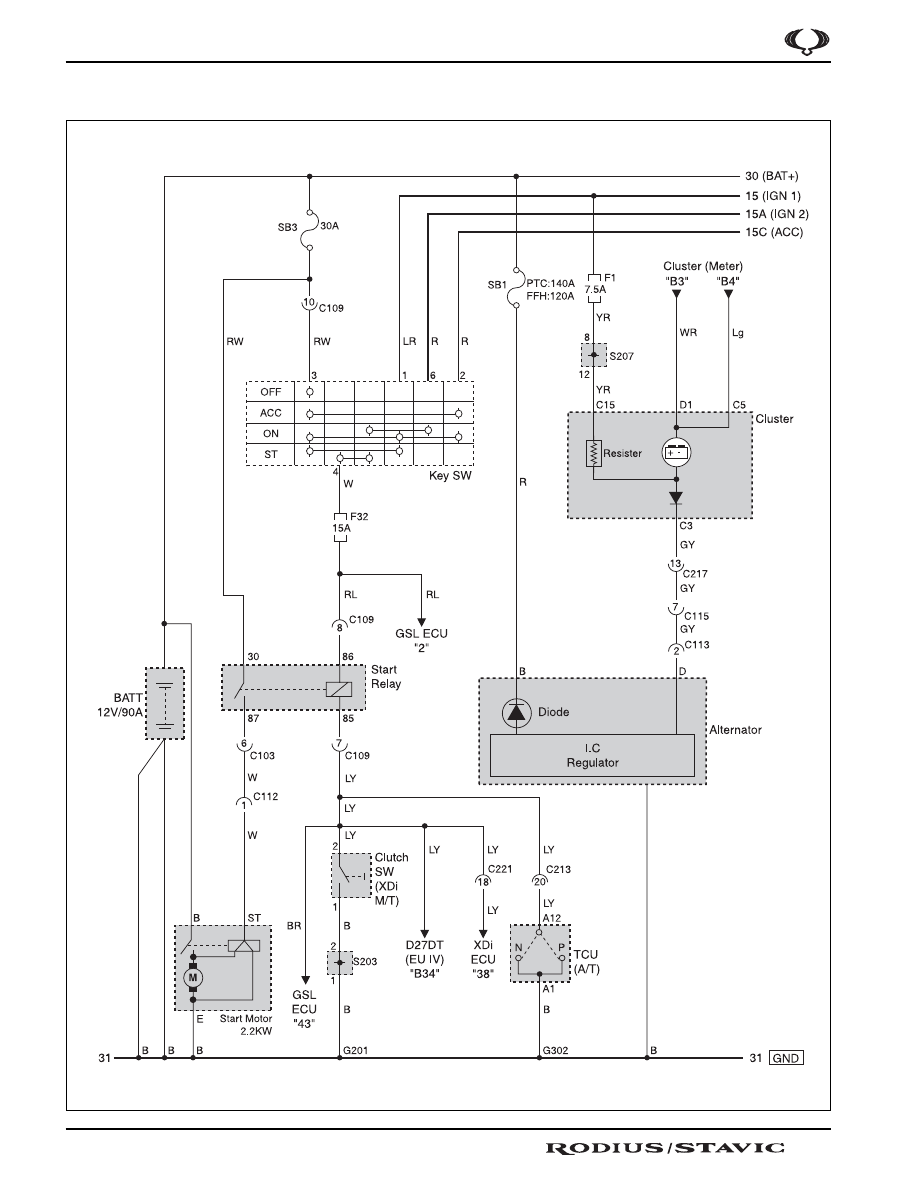

1. STARTING & CHARGING
