ABS/ESP SYSTEM

STAVIC - 2004.09

19

4K

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

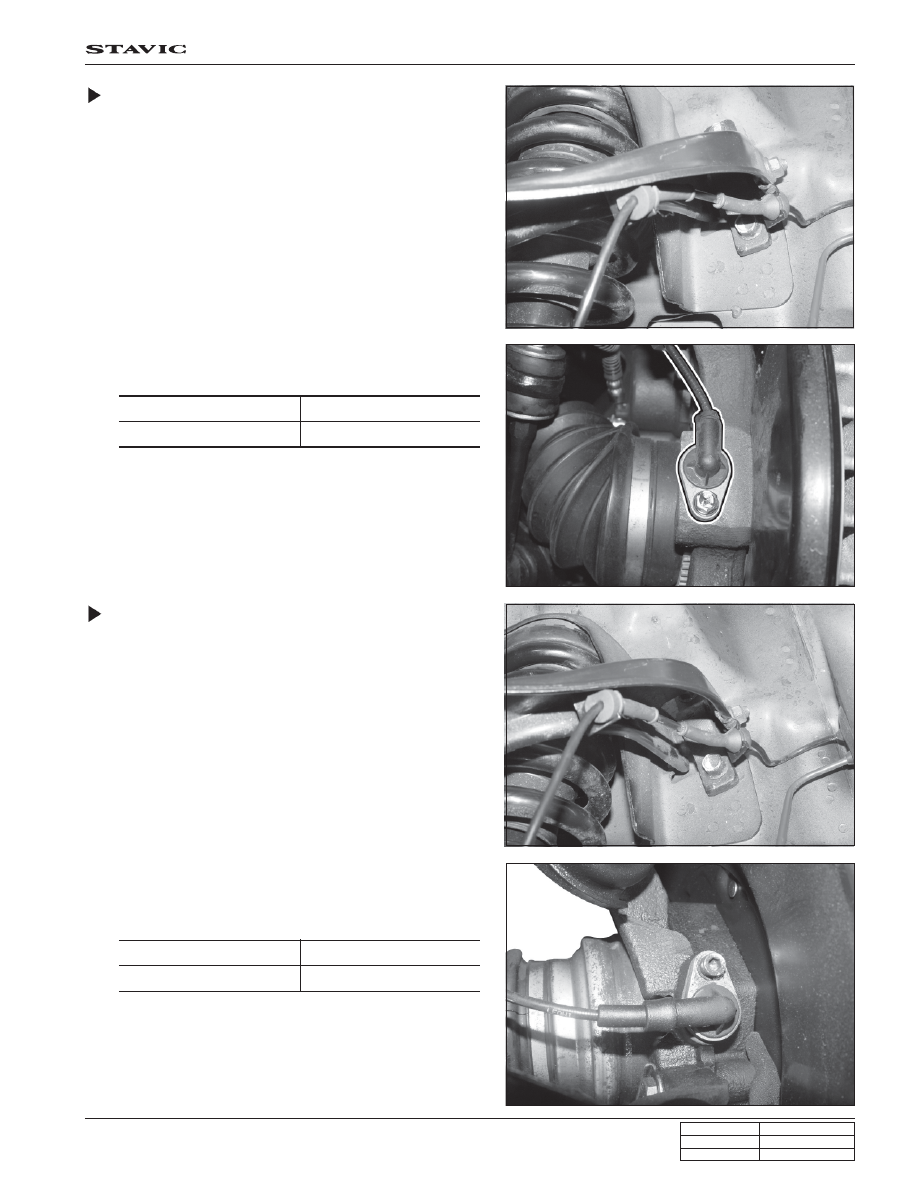

Front Wheel Speed Sensor

1. Disconnect the battery negative cable.

2. Disconnect the front wheel speed sensor connector.

3. Remove one of self-locking bolt.

Tightening torque

4. Remove wheel speed sensor.

5. When install, clean the sensing area and replace the

self-locking bolt with new one.

Rear Wheel Speed Sensor

1. Disconnect the battery negative cable.

2. Disconnect the speed sensor connector.

3. Remove one of self-locking bolt.

4. Remove rear wheel speed sensor.

Tightening torque

Front wheel speed sensor

Airgap

19 ~ 25 mm

0.369 ~ 1.213 mm

Rear wheel speed sensor

Airgap

19 ~ 25 Nm

0.3677 ~ 1.229 mm

5. When install, clean the sensing area and replace the

self-locking bolt with new one.

ABS/ESP SYSTEM

STAVIC - 2004.09

20

4K

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

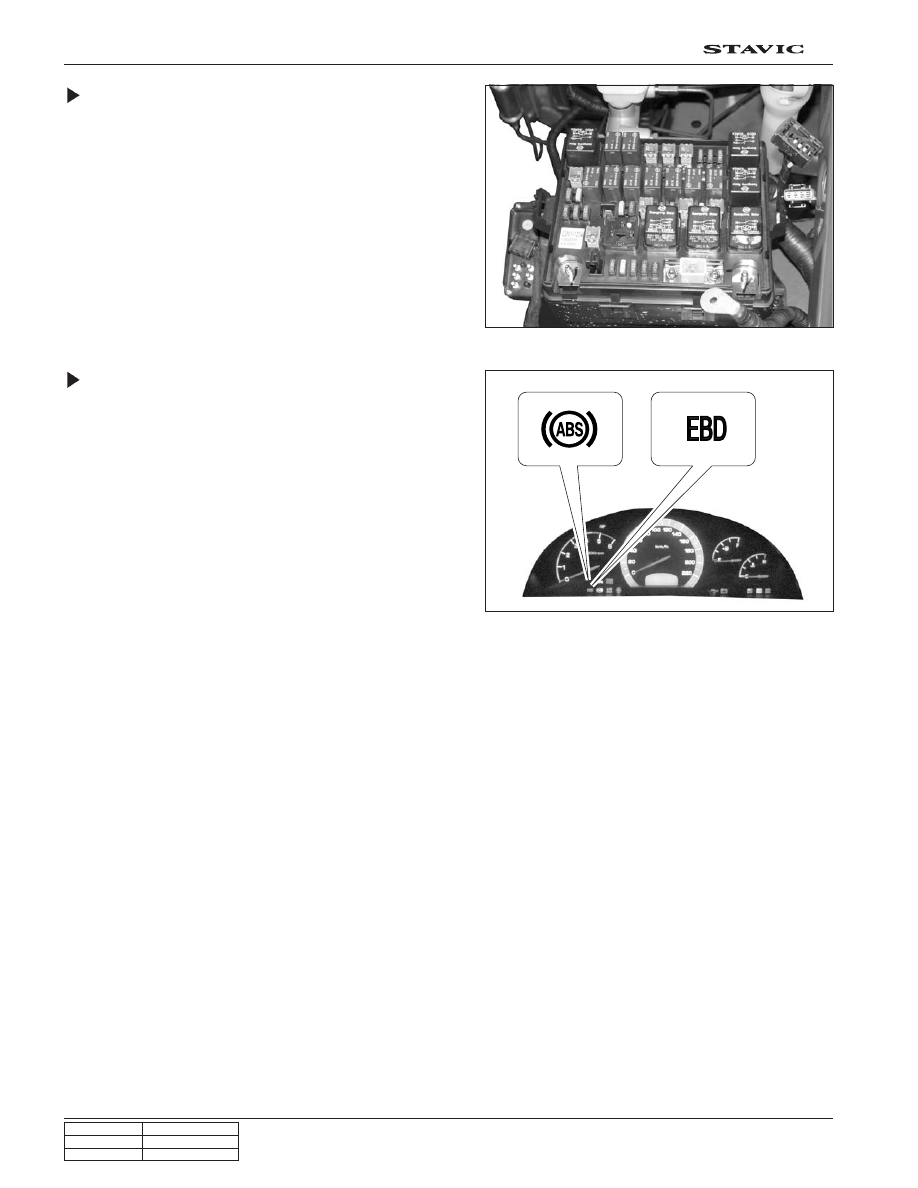

System Fuse

The ABS/TCS system fuse and SB2 is located at the fuse
box in engine compartment.

Indicators

The ABS and TCS indicators are in instrument cluster.

ABS/ESP SYSTEM

STAVIC - 2004.09

21

4K

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

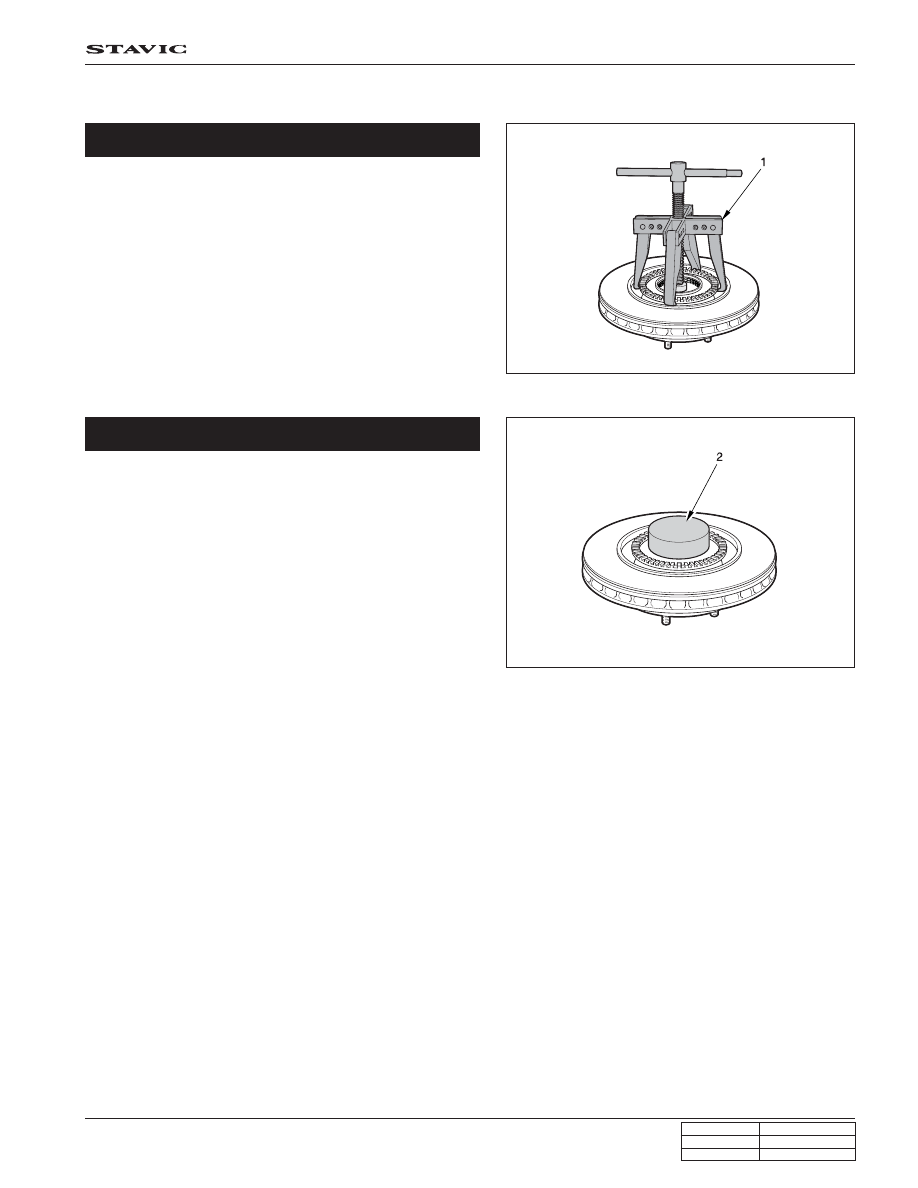

1. Remove the disc brake rotor. Refer to Front Disc Brakes

Section.

2. Remove the ABS front tooth wheel using the ABS tooth

wheel puller (1).

Removal

ABS FRONT TOOTH WHEEL

Installation

1. Install the ABS front tooth wheel using the ABS tooth

wheel installer (2).

ABS/ESP SYSTEM

STAVIC - 2004.09

22

4K

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

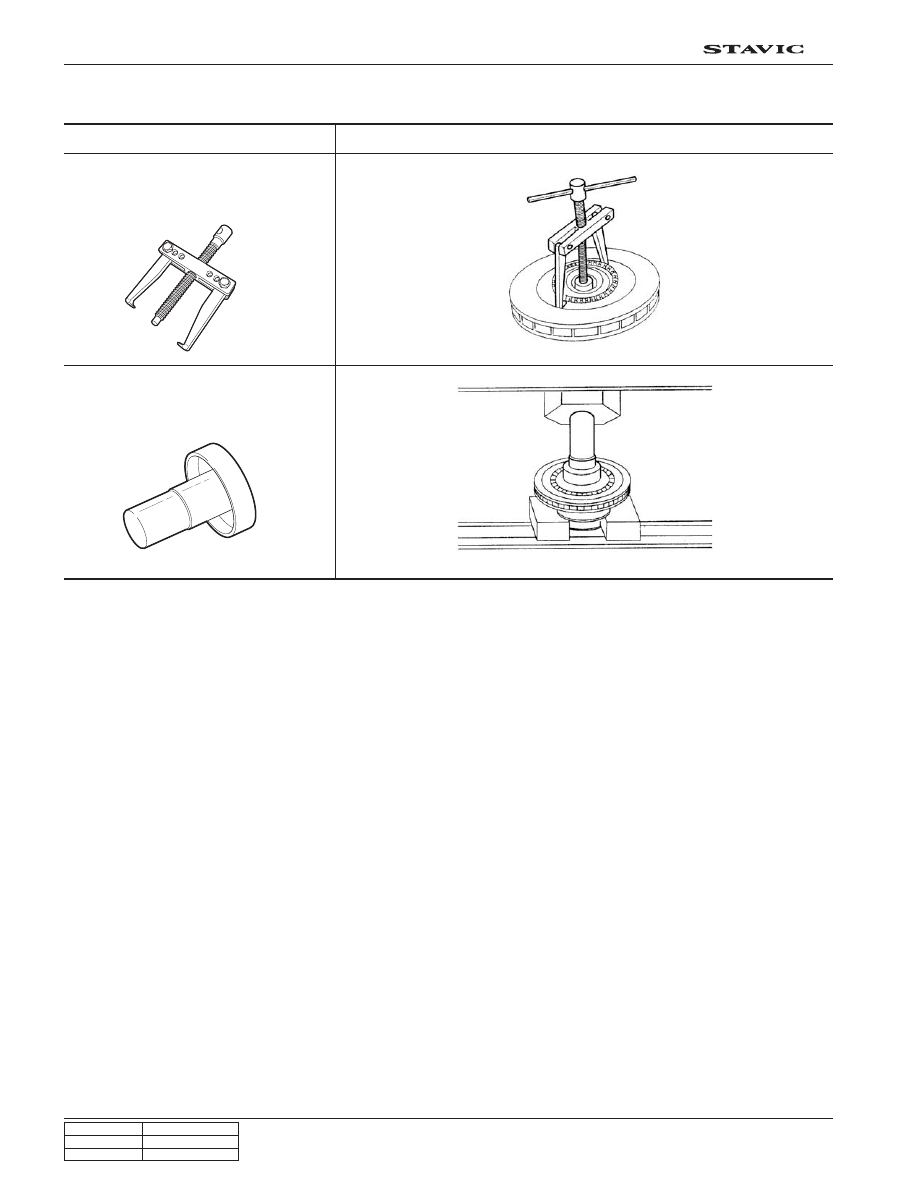

8. SPECIAL TOOLS AND EQUIPMENT

Name and Part Number

Application

661 589 16 33 00

ABS tooth wheel puller

661 589 17 33 00

ABS tooth wheel installer
