SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 398

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

5

BRAKE - GENERAL

STAVIC - 2004.09

4J

2. SPECIFICATION

Item

Type & Specification

Ventilated disk

Solid disk

Tendem type

Tendem booster (Foot control)

0.6 (Liter), DOT4, by every 2 years

Every 20,000 km or 12 months and change if needed

Checking by every 10,000 km

Front brake type

Rear brake type

Master cylinder type

Booster type

Brake fluid capacity, type, replacement period

Brake pipe & hose replacement period

Brake pad, shoe, disk

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

6

BRAKE - GENERAL

STAVIC - 2004.09

4J

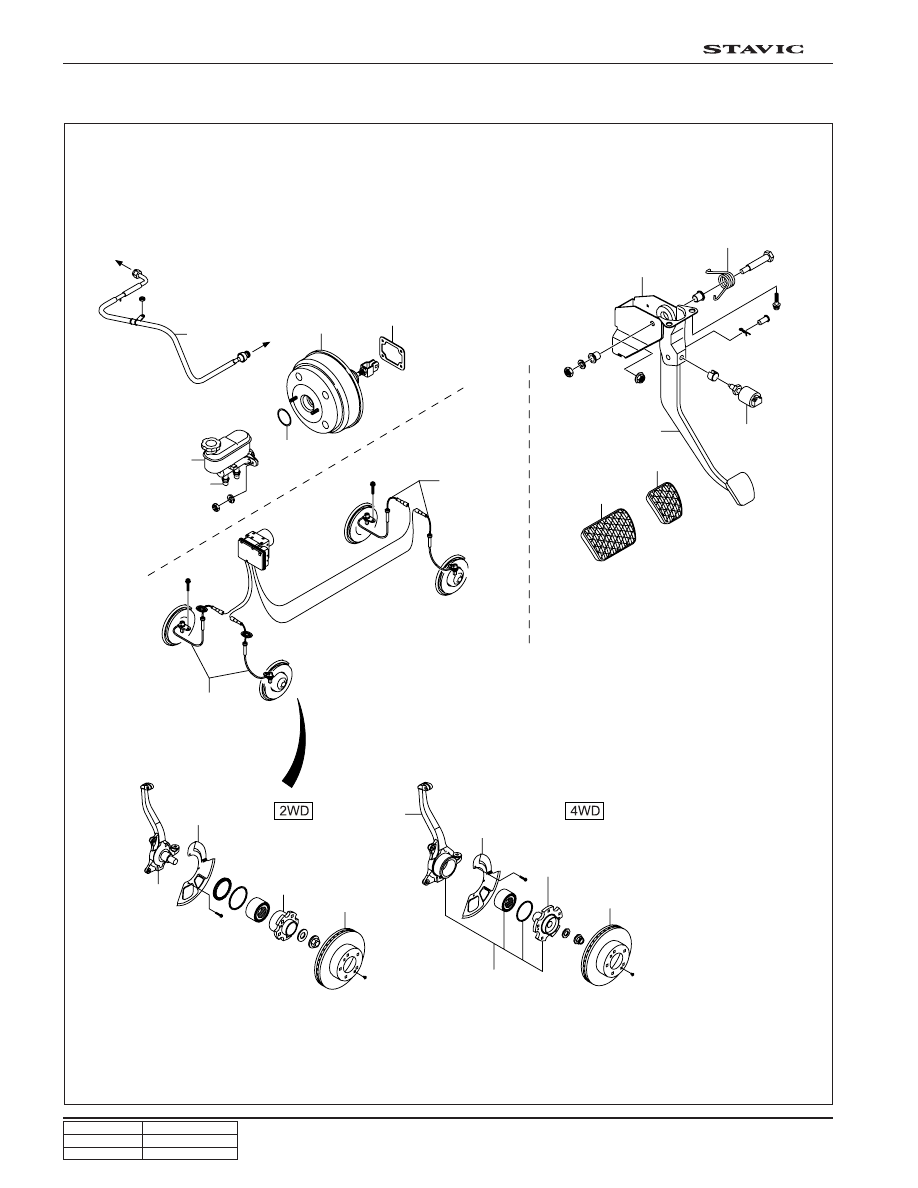

3. COMPONENTS

Vacuum pump

Vacuum

hose

Booster

Booster

Gasket

Reservoir tank

O-ring

Pressure sensor

Cable - RR
speed sensor

Cable - FRT

speed sensor

Brake dust shield

Hub flange

Knuckle

Brake disk

Steering

knuckle assy

Brake disk

Hub flange

Brake dust shield

Knuckle

Pad

Pad

Brake pedal

Switch - Stop lamp

Pedal bracket

Return spring

A/T

M / T

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

7

BRAKE - GENERAL

STAVIC - 2004.09

4J

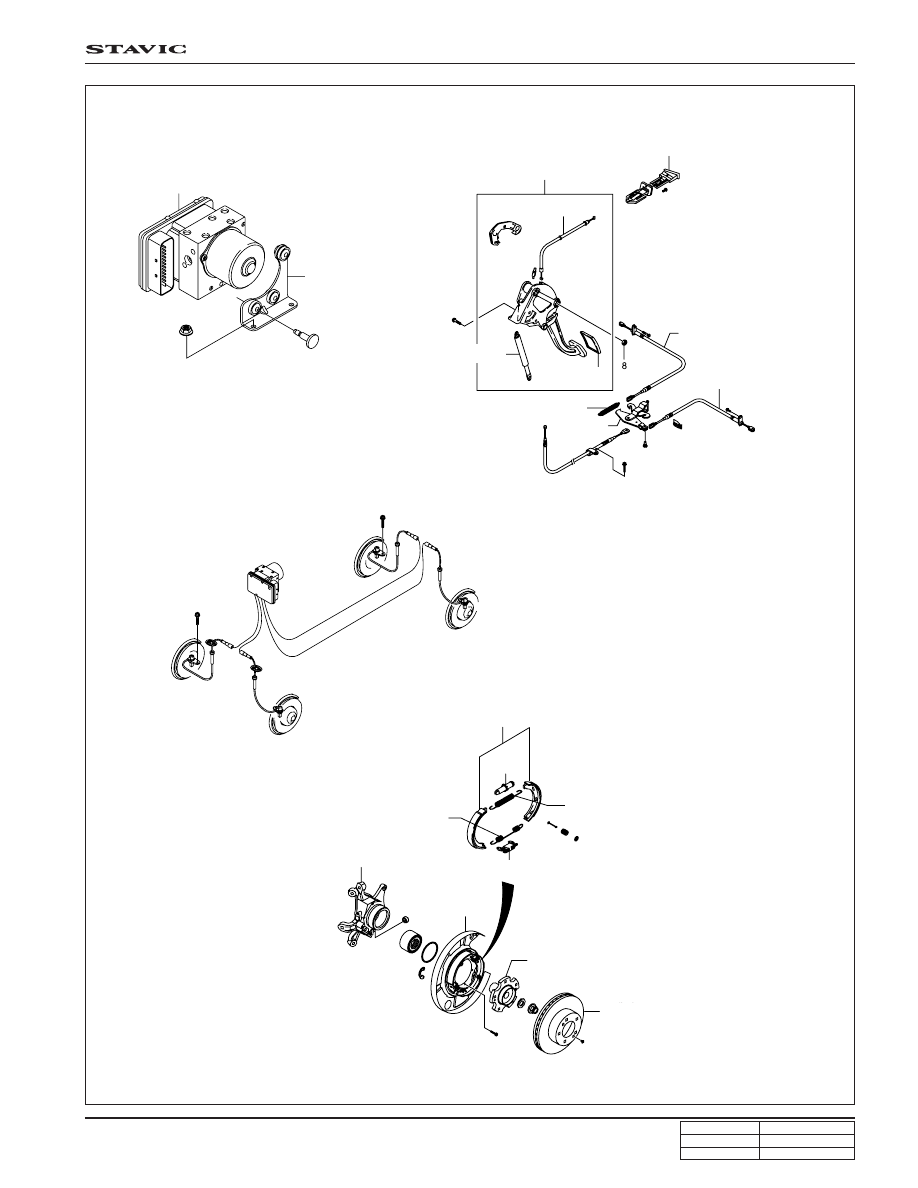

HECU

Brkt - HECU

Parking brake assy

Release lever

Cable

Damper

Pad

Parking brake cable
- rear RH

Parking brake cable
- rear LH

Tension spring

Equalizer

Brake shoe

Adjuster

Return spring - Upper

Return spring - Lower

Operating lever

Knuckle

Brake dust shield

Hub flange

Brake disk

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

8

BRAKE - GENERAL

STAVIC - 2004.09

4J

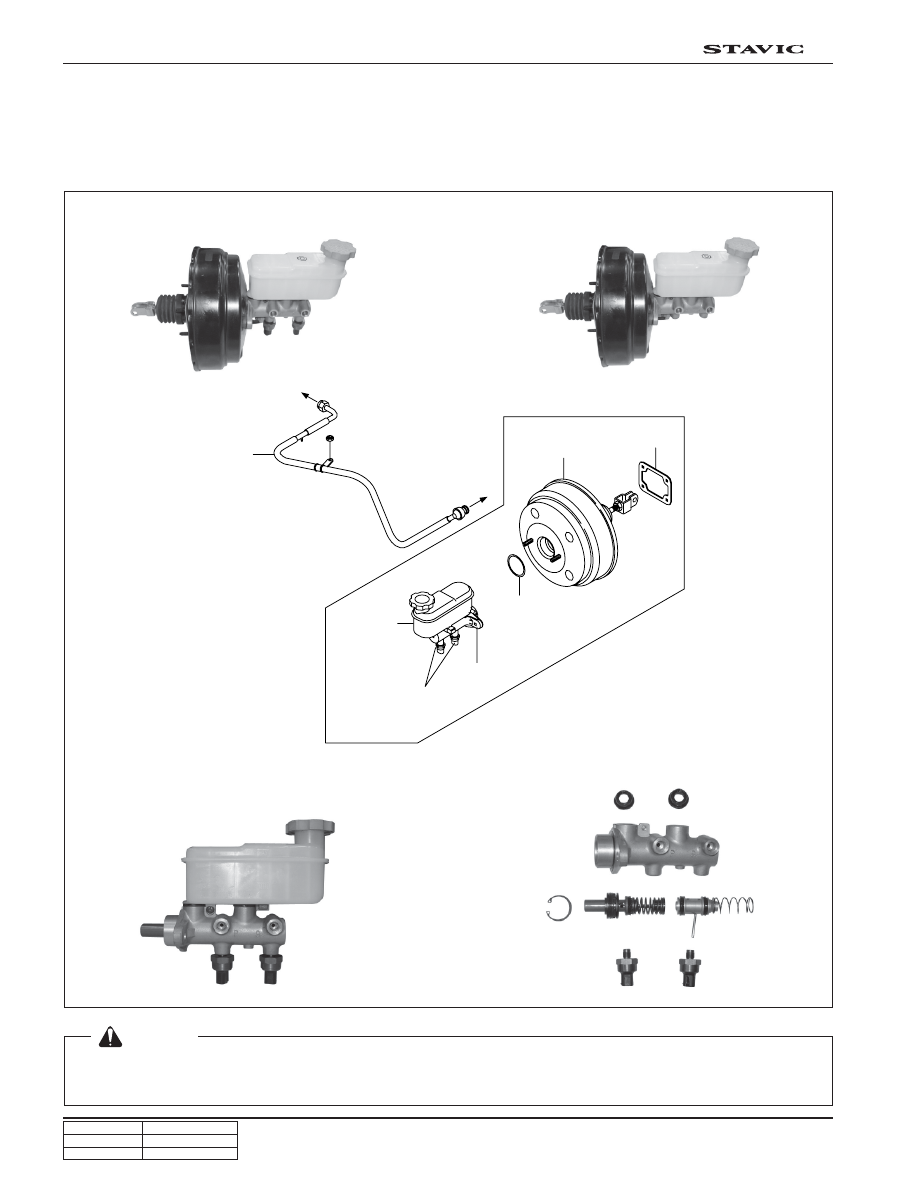

4. MASTER CYLINDER & BOOSTER

ABS system is basically equipped to STAVIC.

Vehicle which adapted ESP system in option has two pressure sensors under master cylinder and these two sensor are
used for BAS (Brake Assist System) system.

 [Notice]

•

Do not disassemble the brake oil pressure sensors These can not be reinstalled of disassembled.

•

After reinstall the reserver tank perform a air bleeding of brake system

Vehicle with ESP

Vehicle with ABS

Brake fluid reservoir tank

Master cylinder

<Vehicle with ESP>

Vacuum Pump

Vacuum hose

Booster

Gasket

O-ring

Master

cylinder

Pressure

sensor

Brake fluid

reservoir

tank
