3
PROPELLER SHAFT
STAVIC - 2004.09
4I
Structure
Joint type
Number of spiders
Outer diameter of spider (mm)
Tube run-out (after installation)
Unbalance
Front shaft dimension
Length x Outer diameter (mm)
Rear shaft dimension
Length x Outer diameter (mm)

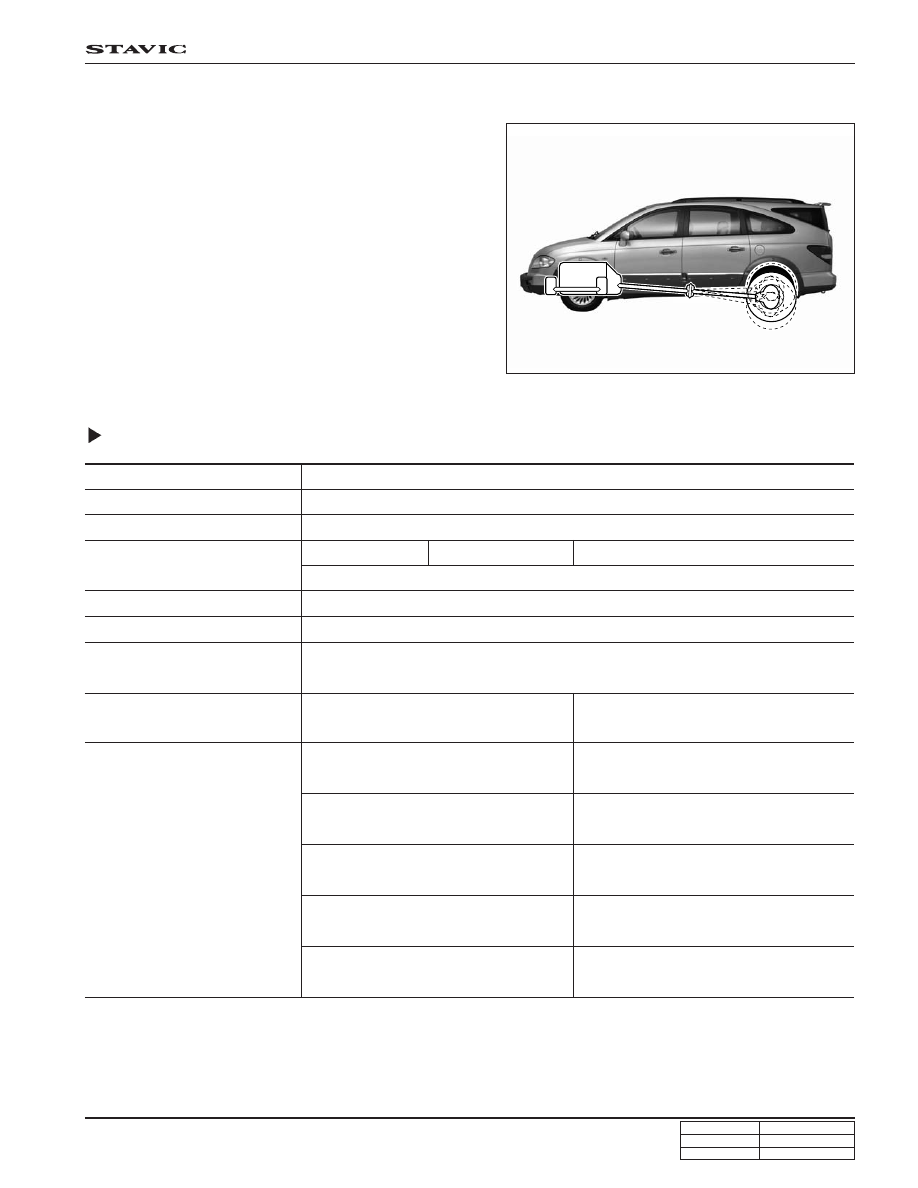

The propeller shaft transfers the power through the transmis-
sion and transfer case to the front/rear axle differential carrier
(final reduction gear). It is manufactured by a thin rounded
steel pipe to have the strong resisting force against the torsion
and bending.

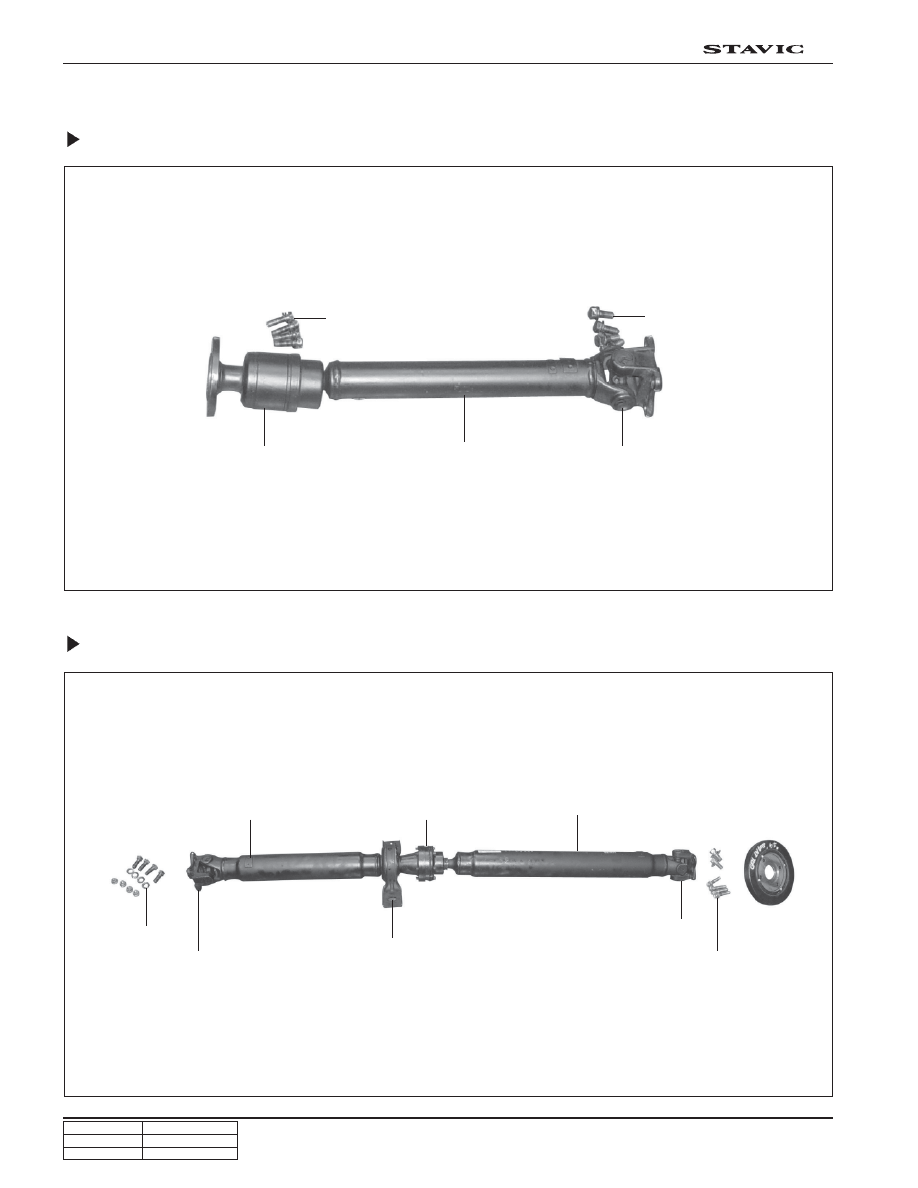

Both ends of propeller shaft are connected to the spider and
the center of propeller shaft is connected to the spline to ac-
commodate the changes of the height and length. The rubber
bushing that covers the intermediate bearing keeps the bal-
ance of rear propeller shaft and absorbs its vibration.
1. GENERAL INFORMATION
Yoke and spider type universal joint
Spider (Needle roller bearing)
1
2
φ 17.893
below 0.4 mm
Below 14.5 g.cm @ 4500 rpm (Front shaft + Full time T/C)
Below 18.0 g.cm @ 4500 rpm (Rear shaft + Full time T/C)
M/T(A/T) + 4426 TC (TOD)
DI engine + M/T(A/T) + 4426 TC (TOD)
DI engine + M/T + 2WD
DI engine + A/T + 2WD
Gasoline + M/T + 2WD
Gasoline + A/T + 2WD
Specification
Front
Rear
TOD T/C
Description
Specification
495.8 (center position) x
φ 50.8 (3.05t)
606.1 (compressed) x
φ72.2(2t)
+ 769.5 x
φ 76.2 (2t)
923.5 x
φ 63.5 (2t)
+ 750.4(compressed) x
φ 63.5 (2t)
987.7 (compressed) x
φ 63.5(2t)
+ 769.5 x
φ 63.5 (2t)
923.5 x
φ 76.2(2t)
+ 750.4 (compressed) x
φ 63.5 (2t)
987.7 (compressed) x
φ 76.2(2t)
+
769.5 x
φ 63.5 (2t)
