SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 325

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

120

DC 5-SPEED AUTOMATIC TRANSMISSION

STAVIC - 2004.09

4A

Name and Part Number

Application

W 126 589 01 62 00

Handle

Removal and installation of torque converter

W 116 589 06 59 00

Assembly stand

Fixing automatic transmission

W 140 589 12 15 00

Arbor

Installation of sealing ring

W 001 589 50 33 00

Puller

Removal and installation of
transmission housing ball housing

SPECIAL TOOLS AND EQUIPMENT

Special Tool

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

121

DC 5-SPEED AUTOMATIC TRANSMISSION

STAVIC - 2004.09

4A

Name and Part Number

Application

W 140 589 34 63 00

Fixing plate

Fixing automatic transmission

W 140 589 06 34 00

Collet chuck

Removal and installation of transmission housing ball bearing

W 140 589 13 43 00

Piston puller

Removal and installation of B1, B2, B3 piston

W 126 589 02 09 00

Socket

Removal and installation of
collar nut for output shaft

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

122

DC 5-SPEED AUTOMATIC TRANSMISSION

STAVIC - 2004.09

4A

128 589 04 31 00

Measuring bridge

Measuring the clearance between ball
bearing and parking lock gear

W 208 589 00 21 00

Compressor

Compressing clutch and disc brake

Name and Part Number

Application

W 140 589 15 21 00

Pipstick guage

Measuring the oil level

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

123

DC 5-SPEED AUTOMATIC TRANSMISSION

STAVIC - 2004.09

4A

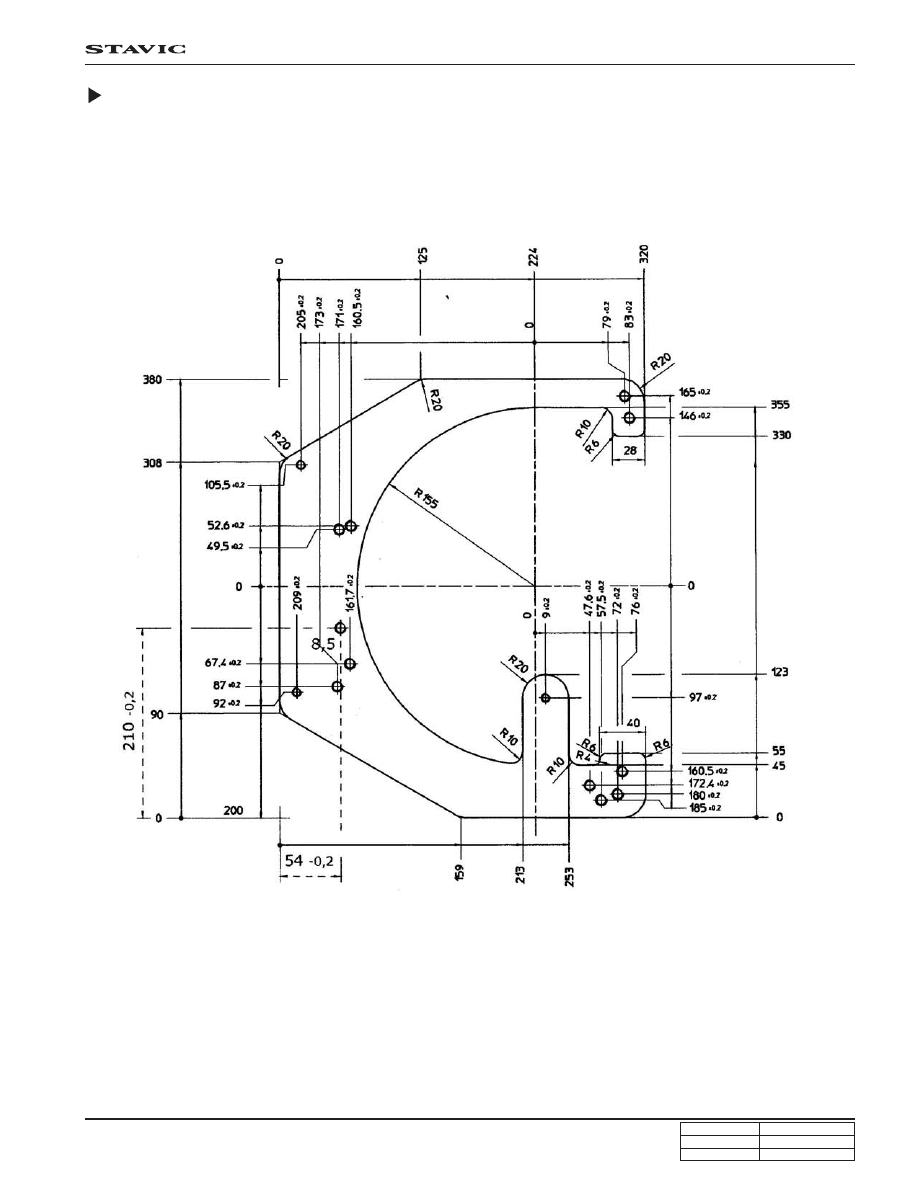

Fixing Plate Assembly Stand W 140 589 34 63 00
