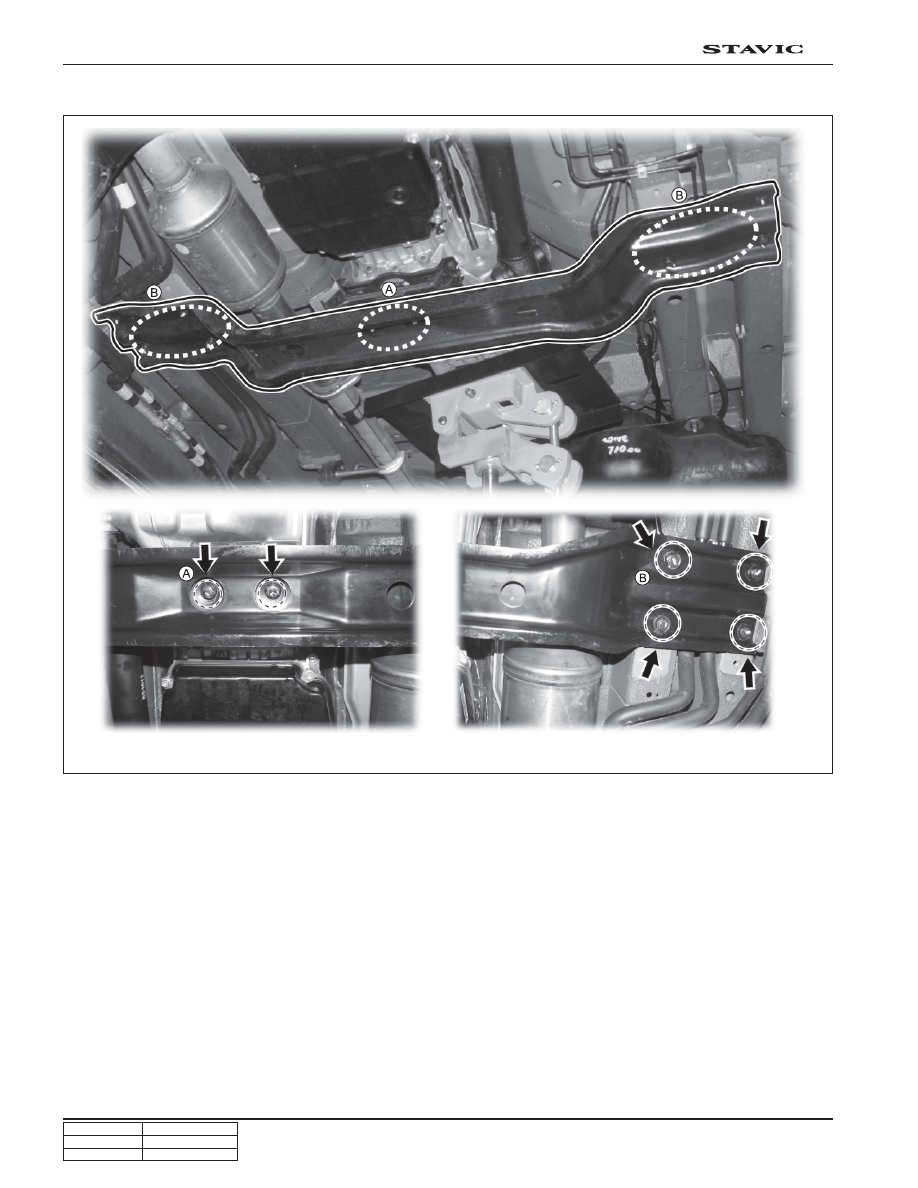

6. Unscrew the center cross member mounting bolts.

B.Side bolts-center cross frame (14 mm - 8 EA)

A.Center bolts-center cross frame (14 mm - 2 EA)

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

85

DC 5-SPEED AUTOMATIC TRANSMISSION

STAVIC - 2004.09

4A

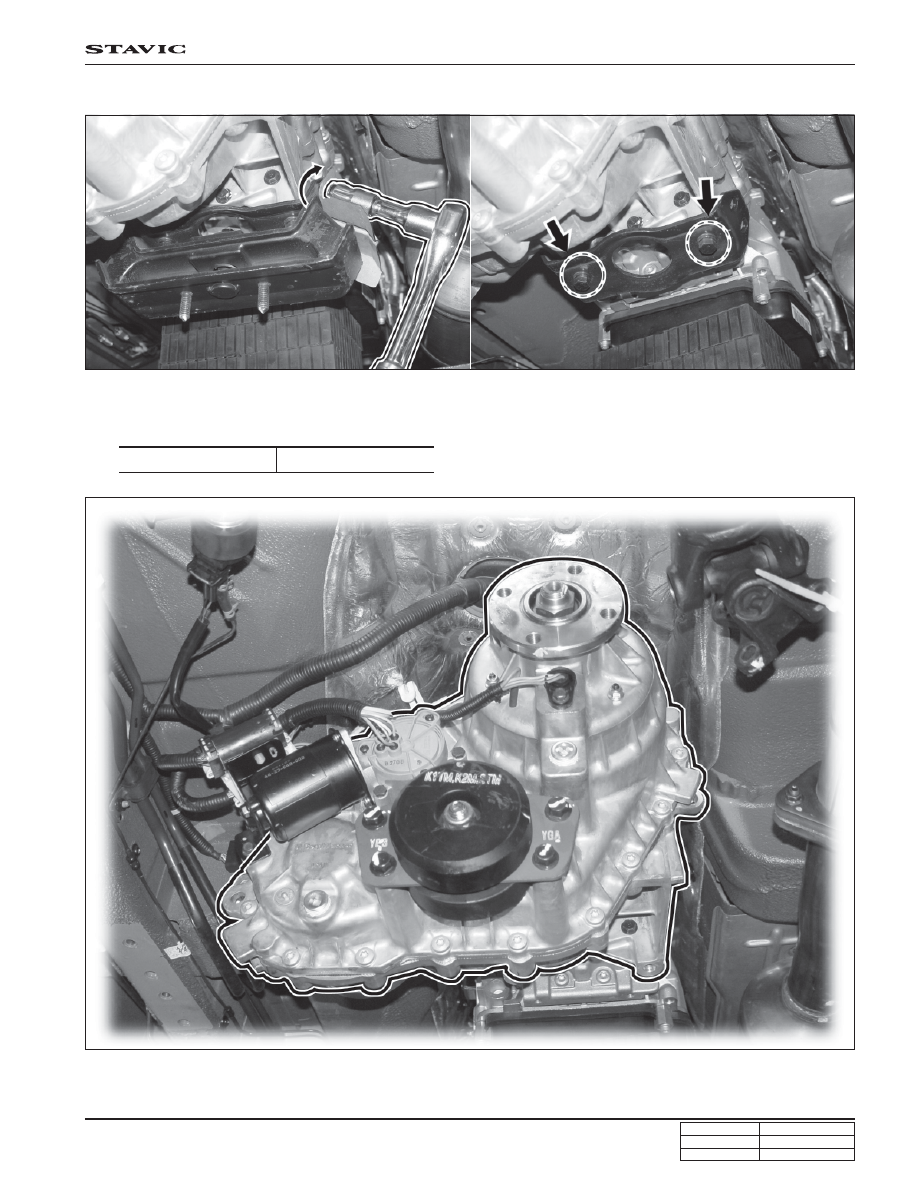

7. Unscrew the T/M insulator bracket bolts and remove the bracket.

8. Unscrew the transfer case mounting bolts (12 mm - 11 EA) and remove the T/C from the T/M.

Tightening torque

20 ~ 25 Nm

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

86

DC 5-SPEED AUTOMATIC TRANSMISSION

STAVIC - 2004.09

4A

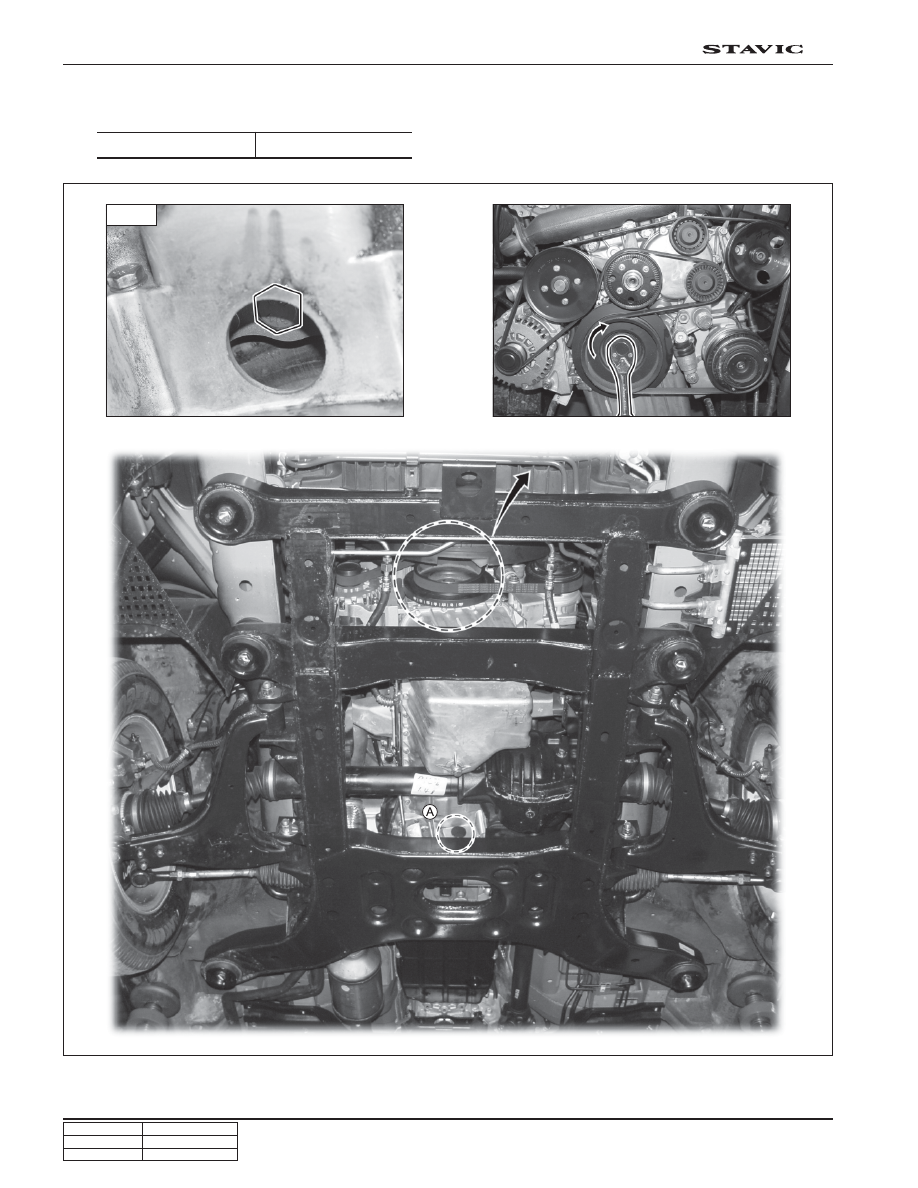

9. Remove the torque converter hole cover and unscrew torque converter bolts one by one as rotating the engine crank

shaft clockwise. (14 mm - 6 EA)

○○○○○

○

○

○

○

○

○

○○○○○

Tightening torque

20 ~ 25 Nm

A

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

87

DC 5-SPEED AUTOMATIC TRANSMISSION

STAVIC - 2004.09

4A

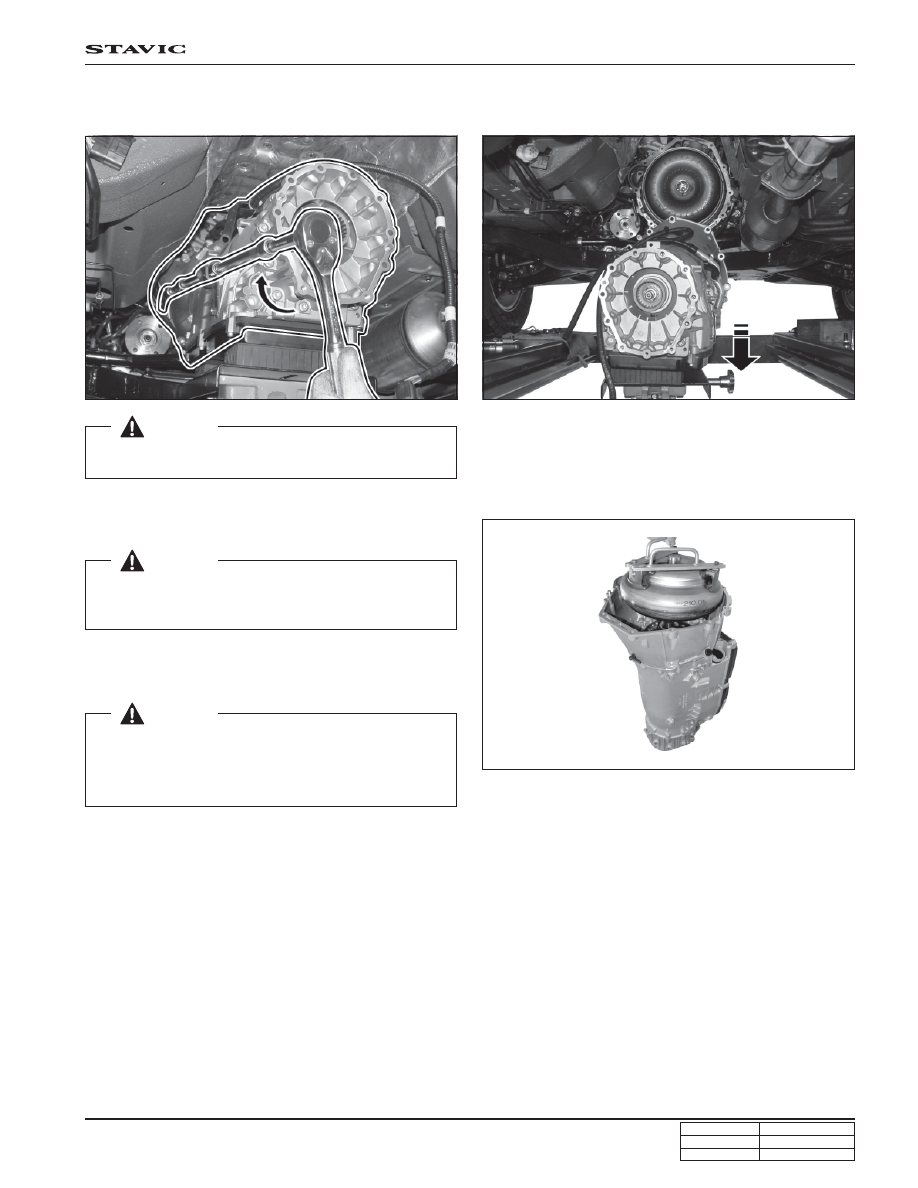

10. Unscrew the mission housing bolts and drop the transmission slowly with hydraulic jack (17 mm - 8EA, Tightening

torque: 50 - 60 Nm)

11. Remove the torque converter with special tool.

 [Notice]

Be careful not to drop the torque converter

 [Notice]

When install the torque converter on the mission, apply
small amount of ATF oil to the input shaft & frange.

 [Notice]

• Add the ATF oil and check the oil lever.

• Before reinstallation, clean the T/M and related

components.

12. Install in the reverse order of removal.
