DC 5-SPEED AUTOMATIC TRANSMISSION

STAVIC - 2004.09

4A

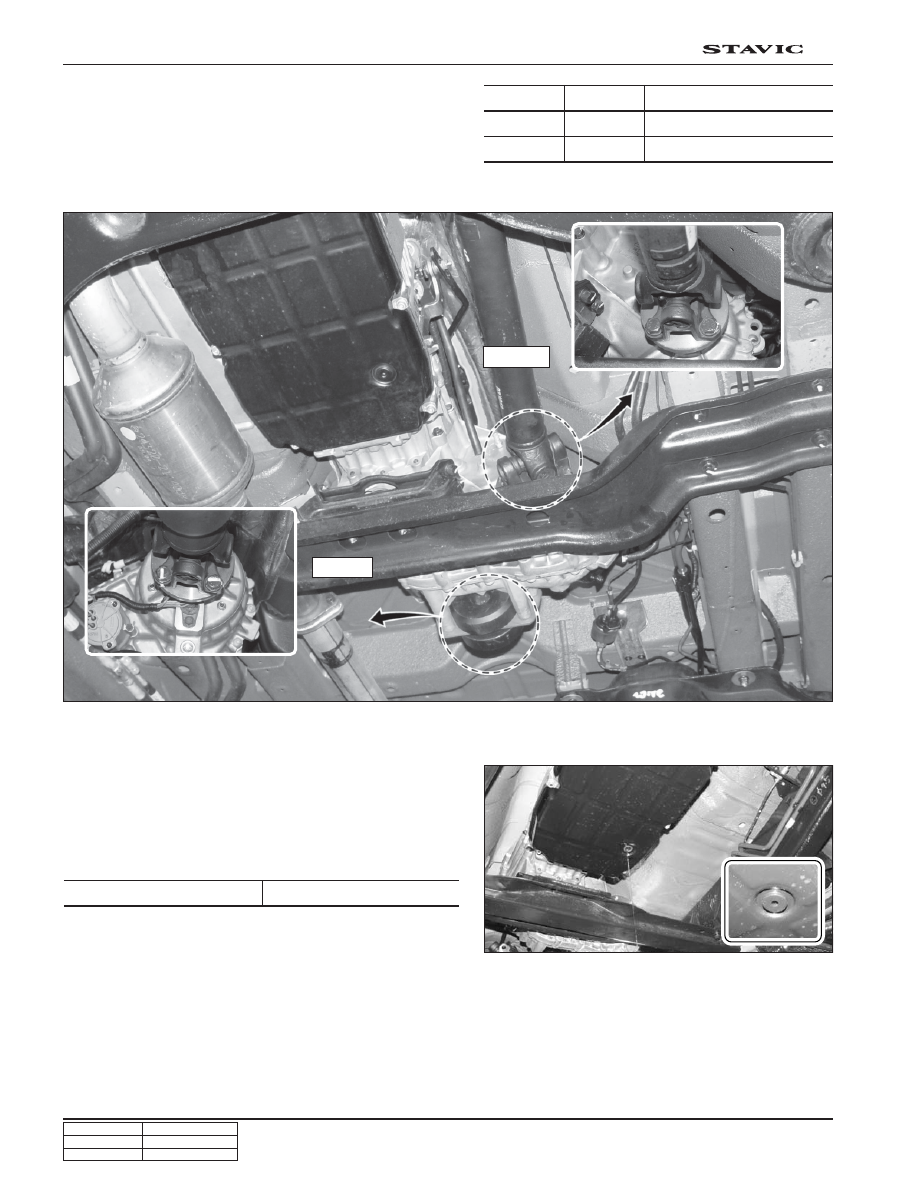

1. Remove the front and rear propeller shaft from the transfer

case.

Oil draining

If necessary, drain the oil. However, when removing or install-
ing the transmission without any other processes, just add oil
excluding drainage.

Installation Notice

Rear

Front

Tightening torque

14 Nm

No

4

4

Tightening torque

81 ~ 89 Nm

70 ~ 80 Nm

Bolt

M17

M14

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

81

DC 5-SPEED AUTOMATIC TRANSMISSION

STAVIC - 2004.09

4A

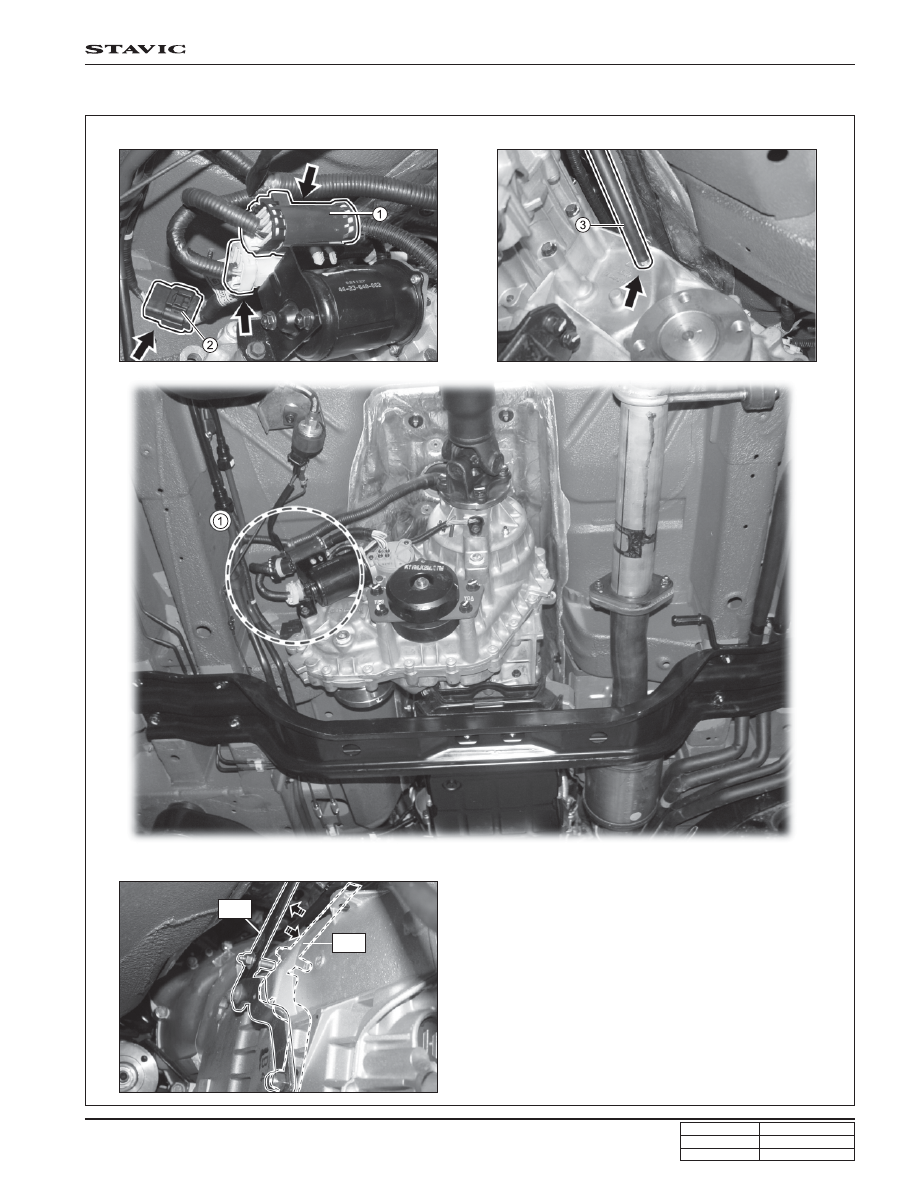

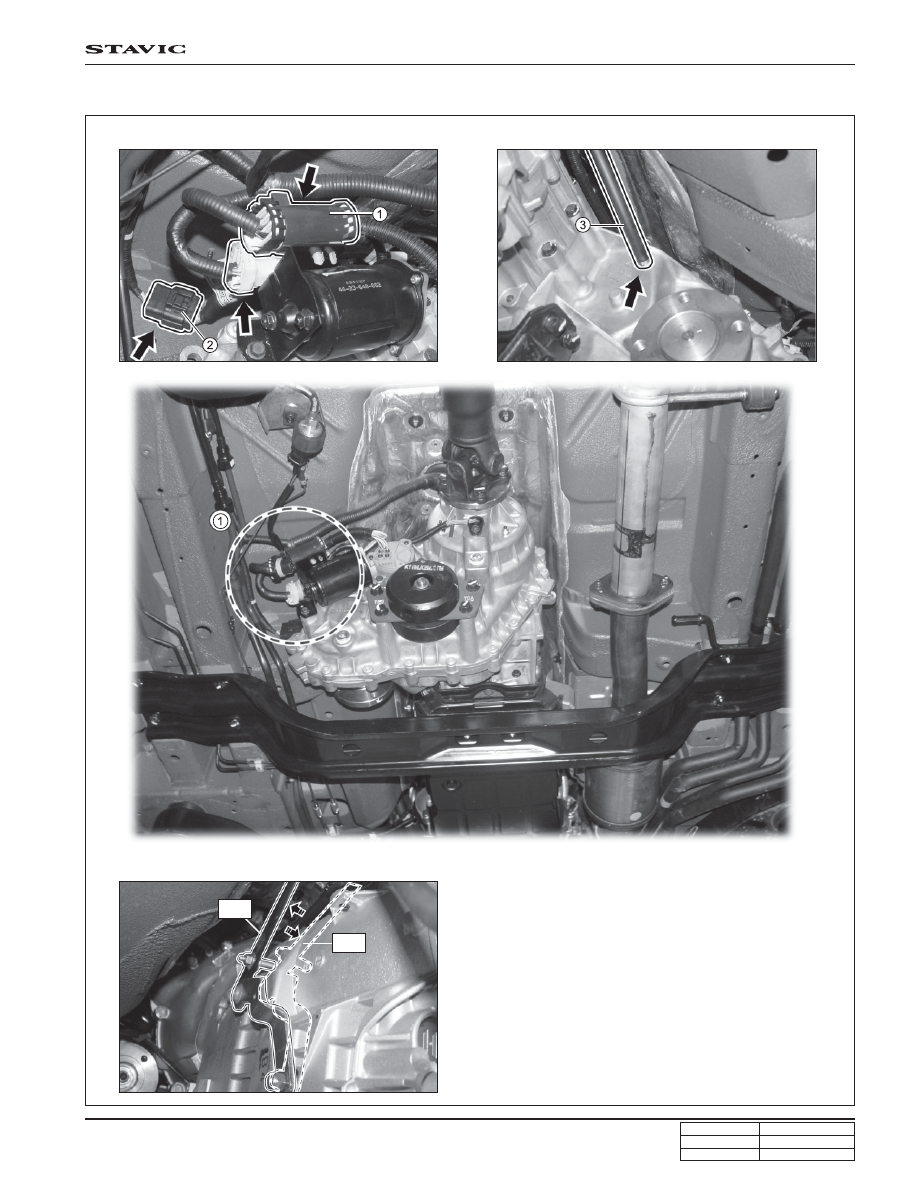

2. Disconnect T/C motor connector, T/M plug connector, T/M shift lever, air bleeder hose and other attachments.

1. T/C motor connector (1) & plug connector (2).

2. Air bleeder hose (3).

3. T/M shift lever.

* Locate the shift lever in “N”.

“P”

“N”

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

82

DC 5-SPEED AUTOMATIC TRANSMISSION

STAVIC - 2004.09

4A

3.

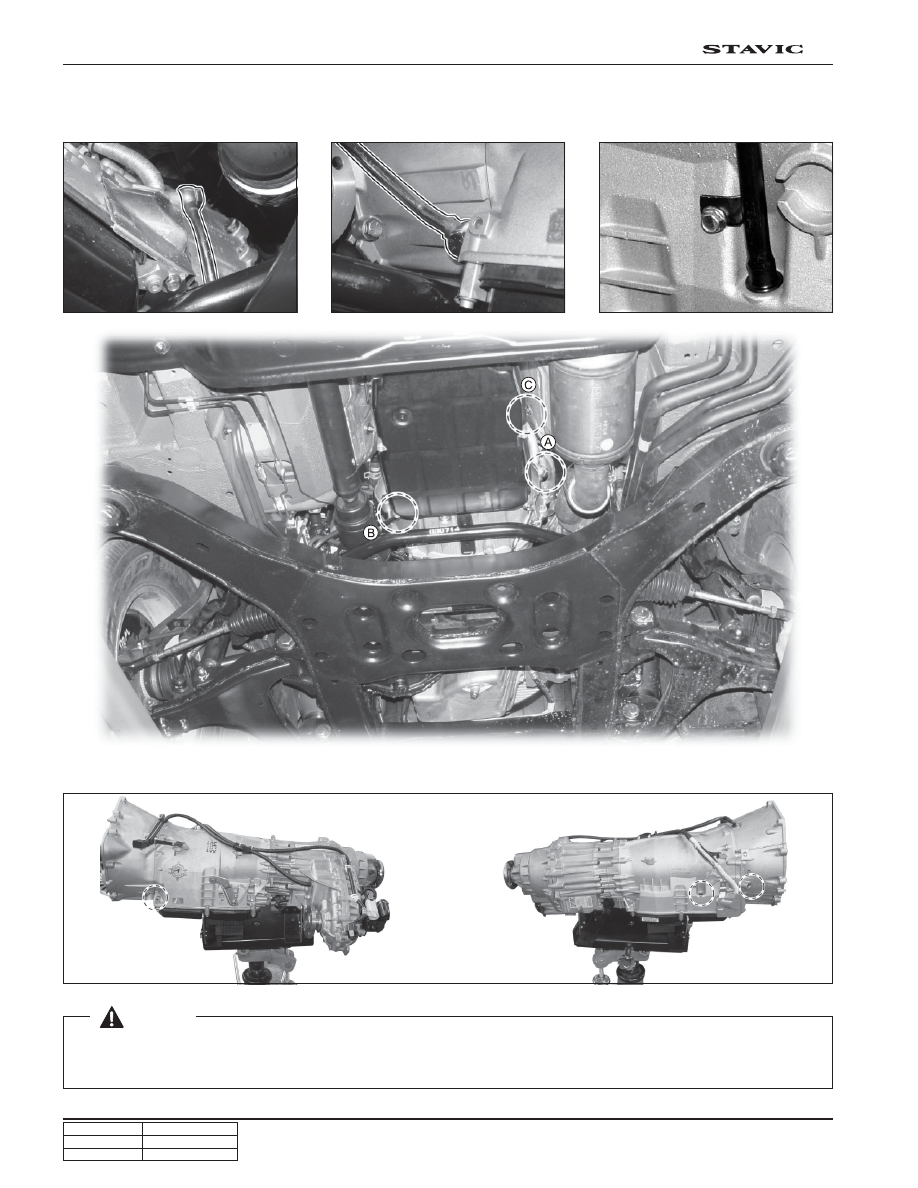

Remove T/M oil return pipe (A), supply pipe (B), oil filler pipe (C) from T/M.

A. Oil return pipe

○○○○○○○○○○○○○

○

○

B. Oil supply pipe

C. Oil filler pipe

 * Transmission Assembly

 [Notice]

1. Collect the dropping oil from removed pipes in the oil collecter and seal the pipes with caps.

2. Be careful not to contaminate the body and work space.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

83

DC 5-SPEED AUTOMATIC TRANSMISSION

STAVIC - 2004.09

4A

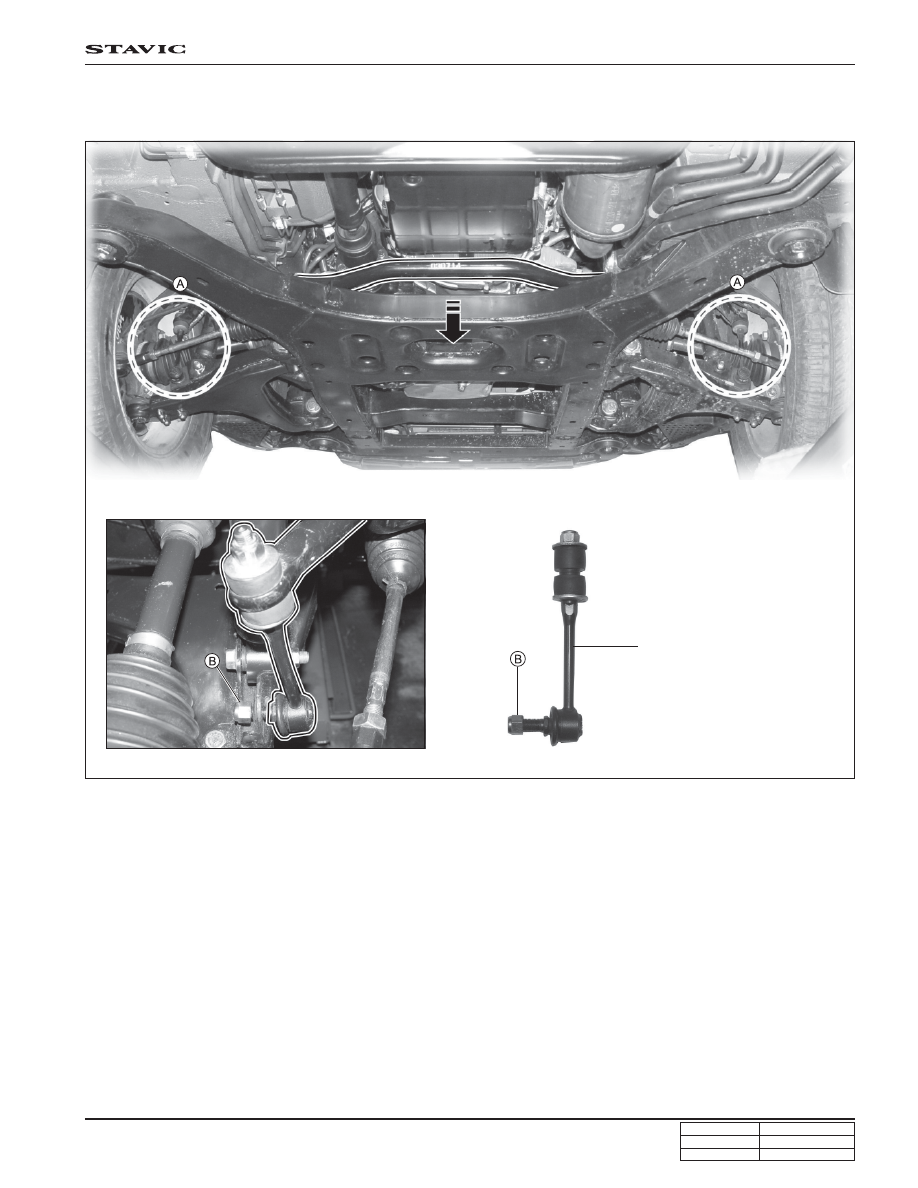

4. For easier removal, unscrew the stabilizer mounting bolts (B) and put it down to the sub frame.

5. Support the transmission with hydraulic jack.

A. Stabilizer bar link
