4. FUNCTIONS IN EACH MODE

1) Time and Date

Displays and adjusts time, date, and day of the week.

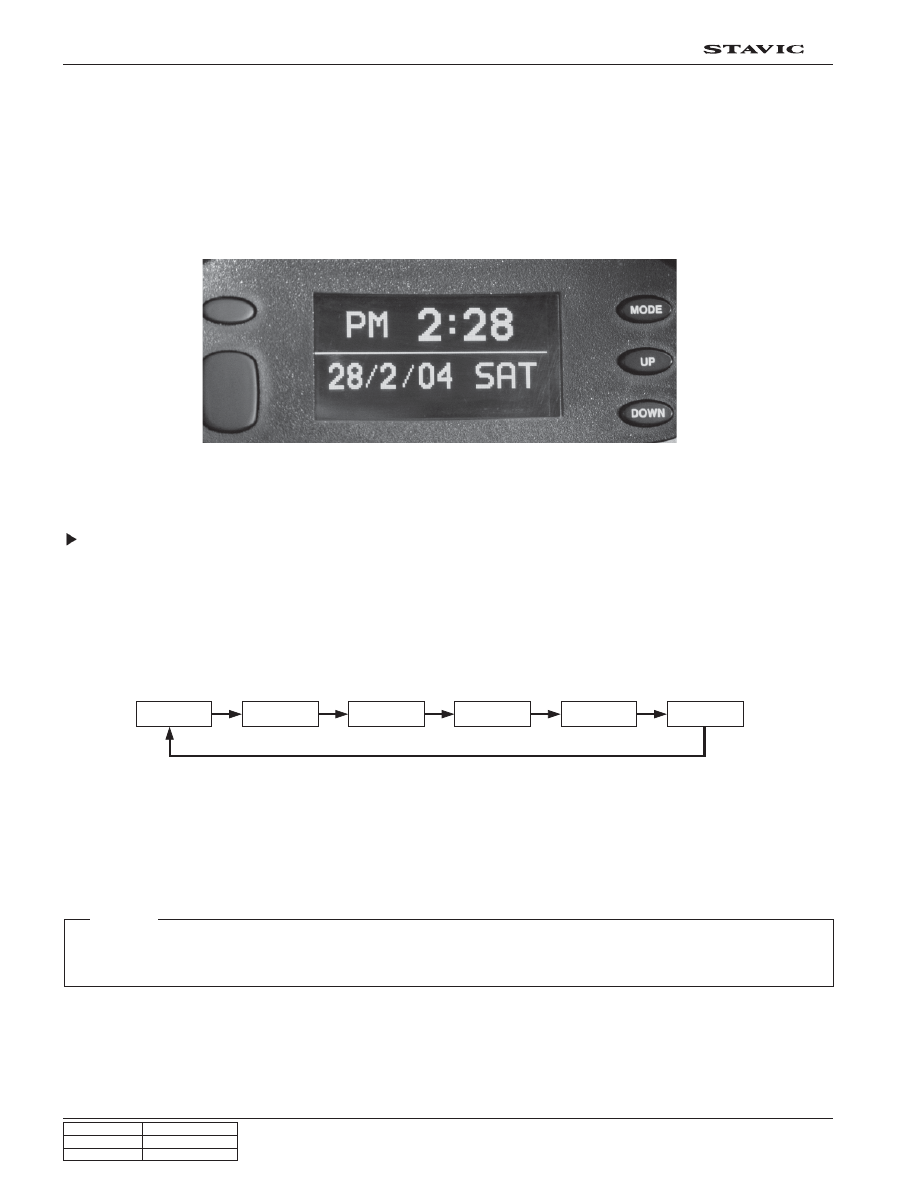

Adjusting the Time and Date

1. Press and hold the MODE button for more than 1 second to start time and date mode. Move and select the

information to be adjusted while briefly pressing the MODE button (0.5 seconds). The selected information
is blinking.

Changing sequence:

3. Adjust the information by using UP or DOWN button.

4. Press and hold the MODE button for more than 1 second to set the time and date.

 [Note]

- A day of the week is automatically changed according to the adjusted date, month, and year.

- An intercalary is automatically calculated.

AM (PM)

Hour

Minute

Day

Month

Year

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

MULTIMETER

STAVIC - 2004.09

7

2F

2) Direction, Atmospheric Pressure, Altitude Mode

Electronic Compass

It indicates 8-direction by interval of 45° according to the vehicle’s driving direction.

2. Turning Calibration

This operation is needed to calibrate the indication tolerance between the actual direction and the indicated direction
at current vehicle location.

Turning calibration conditions

- when the multi-meter is installed in the vehicle.

- when the battery is replaced.

Turning calibration procedure

1. When pressing the MODE and UP button simultaneously for more than 1 second, the current direction flashes.

2. Turn the vehicle over 1 complete circle within 128 seconds slowly, then the calibration will be accomplished.

3. When the calibration is finished, the vehicle’s new direction will be indicated.

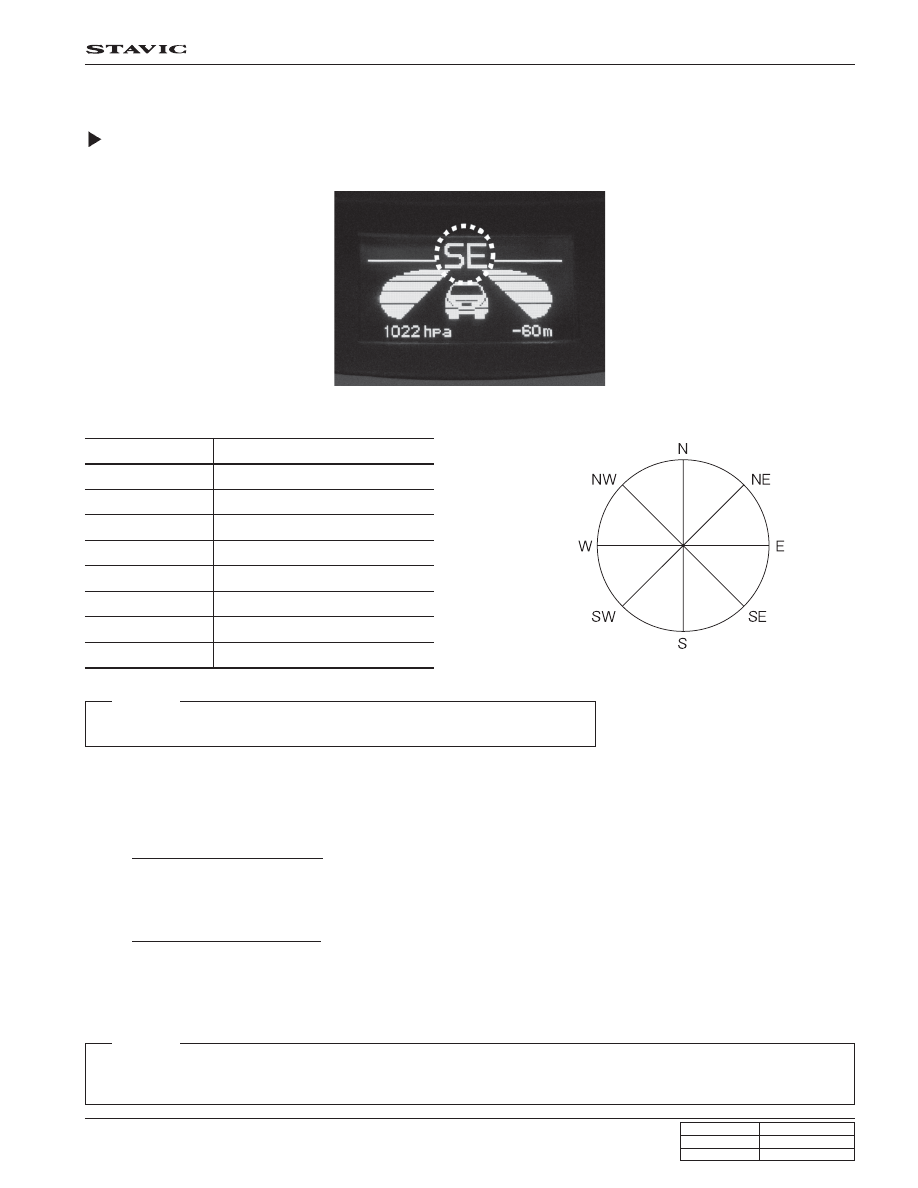

1. Screen display for direction

Display

N

NE

E

SE

S

S W

W

NW

Direction

0

°

45

°

90

°

135

°

180

°

225

°

270

°

315

°

 [Note]

This function is available only when the vehicle speed is over 2.8 km/h.

 [Note]

The turning calibration process is automatically canceled if the vehicle is not turned within 120 seconds after calibration
mode started.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

MULTIMETER

STAVIC - 2004.09

8

2F

How to calibrate the absolute altitude

1) UP button

Press briefly (below 0.5 seconds): increases by 20 m

Press and hold (over 0.5 seconds): continues to increase by 20 m with the interval of 0.2 seconds

2) DOWN button

Press briefly (below 0.5 seconds): decreases by 20 m

Press and hold (over 0.5 seconds): continues to decrease by 20 m with the interval of 0.2 seconds

How to erase the calibrated altitude value

Press the UP and DOWN buttons simultaneously for more than 1 second to cancel the altitude calibration.

Altitude calibration range

It can be calibrated by 300 m within the range of 0 to 2,800 m.

Current altitude

Current atmospheric pressure

Altimeter

1. Absolute Altimeter

0 m above the sea level is equivalent to 1013.25 hpa and the altimeter convert the difference between this pressure and
atmospheric pressure to absolute altitude. Its Indication range is -200 m to 2,800 m.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

MULTIMETER

STAVIC - 2004.09

9

2F

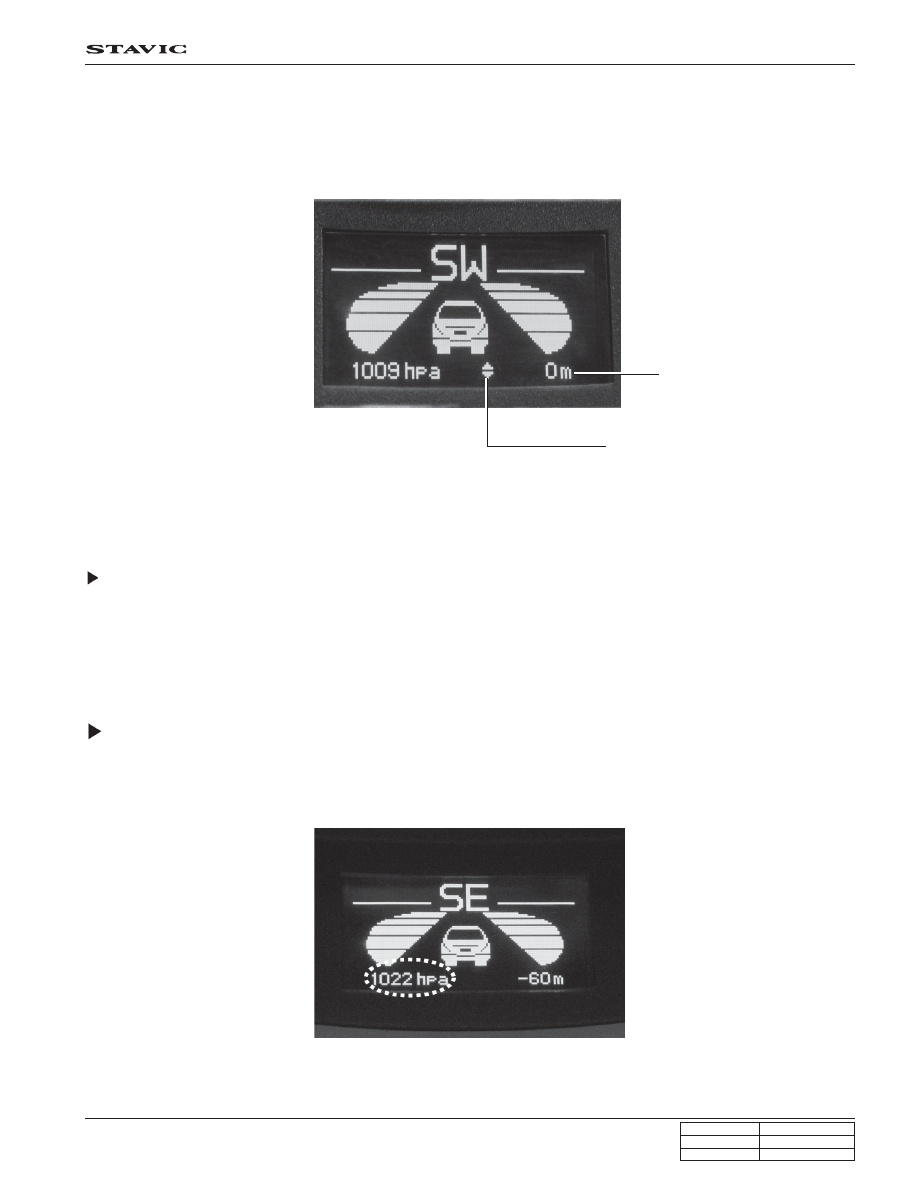

2. Relative Altimeter

It indicates the specific area’s relative altitude based on the current altitude of the vehicle (current altitude is indicated
to 0 m).

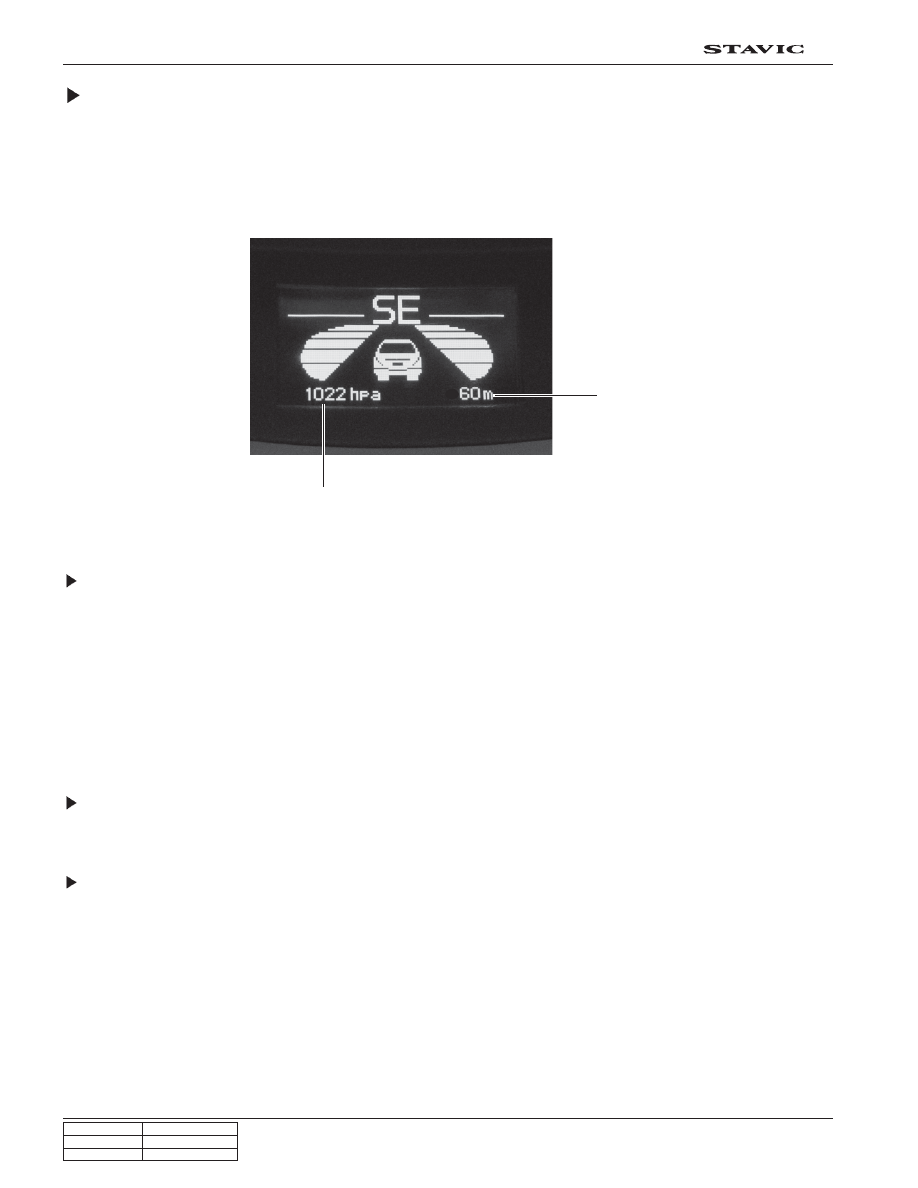

Indication of base altitude

Indication of relative altimeter

Changing to relative altimeter mode

The mode is switched between the relative altimeter mode and absolute altimeter mode when pressing the MODE
button over 1 second in direction/atmospheric pressure/altitude mode.

Barometer

It indicates the current atmospheric pressure in range from 720 hpa to 1045 hpa by 1 hpa.
