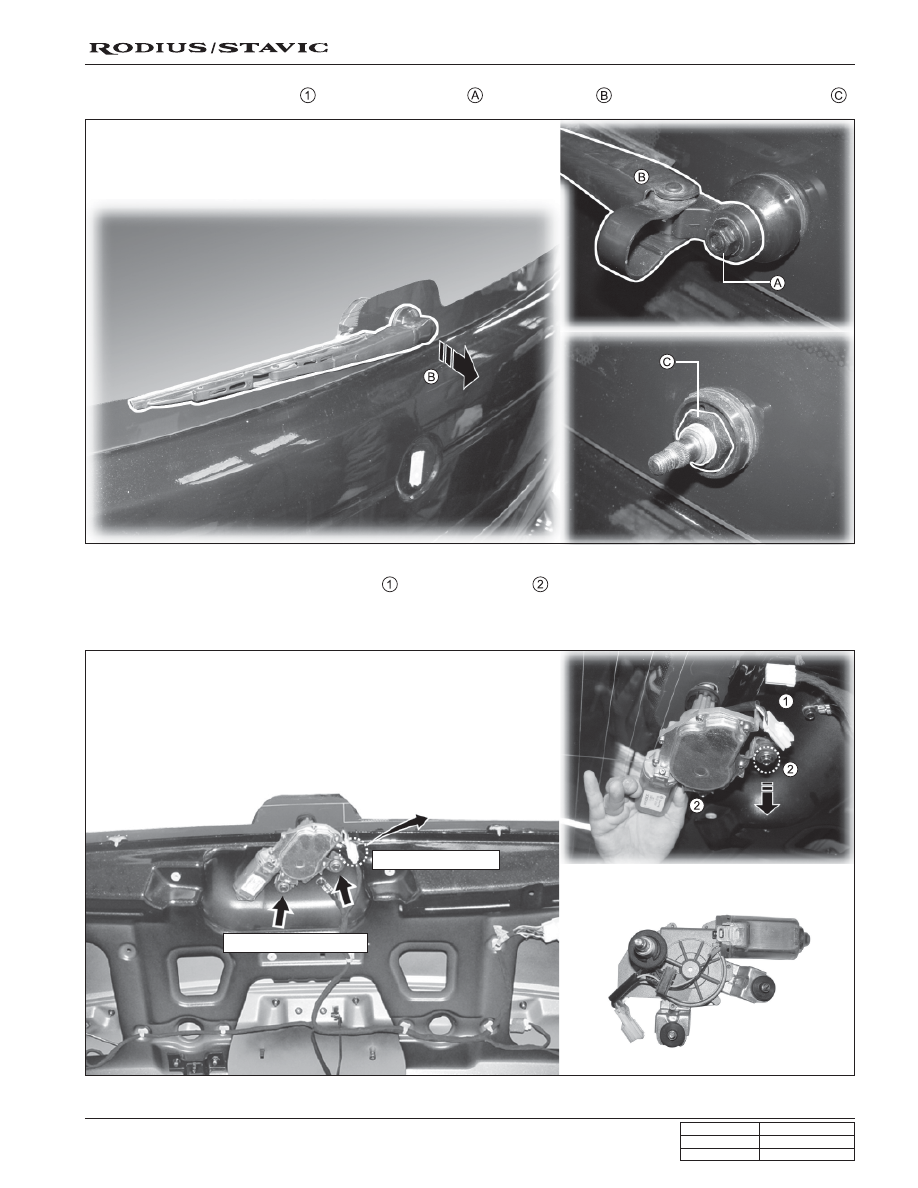

1. Release the wiper arm cap

, remove the wiper nut

 and wiper blade

, and unscrew the motor lock nut

.

2. Disconnect the wiper motor connector

, unscrew the bolts

, and remove the wiper motor assembly from

tailgate.

3. Install in the reverse order of removal.

2. Motor mounting bolts

1. Motor connector

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

MULTIMETER

STAVIC - 2004.09

3

2F

MULTI-METER

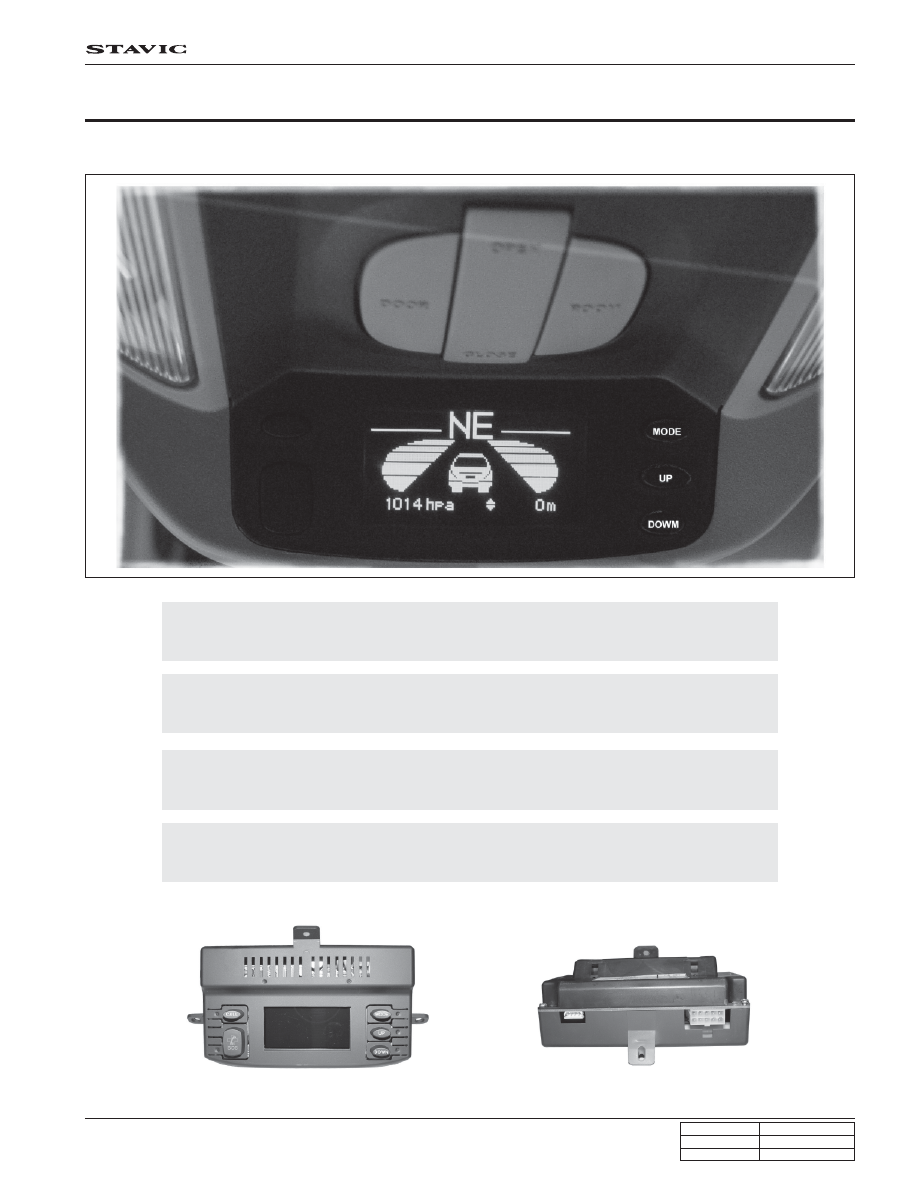

1. LOCATION

4. Display

Displays a selected mode screen, parking aid signal, and battery voltage message.

3. DOWN button - coupled operation with MODE button

Decreases the value (altitude, direction, date, atmospheric pressure) in each mode.

2. UP button - coupled operation with MODE button

Increases the value (altitude, direction, date, atmospheric pressure) in each mode.

1. MODE button - Mode change and reset

Selects a mode (altitude, direction, time, calendar, average speed, driving time, battery)

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

MULTIMETER

STAVIC - 2004.09

4

2F

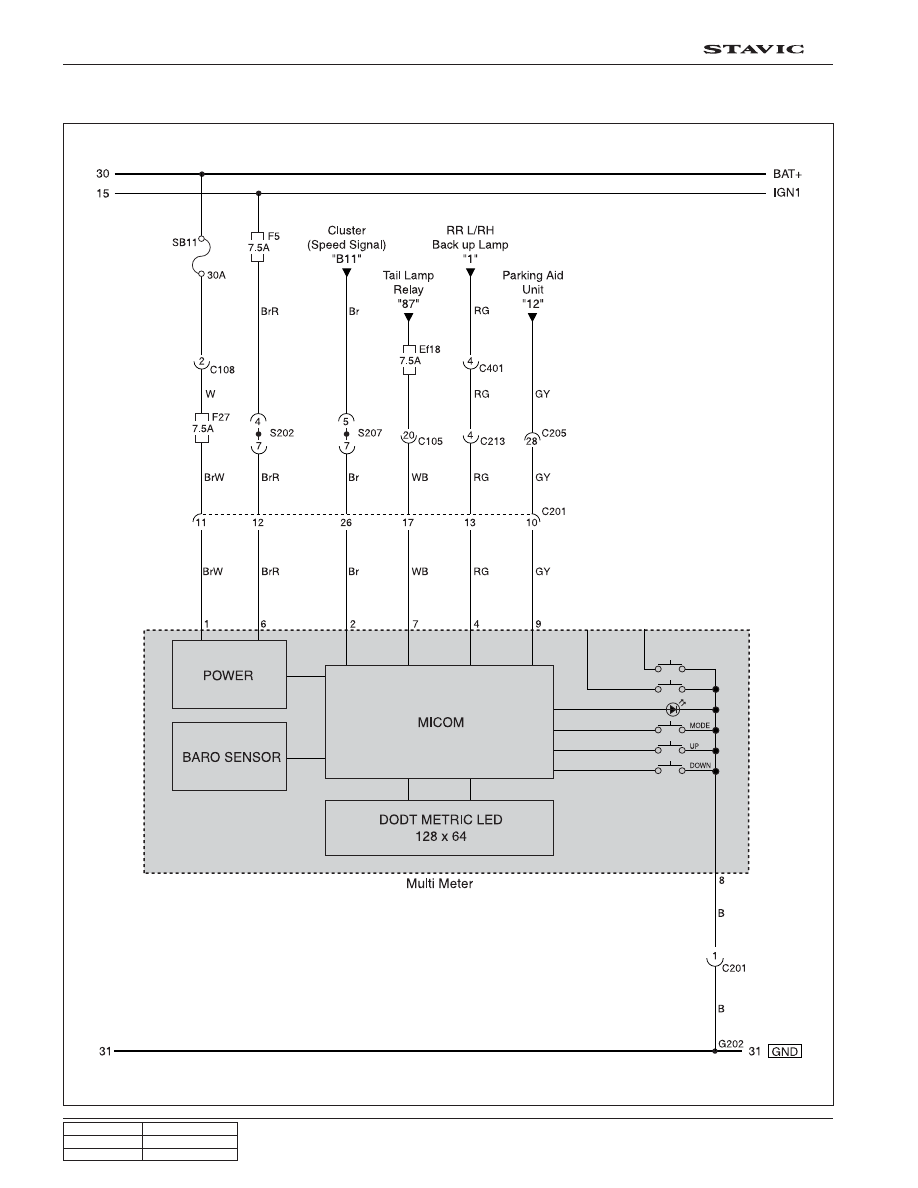

2. CIRCUIT DIAGRAM

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

MULTIMETER

STAVIC - 2004.09

5

2F

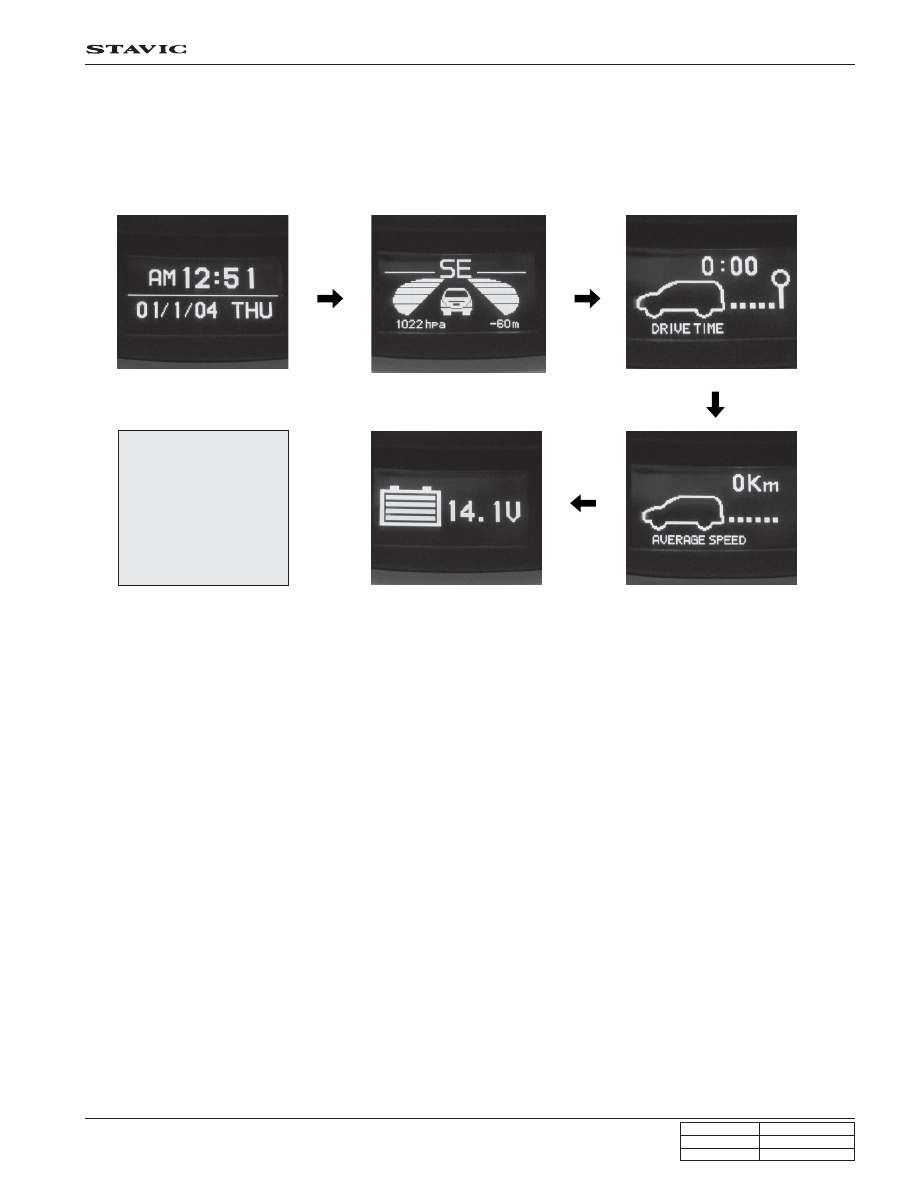

3. DISPLAY MODE

Mode changing sequence:

[Time and Calendar]

[Altitude, Direction]

[Driving time]

[Battery voltage]

[Average speed]

[Note]

The previously selected
mode screen appears
when starting the engine.
