SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 230

25

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

RK STICS

STAVIC - 2004.09

2C

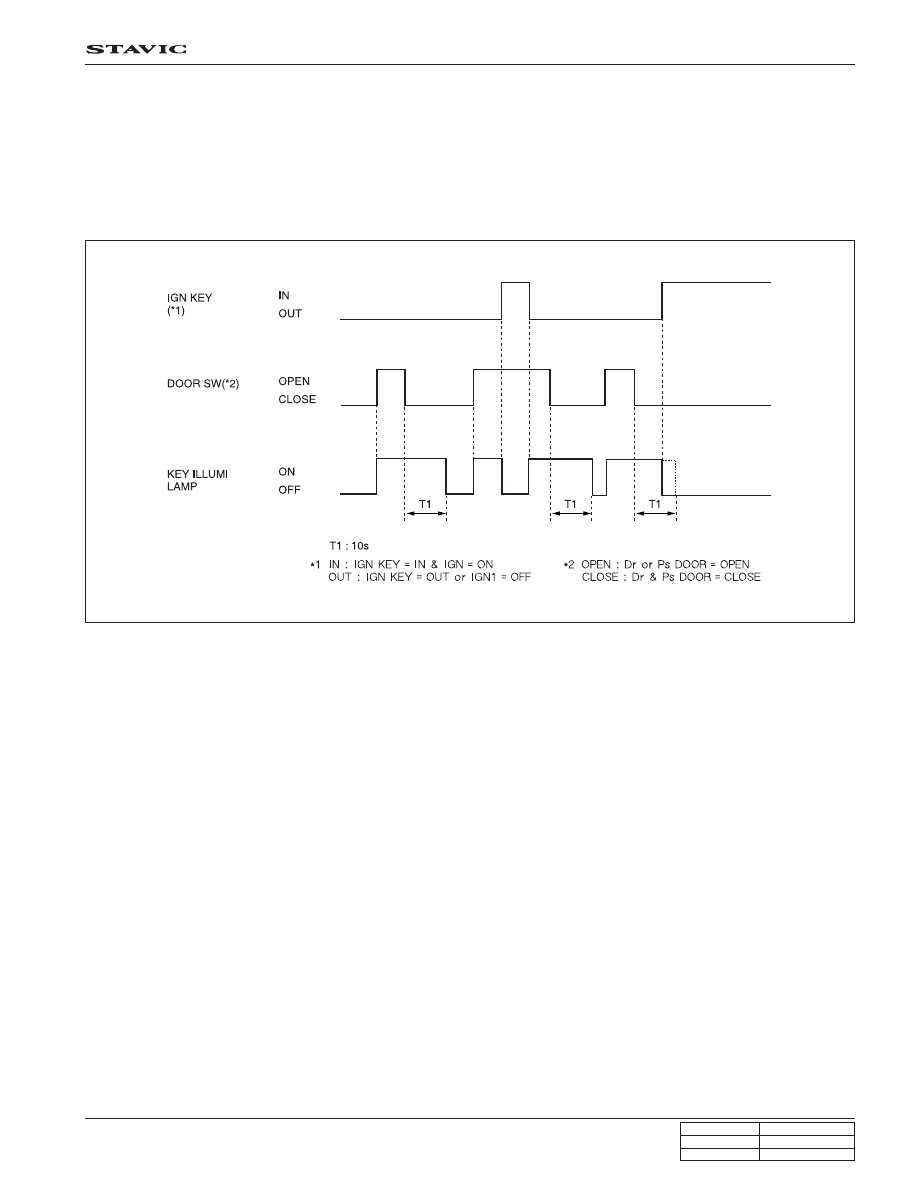

8) Ignition Key Hole Illumination (Except For Immobilizer)

1. The ignition key hole illumination comes on when opening the driver’s door or passenger’s door while the ignition

key is removed.

2. The ignition key hole illumination stays on for 10 seconds when closing the door after step 1.

3. The output stops when the ignition key is turned to “ON” position.

4. The output stops when receiving the lock signal from the remote control key (under armed mode).

26

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

RK STICS

STAVIC - 2004.09

2C

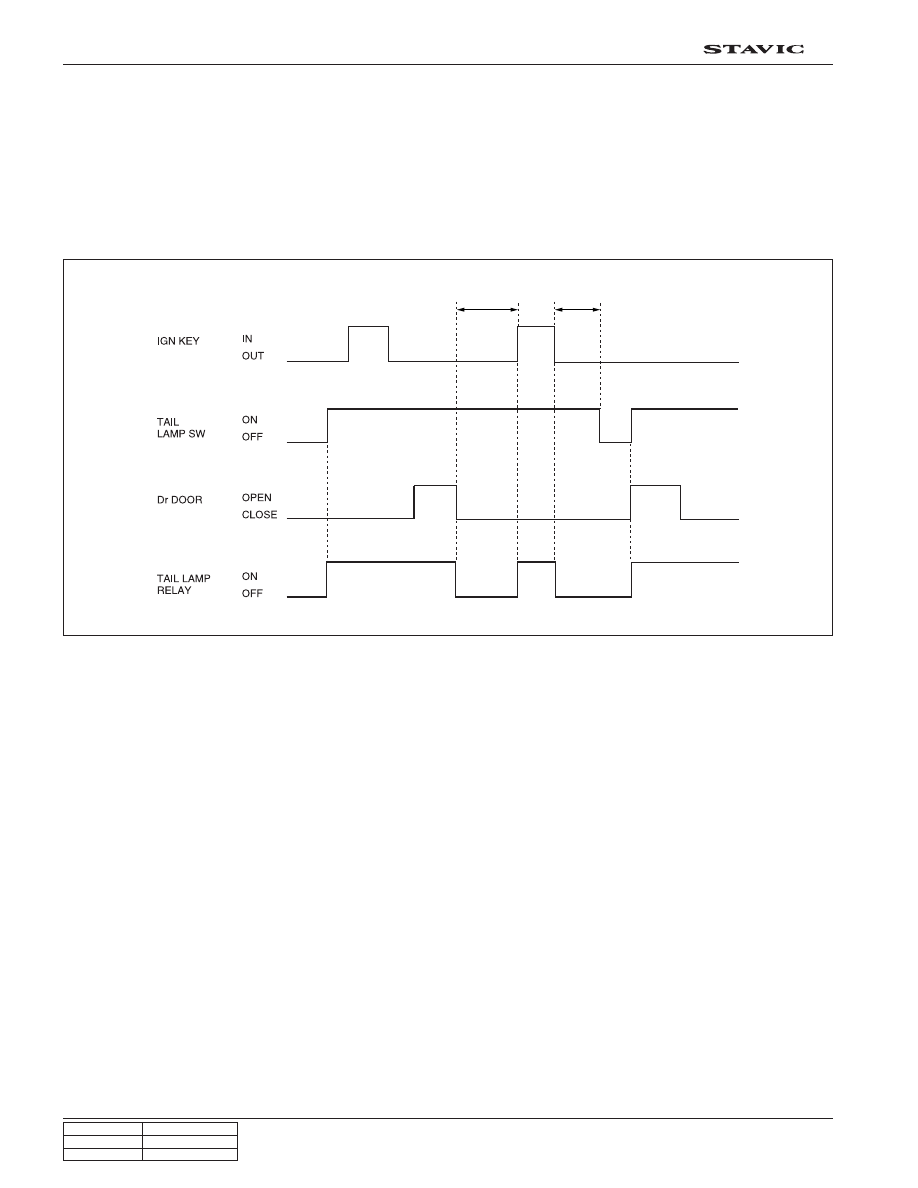

9) Battery Saver (Tail Lamp Auto Cut)

1. The tail lamp is turn on or off according to the operations of the multifunction tail lamp switch.

2. The tail lamp relay is turned off (auto cut) when opening and closing the driver’s door after removing the ignition key

without turning off the tail lamp.

3. Tail lamp relay is turned on when inserting the ignition key into ignition switch again after step 2 operation.

4. The tail lamp relay is turned off (auto cut) when opening and closing the driver’s door while the ignition key is

removed and the tail lamp is turned on.

AUTO CUT

AUTO CUT

27

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

RK STICS

STAVIC - 2004.09

2C

10) Defogger Timer

1. The system outputs the tailgate, windshield and outside rearview mirror heated glass “ON” signal when turning on

the defogger switch (while the engine is running).

2. The output stops when turning on the defogger switch again during its operation.

3. The output is “ON” only for 6 minutes (T3) when turning “ON” the rear defogger switch within 10 minutes (T2) after

completion of output.

When turning on the defogger switch again within 10 minutes (T2) after completion of initial 12 minutes (T1) of
output, the output comes on for 6 minutes (T3) again once only.

 4. The output stops when the IGN 2 switch is turned to “OFF” position or the ALT is “OFF”.

This vehicle has the windshield heated glass and the tailgate and outside rearview mirror heated glass. The heater relay
in the ICM box controls the tailgate and outside rearview mirror heated glass and its fuse (15A) is located in the engine
compartment fuse box.

OVER 9V

BELOW 9V

REAR DEFOGGER

SWITCH

REAR DEFOGGER

RELAY

T1: 12 min.

T2: 10 min.

T3: 6 min.

Defogger switch

28

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

RK STICS

STAVIC - 2004.09

2C

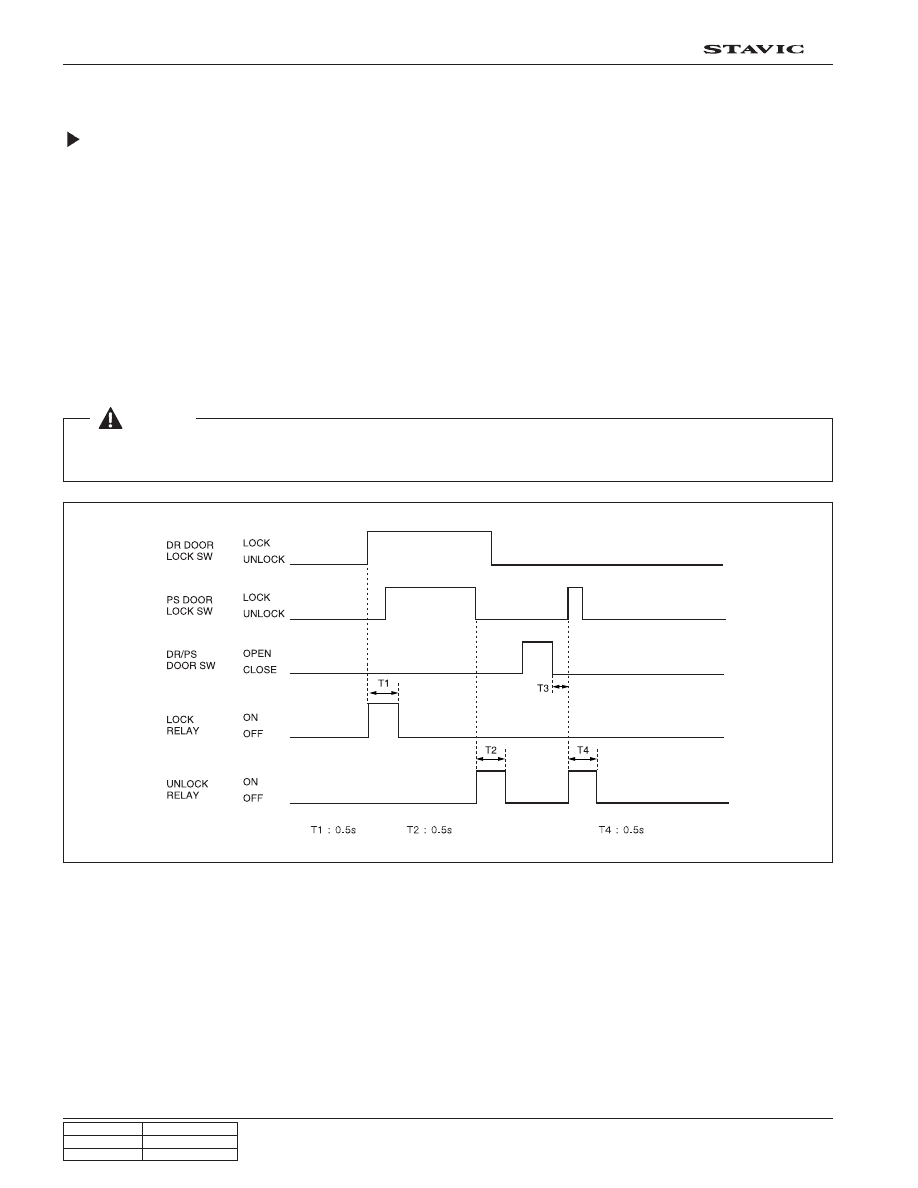

11) Door LOCK/UNLOCK Control

Door Lock/Unlock by Door Lock Switch

1. The door lock system outputs “LOCK” for 0.5 seconds (T1) when positioning the driver’s or passenger’s door lock

switch to lock position (while the driver’s and passenger’s door lock switch is in “UNLOCK” position).

2. The door lock system outputs “UNLOCK” for 0.5 seconds (T2) when positioning the driver’s or passenger’s door

lock switch to unlock position.

3. “LOCK” or “UNLOCK” by the door lock switch is ignored when outputting the “LOCK” or “UNLOCK” by other

functions.

4. The door lock/unlock system is not working regardless of the door lock switch positions when connecting the

battery.

5. All door lock signals are “UNLOCK” for 0.5 seconds (T4) just for once when receiving the “LOCK” signal within 0.5

seconds (T3) after closing the driver’s or passenger’s door. However, this operation is regardless of the ignition key
positions.

 [Notice]

This function prevents the door from locking by shock when slamming a door while the ignition key is inserted into the key
switch hole.

T3: within 0.5s
