CLUSTER / WARNING & INDICATOR PANEL

RODIUS/STAVIC - 2005.07

2B

METER CLUSTER / INDICATOR DISPLAY

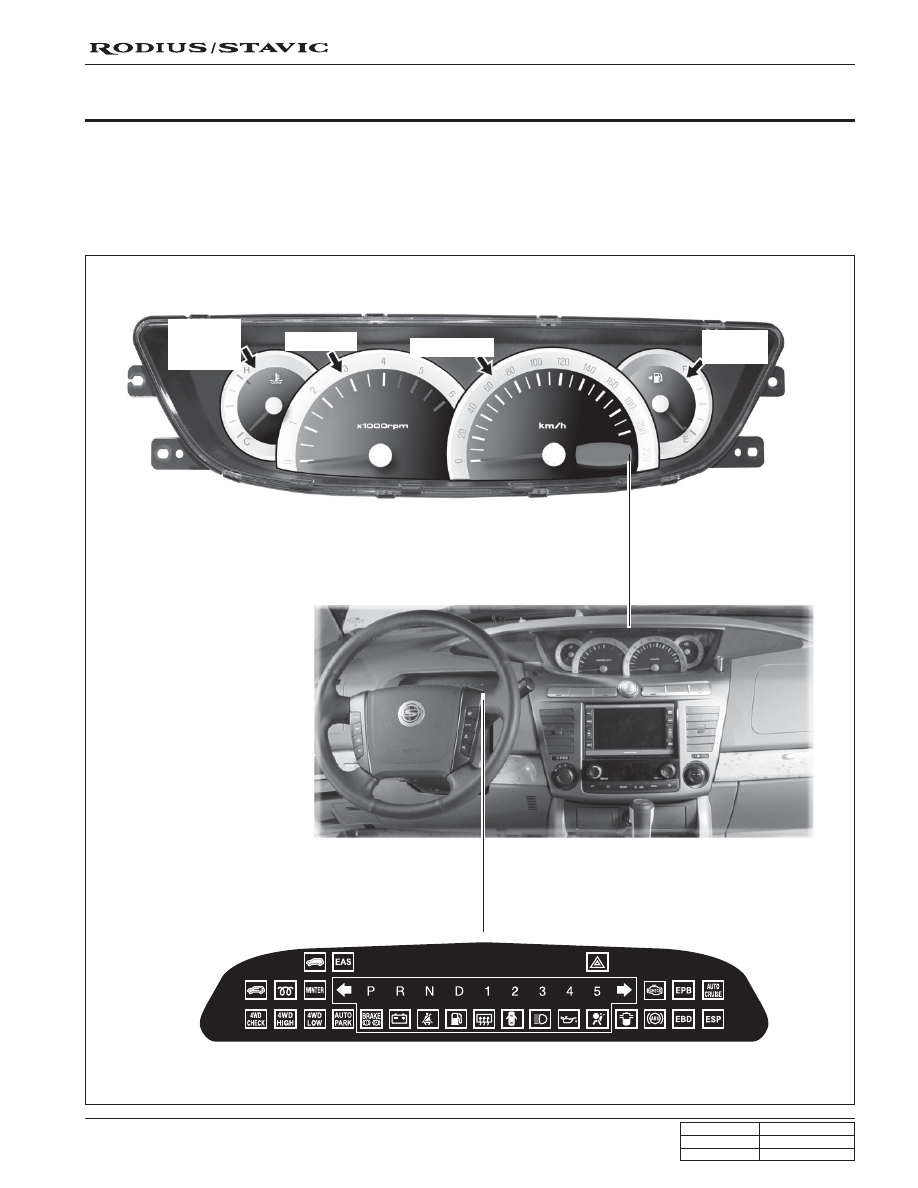

1. APPEARANCE

The instrument panel in this vehicle is different from conventional type of instrument panel. The meter cluster and
indicator display are separated. The meter cluster is located at the center of the dash panel, and the indicator display is
located in front of driver’s seat.

Meter cluster

Warning lamps and indicators

Speedometer

Coolant

temperature

gauge

RPM gage

Fuel level

gauge

4

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

CLUSTER / WARNING & INDICATOR PANEL

RODIUS/STAVIC - 2005.07

2B

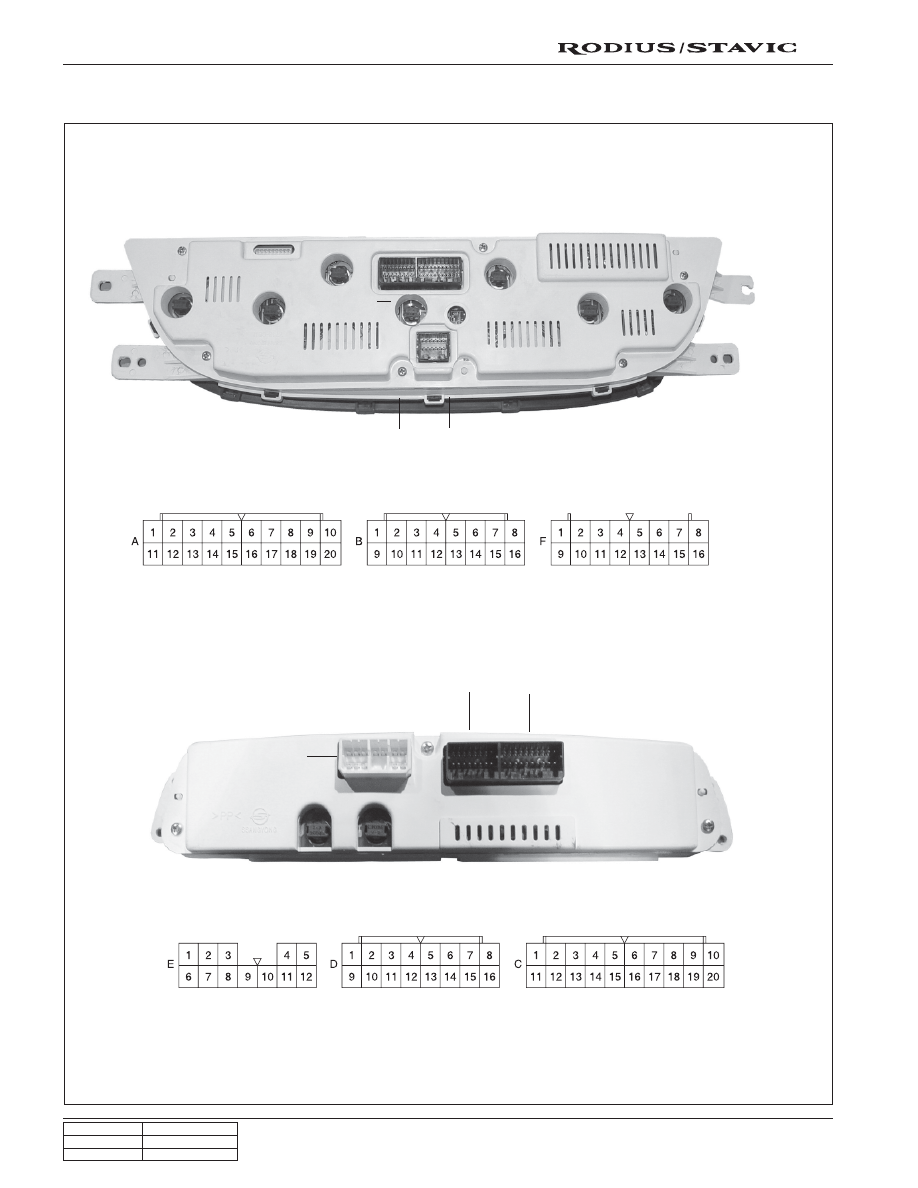

2. CONNECTORS AND CIRCUIT DIAGRAM

A

B

F

E

D

C

Meter Cluster

Warning Lamps and Indicators

5

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

CLUSTER / WARNING & INDICATOR PANEL

RODIUS/STAVIC - 2005.07

2B

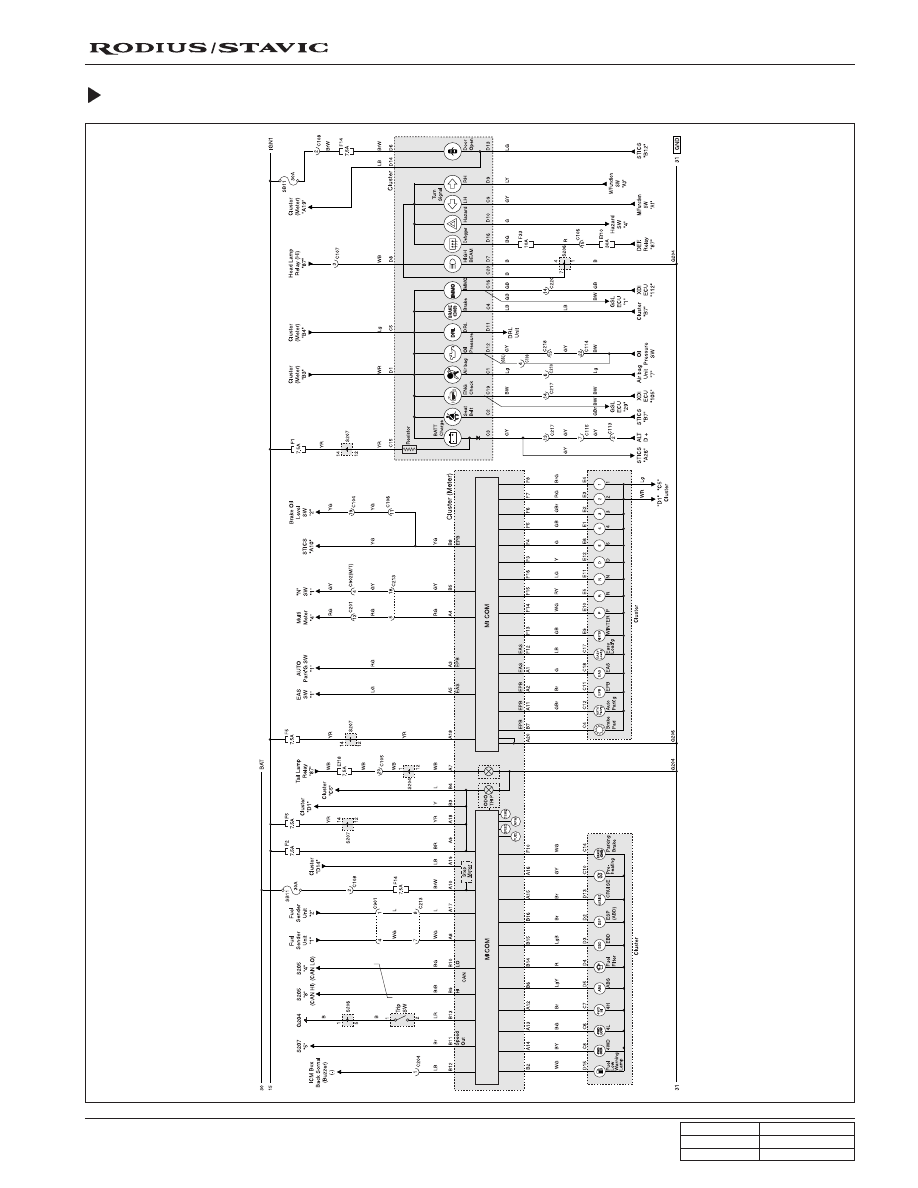

Circuit Diagram of Indicator Display

7

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

CLUSTER / WARNING & INDICATOR PANEL

RODIUS/STAVIC - 2005.07

2B

If the tachometer pointer vibrates, stands at a certain range or sounds abnormal noise, there could be defectives in
tachometer. If there is a difference between actual engine speed (rpm) and reading from tachometer, connect a scanner
and then compare the value on tachometer with the reading from scanner.

Description

Engine speed (rpm)

Tolerance (rpm)

6000

-

Specification (VIN=13 ± 0.1V, Temperature: 25

°C)

700

+50

-100

1000

+100

-100

2000

+125

-125

3000

+150

-150

4000

+150

-150

5000

-

The tachometer indicates engine speed in revolutions per minute. Multiply 1,000 to the current number, then it will be the
current number of engine revolutions.

Under the normal engine operating temperature, the proper idling speed is 700~800 rpm. The red zone (danger rpm
range) starts from 4,500 rpm.

1. Connect the tachometer for tune-up test and start the engine.

2. Eliminate the hysteresis by tapping the tachometer.

3. Compare the values on the tester and tachometer and replace the tachometer if the tolerance is excessive.

4. FUNCTION DESCRIPTION AND INSPECTION OF METER CLUSTER

Meter Cluster

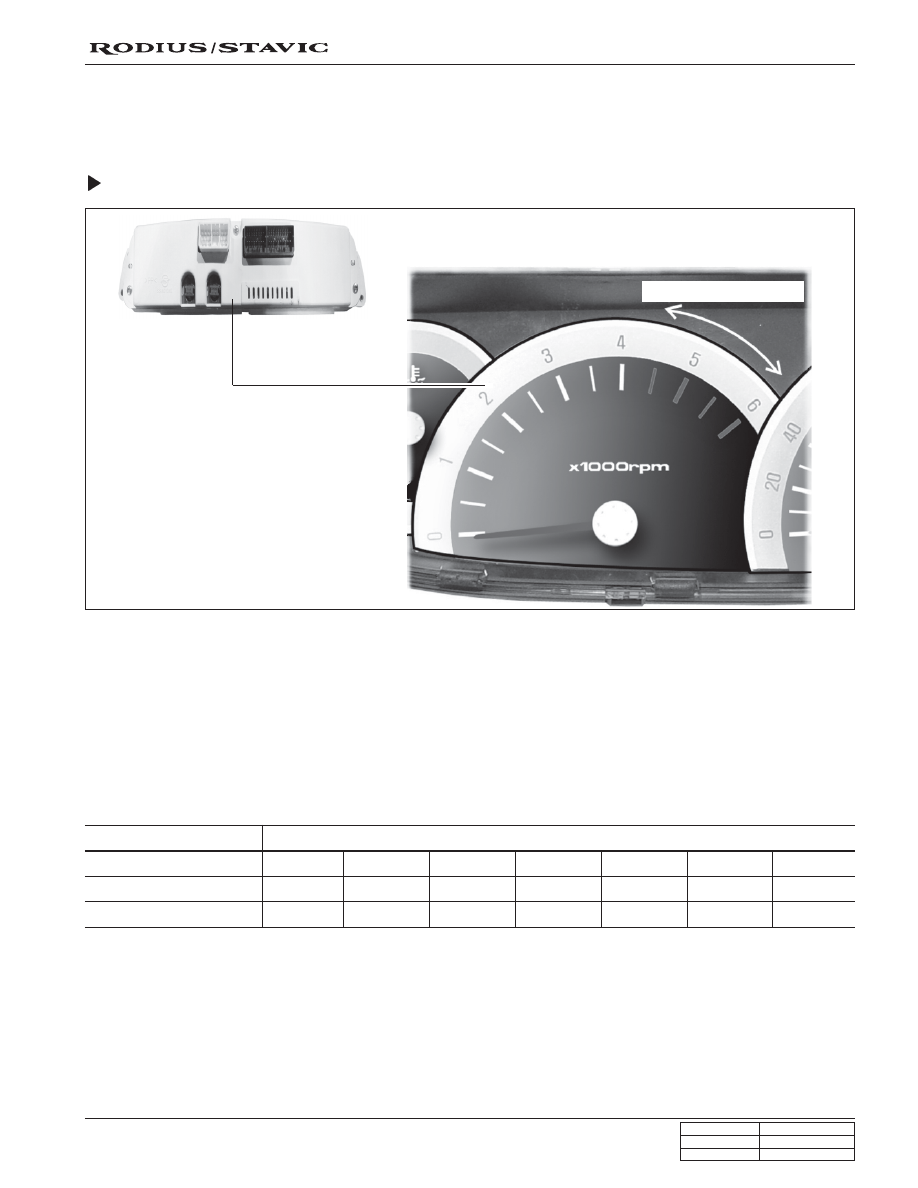

Tachometer – Engine RPM Display

Danger range (red zone)
