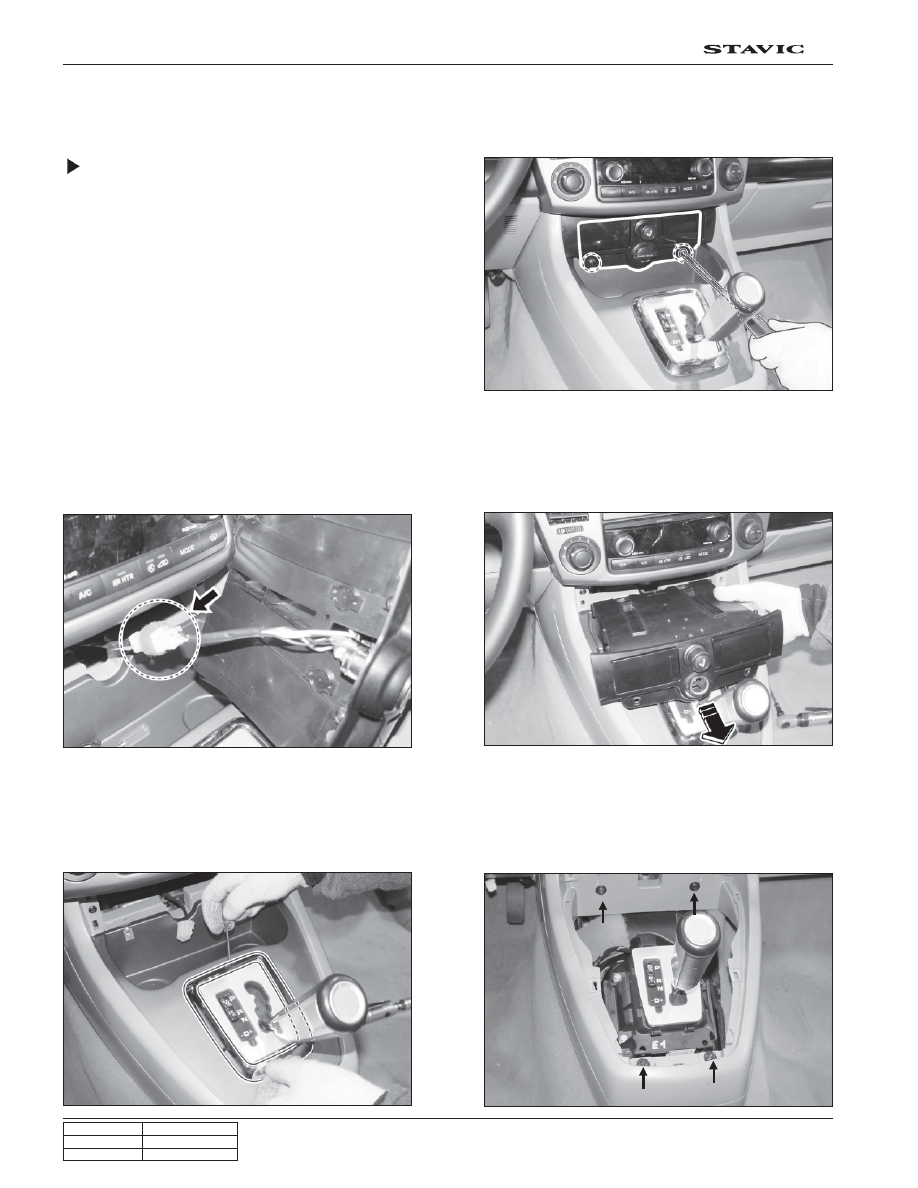

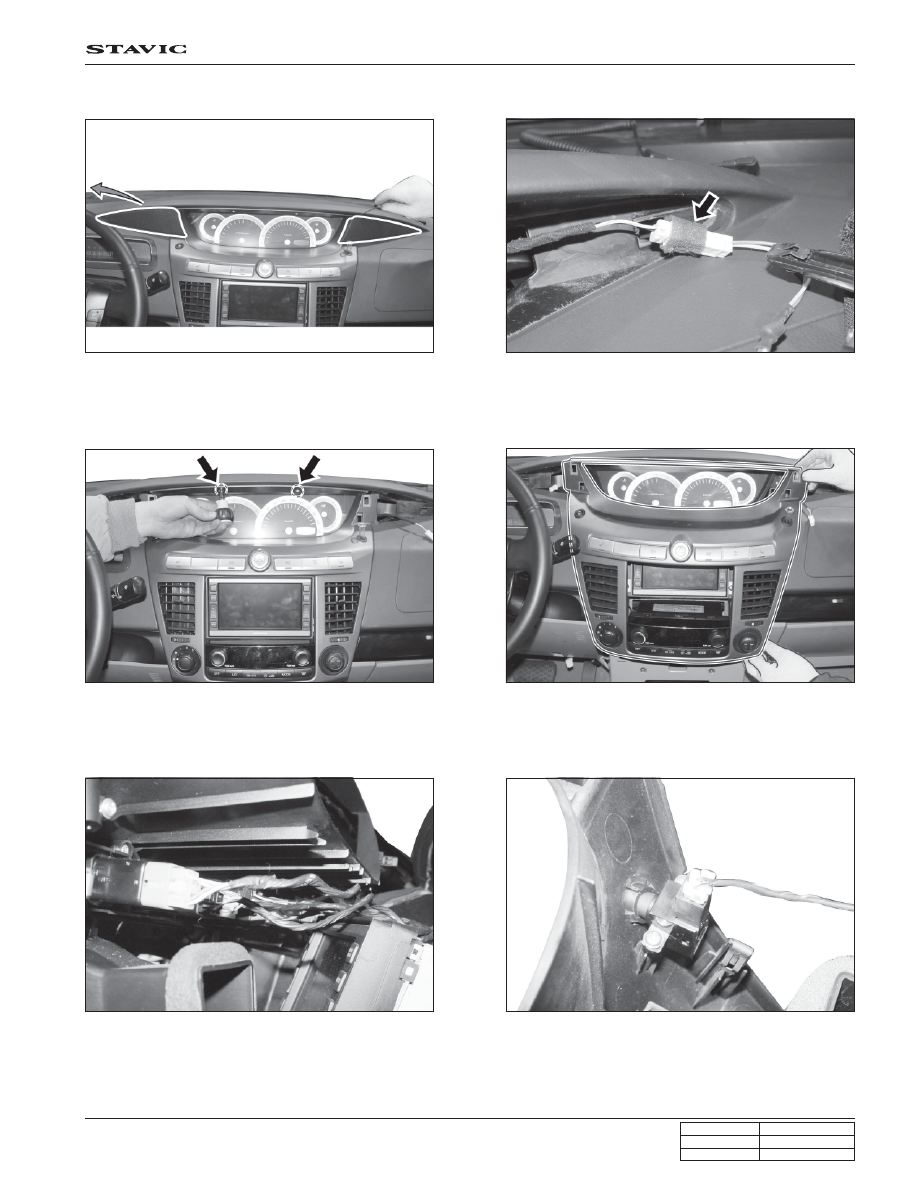

CLUSTER / WARNING & INDICATOR PANEL
STAVIC - 2004.09
2B
This indicator comes on when the ignition
switch is turned on and stays on for a short
time or may go off right away. When the glow
plugs are sufficiently heated for cold starting,
the light will go out. Then, start the engine.
In the vehicle equipped with direct injection
type engine, this indicator may come on very
shortly or may not come on.
4WD CHECK Warning Light
This warning light comes on when the igni-
tion switch is turned to “ON” and should go
out if the system is normal. If “4WD CHECK”
warning light stays on or “4WD LOW” indica-
tor blinks continuously, it may indicate that
there is something wrong in the immobilizer
system.
4WD LOW indicator*
When shifting the driving mode between “4WD
LOW” and “4WD HIGH”, this indicator blinks
until the shifting operation is completed. After
completion of mode change, the indicator goes
out.
This indicator indicates the operating condi-
tions of immobilizer system. This indicator
comes on when the ignition key is communi-
cating with the engine control unit (during
engine starting) and goes out after starting
the engine. If this indicator blinks, it may indi-
cate that there is something wrong in the im-
mobilizer system.
Immobilizer Indicator
The indicator comes on when the Win-
ter mode (W) switch near the gear se-
lector lever is pressed. Use this mode
to drive off smoothly under icy and slip-
pery road. In this mode, the vehicle
drives off with second gear in forward
and reverse driving.
4WD CHECK Warning Light /
4WD LOW indicator
This warning light comes on when the
ignition switch is turned to ON and goes
out if the engine is in normal condition. If
the light stays on or comes on while
driving, some of engine control compo-
nents including sensors and devices are
defective. When this warning light comes
on, the vehicle operates in safety mode
to maintain minimum driving conditions
and to prevent the system from being
damaged. In this mode, the engine driv-
ing force may be decreased or the en-
gine may stall. For more details, refer to
“Engine” section in this manual.
Brake Warning Light
When the ignition is switched on, this warn-
ing light comes on and should go out. This
warning light comes on when the parking
brake is applied and/or the brake fluid level is
lower than specified level. If the vehicle is
driven for over 2 seconds (over 10 km/h) while
the parking brake is applied, the parking brake
warning light comes on and warning buzzer
sounds.
The seat belt warning light comes on
and the seat belt warning chime sound
for 6 seconds when the ignition switch
is turned to “ON” position unless the
driver’s seat belt is securely fastened.
This reminding operation stops when
the driver fastens the seat belt even
during its operation period.
Seat Belt Reminder
This warning light comes on when the
ignition switch is turned on and go off
when the engine is started. If this light
doesn’t go off after engine starting or
comes on while driving, it means there
is a malfunction in the system. The bat-
tery voltage is also displayed on the multi
meter.
Glow Indicator (For Diesel Engine)
This indicator shows the automatic
transmission selector lever position.
When the selector lever is at "D" posi-
tion while driving, "D" indicator and cur-
rently selected gear indicator are com-
ing on. If you move the selector lever to
left or right direction, only the selected
gear indicator comes on.
Parking Reverse Neutral Driving
Driving gears

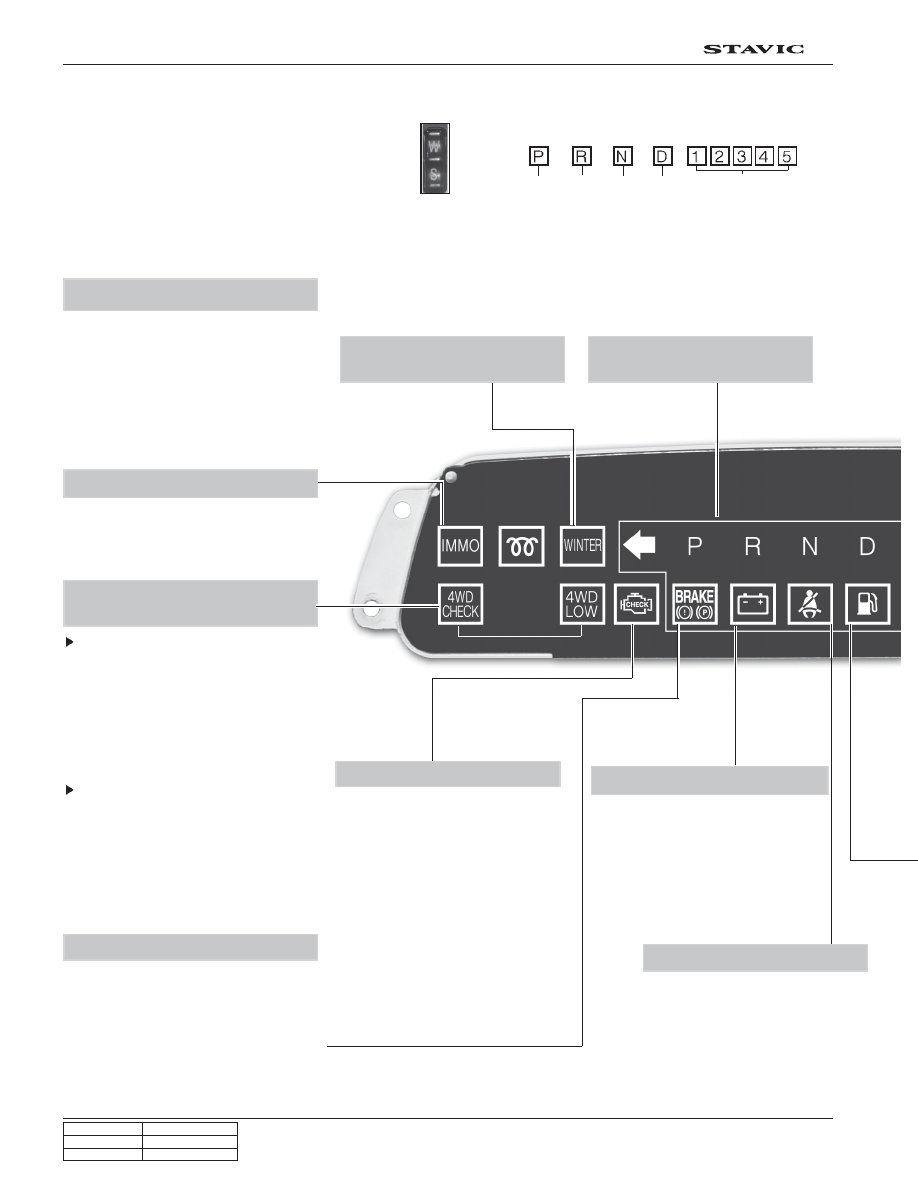

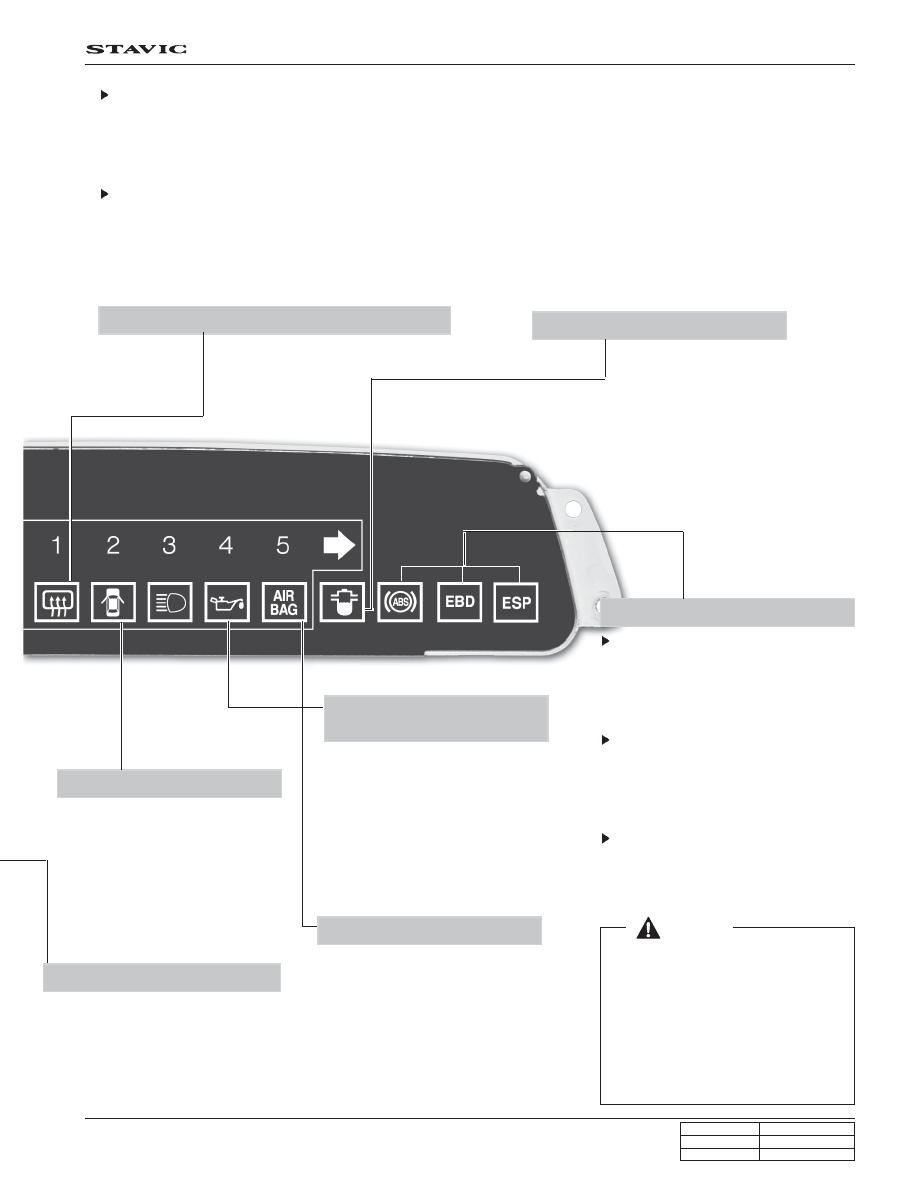

5. WARNING & INDICATOR PANEL
Auto Shift Indicator
(for automatic transmission)
Winter Mode Indicator
(For Automatic Transmission)
Engine Check Warning Light
Battery Charge Warning Light
